2012 Peugeot M59 Owner's Manual - RHD (UK, Australia)

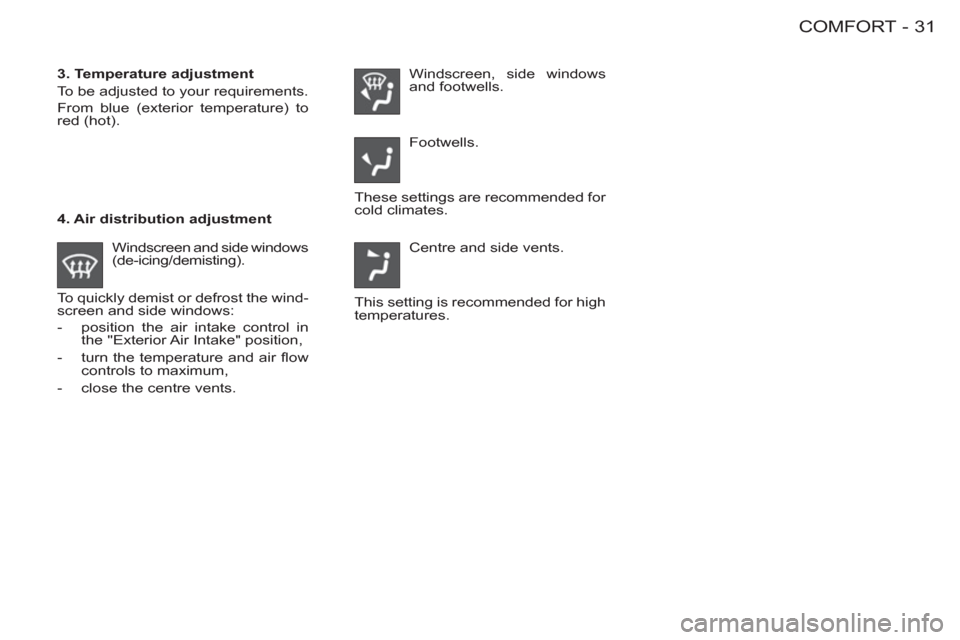

31COMFORT-
These settings are recommended for
cold climates.
3. Temperature adjustment
To be adjusted to your requirements.
From blue (exterior temperature) to
red (hot).

4. Air distribution adjustment
This setting is recommended for high
temperatures.
Windscreen and side windows
(de-icing/demisting).
To quickly demist or defrost the wind-
screen and side windows:


- position the air intake control in
the ''Exterior Air Intake" position,

- turn the temperature and air fl ow
controls to maximum,

- close the centre vents. Windscreen, side windows
and footwells.
Footwells.
Centre and side vents.

COMFORT32 -
Press the switch to activate
the air conditioning. The indi-
cator lamp comes on.
2. Air fl ow adjustment and air
intake control
Turn the control from posi-
tion 1
to position 4
to obtain
an air fl ow suffi cient to en-
sure your comfort.
AIR CONDITIONING


The air conditioning does not op-
erate while the air fl ow adjustment
control is in the minimum position.


Note:
to optimise the operation of
the air conditioning, leave the vents
open.
1. Air conditioning control
The air conditioning is designed to
operate in all seasons. In summer,
it enables the temperature to be
lowered and in winter, above 0 °C,
it increases the effectiveness of the
demisting.

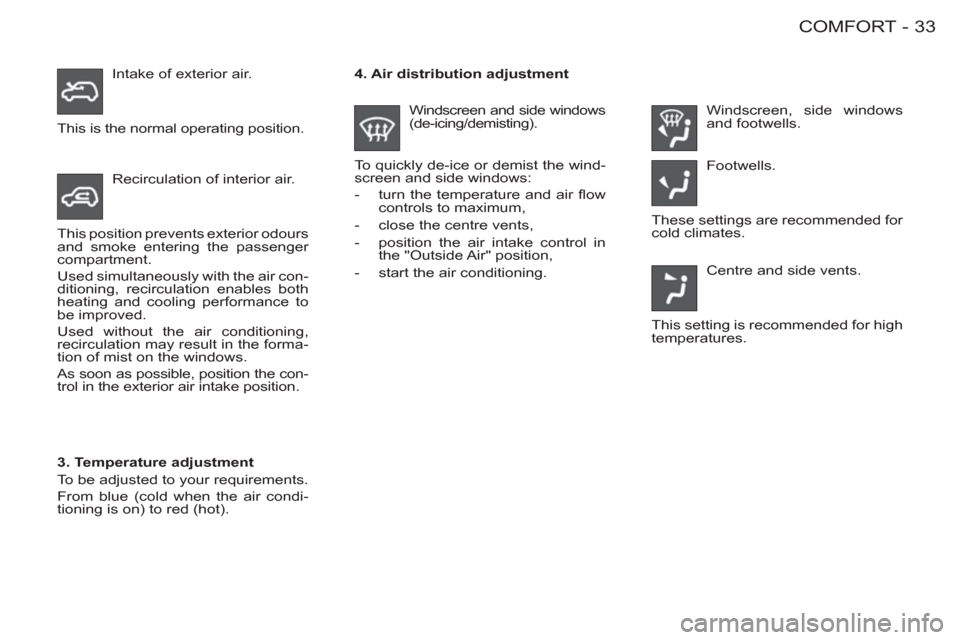

33COMFORT-
Centre and side vents.
This setting is recommended for high
temperatures.
Recirculation of interior air.
This position prevents exterior odours
and smoke entering the passenger
compartment.
Used simultaneously with the air con-
ditioning, recirculation enables both
heating and cooling performance to
be improved.
Used without the air conditioning,
recirculation may result in the forma-
tion of mist on the windows.
As soon as possible, position the con-
trol in the exterior air intake position.

3. Temperature adjustment
To be adjusted to your requirements.
From blue (cold when the air condi-
tioning is on) to red (hot).
4. Air distribution adjustment
Windscreen and side windows
(de-icing/demisting).
To quickly de-ice or demist the wind-
screen and side windows:


- turn the temperature and air fl ow
controls to maximum,

- close the centre vents,

- position the air intake control in
the "Outside Air" position,

- start the air conditioning. Footwells.
These settings are recommended for
cold climates. Windscreen, side windows
and footwells. Intake of exterior air.
This is the normal operating position.

SEATS34-

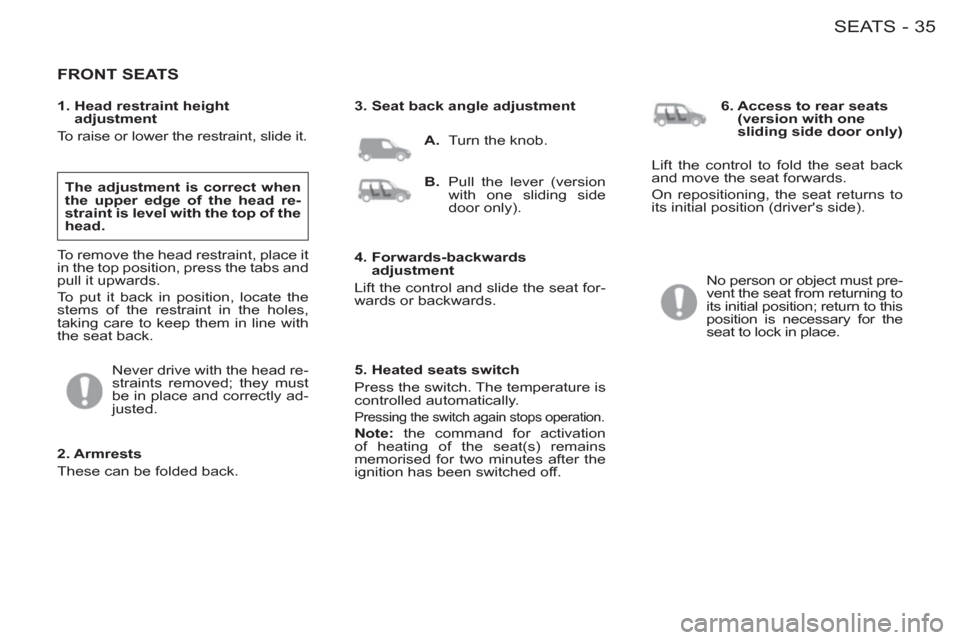

35SEATS-
FRONT SEATS




The adjustment is correct when
the upper edge of the head re-
straint is level with the top of the
head.


To remove the head restraint, place it
in the top position, press the tabs and
pull it upwards.
To put it back in position, locate the
stems of the restraint in the holes,
taking care to keep them in line with
the seat back.
4. Forwards-backwards
adjustment
Lift the control and slide the seat for-
wards or backwards.
1. Head restraint height
adjustment
To raise or lower the restraint, slide it.

2. Armrests
These can be folded back.
3. Seat back angle adjustment

6. Access to rear seats
(version with one
sliding side door only)

5. Heated seats switch
Press the switch. The temperature is
controlled automatically.

Pressing the switch again stops operation.

Note:
the command for activation
of heating of the seat(s) remains
memorised for two minutes after the
ignition has been switched off. No person or object must pre-
vent the seat from returning to
its initial position; return to this
position is necessary for the
seat to lock in place.


A.
Turn the knob.

B.
Pull the lever (version
with one sliding side
door only).

Never drive with the head re-
straints removed; they must
be in place and correctly ad-
justed.
Lift the control to fold the seat back
and move the seat forwards.
On repositioning, the seat returns to
its initial position (driver's side).

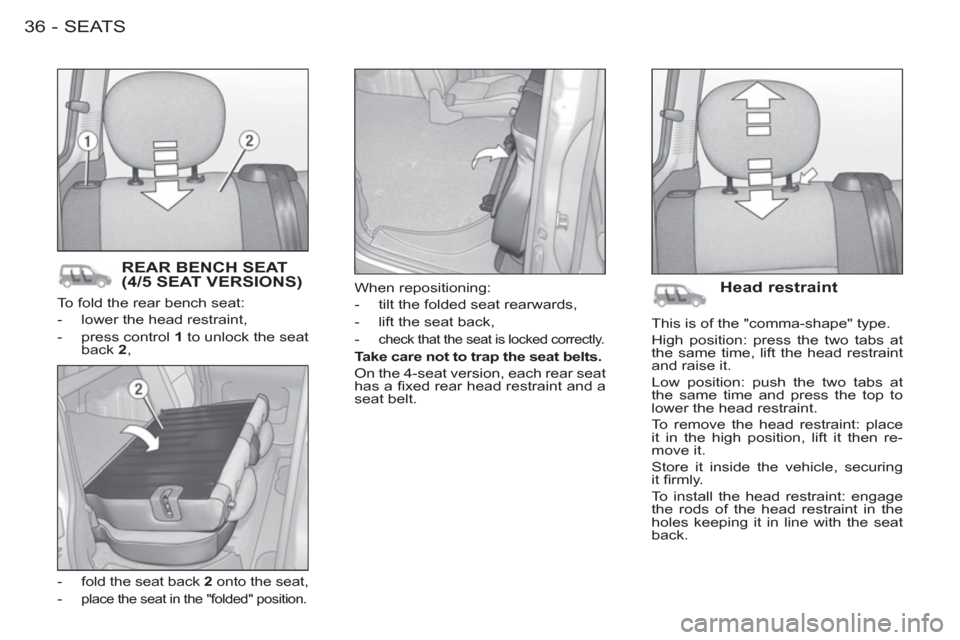

SEATS36-
To fold the rear bench seat:


- lower the head restraint,

- press control 1
to unlock the seat
back 2
,

- fold the seat back 2
onto the seat,

-
place the seat in the "folded" position.
When repositioning:


- tilt the folded seat rearwards,

- lift the seat back,

-
check that the seat is locked correctly.

Take care not to trap the seat belts.
On the 4-seat version, each rear seat
has a fi xed rear head restraint and a
seat belt.
REAR BENCH SEAT(4/5 SEAT VERSIONS)
Head restraint

This is of the "comma-shape" type.
High position: press the two tabs at
the same time, lift the head restraint
and raise it.
Low position: push the two tabs at
the same time and press the top to
lower the head restraint.
To remove the head restraint: place
it in the high position, lift it then re-
move it.
Store it inside the vehicle, securing
it fi rmly.
To install the head restraint: engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.

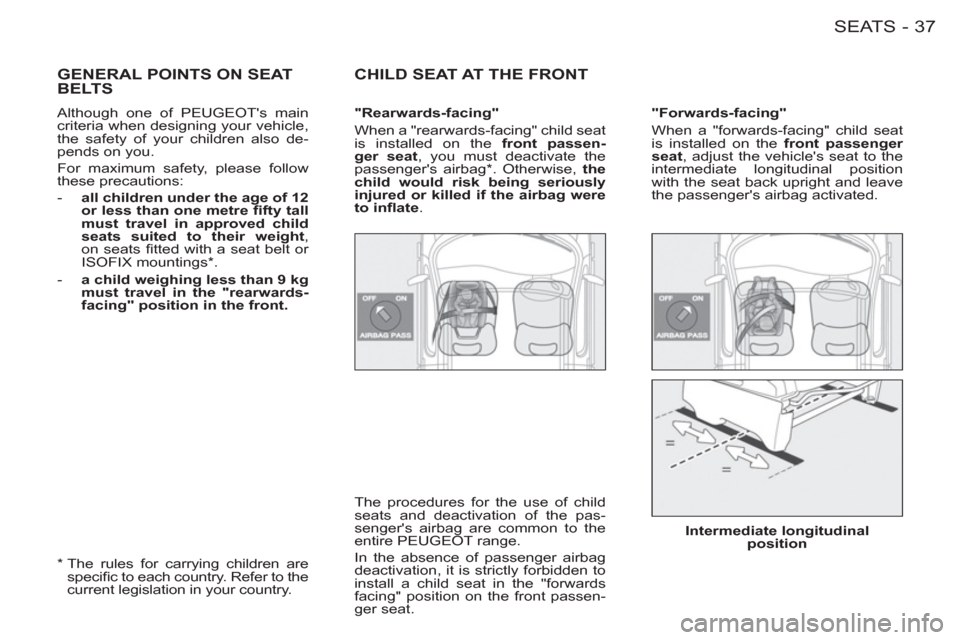

37SEATS-
GENERAL POINTS ON SEATBELTS
CHILD SEAT AT THE FRONT


"Forwards-facing"
When a "forwards-facing" child seat
is installed on the front passenger
seat
, adjust the vehicle's seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger's airbag activated.

Intermediate longitudinal
position
"Rearwards-facing"
When a "rearwards-facing" child seat
is installed on the front passen-
ger seat
, you must deactivate the
passenger's airbag * . Otherwise, the
child would risk being seriously
injured or killed if the airbag were
to infl ate
.

*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country.
The procedures for the use of child
seats and deactivation of the pas-
senger's airbag are common to the
entire PEUGEOT range.
In the absence of passenger airbag
deactivation, it is strictly forbidden to
install a child seat in the "forwards
facing" position on the front passen-
ger seat.
Although one of PEUGEOT's main
criteria when designing your vehicle,
the safety of your children also de-
pends on you.
For maximum safety, please follow
these precautions:


- all children under the age of 12
or less than one metre fi fty tall
must travel in approved child
seats suited to their weight
,
on seats fi tted with a seat belt or
ISOFIX mountings * .

- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position in the front.

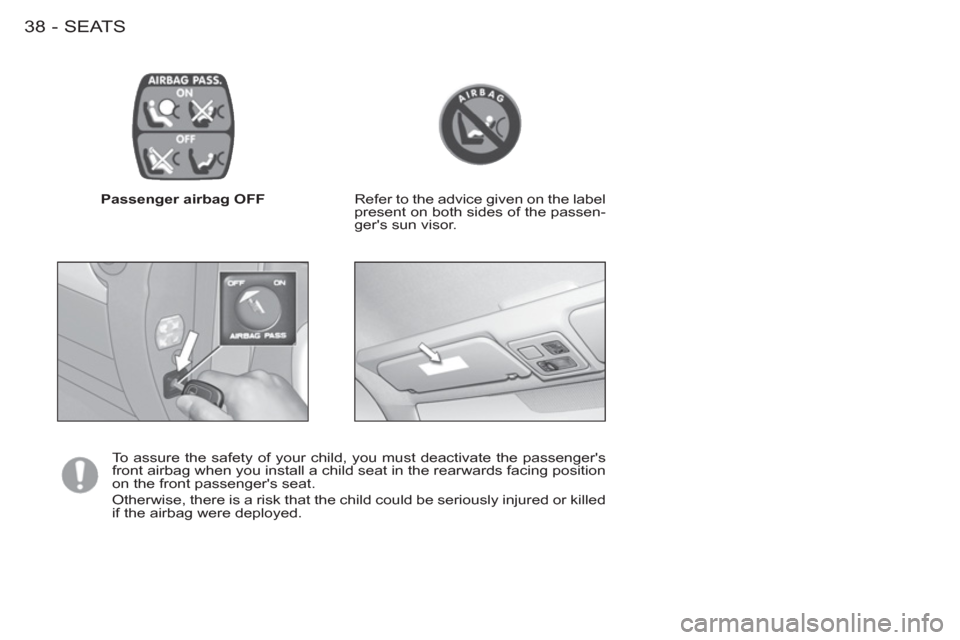

SEATS38-


Passenger airbag OFF

Refer to the advice given on the label
present on both sides of the passen-
ger's sun visor.

To assure the safety of your child, you must deactivate the passenger's
front airbag when you install a child seat in the rearwards facing position
on the front passenger's seat.
Otherwise, there is a risk that the child could be seriously injured or killed
if the airbag were deployed.
