2012 Peugeot M59 Owner's Manual - RHD (UK, Australia)

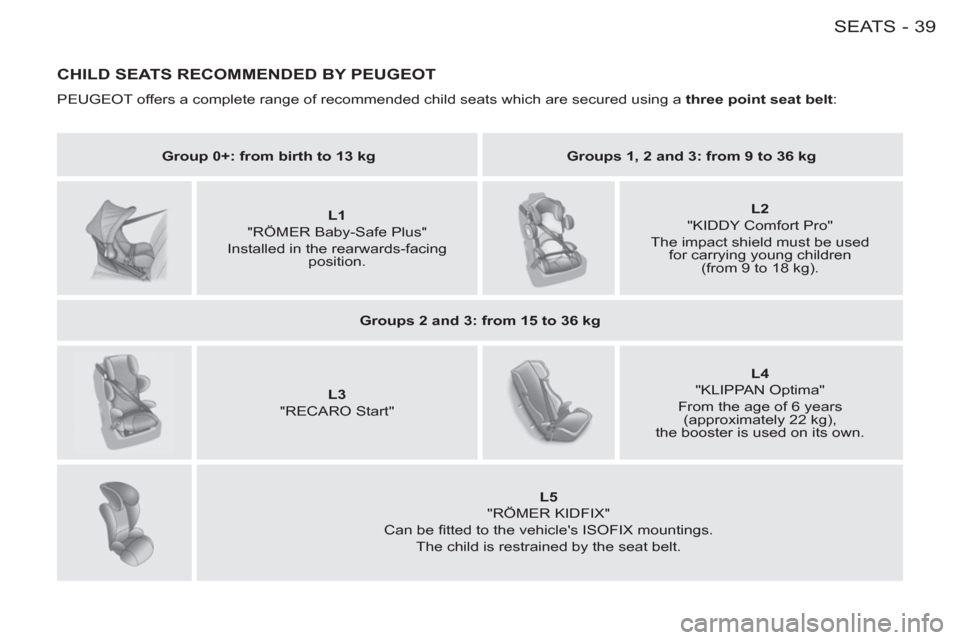

39SEATS-
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured using a three point seat belt
:


Group 0+: from birth to 13 kg



Groups 1, 2 and 3: from 9 to 36 kg






L1

"RÖMER Baby-Safe Plus"
Installed in the rearwards-facing
position.



L2

"KIDDY Comfort Pro"
The impact shield must be used
for carrying young children
(from 9 to 18 kg).


Groups 2 and 3: from 15 to 36 kg






L3

"RECARO Start''



L4

"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg),
the booster is used on its own.




L5

"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

SEATS

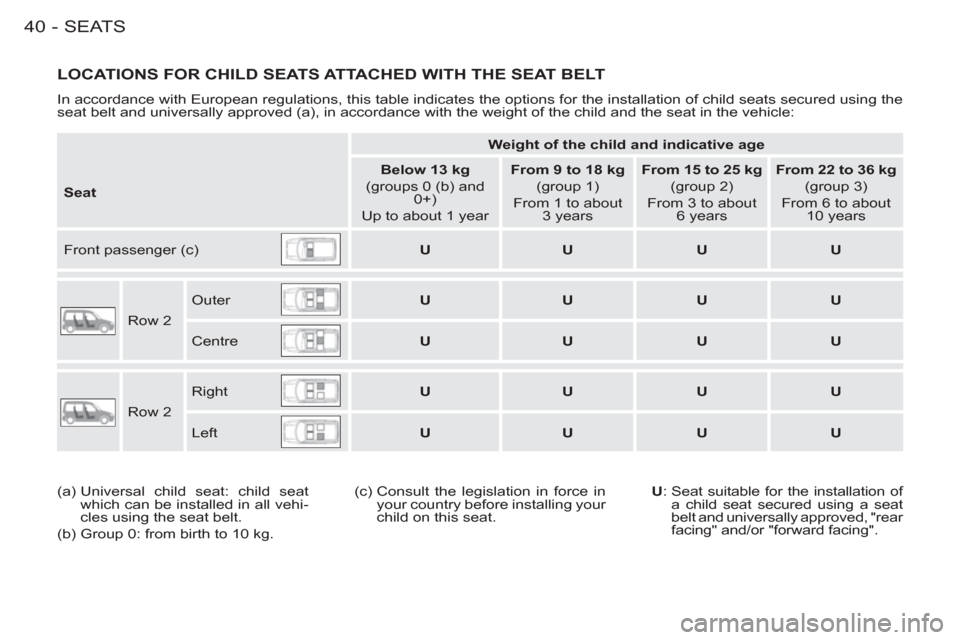

40-
LOCATIONS FOR CHILD SEATS ATTACHED WITH THE SEAT BELT

In accordance with European regulations, this table indicates the options for the installation of child seats secured using the
seat belt and universally approved (a), in accordance with the weight of the child and the seat in the vehicle:



Weight of the child and indicative age




Seat



Below 13 kg

(groups 0 (b) and
0+)
Up to about 1 year

From 9 to 18 kg

(group 1)
From 1 to about
3 years

From 15 to 25 kg



(group 2)
From 3 to about
6 years

From 22 to 36 kg



(group 3)
From 6 to about
10 years
Front passenger (c)

U



U



U



U






Row 2 Outer

U



U



U



U


Centre

U



U



U



U






Row 2 Right

U



U



U



U


Left

U



U



U



U


(a) Universal child seat: child seat
which can be installed in all vehi-
cles using the seat belt.
(b) Group 0: from birth to 10 kg. (c) Consult the legislation in force in
your country before installing your
child on this seat.
U
: Seat suitable for the installation of
a child seat secured using a seat
belt and universally approved, "rear
facing" and/or "forward facing".

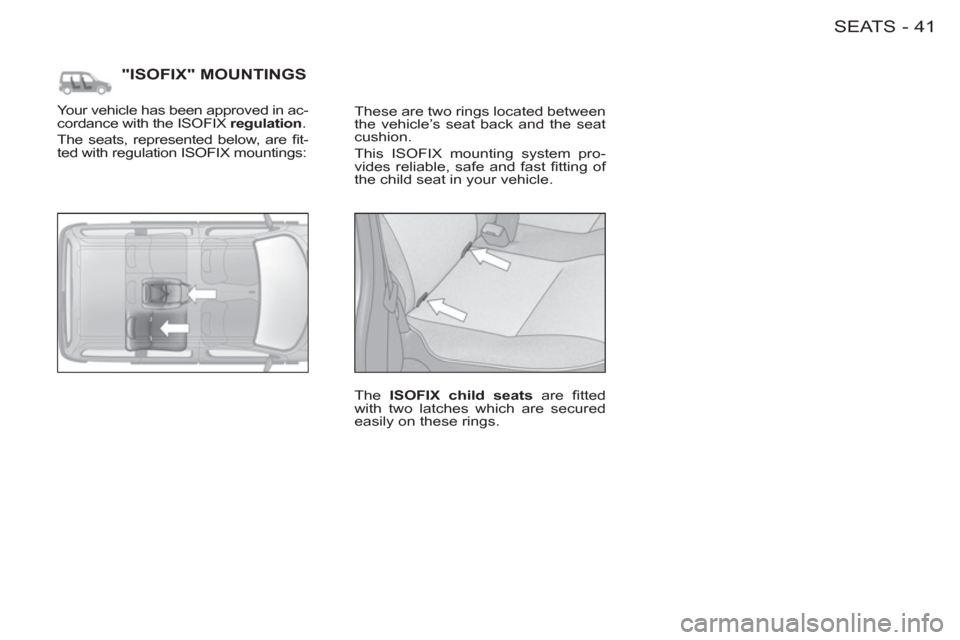

41SEATS-
"ISOFIX" MOUNTINGS

These are two rings located between
the vehicle’s seat back and the seat
cushion.
This ISOFIX mounting system pro-
vides reliable, safe and fast fi tting of
the child seat in your vehicle.
The ISOFIX child seats
are fi tted
with two latches which are secured
easily on these rings. Your vehicle has been approved in ac-
cordance with the ISOFIX regulation
.
The seats, represented below, are fi t-
ted with regulation ISOFIX mountings:

SEATS

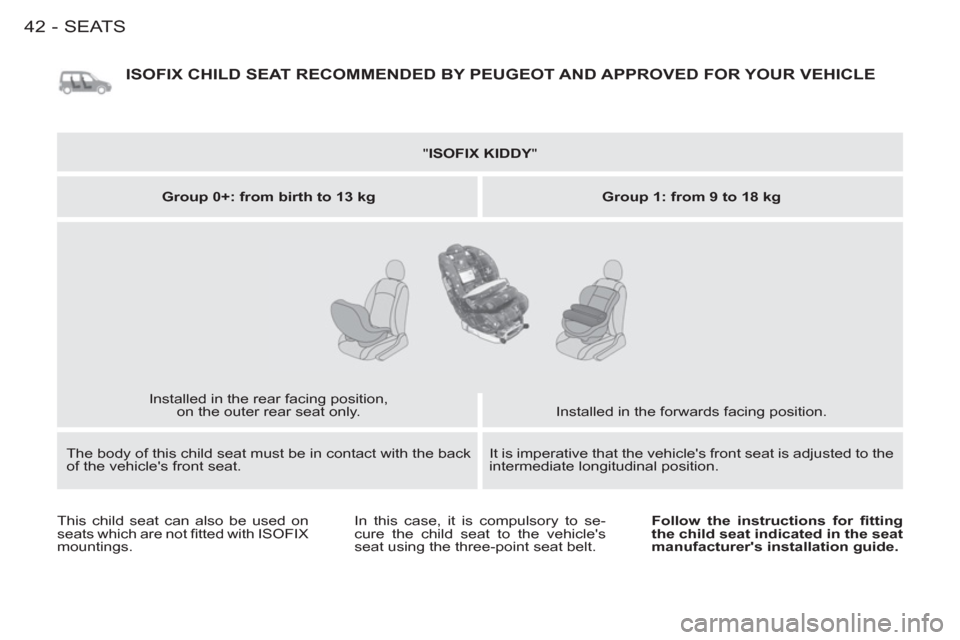

42-
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE


" ISOFIX KIDDY
"

Group 0+: from birth to 13 kg

Group 1: from 9 to 18 kg

Installed in the rear facing position,
on the outer rear seat only. Installed in the forwards facing position.
The body of this child seat must be in contact with the back
of the vehicle's front seat. It is imperative that the vehicle's front seat is adjusted to the
intermediate longitudinal position.
This child seat can also be used on
seats which are not fi tted with ISOFIX
mountings. In this case, it is compulsory to se-
cure the child seat to the vehicle's
seat using the three-point seat belt.
Follow the instructions for fi tting
the child seat indicated in the seat
manufacturer's installation guide.

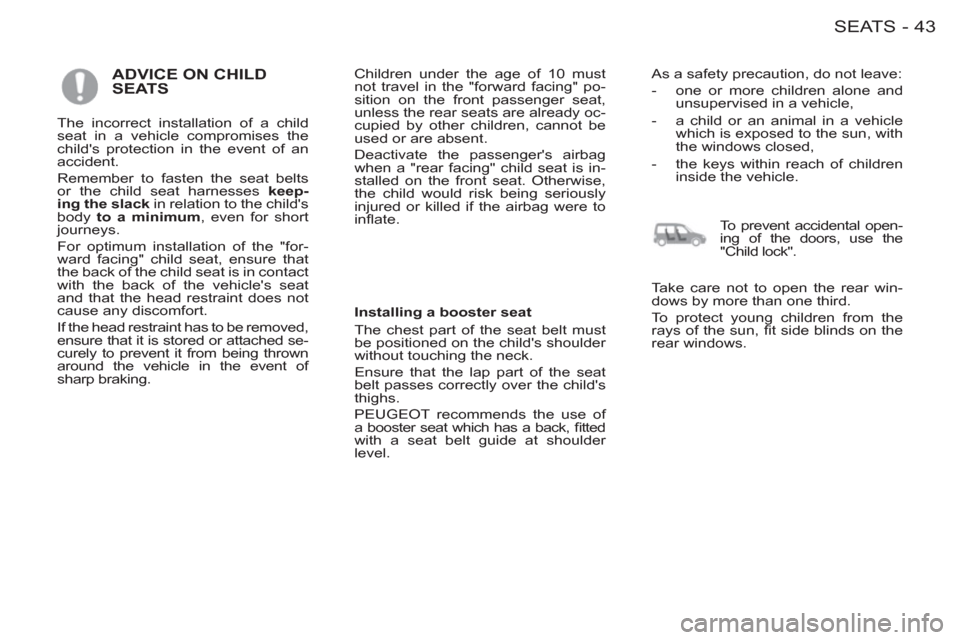

43SEATS-
ADVICE ON CHILD SEATS Children under the age of 10 must
not travel in the "forward facing" po-
sition on the front passenger seat,
unless the rear seats are already oc-
cupied by other children, cannot be
used or are absent.
Deactivate the passenger's airbag
when a "rear facing" child seat is in-
stalled on the front seat. Otherwise,
the child would risk being seriously
injured or killed if the airbag were to
infl ate. As a safety precaution, do not leave:


- one or more children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.

Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi tted
with a seat belt guide at shoulder
level. To prevent accidental open-
ing of the doors, use the
"Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts
or the child seat harnesses keep-
ing the slack
in relation to the child's
body to a minimum
, even for short
journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of
sharp braking.

SEATS

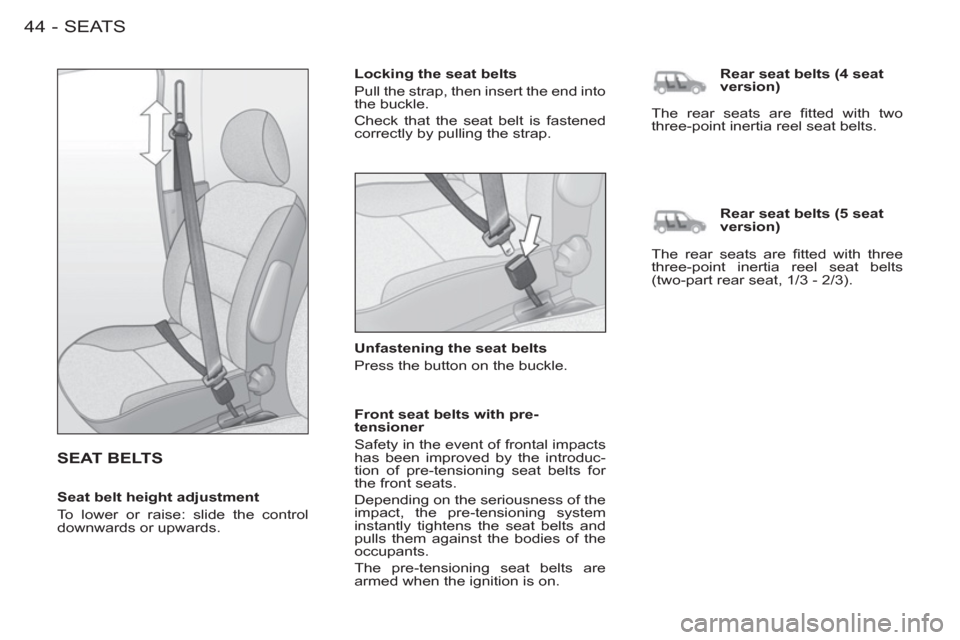

44-
SEAT BELTS


Locking the seat belts
Pull the strap, then insert the end into
the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.

Unfastening the seat belts
Press the button on the buckle.

Front seat belts with pre-
tensioner
Safety in the event of frontal impacts
has been improved by the introduc-
tion of pre-tensioning seat belts for
the front seats.
Depending on the seriousness of the
impact, the pre-tensioning system
instantly tightens the seat belts and
pulls them against the bodies of the
occupants.
The pre-tensioning seat belts are
armed when the ignition is on.
Seat belt height adjustment
To lower or raise: slide the control
downwards or upwards.
Rear seat belts (4 seat
version)
The rear seats are fi tted with two
three-point inertia reel seat belts.

Rear seat belts (5 seat
version)
The rear seats are fi tted with three
three-point inertia reel seat belts
(two-part rear seat, 1/3 - 2/3).

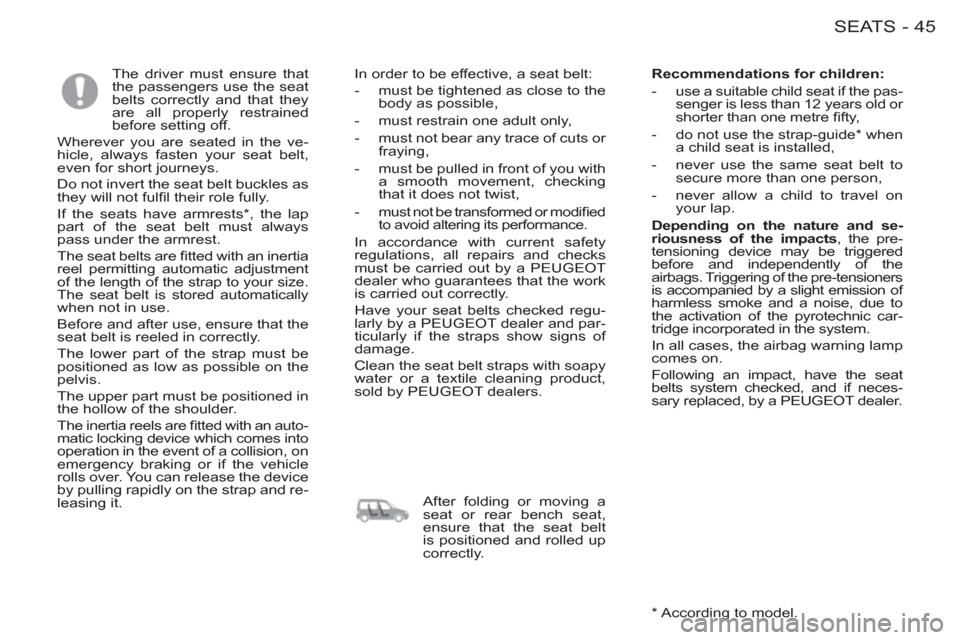

45SEATS-





The driver must ensure that
the passengers use the seat
belts correctly and that they
are all properly restrained
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
they will not fulfi l their role fully.
If the seats have armrests * , the lap
part of the seat belt must always
pass under the armrest.
The seat belts are fi tted with an inertia
reel permitting automatic adjustment
of the length of the strap to your size.
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
The inertia reels are fi tted with an auto-
matic locking device which comes into
operation in the event of a collision, on
emergency braking or if the vehicle
rolls over. You can release the device
by pulling rapidly on the strap and re-
leasing it.
In order to be effective, a seat belt:


- must be tightened as close to the
body as possible,

- must restrain one adult only,

- must not bear any trace of cuts or
fraying,

- must be pulled in front of you with
a smooth movement, checking
that it does not twist,

- must not be transformed or modifi ed
to avoid altering its performance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a PEUGEOT
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.

*
According to model.
Recommendations for children:


- use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one metre fi fty,

- do not use the strap-guide * when
a child seat is installed,

- never use the same seat belt to
secure more than one person,

- never allow a child to travel on
your lap.

Depending on the nature and se-
riousness of the impacts
, the pre-
tensioning device may be triggered
before and independently of the
airbags. Triggering of the pre-tensioners
is accompanied by a slight emission of
harmless smoke and a noise, due to
the activation of the pyrotechnic car-
tridge incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.


After folding or moving a
seat or rear bench seat,
ensure that the seat belt
is positioned and rolled up
correctly.

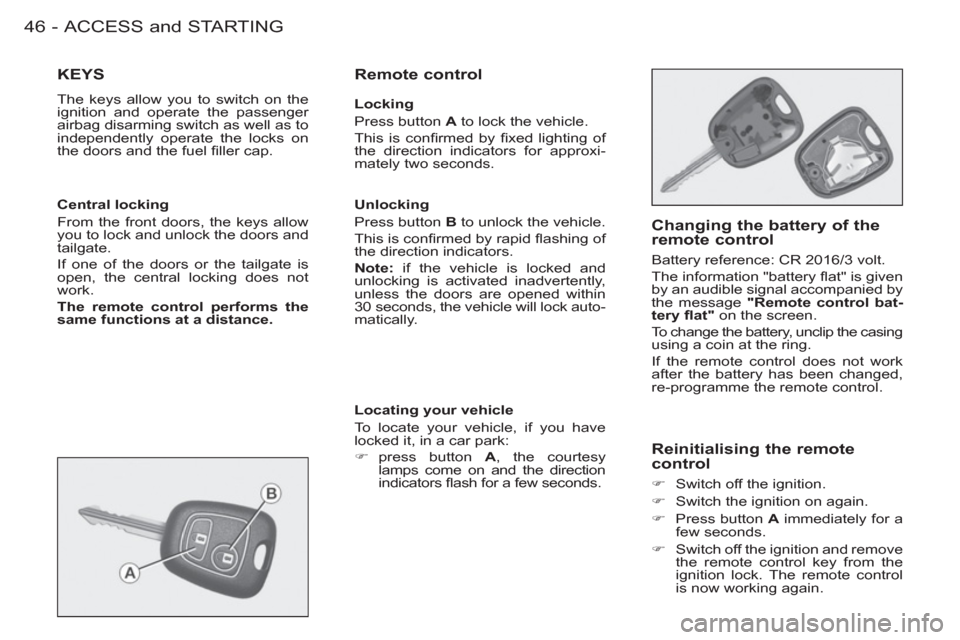

ACCESS and STARTING46 -
KEYS

The keys allow you to switch on the
ignition and operate the passenger
airbag disarming switch as well as to
independently operate the locks on
the doors and the fuel fi ller cap.







Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:


)
press button A
, the courtesy
lamps come on and the direction
indicators fl ash for a few seconds.




Changing the battery of the
remote control
Battery reference: CR 2016/3 volt.
The information "battery fl at" is given
by an audible signal accompanied by
the message "Remote control bat-
tery fl at"
on the screen.
To change the battery, unclip the casing
using a coin at the ring.
If the remote control does not work
after the battery has been changed,
re-programme the remote control.










Reinitialising the remote
control


)
Switch off the ignition.

)
Switch the ignition on again.

)
Press button A
immediately for a
few seconds.

)
Switch off the ignition and remove
the remote control key from the
ignition lock. The remote control
is now working again.



Remote control


Central locking
From the front doors, the keys allow
you to lock and unlock the doors and
tailgate.
If one of the doors or the tailgate is
open, the central locking does not
work.

The remote control performs the
same functions at a distance.



Locking
Press button A
to lock the vehicle.
This is confi rmed by fi xed lighting of
the direction indicators for approxi-
mately two seconds.

Unlocking
Press button B
to unlock the vehicle.
This is confi rmed by rapid fl ashing of
the direction indicators.

Note:
if the vehicle is locked and
unlocking is activated inadvertently,
unless the doors are opened within
30 seconds, the vehicle will lock auto-
matically.
