2012 Peugeot M59 Owner's Manual - RHD (UK, Australia)

11 9-

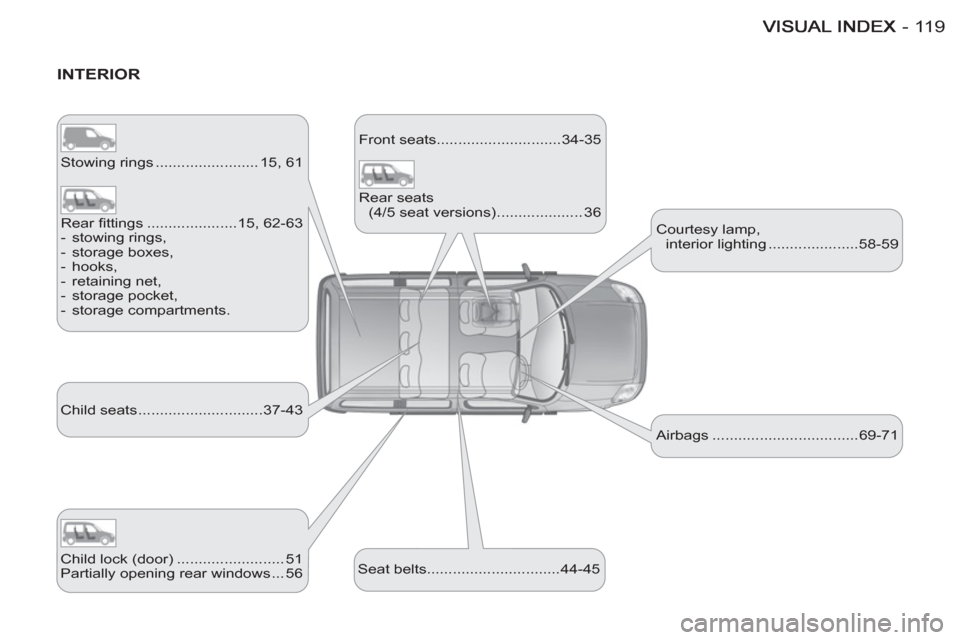

INTERIOR

Stowing rings ........................ 15, 61
Child seats .............................37-43 Front seats.............................34-35
Airbags ..................................69-71 Courtesy lamp,
interior lighting .....................58-59
Child lock (door) ......................... 51
Partially opening rear windows ... 56 Rear seats
(4/5 seat versions) .................... 36
Rear fi ttings .....................15, 62-63


- stowing rings,

- storage boxes,

- hooks,

- retaining net,

- storage pocket,

- storage compartments.
Seat belts...............................44-45

VISUAL INDEX120 -

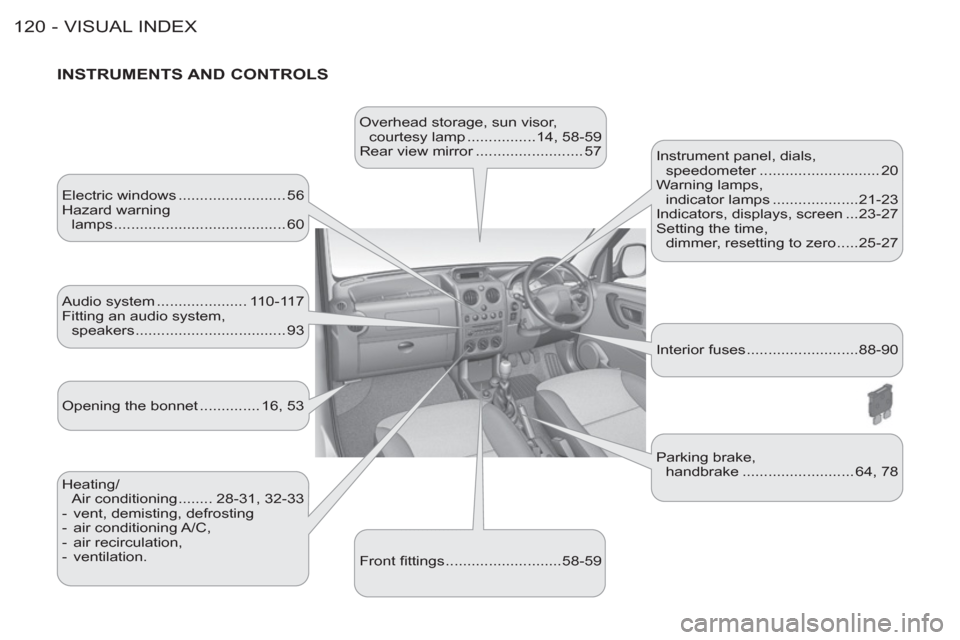

INSTRUMENTS AND CONTROLS

Instrument panel, dials,
speedometer ............................ 20
Warning lamps,
indicator lamps ....................21-23
Indicators, displays, screen ...23-27
Setting the time,
dimmer, resetting to zero .....25-27
Interior fuses ..........................88-90
Opening the bonnet .............. 16, 53
Parking brake,
handbrake .......................... 64, 78 Overhead storage, sun visor,
courtesy lamp ................14, 58-59
Rear view mirror ......................... 57
Front fi ttings ...........................58-59 Electric windows ......................... 56
Hazard warning
lamps ........................................ 60
Audio system ..................... 110-117
Fitting an audio system,
speakers ................................... 93
Heating/
Air conditioning ........ 28-31, 32-33


- vent, demisting, defrosting

- air conditioning A/C,

- air recirculation,

- ventilation.

121 VISUAL INDEX-

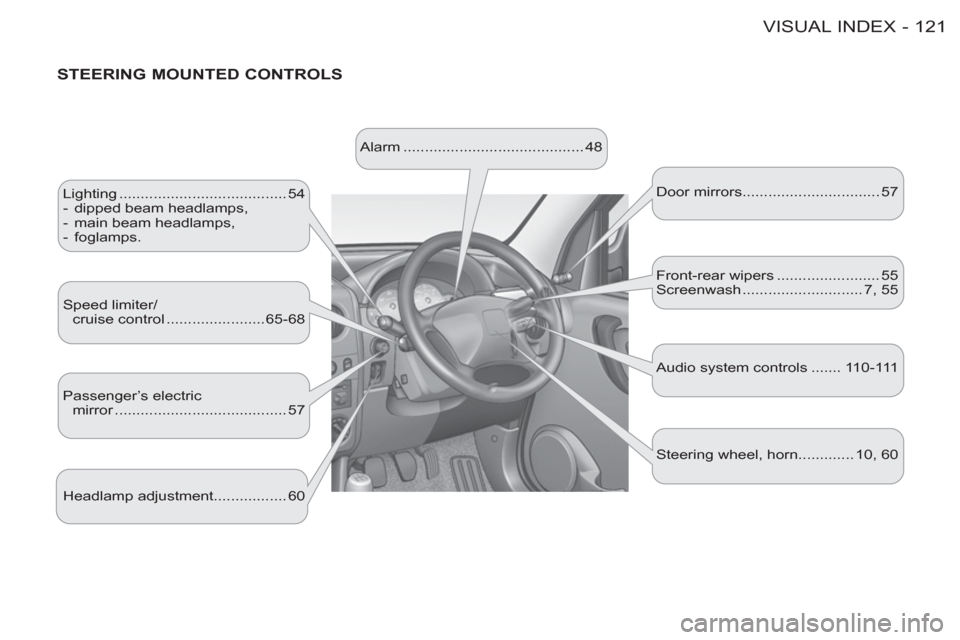

STEERING MOUNTED CONTROLS

Lighting ....................................... 54


- dipped beam headlamps,

- main beam headlamps,

- foglamps.
Speed limiter/
cruise control .......................65-68
Passenger’s electric
mirror ........................................ 57 Door mirrors ................................ 57
Headlamp adjustment................. 60 Front-rear wipers ........................ 55
Screenwash ............................ 7, 55 Alarm .......................................... 48
Audio system controls ....... 110-111
Steering wheel, horn............. 10, 60

VISUAL INDEX122 -

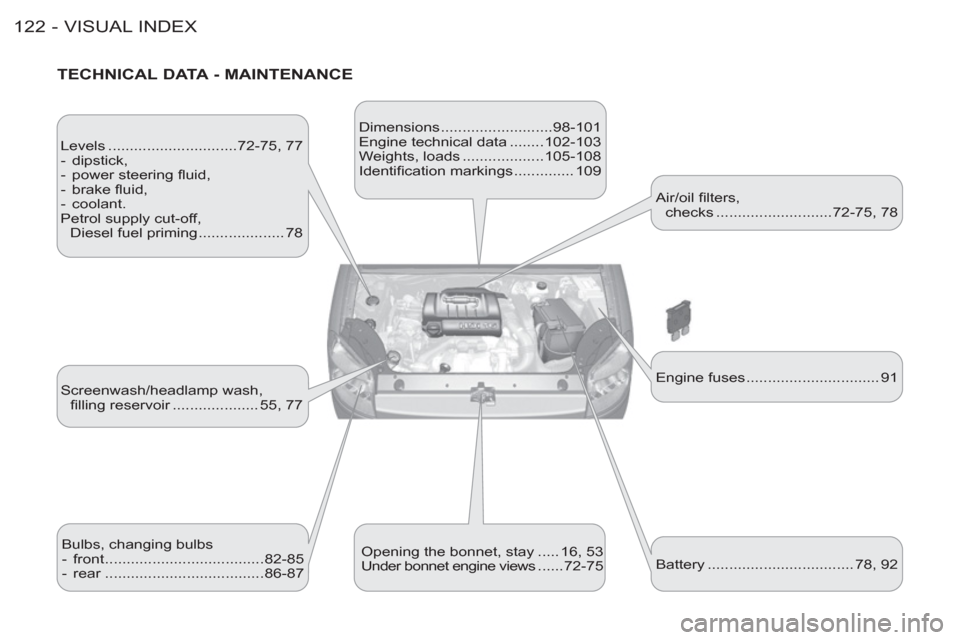

TECHNICAL DATA - MAINTENANCE

Levels ..............................72-75, 77


- dipstick,

- power steering fl uid,

- brake fl uid,

- coolant.
Petrol supply cut-off,
Diesel fuel priming .................... 78
Screenwash/headlamp wash,
fi lling reservoir .................... 55, 77
Bulbs, changing bulbs


- front .....................................82-85

- rear .....................................86-87 Dimensions ..........................98-101
Engine technical data ........102-103
Weights, loads ...................105-108
Identifi cation markings .............. 109
Opening the bonnet, stay ..... 16, 53
Under bonnet engine views ......72-75 Air/oil fi lters,
checks ...........................72-75, 78
Engine fuses ............................... 91
Battery .................................. 78, 92

10-11
This handbook describes all of the
equipment available in the whole
range.
Automobiles PEUGEOT declares,
by application of the provisions of
the European regulation (Directive
2000/53) relating to End of Life
Vehicles, that it achieves the objec-
tives set by this regulation and that
recycled materials are used in the
manufacture of the products that it
sells.
Anglais Your vehicle will be fi tted with some of
this equipment described in this doc-
ument, depending on its trim level,
version and the specifi cation for the
country in which it is sold.
The descriptions and illustrations
are given without any obligation.
Automobiles PEUGEOT reserves the
right to modify the technical specifi -
cations, equipment and accessories
without having to update the current
handbook.
This document is an integral part of
your vehicle. It should be passed on
to the new user in the event of sale
or transfer. Reproduction or translation of all or
part of this handbook is prohibited
without written authorisation from
Automobiles PEUGEOT.
Printed in the EU

For the attention of users of a
vehicle adapted to electric drive:

You have available the "Electric mode
supplement" which is provided with
this Partner Origin document.
Refer to this supplement before us-
ing the vehicle and most particularly
before any connection is made to
charge the traction battery.
Ensure that the power socket you in-
tend to use is standard and compatible
with the current rating (230 V alternating
current - 10 A minimum). It is recom-
mended that in all cases this should be
checked by a skilled electrician.
You must only use the original charg-
ing cable and without any extension
lead.
The precautions are the same as for
any electric domestic appliance. Do
not touch the metal end of the normal
socket nor that of the charging cable (risk
of malfunction and of electrocution).

www.peugeot.comAn
glais
AN. 12M59.0030
