23 INSTRUMENTS, CONTROLS and DISPLAYS
-

Seat belt not fastened
warning lamp *

When the ignition is switched
on, this warning lamp comes
on if the driver has not fastened their
seat belt.
Above 12 mph (20 km/h), the warn-
ing lamp fl ashes for two minutes.
Once the two minutes have elapsed,
the warning lamp remains on until
the driver fastens their seat belt.


Coolant temperature indicator



- needle in zone (A)
, the tempera-
ture is correct,

- needle in zone (B)
, the tempera-
ture is too high. The central STOP

warning light fl ashes, accompa-
nied by an audible signal and the
message "Engine coolant temp.
too high"
on the display.

You must stop.


Consult a PEUGEOT dealer.

* According to country.


Passenger's airbag
deactivated warning
lamp *

Illumination of this warning lamp
is accompanied by the message
"Passenger airbag deactivated"
in
the screen.
If the passenger's airbag is deacti-
vated, the warning lamp comes on
when the ignition is switched on and
it remains on.
Always consult a PEUGEOT dealer if
the warning lamp fl ashes.


Front and lateral
airbags warning lamp
This comes on for a few sec-
onds when the ignition is
switched on.
With the engine running, illumination
of this warning lamp accompanied by
an audible signal and the message
"Airbag fault"
in the multifunction
screen, indicates a fault with the air-
bags.
Consult a PEUGEOT dealer.

INSTRUMENTS, CONTROLS and DISPLAYS
24 -

Service indicator

This is a visual reminder of when the
next service is due. This service is to
be carried out according to the man-
ufacturer's servicing schedule. 5 seconds after the ignition is
switched on, the total distance re-
corder resumes normal operation
and the screen shows the total or trip
distances.


The distance remaining before the next
service is less than 1 000 km (600 miles).

Example:
900 km (560 miles) remain before
the next service is due.
When switching on the ignition and for 5 sec-
onds, the screen shows:
5 seconds after the ignition is
switched on, the total distance re-
corder resumes normal operation
and the symbol remains on.
This indicates that a service should
be carried out shortly. The screen
shows the total or trip distances.
The service is overdue.
Each time the ignition is switched on
and for 5 seconds, the symbol and
the excess distance fl ash.

Example:
the service is overdue
by 300 km (186 miles). The service
should be carried out very shortly.
When the ignition is switched on and
for 5 seconds, the display shows:
5 seconds after the ignition is
switched on, the total distance re-
corder resumes normal operation and
the symbol remains on. The screen
shows the total or trip distances.

Note:
the spanner comes on if the
two-year interval has been exceeded.


INSTRUMENT PANEL DISPLAY

After switching on the ignition, three
functions are shown in succession:


- service indicator,

- engine oil level indicator,

- total distance recorder/total and
trip distances.

Note
: the total and trip distances are
displayed for 30 seconds when the
ignition is switched off, on opening
the driver's door, as well as on lock-
ing and unlocking the vehicle.

Example:
4 800 km (2 980 miles) re-
main before the next service is due.
When the ignition comes on and for
5 seconds the display shows:
Operation
As soon as the ignition is switched on
and for 5 seconds, the spanner sym-
bolising ''service operation'' comes on.
The trip recorder display shows the
distance remaining (in round fi gures)
before the next service.

25 INSTRUMENTS, CONTROLS and DISPLAYS
-

Engine oil level indicator

When the ignition is switched on,
the engine oil level is indicated for
approximately 10 seconds, after the
service information.
Flashing of the six squares and the
display of "max" indicate that the oil
level is too high, which could damage
the engine.
If the excess oil is confi rmed by a
check using the dipstick, contact a
PEUGEOT dealer without delay. Your PEUGEOT dealer carries out
this operation after each service.
The reset procedure is as follows:


- Switch off the ignition.

- Press and hold button 1
.

- Switch on the ignition.
The display begins a 10 second count-
down.


-
Keep button 1
pressed for 10 seconds.

The display shows [=0]
and the span-
ner disappears.

Flashing of the six bars and the dis-
play of "min" indicate that the oil level
is too low, which could damage the
engine.
If the lack of oil is confi rmed by a
check using the dipstick, it is essen-
tial that the level is topped up. Flashing of the six bars indicates a
malfunction of the oil level indicator.
There is a risk of damage to the
engine.
Consult a PEUGEOT dealer.

The level read on the dipstick or on
the indicator will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 30 minutes.









Resetting the service indicator

Oil level too high

Oil level too low
Oil level indicator fault

INSTRUMENTS, CONTROLS and DISPLAYS
26 -
Briefl y pressing button 1
alternates
between the total and trip distance
displays.
To reset the trip recorder to zero,
when it is displayed press button 1

until zeros appear.


Total distance recorder

With the lights on, press the button
to vary the intensity of the lighting of
the instruments and controls. When
the lighting reaches the minimum (or
maximum) setting, release the button
then press it again to increase (or re-
duce) the brightness.
As soon as the lighting is of the re-
quired brightness, release the button.
LIGHTING RHEOSTAT CLOCK
Button 1
: hour adjustment
Button 2
: minute adjustment
Press and hold the button for rapid
advance.

27 INSTRUMENTS, CONTROLS and DISPLAYS
-
DISPLAY A

This displays the following information:


- the time,

- the date,

- the audio system displays,

- a door check (e.g.: ''left front door
open''),

- warning messages (e.g. ''remote
control battery fl at'') or information
messages (e.g. ''economy mode
active''), displayed temporarily.

Adjusting the parameters display A
Press and hold button A
for two
seconds to access the settings; the
data fl ashes, indicating it is ready to
be modifi ed.
Then, each press of button A
scrolls
through the various data in the fol-
lowing order:


- language of information displayed,

- hours (12 then 24 hour mode),

- minutes,

- year,

- month,

- day.
Pressing button B
alters the value of
the parameter selected. Press and
hold for rapid advance (return to start
after the last possible value).
After 7 seconds with no action, the
standard display returns; the modifi ed
data is now recorded.

COMFORT28 -

29COMFORT-
VENTILATION

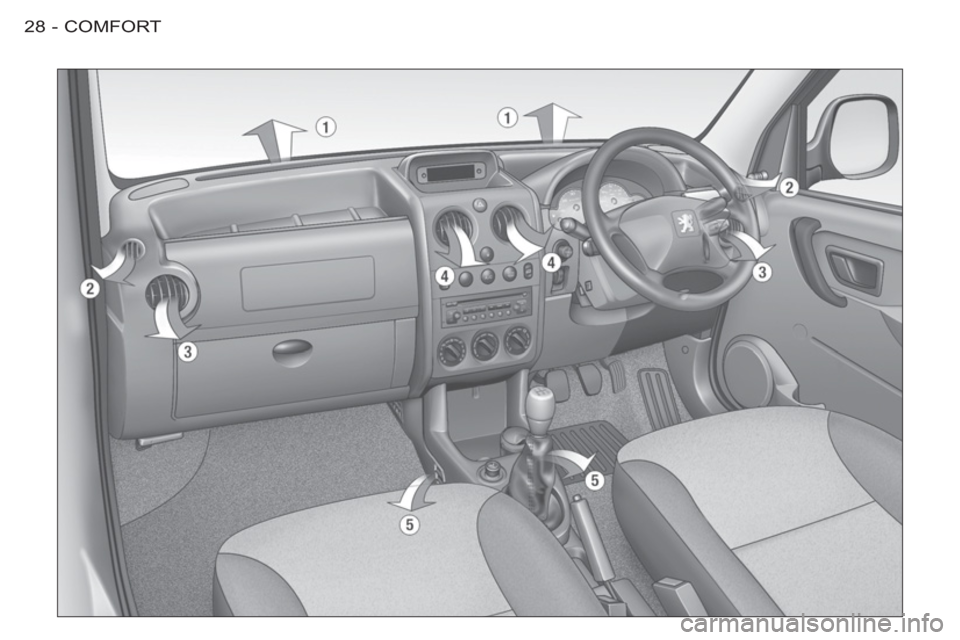

1.
Windscreen de-icing or
demisting vents.

2.
Front window de-icing or
demisting vents.

3.
Side vents.

4.
Centre vents.

5.
Air outlets to front footwells. The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
Operate the air conditioning system
for 5 to 10 minutes, once or twice a
month, to keep it in perfect working
order.
The water created by the air condi-
tioning condensation is discharged
via an opening provided for this pur-
pose. Therefore, a puddle of water
may form underneath the vehicle
when stationary.
If the system does not produce
cold air, do not use it and contact a
PEUGEOT dealer.

De-icing the rear windows and
mirrors
With the engine running, pressing
the control de-ices the rear windows
and mirrors.
It switches off automatically after
approximately twelve minutes.
Pressing the control again switches
the de-icing system on again for
twelve minutes.
It is possible to switch off the de-
icing by pressing the control before
the twelve minutes have elapsed.



Advice on operation

Select the air distribution most suited
to your requirements and the climatic
conditions.
Gradually adjust the temperature
setting for your comfort.
Position the air control in the ''Outside
Air'' position.
For perfectly even air distribution,
take care not to obstruct the exterior
air intake grille and the vents. Check
that the passenger compartment fi lter
is in good condition.
When the engine is cold, to prevent
too great a distribution of cold air, the
ventilation will increase to its opti-
mum level gradually.
In order to be effective, the air condi-
tioning ( A/C
button), should only be
used with the windows closed.
If the interior temperature remains
very high following a prolonged period
parked in the sun, do not hesitate to
ventilate the passenger compartment
for a few minutes.

COMFORT30 -
Intake of exterior air.

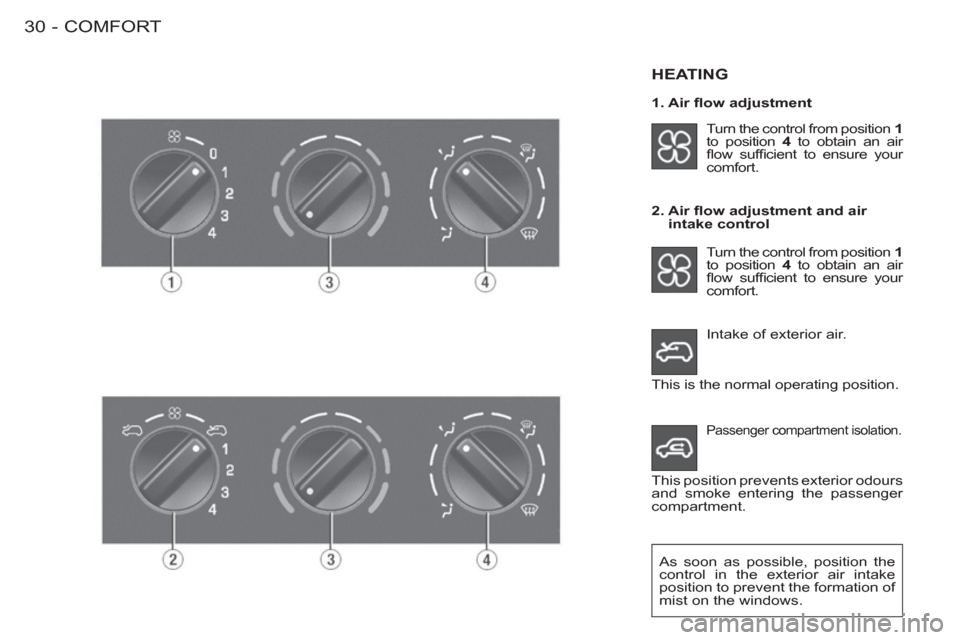

HEATING

Turn the control from position 1

to position 4
to obtain an air
fl ow suffi cient to ensure your
comfort.

2. Air fl ow adjustment and air
intake control
Turn the control from position 1

to position 4
to obtain an air
fl ow suffi cient to ensure your
comfort.
As soon as possible, position the
control in the exterior air intake
position to prevent the formation of
mist on the windows.

This is the normal operating position.

Passenger compartment isolation.
This position prevents exterior odours
and smoke entering the passenger
compartment.
1. Air fl ow adjustment
