2012 Peugeot M59 Owner's Manual - RHD (UK, Australia)

Handbook

You can fi nd your user guide on the PEUGEOT website, under
the heading "Personal space".


Referring to the user guide on-line also gives you access
to the latest information available, easily identifi ed by the
bookmarks, associated with this pictogram:

If the heading "Personal space" is not available on the public website
for your country, you can fi nd your user guide at the following address:
http://public.servicebox.peugeot.com the link in "Private customer access",
the language,
the model,
the edition date appropriate for the date of registration of your vehicle.
Please note the following point:

The fi tting of electrical equipment or accessories which are not
recommended by PEUGEOT may result in a failure of your
vehicle's electronic system. Please note this specifi c warning.
It is advisable to contact a PEUGEOT dealer to be shown
the recommended equipment and accessories.

Select:
You will fi nd your user guide, presented in the same way as the paper version.

1
Consulting your "Handbook" should
enable you to adjust the equipment
and confi gurations available on your
vehicle for optimum comfort and driv-
ing conditions.
Key

This key will allow you to distinguish
the special features of your vehicle:

Key

this symbol marks warnings
which it is essential to ob-
serve for your own safety,
for the safety of others or
to avoid any risk of damaging your
vehicle.
this symbol invites you to
refer to the pages which pro-
vide details of the function.

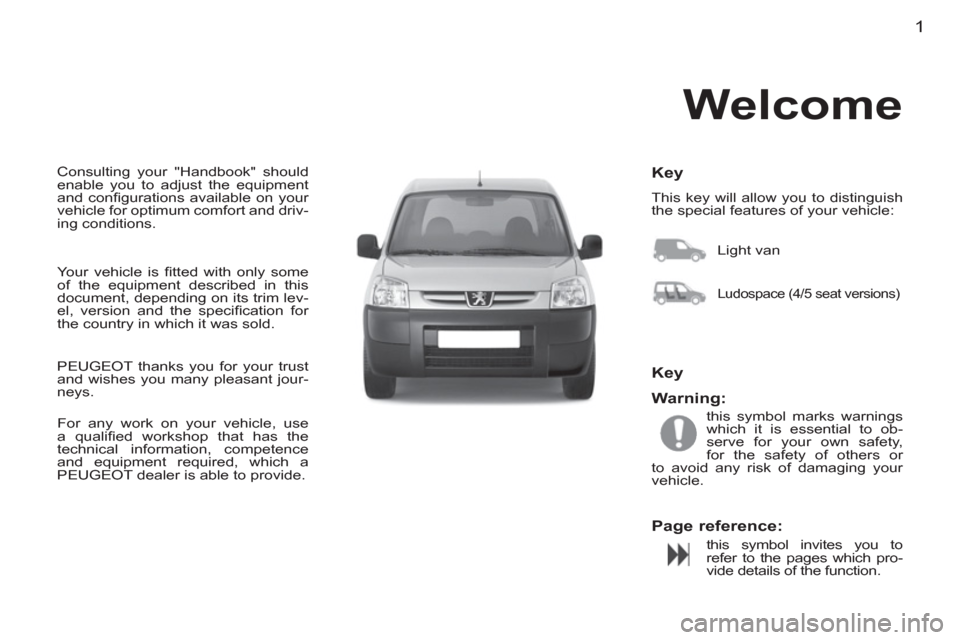

Welcome

PEUGEOT thanks you for your trust
and wishes you many pleasant jour-
neys. Light van

Ludospace (4/5 seat versions)


Your vehicle is fi tted with only some
of the equipment described in this
document, depending on its trim lev-
el, version and the specifi cation for
the country in which it was sold.

Warning:

Page reference:


For any work on your vehicle, use
a qualifi ed workshop that has the
technical information, competence
and equipment required, which a
PEUGEOT dealer is able to provide.

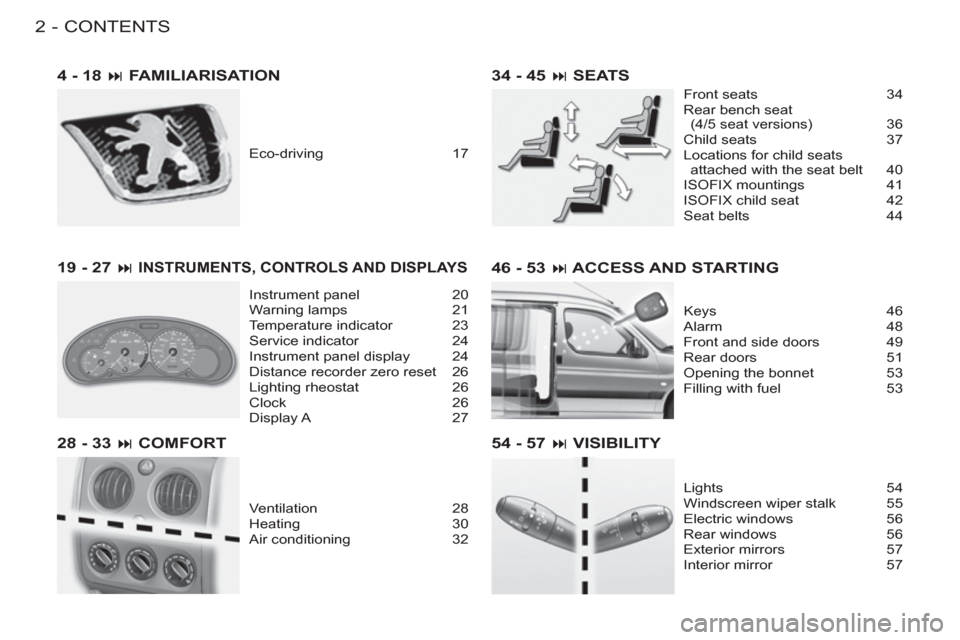

CONTENTS
2-
54 - 57  VISIBILITY
Lights 54
Windscreen wiper stalk 55
Electric windows 56
Rear windows 56
Exterior mirrors 57
Interior mirror 57
34 - 45  SEATS
Front seats 34
Rear bench seat
(4/5 seat versions) 36
Child seats 37
Locations for child seats
attached with the seat belt 40
ISOFIX mountings 41
ISOFIX child seat 42
Seat belts 44
46 - 53  ACCESS AND STARTING
Keys 46
Alarm 48
Front and side doors 49
Rear doors 51
Opening the bonnet 53
Filling with fuel 53
4 - 18  FAMILIARISATION
19 - 27
INSTRUMENTS, CONTROLS AND DISPLAYS
Instrument panel 20
Warning lamps 21
Temperature indicator 23
Service indicator 24
Instrument panel display 24
Distance recorder zero reset 26
Lighting rheostat 26
Clock 26
Display A 27
28 - 33  COMFORT
Ventilation 28
Heating 30
Air conditioning 32 Eco-driving 17

3CONTENTS
-
98 - 109  TECHNICAL DATA
Dimensions 98
Engines 102
Light van weights and loads 105
Ludospace weights
and loads 107
Identifi cation features 109
118 - 122  VISUAL INDEX 58 - 63  COMFORT AND SAFETY
Front fi ttings 58
Courtesy lamps 59
Headlamp adjustment 60
Steering wheel adjustment 60
Lashing rings 61
Rear fi ttings 62
64 - 71  DRIVING
Handbrake 64
ABS and EBFD systems 64
Speed limiter 65
Cruise control 67
Airbags 69
72 - 97  PRACTICAL INFORMATIONUnder the bonnet 72
Levels 77
Checks 78
Changing a wheel 79
Changing a bulb 82
Changing a fuse 88
Battery 92
Energy economy mode 92
Fitting audio equipment, speakers 93
Snow screen 94
Towing 95
Towing a trailer 96
Accessories 97
110 - 117  AUDIO EQUIPMENT
RD3 audio system 110

FAMILIARISATION4-
