15 FAMILIARISATION
-

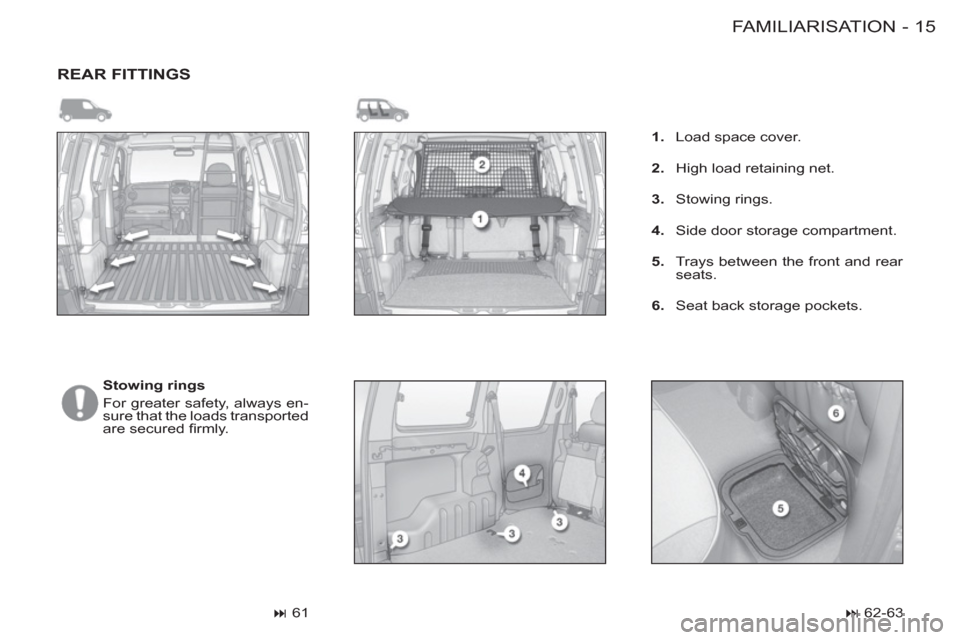

REAR FITTINGS



Stowing rings
For greater safety, always en-
sure that the loads transported
are secured fi rmly.



61



1.
Load space cover.

2.
High load retaining net.

3.
Stowing rings.

4.
Side door storage compartment.

5.
Trays between the front and rear
seats.

6.
Seat back storage pockets.



62-63

FAMILIARISATION16 -
This operation must be carried out
with the engine switched off
.


)
Insert the key then turn it to the
left.

)
Remove the fi ller cap.
A label indicates which type of fuel to
use.
When you fi ll your tank, do not con-
tinue after the third cut-off of the
pump. This could cause engine mal-
functions.

The capacity of the tank is approx-
imately 55 litres for petrol engines
and 60 litres for Diesel engines.

From the time this light comes on,
you have enough fuel left to cover
approximately 30 miles (50 km)
.

Note:
the right-hand sliding side door
cannot be opened while the fuel fi ller
cap is removed.

Outside the vehicle:
Lift the safety
catch, raise the bonnet and secure
the stay to hold the bonnet open.

Inside the vehicle:
Pull the lever on
the left-hand side, under the dash-
board.

Low fuel level
warning lamp



53



53



REFUELLING

17 FAMILIARISATION
-
ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your
gearbox

With a manual gearbox, move off
gently, change up without waiting
and drive by changing up quite soon.
If your vehicle has the system, the
gear effi ciency indicator invites you
to change up; it is displayed in the
instrument panel, follow its instruc-
tions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
,
according to the type of gearbox,
without pressing the accelerator ped-
al heavily or suddenly.



Drive smoothly


Maintain a safe distance between vehi-
cles, use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contrib-
ute towards a reduction in fuel consump-
tion and CO
2 emissions and also helps
reduce the background traffi c noise.


If your vehicle has cruise control,
make use of the system at speeds
above 25 mph (40 km/h) when the
traffi c is fl owing well.



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents
open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sunroof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.

As a passenger, if you avoid con-
necting your multimedia devices
(fi lm, music, video game...), you will
contribute towards limiting the con-
sumption of electrical energy, and so
of fuel.
Disconnect your portable devices be-
fore leaving the vehicle.

FAMILIARISATION18 -

Limit the causes of excess
consumption

Spread loads throughout the vehicle;
place the heaviest items in the bot-
tom of the boot, as close as possible
to the rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...).
Use a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regularly
(engine oil, oil fi lter, air fi lter...) and
observe the schedule of operations
recommended by the manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.

At the wheel of your new vehicle,
it is only after the fi rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to
a consistent average.

INSTRUMENTS, CONTROLS and DISPLAYS
20 -


1.
Seat belt not fastened warning
lamp

2.
Passenger’s airbag deactivated
warning lamp

3.
Front and lateral airbags warning
lamp

4.
Front foglamps warning lamp

5.
Anti-lock braking system (ABS)
warning lamp

6.
Rear foglamp warning lamp

7.
Diesel pre-heater warning lamp

8.
Left hand direction indicator
9.
Total distance recorder, service
indicator and engine oil level
indicator

10.
Right hand direction indicator

11 .
Emission control system warning
lamp

12.

Main beam headlamps warning lamp


13.
Parking brake, low brake fl uid
level and electronic brake force
distribution fault warning lamp

14.
Dipped beam headlamps
warning lamp

15.
Battery charge warning lamp

16.
Engine oil pressure and
temperature warning lamp
17.
Water in Diesel fi lter warning
lamp

18.
Low coolant level warning lamp

19.
Coolant temperature indicator

20.
Total distance recorder button

21.
Central (STOP) warning lamp

22.
Speedometer *

23.
Rev counter

24.
Lighting dimmer button

25.
Fuel gauge

26.
Low fuel level warning lamp

27.
Speed limiter/cruise control screen

INSTRUMENT PANEL: PETROL - DIESEL


*
Version indicating in miles or kilometres
according to country of sale.

21 INSTRUMENTS, CONTROLS and DISPLAYS
-
MONITORING OPERATION


A warning lamp on fi xed or fl ash-
ing, with the engine running, in-
dicates an fault in the operation
of the unit concerned. The illumi-
nation of certain warning lamps
may be accompanied by an audi-
ble signal and a message in the
screen. Do not ignore this warn-
ing: consult a
PEUGEOT dealer
as soon as possible.


If the central STOP warning lamp
comes on when you are driving,
stop your vehicle immediately,
where it is safe to do so.



Central (STOP)
warning lamp
Engine oil pressure
and temperature
warning lamp
Linked to the central (STOP) warn-
ing lamp.

You must stop.

This warning lamp indicates one of
the following:


- low oil pressure indicated by the
message "Oil pressure insuffi -
cient"
in the screen.

- low engine oil level. Top up the
level.

- oil temperature too high. To lower
the oil temperature, reduce your
speed.
Illumination of the warning lamp is
accompanied by an audible signal.
Consult a PEUGEOT dealer.


Low engine coolant
level warning lamp
Linked to the central (STOP)
warning lamp.
This comes on for a few seconds
when the ignition is switched on.
Illumination of this warning lamp is
accompanied by an audible signal
and the message "Top up engine
fl uid level"
in the screen.

You must stop as soon as it is safe
to do so.

Wait for the engine to cool before
topping up the level.
The cooling system is pressurised.


Parking brake, low
brake fluid level and
Electronic Brake Force
Distribution system
fault warning lamp
Linked to the central (STOP) warning
lamp.
This comes on each time the ignition
is switched on.
Illumination of this warning lamp is
accompanied by an audible signal
and a message in the screen indicat-
ing the cause of the warning:


- "Handbrake on",
if the parking
brake is applied or not fully re-
leased.

- "Brake fl uid level low"
if there is
an excessive drop in brake fl uid
level (if the warning lamp remains
on even when the parking brake
is released).

- "Braking fault"
is displayed to-
gether with the ABS warning
lamp, indicating a fault with the
Electronic Brake Force Distribu-
tion system. You must stop as
soon as it is safe to do so.


Consult a PEUGEOT dealer. If a check is required, to prevent
any risk of burns
unscrew the cap
by two turns to allow the pressure to
drop.
When the pressure has dropped, re-
move the cap and top up the level.
Consult a PEUGEOT dealer.
Linked to the warning lamps for:


- ''engine oil pressure and temper-
ature'',

- ''low coolant level'',

- "parking brake'',

- ''low brake fl uid level'',

- ''electronic brake force distribu-
tion system fault''.
Linked with the "coolant tempera-
ture" gauge.

You must stop if the lamp fl ashes
with the engine running.

Consult a PEUGEOT dealer.

INSTRUMENTS, CONTROLS and DISPLAYS
22 -

Battery charge warning
lamp
This comes on for a few sec-
onds when the ignition is
switched on. Illumination of this warn-
ing lamp, when the engine is running,
accompanied by an audible signal
and the message "Battery charge
fault"
in the screen, indicates one of
the following:


- malfunction of the charging
circuit,

- loose battery or starter terminals,

- a cut or loose alternator belt,

- an alternator failure.
Consult a PEUGEOT dealer.


Emission control
system warning lamp
This comes on for a few sec-
onds each time the ignition is
switched on.
If it comes on with the engine run-
ning, accompanied by an audible sig-
nal and the message in the screen:


- "Antipollution fault",
this indi-
cates a fault with the emission
control system

- "Catalytic converter fault",
this
indicates a fault with the injection
or ignition system. There is a risk
of damage to the catalytic con-
verter (petrol engine only).
Consult a PEUGEOT dealer.


Diesel engine
pre-heater warning
lamp
Wait until the warning lamp goes out
before starting the engine.
If the temperature is high enough,
the warning lamp comes on for less
than one second. You can start the
engine without waiting.


Low fuel level
warning lamp
This comes on for a few
seconds when the igni-
tion is switched on.
When the ignition is on, it is accom-
panied by an audible signal and the
message "Fuel level low"
in the
screen.
If it fl ashes with the fuel gauge nee-
dle in the lowest position, when the
ignition is on, this indicates a fault
with the fuel gauge.
When this warning lamp comes on,
you have enough fuel left to drive ap-
proximately 30 miles (50 km)
.
Capacity of the tank:


- approximately 55 litres for petrol
engines,

- approximately 60 litres for Diesel
engines.



Water in Diesel filter
warning lamp *

There is a risk of damage to the in-
jection system.
Contact a PEUGEOT dealer as soon
as possible.


Anti-lock braking
system (ABS) warning
lamp
This comes on for a few seconds each
time the ignition is switched on.
If the warning lamp remains on or
comes on above 8 mph (12 km/h),
this indicates an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Illumination of this warning lamp,
accompanied by an audible signal
and the message "ABS fault"
in the
screen, indicates an ABS fault.
Consult a PEUGEOT dealer.

*
According to country.
