2012 Peugeot 508 RXH Owner's Manual

8
207
!
Practical information

From the rear
)On the rear bumper, unclip the cover bylevering at the left with the point of the
towing eye.
)Screw the towing eye in fully. )Install the towing system. )Switch on the hazard warning lamps.
When towing with the engine off, there is no longer any braking or steering assistance.

208
i
Practical information

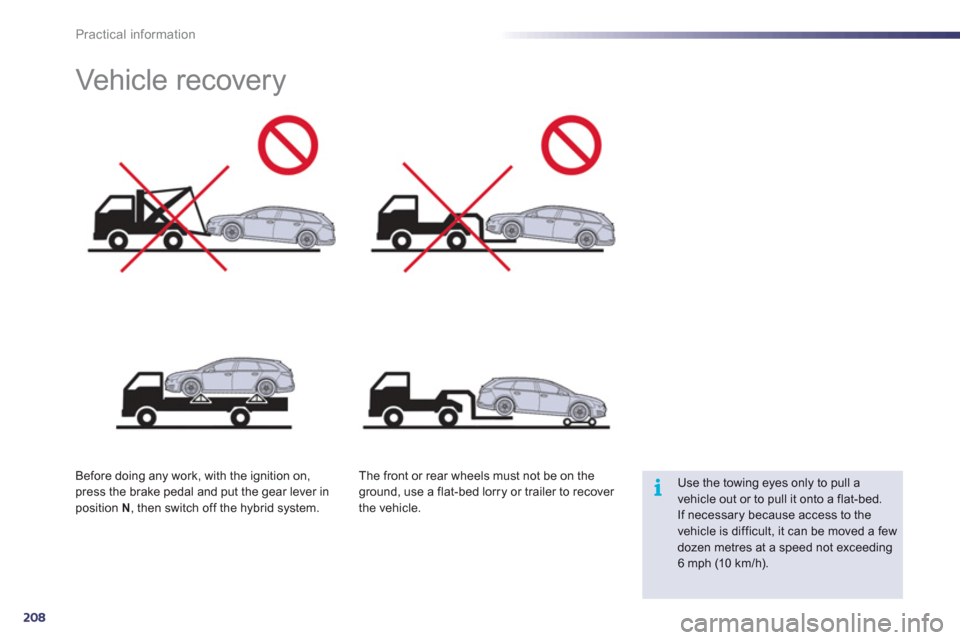

Vehicle recovery
Before doing any work, with the ignition on, press the brake pedal and put the gear lever inposition N
, then switch off the hybrid system.
Th
e front or rear wheels must not be on the ground, use a flat-bed lorry or trailer to recover
the vehicle.


Use the towing eyes only to pull a vehicle out or to pull it onto a flat-bed.
If necessary because access to the vehicle is difficult, it can be moved a few
dozen metres at a speed not exceeding 6 mph (10 km/h).

8
209
i
!
Practical information




Towing a trailer, ...

We recommend the use of genuine PEUGEOT towbars and their harnesses that have been tested and approvedfrom the design stage of your vehicle, and that the fitting of the towbar isentrusted to a PEUGEOT dealer or aqualified workshop.
If the towbar is not fitted by a PEUGEOT dealer, it is imperative that itis fitted in accordance with the vehicle manufacturer's instructions.
T
owbar suitable for the attachment of a trailer
with additional lighting and signalling.
Your vehicle is primarily designed for
transporting people and luggage, but it mayalso be used for towing a trailer.
Blanking cover
When towing, you must remove the blanking cover if your vehicle has one.
Contact a PEUGEOT dealer or a qualifiedworkshop for this.

Driving with a trailer places greater demands on the towing vehicle and the
driver must take par ticular care.
Maximum trailer weight
You must not tow a trailer weighing more than 800 kg.

210
i
Practical information
Driving advice
Distribution of loads
)Distribute the load in the trailer so that theheaviest items are as close as possible to
the axle and the nose weight approaches the maximum permitted without exceeding it.

Air density decreases with altitude, thus reducing engine performance. Above
1 000 metres, the maximum towed load must
be reduced b
y 10 % for every 1 000 metres of altitude.
Refer to the "Technical Data" section for details
of the weights and towed loads which apply to your vehicle.
Side wind
)Take into account the increased sensitivity
to side wind.

Cooling

To w i ng a trailer on a slope increases the
temperature of the coolant.
As the fan is electricall
y controlled, its cooling capacity is not dependent on the engine speed.
)
To lower the engine speed, reduce your speed.
The maximum towed load on a long incline
depends on the
gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.
)
If the warning lamp and the STOPwarning lamp come on, stop the
vehicle and switch off the engine
as soon as possible.



Braking

To w i ng a trailer increases the braking distance.
To avoid overheating of the brakes on a longmountain type of descent, the use of engine braking is recommended.


Tyres
)Check the tyre pressures of the towingvehicle and of the trailer, obser ving the recommended pressures.



Lighting
)Check the electrical lighting and signalling on the trailer.
The rear parking sensors will be deactivated automatically if a genuine PEUGEOT towbar is used.

8
211
i
!
Practical information











Fitting roof bars


Maximum authorised weight on the roof rack, for a loading height not exceeding 40 cm (with the exception of bicycle carriers): 100
kg
If the height exceeds 40 cm, adapt thespeed of the vehicle to the profile of the road to avoid damaging the roof barsand the fixings on the roof.
Be sure to refer to national legislation in order to comply with the regulations for transporting objects which are longer than the vehicle.

When
fitting transverse roof bars, take care to
align them with the marks on the longitudinal bars.
Use accessories recommended by PEUGEOT obser ving themanufacturer's recommendations and fitting instructions so as to avoid the risk of damaging the body (deformation, scratches, ...).

212
Practical information




Accessories
A wide range of accessories and genuine par ts is available from the PEUGEOT dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
They are all adapted to your vehicle and benefit from PEUGEOT's recommendation and warranty.
"Comfort":
cool box, smoker's kit, 230 V socket, torch...
"Transport solutions":
booster seats and child seats, boot tray, roof box, ski carrier, towbar-mounted bicycle carrier,
towbars (swan-neck, quickly detachable ball, folding), harnesses, sliding floor, utility vehicleconversion kit, ...
The trailer towbar and its harness must befitted by a PEUGEOT dealer.


"Style":

spoiler, front and rear mud flaps, aluminium gear lever knob, alloy wheels (16 ", 17 ", 18 ", 19 "), body kit, door mirror shells, door air deflectors, ...

*
To avoid an
y risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctl
y,
- never fit one mat on top of another.


"Safety and security":

speed limiter/cruise control, anti-theft alarm,
microwave unit, window etching, wheel securitybolts, breathalyser, first aid kit, warningtriangle, high visibility vest, stolen vehicle
tracking system, winter equipment (17" wheels for snow chains), reversing camera, front andrear parking sensors, boot spacers...

"Protection":

mats *
, seat covers, vehicle covers, sun blinds,boot net, load protection net, dog guard, door
and boot sill protectors, resin side rubbing
strips...

8
213
i
!i
Practical information
The fitting of electrical equipmentor accessories which are notrecommended by PEUGEOT may result in a failure of your vehicle's electronic system and excessive electricalconsumption.Please note this precaution. You are advised to contact a PEUGEOT representative to be shown the rangeof recommended equipment andaccessories.



Installation of radio communication transmitters

Before installing any after-market radio communication transmitter, you can contact a PEUGEOT dealer for the specification of transmitters which canbe fitted (frequency, maximum power, aerial position, specific installation
requirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/10 4/EC).


Depending on the legislation in force in the country, it may be compulsoryto have a high visibility safety vest, warning triangle and spare bulbs and fuses available in the vehicle. You can also obtain products
for cleaning and
maintenance (exterior and interior) and topping up fluids (screenwash, ...), as well as refills(cartridge for temporary tyre repair kit...) fromPEUGEOT dealers.



"Multimedia":

audio systems, portable navigation system,
Ta k a r a / S o ny por table video screen, Bluetoothsystem, speakers, DVD player, Wi-Fi, speed camera aler t, video suppor t, microwave unit...

214
