2012 Peugeot 508 RXH Owner's Manual

.
7
Familiarisation
Opening
Unlocking
With the electronic key on your person andin the defined zone around the vehicle, pass your hand behind the door handle to unlock the
vehicle, then pull on the handle to open
th
e door.


Locking

With the electronic key in the defined zone
around the vehicle, press with a finger on
the door handle (at the markings) to lock the
vehicle.


Keyless Entry and Starting
system
65, 68

8
i
Familiarisation
Opening
A.
Unfolding/Folding the key. B.Unlocking the vehicle.
Remote control key
1.Opening the fuel filler flap.


Fuel t ank
83
2.Opening and hooking the fuel filler cap.
Tank capacity: approximately 72 litres. Other functions...C.Normal locking of the vehicle Vehicle location.
65

.
9
Familiarisation
Interior


Interior mood lighting

This subdued passenger compar tment lighting
improves visibility inside the vehicle in low light conditions.

Head-up display

This system projects speed and cruise control/speed limiter information onto a smoked strip
in the driver's field of vision, so that they do not need to take their eyes off the road.

Digital air conditioning
After setting the desired level of comfort,the system then automatically controls
this level according to the ambientconditions.
Manual
Audio and communication system

This system benefits from the latest technology: MP3 compatible audio system, USB player,
Bluetooth hands-free system, satellite
navigation system with colour screen, auxiliary
inputs, Hi-Fi audio s
ystem, ...
15
6
130
106
233
108
111
Dual-zone
Quad-zone
If your vehicle is fitted with a JBL Hi-Fi audio system, thisis designed specifically for the passenger compartment of your
vehicle. Peu
geot Connect Navigation (RT6)
R
efer to "Audio and telematics".

10
Familiarisation
Illumination of the lamp indicates the state of
the corresponding function.
Switch panels
Opening the boot.
Opening the fuel filler flap. 67, 7
8

Massage.
89
74


Alarm.
Pro
grammable heating warning lamp.
83
117
Electric parking brake.
11
8
Starting/stopping using the electronic
key.
25/26

Inhibition of internal combustion engine stop.
3
6

Head-up display (on/off, settings).
13
0

Deactivation of parkingsensors.
138

Parkin
g space sensor.
139
Electric child lock.
166


Deactivation of the DSC system.
171

Adaptive lighting.
147

.
11
Familiarisation

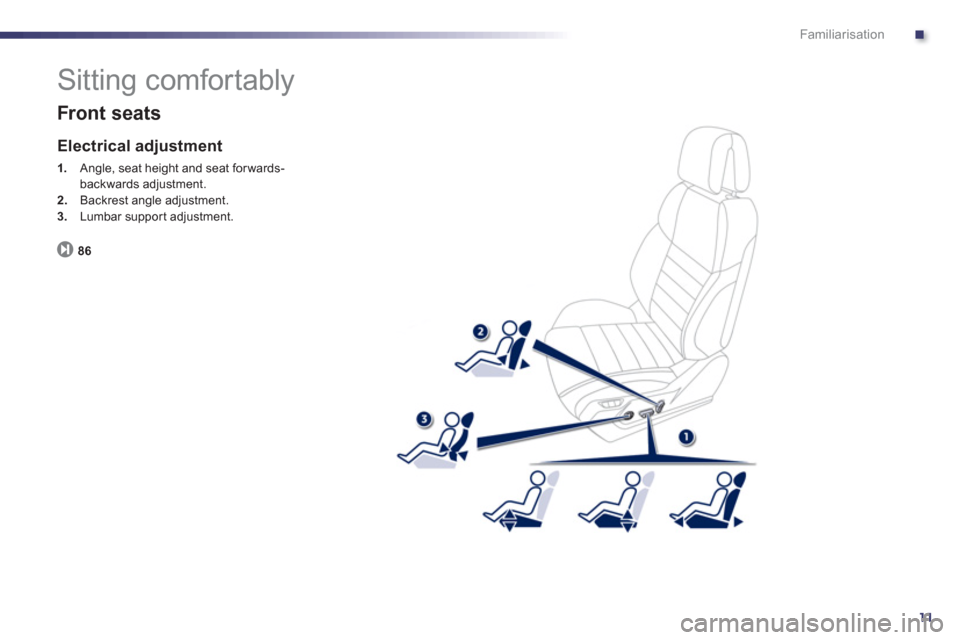

Sitting comfortably


Front seats

Electrical adjustment
1.
Angle, seat height and seat forwards-backwards adjustment. 2.Backrest angle adjustment.3.Lumbar suppor t adjustment.
86

12
Familiarisation
11.Front door window demisting/defrostingvent.
12.Windscreen demisting/defrosting vent.
13
. Steering lock and star ting with the key. 14 .
Starting using the electronic key.
15. Audio equipment steering wheel controls.
16.Wiper/screenwash/trip computer stalk.
17. Central locking and hazard warningbuttons.
18. Screen.
19.Central adjustable air vents.
20.Passenger's airbag. 21. Side adjustable air vents.

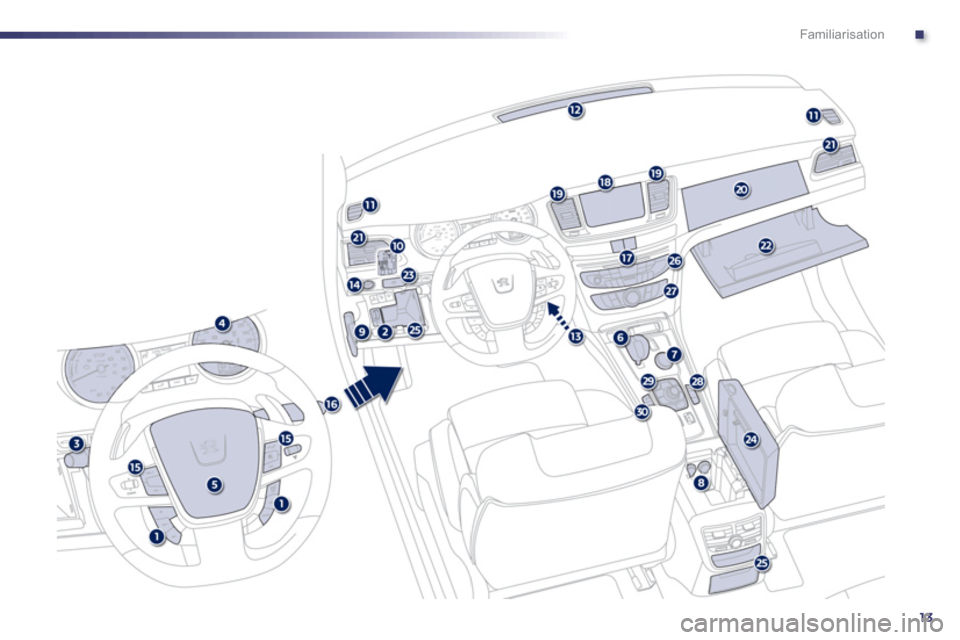

Instruments and controls
1.
Cruise control/speed limiter controls. 2.
Headlamp height adjustment. 3.
Lighting and direction indicator stalk
4.
Instrument panel. 5.
Driver's airbag.Horn.
6.Gear lever.
7. HYbrid4 mode selector. 8.12 V accessory socket
USB por t /auxiliary socket.9. Bonnet release lever.10.Fusebox.
22.
Glove box/Passenger's airbag deactivation. 23.
Electric parking brake. 24.
Central armrest with storage.
25.Storage (according to version).26.Audio system. 27.
Heating/air conditioning controls.28.
Alarm/Peugeot Connect SOS -
Peugeot Connect Assistance.29. Peugeot Connect Navigation (RT6)controls. 30.
Massage/Adaptive lighting/Parking space sensor.

.
13
Familiarisation

14
!
Familiarisation
Sitting comfortably
Head restraint adjustment
88
1.Release the adjustment mechanism.
2. Adjust for height and reach. 3.
Lock the adjustment mechanism.


Steering wheel adjustment
94
For reasons of safety, these operations must only be carried out with thevehicle stationary.


Heated seats control
0
: off.1: low.2
: medium. 3
: high. To lower it, press button
A.
To raise it, guide the head restraint upwards to
the desired position.
8
8
