2012 MITSUBISHI iMiEV Owners Manual

7-30 Vehicle care and maintenance
7
Under the hoodUnder the hood, the fuse block is located as shown in the illus-
tration.
Press the tab (A) and remove the cover.
Fuse load capacities
N00954800215
This fuse list shows the names of the electrical systems and
their fuse capacities.
Always replace a blown fuse with one of the same capacity as
the original.Passenger compartment fuse location table
BK0140800US.book 30 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Vehicle care and maintenance
7-31
7
*: Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
No.
Symbol
Electrical system
Capacity
1 Tail light (left) 7.5 A
2Cigarette lighter/
12 V power outlet15 A
3 — — —
4Starter 7.5 A
5 Audio amplifier 20 A
6— — —
7 Tail light (right) 7.5 A
8 Outside rearview mirrors 7.5 A
9Control unit
(Electric motor unit)7.5 A
10 Control unit 7.5 A
11 Rear fog light 10 A
12 Door lock 15 A
13 Interior lights (Dome lights) 10 A
14 Rear window wiper 15 A
15 Gauges 7.5 A
16 Relay 7.5 A
17 Heated seat 20 A
18 Option 10 A
19Heated door outside rearview
mirrors7.5 A
20 Windshield wiper 20 A
21 Back-up lights 7.5 A
22 Defogger 30 A
23 Heater 30 A
24 12V starter battery 30 A*
25 Radio 10 A
26 Electronic controlled unit 15 A
27 — Electronic controlled unit 7.5 ANo.
Symbol
Electrical system
Capacity
BK0140800US.book 31 ページ ２０１１年９月２９日　木曜日　午後３時２８分

7-32 Vehicle care and maintenance
7
Under the hood fuse location table
*: Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
No.
Symbol
Electrical system
Capacity
1— — —
2 12V starter battery 30 A*
3 Electric motor switch 40 A*
4 Radiator fan motor 40 A*
5 Power window control 40 A*
6 Brake electric vacuum pump 30 A*
7 Electric motor unit control 15 A
8 Stop lights (Brake lights) 15 A
9 Front fog lights 15 A
10Wa t e r p u m p
(Electric motor unit)15 A
11 Charge 10 A
12 Hazard warning flasher 10 A
13 Horn 10 A
14 Daytime running lights 10 A
15Main drive lithium-ion bat-
tery fan motor15 A
16Wa t e r p u m p
(Air conditioning)10 A
17 Headlight (low beam) (right) 20 A
18 Headlight (low beam) (left) 20 A
19 Headlight (high beam) (right) 10 A
20 Headlight (high beam) (left) 10 ANo.
Symbol
Electrical system
Capacity
BK0140800US.book 32 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Vehicle care and maintenance
7-33
7
Identification of fuse
N00901100078
Fuse replacement
N00954900115
1. Before replacing a fuse, always turn off the electrical item
connected to the fuse and turn the electric motor switch to
the “LOCK” position.
2. Remove the fuse puller (A) from the inside of the fuse
cover in the passenger compartment.
Capacity
Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow
30 A Green (fuse type) /Pink (fusible link type)
40 A Green (fusible link type)
BK0140800US.book 33 ページ ２０１１年９月２９日　木曜日　午後３時２８分

7-34 Vehicle care and maintenance
7
3. Clamp it on the fuse you wish to remove, and pull the fuse
straight out from the fuse block.4. Use the fuse location diagrams and their corresponding
tables, to check the fuse that is related to the problem. If
the fuse is not blown, something else must be causing the
problem.
Contact a certified i-MiEV dealer to have the problem
checked.
5. Insert a new fuse of the same capacity securely into the
appropriate slot.
B- Fuse is OK
C- Blown fuse
BK0140800US.book 34 ページ ２０１１年９月２９日　木曜日　午後３時２８分

Vehicle care and maintenance
7-35
7 Replacement of light bulbs
N00942900336
Before replacing a bulb, be sure the light is off. Do not touch
the glass part of the new bulb with your bare fingers; the oil
from your skin will stay on the glass and dim or destroy the
bulb when it gets hot.NOTE
If you are unsure of how to carry out the work as required,
it is recommended that these procedures be carried out by
a certified i-MiEV dealer.

Be careful not to scratch the vehicle body when removing
a light and lens.

When it rains, or when the vehicle has been washed, the
inside of the lens sometimes becomes temporarily foggy.
This is the same phenomenon as when window glass mists
up on a humid day, and does not indicate a functional
problem.
When the light is switched on, the heat will remove the
fog. However, if water collects inside the light, please
have it checked by a certified i-MiEV dealer.
CAUTION
!
Never use a fuse with a capacity greater than the one
listed or any substitute, such as wire, foil etc. This
would cause the circuit wiring to heat up and could
cause a fire.
If the replacement fuse blows again after a short
time, have the electrical system checked by a certi-
fied i-MiEV dealer to find and correct the cause.
CAUTION
!
Bulbs are extremely hot immediately after being
turned off.
When replacing a bulb, wait for it to cool sufficiently
before touching it. You could otherwise be burned.
BK0140800US.book 35 ページ ２０１１年９月２９日　木曜日　午後３時２８分

7-36 Vehicle care and maintenance
7
Bulb capacity
N00943000099
The bulb should only be replaced with a new bulb with the
same rating and type. The type and rating are listed on the base
of the bulb.Outside
N00950300847
NOTE
Check with a certified i-MiEV dealer when the headlight
and the parking light need to be repaired or replaced.
Description
Wa t t a g e
ANSI Trade
No. or Bulb
type
1- Headlight, low beam 55 W H11
2- Head light, high beam 60 W 9005 HB3
3- Front fog light (if so
equipped)35 W H8Front
4- Daytime running light
(if so equipped)13 W P13W
5- Front turn signal light 21 W W21W
6- Parking light 5 W W5W
7- Front side-marker light 5 W W5W
Description
Wa t t a g e
ANSI Trade
No. or Bulb
type
BK0140800US.book 36 ページ ２０１１年９月２９日　木曜日　午後３時２８分

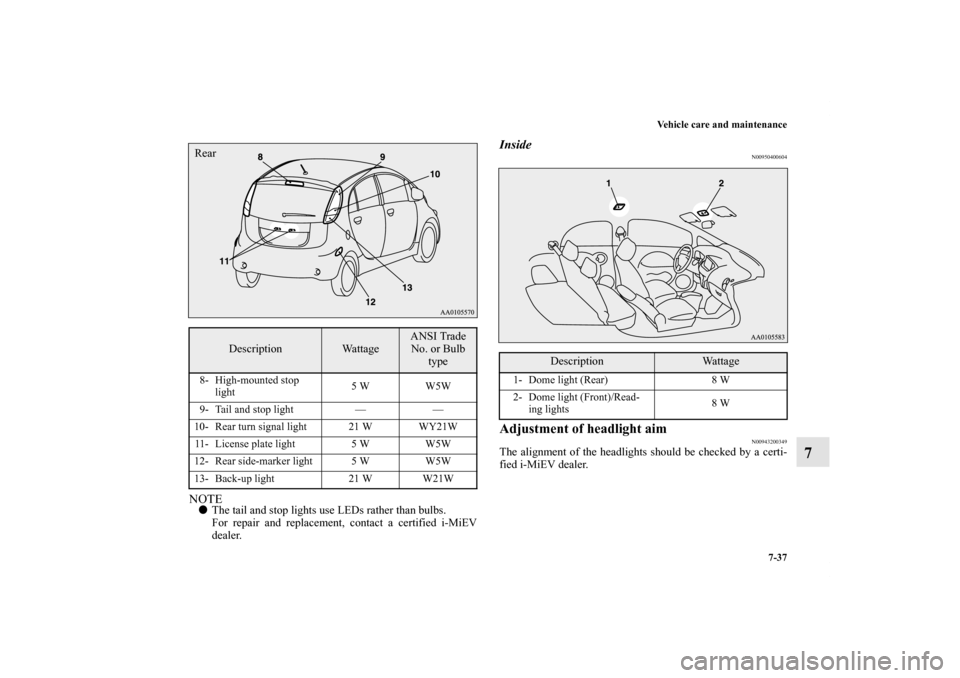

Vehicle care and maintenance
7-37
7
NOTE
The tail and stop lights use LEDs rather than bulbs.
For repair and replacement, contact a certified i-MiEV
dealer.
Inside
N00950400604
Adjustment of headlight aim
N00943200349
The alignment of the headlights should be checked by a certi-
fied i-MiEV dealer.
Description
Wattage
ANSI Trade
No. or Bulb
type
8- High-mounted stop
light5 W W5W
9- Tail and stop light — —
10- Rear turn signal light 21 W WY21W
11- License plate light 5 W W5W
12- Rear side-marker light 5 W W5W
13- Back-up light 21 W W21WRear
Description
Wattage
1- Dome light (Rear) 8 W
2- Dome light (Front)/Read-
ing lights8 W
