7-34 Vehicle care and maintenance
7
Ball joint, steering linkage seals and drive shaft
boots
N00941800077
Check the following parts for damage and grease leaks:

Ball joint boots of the front suspension and steering link-
age

Bellows on both ends of the drive shaftDrive belt (for generator, power steering pump,
air conditioning compressor)
N00941900124
2.4 liter modelsCheck the tension of the drive belt. Make certain that the indi-
cator (A) is between the specified lines as shown in the illustra-
tion.
Check the drive belt for cuts and cracks, and replace it if it is
damaged. When replacing the belt, make sure that there is no
interference between the belt and other engine components.
After replacing, recheck the tension to make sure the indicator
(A) is between the specified lines.
WA R N I N G
!
Do not check or touch the drive belt with the engine
running, or serious injury or death may result.2.4 liter
BK0132701US.book 34 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-35
7
3.8 liter modelsCheck the tension of the drive belt. The deflection must be
within specifications, when pressed at a point halfway between
the pulleys as shown in the illustration with a force of about 22
pounds (100N).
Check the drive belt for cuts and cracks, and replace it if it is
damaged.
When replacing the belt with a new belt, make sure that there is
no interference between the belt and other engine components.
Then, check the tension of the belt at the designated point. The
deflection must be within the specifications.
Amount of belt deflection
1- Power steering pump pulley
2- Crank shaft pulley
3- Generator pulley
4- Air conditioning pulley3.8 liter
Standard value
Used belt
New belt
A.48 to .64 inch
(12.3 to 16.2 mm).52 to .59 inch
(13.2 to 15.1 mm).38 to .48 inch
(9.6 to 12.3 mm)B.33 to .42 inch
(8.4 to 10.7 mm).35 to .40 inch
(8.9 to 10.1 mm).24 to .30 inch
(6.2 to 7.5 mm)
WA R N I N G
!
Do not check or touch the drive belt with the engine
running, or serious injury or death may result.
BK0132701US.book 35 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-36 Vehicle care and maintenance
7

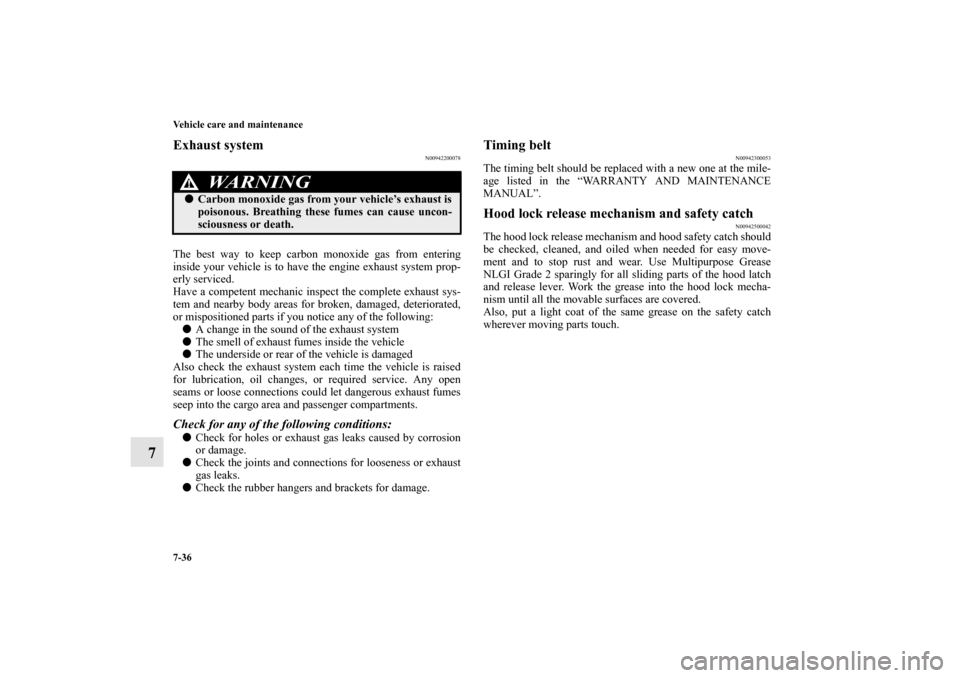

Exhaust system
N00942200078
The best way to keep carbon monoxide gas from entering
inside your vehicle is to have the engine exhaust system prop-
erly serviced.
Have a competent mechanic inspect the complete exhaust sys-
tem and nearby body areas for broken, damaged, deteriorated,
or mispositioned parts if you notice any of the following:

A change in the sound of the exhaust system

The smell of exhaust fumes inside the vehicle

The underside or rear of the vehicle is damaged
Also check the exhaust system each time the vehicle is raised
for lubrication, oil changes, or required service. Any open
seams or loose connections could let dangerous exhaust fumes
seep into the cargo area and passenger compartments. Check for any of the following conditions:
Check for holes or exhaust gas leaks caused by corrosion
or damage.

Check the joints and connections for looseness or exhaust
gas leaks.

Check the rubber hangers and brackets for damage.
Timing belt
N00942300053
The timing belt should be replaced with a new one at the mile-
age listed in the “WARRANTY AND MAINTENANCE
MANUAL”.Hood lock release mechanism and safety catch
N00942500042
The hood lock release mechanism and hood safety catch should
be checked, cleaned, and oiled when needed for easy move-
ment and to stop rust and wear. Use Multipurpose Grease
NLGI Grade 2 sparingly for all sliding parts of the hood latch
and release lever. Work the grease into the hood lock mecha-
nism until all the movable surfaces are covered.
Also, put a light coat of the same grease on the safety catch
wherever moving parts touch.
WA R N I N G
!
Carbon monoxide gas from your vehicle’s exhaust is
poisonous. Breathing these fumes can cause uncon-
sciousness or death.
BK0132701US.book 36 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-37
7 For cold and snowy weather
N00942600115
Ventilation slotsThe ventilation slots in front of the windshield should be kept
clear of leaves or brushed clear after a heavy snowfall, so that
the operation of the heating and ventilation systems will not be
impaired.WeatherstrippingTo prevent freezing of the weatherstripping on the doors,
engine hood, etc., they should be treated with silicone grease.Additional equipment (For regions where snow is
encountered)It is a good idea to carry a shovel or a short-handled spade in
the vehicle during the winter so that you can clear away snow
if you get stranded. A small hand-brush for sweeping snow off
the vehicle and a plastic scraper for the windshield, side and
rear window are also useful.
Fuse links
N00942700099
The fuse links will melt to prevent a fire if a large current
attempts to flow through certain electrical systems.
In case of a melted fuse link, see your authorized Mitsubishi
Motors dealer or a repair facility of your choice for inspection
and replacement.
BK0132701US.book 37 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-38 Vehicle care and maintenance
7Fuses
N00942800263
Fuse block location
N00901000064
To prevent damage to the electrical system from short-circuit-
ing or overloading, each individual circuit is equipped with a
fuse. The fuse blocks are located in the passenger compartment
and in the engine compartment. Passenger compartmentThe fuse block in the passenger compartment is located in front
of the driver’s seat at the position shown in the illustration.
Engine compartmentIn the engine compartment, the fuse block is located as shown
in the illustration. A- Type A
B- Type B (ECLIPSE SPYDER only)
C- Type C (2.4 liter models only)
BK0132701US.book 38 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-39
7
Ty p e A
1. Push the lock lever.
2. Remove the fuse block cover.
WA R N I N G
!
Do not touch the electronic control module (D). The
module surface can be too hot.
Wait for the electronic control module to cool down
before replacing a fuse.
BK0132701US.book 39 ページ ２０１０年１２月６日　月曜日　午後２時３分

7-40 Vehicle care and maintenance
7
Type B (ECLIPSE SPYDER only)
1. Pull the lock lever.
2. Open the cover.Type C (2.4 liter models only)
1. Push the lock lever.
2. Remove the relay box cover.
Fuse load capacities
N00954800127
This fuse list shows the names of the electrical systems and
their fuse capacities.
There are spare fuses in the cover of the instrument panel
(driver’s side). Always replace a blown fuse with one of the
same capacity as the original. *- Front of the vehicle
BK0132701US.book 40 ページ ２０１０年１２月６日　月曜日　午後２時３分

Vehicle care and maintenance
7-41
7
Passenger compartment fuse location tablePassenger compartment fuse location
No.
Symbol
Electrical system
Capacity
1 Ignition coil 10 A
2 Gauge 7.5 A
3 Back-up lights 7.5 A
4 Electric convertible top 7.5 A
5 Relay 7.5 A
6 Door mirror heater 7.5 A
7— — —
8 Engine control 7.5 A
9— — —
10 — — —
11 Outside rearview mirrors 7.5 A
12 Engine control 7.5 A
13 — — —
14 Rear window wiper 15 A
15 Power door locks 15 A
16 Power outlet 15 A
17 — — —
18 — — —
19 Heater 30 A
20 Rear window defogger 30 A
