2012 MITSUBISHI ECLIPSE Owners Manual

3-130 Features and controls
3
NOTE
A light in the instrument panel flashes to show when the
front and rear turn signal lights are working properly.
If this light flashes faster than usual, check for a burned
out lamp bulb or malfunctioning connection.
If the panel light does not come on when the lever is
moved, check for a blown fuse or a burned out bulb in the
panel.
Have the vehicle inspected by an authorized Mitsubishi
Motors dealer or a repair facility of your choice.
Hazard warning flasher switch
N00522700246
If you press the flasher switch, the front and rear turn signals
will flash intermittently, and so will the hazard warning lights.
This is an emergency warning system and should not be used
when the vehicle is in motion, except for emergencies.
If you need to leave your vehicle, the flashers will keep work-
ing after the ignition key is removed. NOTE
If you keep the flashers on for several hours with the
engine turned off, the battery will run down.
BK0132701US.book 130 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-131
3 Front fog light switch
(if so equipped)
N00522800380
The front fog lights illuminate only when the headlights are on
low beam. Press the switch to illuminate. Press the switch
again to turn the lights off.
The indicator in the instrument cluster will illuminate while the
front fog lights are on.
NOTE
If the daytime running lights are on, the front fog lights
will not illuminate.
The headlights must be on for the front fog lights to illu-
minate.

If the headlights are switched to high beam, the front fog
lights will go out; they will illuminate again when the
headlights are switched back to low beam.

If the light switch is rotated to the “OFF” or “ ” posi-
tion while the front fog lights are illuminated, they will
automatically turn off. They can be turned back on again
by rotating the light switch back to “ ” position, and
pressing the front fog light switch once again.
Ty p e 1
Ty p e 2
BK0132701US.book 131 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-132 Features and controls
3Wiper and washer switch
N00523000422
Windshield wipersThe windshield wipers wipe when the wiper lever is moved as
shown in the illustration and the ignition key is in the “ON” or
“ACC” position.
To adjust intermittent intervalsWith the lever in the “INT” (speed-sensitive) position, the
intermittent intervals can be adjusted by turning the knob (A).
MIST- Misting function
The wipers will wipe one time.
OFF- Off
INT- Speed sensitive intermittent operation
Interval between wiper sweeps varies in accordance with
vehicle speed.
LO- Slow
HI- Fast
1- Fast
2- SlowType 1 Type 2
BK0132701US.book 132 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-133
3
Misting functionMove the lever in the direction of the arrow and release, and
the wipers will operate once.
Use this function when you are driving in mist or drizzle.
If the lever is held in the upward position (MIST), the wipers
continue operating until the lever is released.
Windshield washer
N00504600096
To turn on the windshield washer, pull the lever toward you
with the ignition key in either the “ON” or “ACC” position.
The wipers will wipe automatically several times when the
washer fluid is sprayed.
To turn off the spray, release the lever.
BK0132701US.book 133 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-134 Features and controls
3
Rear window wiper and washer (ECLIPSE only)
N00523200264
The rear window wiper and washer can be operated when the
ignition key is in the “ON” or “ACC” position.
Turn the knob to operate the rear window wiper.
NOTE
To ensure a clear rearward view, the wiper performs a
number of continuous operations either when the switch is
moved to the “INT” position or when the gearshift lever
(manual transmission) or the selector lever (automatic
transmission) is moved to the “R” (REVERSE) position
while the switch is in the “INT” position.
Following this continuous operation, the wiper will auto-
matically switch to intermittent operation.

The washer fluid reservoir is located in the engine com-
partment.
Check the fluid level regularly and refill if necessary. (See
“Washer fluid” on page 7-14.)Precautions to observe when using wipers and
washers
N00523500111
NOTE
Do not use the wipers when the windshield is dry. This
could scratch the glass and wear the wiper blades prema-
turely.

Before using the wipers in cold weather, check to be sure
that the wiper blades are not frozen to the windshield or
rear window. Using the wipers while the blades are frozen
could cause the wiper motor to burn out.
OFF- Off
INT- The wiper operates continuously for several seconds then
operates intermittently at intervals of about 8 seconds.
-Washer fluid will be sprayed onto the rear window glass
while the knob is turned fully in either direction.
When the washer fluid is sprayed, the wiper will automati-
cally operate 2 or 3 times.
CAUTION
!
If the washer is used in cold weather, the washer
fluid sprayed onto the glass might freeze, blocking
your view. In cold weather, heat the glass with the
defroster before using the washer.
BK0132701US.book 134 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-135
3

If the wipers become blocked by ice or other deposits on
the glass, the motor may still burn out even if the wiper
switch is OFF. If deposits form on the windshield, park
your vehicle in a safe place, turn off the engine, and clean
the glass so that the wipers can operate smoothly.

Avoid using the washer for more than 20 seconds at a
time. Do not operate the washer when the fluid reservoir
is empty or the pump may fail.

During cold weather, add a recommended washer solution
that will not freeze in the washer reservoir. Otherwise the
washer may not work or may be damaged.

Replace the wiper blades when they are worn. Use the
proper size replacement blades. If you have questions, ask
your authorized Mitsubishi Motors dealer.
Electric rear window defogger switch
N00523700214
The electric rear window defogger can be used with the igni-
tion key in the “ON” position.
The indicator light (A) will come on when you press the elec-
tric rear window defogger switch. Electric current will flow
through the heating wires on the rear window to help clear
away moisture or frost.
After about 17 minutes of operation, the system will shut off
automatically.
To switch the defogger OFF before 17 minutes have passed,
press the switch again. The indicator light will go out and the
defogger will turn off.
If you need the defogger for more than 17 minutes, press the
switch again. This will add 17 more minutes.
BK0132701US.book 135 ページ ２０１０年１２月６日　月曜日　午後２時３分

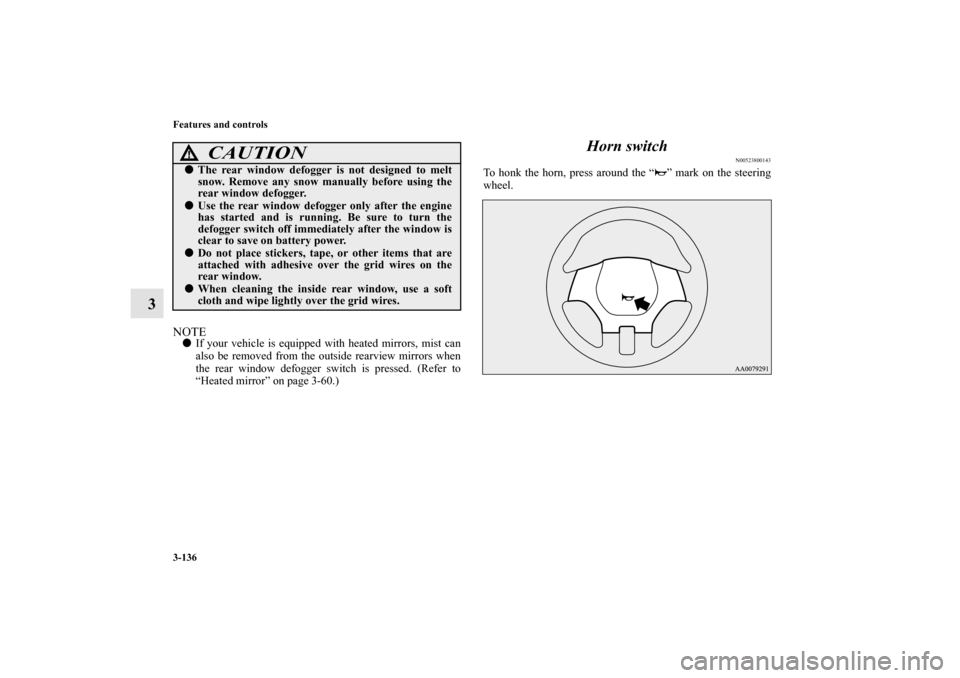

3-136 Features and controls
3
NOTE
If your vehicle is equipped with heated mirrors, mist can
also be removed from the outside rearview mirrors when
the rear window defogger switch is pressed. (Refer to
“Heated mirror” on page 3-60.)
Horn switch
N00523800143
To honk the horn, press around the “ ” mark on the steering
wheel.
CAUTION
!
The rear window defogger is not designed to melt
snow. Remove any snow manually before using the
rear window defogger.
Use the rear window defogger only after the engine
has started and is running. Be sure to turn the
defogger switch off immediately after the window is
clear to save on battery power.
Do not place stickers, tape, or other items that are
attached with adhesive over the grid wires on the
rear window.
When cleaning the inside rear window, use a soft
cloth and wipe lightly over the grid wires.
BK0132701US.book 136 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-137
3 Hands-free Bluetooth
® cellular phone
interface system with voice recognition
(if so equipped)
N00506400069
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition (Bluetooth
® HFP) uses a wireless com-
munication technology known as Bluetooth
® to allow you to
make hands-free calls in your vehicle using your Bluetooth
®
compatible cellular phone with Hands-free profile.
The system is equipped with a voice recognition function,
which lets you make hands-free calls by simple switch opera-
tions and voice command operations using a defined voice tree.
The Bluetooth
® HFP can be used when the ignition switch is in
the “ON” or “ACC” position.
To use the Bluetooth
® HFP, you should first connect your
Bluetooth
® compatible cellular phone to the Bluetooth
® HFP.
Refer to “Pairing a cellular phone” on page 3-145.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
NOTE
You cannot use the Bluetooth
® HFP if your cellular phone
has a dead battery or is turned off.

Hands-free calls will not be possible in areas outside your
cellular phone service area or locations where a signal
cannot reach your phone.
WA R N I N G
!
Although the Bluetooth
® HFP allows you to make
hands-free calls, if you choose to use the cellular
phone while driving, you must not allow that usage
to distract you in the safe operation of your vehicle.
Anything, including cellular phone usage, that dis-
tracts you from the safe operation of your vehicle
increases your risk of an accident. Refer to and fol-
low all state and local laws in your area regarding
cellular phone usage while driving.
