2012 MITSUBISHI ECLIPSE Owners Manual

BK0132701US.book 14 ページ ２０１０年１２月６日　月曜日　午後２時３分

5
Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Manual air conditioning (if so equipped). . . . . . . .5- 5
Automatic air conditioning (if so equipped) . . . . .5- 14
Important air conditioning operating tips . . . . . . .5- 22
Audio system . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 24
AM/FM electronically tuned radio
with CD player-Type 1 (if so equipped) . . . . . . .5- 26
AM/FM electronically tuned radio
with CD autochanger-Type 2 (if so equipped)
AM/FM/Satellite electronically tuned radio
with CD autochanger-Type 3 (if so equipped) . .5- 39
To use the external audio input function . . . . . . . .5- 63
Steering wheel audio remote control switch
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 65
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 67
Error codes (SIRIUS Satellite Radio) . . . . . . . . . .5- 69
Handling of compact discs . . . . . . . . . . . . . . . . . . .5- 71
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 74
General information about your radio . . . . . . . . . .5- 76
BK0132701US.book 1 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-2 Comfort controls
5Ve n t s
N00729900135
NOTE
Do not place beverages on top of the instrument panel. If
they splash into the air conditioning vents, they could
damage the system.
Air flow and direction adjustments
N00730200125
Center/Side ventsAdjust the direction of the air flow by moving the knob (A).NOTE
On rare occasions, air from the vents of an air-conditioned
vehicle may be foggy. This is only moist air cooling sud-
denly and does not indicate a problem.
1- Center vents
2- Side vents
BK0132701US.book 2 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-3
5
Changing the mode selection
N00736400451
To change the position and amount of air flowing from the
vents, turn the mode selection dial. (Refer to “Mode selection
dial” on page 5-7, 5-17.)
These symbols are used in the next several illustrations to dem-
onstrate the quantity of air coming from the vents.
: Small amount of air from the vents
: Medium amount of air from the vents
: Large amount of air from the vents Face position Air flows only to the upper part of the passenger compartment.
Foot/Face position Air flows to the upper part of the passenger compartment, and
flows to the leg area. NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the upper part of the passen-
ger compartment. With the mode selection dial between
the “ ” and “ ” positions, air flows mainly to the leg
area.
BK0132701US.book 3 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-4 Comfort controls
5
Foot position Air flows mainly to the leg area.
Foot/Defroster position Air flows to the leg area, the windshield and the door windows. NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the leg area. With the mode
selection dial between the “ ” and “ ” positions, air
flows mainly to the windshield and door windows.
BK0132701US.book 4 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-5
5

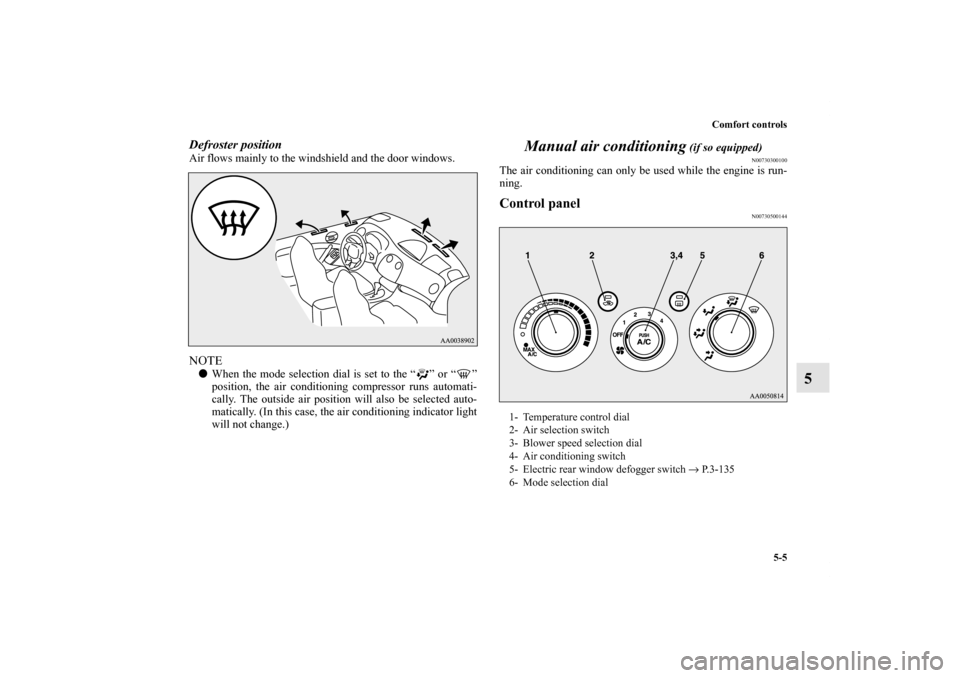

Defroster position Air flows mainly to the windshield and the door windows.NOTE
When the mode selection dial is set to the “ ” or “ ”
position, the air conditioning compressor runs automati-
cally. The outside air position will also be selected auto-
matically. (In this case, the air conditioning indicator light
will not change.)
Manual air conditioning
(if so equipped)
N00730300100
The air conditioning can only be used while the engine is run-
ning.Control panel
N00730500144
1- Temperature control dial
2- Air selection switch
3- Blower speed selection dial
4- Air conditioning switch
5- Electric rear window defogger switch → P.3-135
6- Mode selection dial
BK0132701US.book 5 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-6 Comfort controls
5
Blower speed selection dial
N00736500087
When the ignition key is in the ON position, select the blower
speed by turning the blower speed selection dial. The blower
speed will gradually increase as the dial is turned to the right.
When the blower speed selection dial is set to the “OFF” posi-
tion, all fan-driven airflow will stop.
Temperature control dial
N00736600121
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler. NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.

For instructions on how to use the “MAX A/C” position
(A), see “Cooling” on page 5-10.
BK0132701US.book 6 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-7
5
Mode selection dial
N00736700164
To change the position and amount of air flowing from the
vents, turn the mode selection dial. (Refer to “Changing the
mode selection” on page 5-3.)
Air selection switch
N00736800165
Normally, use the outside position to keep the windshield and
side windows clear and to quickly remove fog or frost from the
windshield.
To change the air selection, simply press the air selection
switch.

Outside air {Indicator light (A) is OFF}

Recirculated air {Indicator light (A) is ON}
If the outside air is dusty or contaminated in some way, use the
recirculation position. Switch to the outside position every now
and then to keep the windows from fogging up.
CAUTION
!
Using recirculated air for a long time may cause the
windows to fog up.
