NOTE
When the “ ” or “ ” position is selected, you cannot
turn the air conditioning off or use the recirculation posi-
tion.
This prevents the windows from fogging up.

When the mode selection dial is set to a position other
than “ ” or “ ”, the air selection will automatically
change to outside air. The air conditioning will revert to
the previous condition in which the “ ” or “ ” posi-
tion was not selected.

When the temperature control dial is set to the “MAX
A/C” position, the air selection will be automatically set
to the recirculation position.

If the temperature dial is set to any position other than
“MAX A/C”, outside air will always be used when the
ignition switch is turned on.

When the coolant temperature rises above a certain point,
the air selection is automatically switched to the
recirculation position and the indicator light (A) turns on.
When this occurs, the system will not switch to the out-
side air position until the coolant temperature goes down,
even if the selection switch is pushed.
Air conditioning switch
N00731000319
Push the switch, and the air conditioning compressor will turn
on. The air conditioning indicator light (A) will come on.
Push the switch again and the air conditioning compressor will
stop and the indicator light (A) goes off.
CAUTION
!
Using the air conditioning slightly increases the
engine idle speed. Therefore, make sure your foot is
firmly on the brake pedal when shifting the tran-
saxle into drive.
(Green)
BK0132701US.book 8 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-9
5
NOTE
If a problem is detected in the air conditioning compres-
sor, the air conditioning indicator light (A) blinks. Press
the air conditioning switch once to turn it off, then once
more to turn it back on. If the air conditioning indicator
light (A) does not blink, there is no problem. If it does
blink, have it checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice.

Sometimes, for example after using a high-pressure car
wash, the condenser can get wet, and the air conditioning
indicator light (A) blinks temporarily. In this case there is
nothing wrong. Wait for a while, press the air conditioning
switch once to turn the system off, then once more to turn
it back on. Once the water evaporates, the blinking will
stop.
Operating the air conditioning system
N00731100150
Heating Set the mode selection dial to the “ ” position and set the air
selection switch (A) to the outside position.
Turn the temperature control dial clockwise or counterclock-
wise to the desired temperature. Select the desired blower
speed.
BK0132701US.book 9 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-10 Comfort controls
5

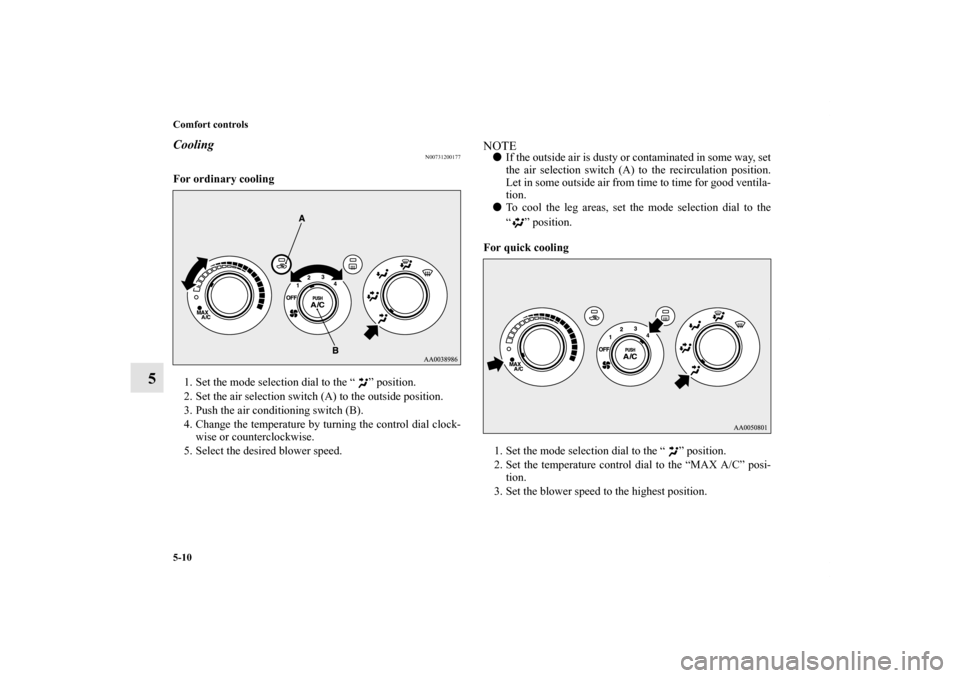

Cooling
N00731200177
For ordinary cooling

1. Set the mode selection dial to the “ ” position.
2. Set the air selection switch (A) to the outside position.
3. Push the air conditioning switch (B).
4. Change the temperature by turning the control dial clock-
wise or counterclockwise.
5. Select the desired blower speed.
NOTE
If the outside air is dusty or contaminated in some way, set
the air selection switch (A) to the recirculation position.
Let in some outside air from time to time for good ventila-
tion.

To cool the leg areas, set the mode selection dial to the
“ ” position.
For quick cooling

1. Set the mode selection dial to the “ ” position.
2. Set the temperature control dial to the “MAX A/C” posi-
tion.
3. Set the blower speed to the highest position.
BK0132701US.book 10 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-11
5
NOTE
When the temperature control dial is set to the “MAX
A/C” position, the air conditioning compressor will run
automatically and the light will come on. The
recirculation position will be selected automatically. In
this case, you cannot turn the air conditioning off or select
the outside position.

When the temperature control dial is set to a position other
than “MAX A/C”, the air selection will automatically
change to outside air. The air conditioning compressor
will continue running.
Combination of unheated air and heated air
N00731300110
Select the mode selection dial to the positions shown in the
illustration and set the air selection switch (A) to the outside
position.
The air flow will be directed to the leg area and the upper part
of the passenger compartment. Select the desired blower speed.
Warm air flows to the leg area and unheated or slightly warm
air (depending upon temperature setting) flows to the upper
part of the passenger compartment.
BK0132701US.book 11 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-12 Comfort controls
5
Defrosting or defogging the windshield and door win-
dows
N00731400430
To remove frost or fog from the windshield and door windows,
use the mode selection dial (“ ” or “ ”).For ordinary defrosting
Use this setting to keep the windshield and door windows clear
of mist, and to keep the leg area heated (when driving in rain or
snow).
1. Set the mode selection dial to the “ ” position.
2. Select your desired blower speed by turning the blower
speed selection dial.
3. Select your desired temperature by turning the tempera-
ture control dial.
CAUTION
!
For safety, make sure you have a clear view through
all the windows.
BK0132701US.book 12 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-13
5
For quick defrosting

1. Set the mode selection dial to the “ ” position.
2. Set the blower to the maximum speed.
3. Set the temperature to the highest position.
NOTE
When the mode selection dial is set to the “ ” or “ ”
position, the air conditioning compressor runs automati-
cally. The outside air position will be also selected auto-
matically. (In this case, the air conditioning indicator light
will not change.)

When the “ ” or “ ” position is selected, you cannot
turn the air conditioning off or use the recirculation posi-
tion. This prevents the windows from fogging up.

When defrosting, do not set the temperature control dial
near the “MAX A/C” position. This would blow cool air
on the window glass and fog it up.
BK0132701US.book 13 ページ ２０１０年１２月６日　月曜日　午後２時３分

5-14 Comfort controls
5Automatic air conditioning
(if so equipped)
N00731500066
The air conditioning can only be used while the engine is run-
ning.Control panel
N00711800382
Ty p e 1
1- Temperature control dial
2- Air selection switch
3- Blower speed selection dial
4- Air conditioning switch
5- Electric rear window defogger switch → P.3-135
6- Mode selection dialTy p e 2
BK0132701US.book 14 ページ ２０１０年１２月６日　月曜日　午後２時３分

Comfort controls
5-15
5
NOTE
There is an interior air temperature sensor (A) in the illus-
trated position.
Never place anything over the sensor, since doing so will
prevent it from functioning properly.
Blower speed selection dial
N00736900081
When the ignition key is in the ON position, select the blower
speed by turning the blower speed selection dial. The blower
speed will gradually increase as the dial is turned to the right.
When the blower speed selection dial is set to the “OFF” posi-
tion, all fan-driven airflow will stop.
