3-34 Features and controls
3
5. Push the left and right release buttons (A) to unlock the
latch handles (B) and cause them to slightly rise.6. Pull the latch handles (B) toward you until they lock in
position.
NOTE
Make sure the latch handles (B) are securely locked in
place. Operating the electric convertible top without first
locking the latch handles in position could cause the elec-
tric convertible top to malfunction.

If you pull the driver’s-side latch handle (B) while listen-
ing to the audio system, an audible beep will sound and
the audio system’s sound equalization will change to set-
tings that are optimized for operation with the electric
convertible top open.
A
B
B
BK0132701US.book 34 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-35
3
7. When you push the OPEN switch, a tone will sound and
the top will start to operate. Keep pressing the OPEN
switch until the top is fully open. Refer to “Top switches”
on page 3-33.NOTE
When the top reaches the fully open position, a tone
sounds once and the operation indicator lamp goes off to
show that the operation is complete.
BK0132701US.book 35 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-36 Features and controls
3
NOTE
During operation of the top, if the switch is released
before the top has fully closed or retracted, the top will
stop moving and the operation indicator lamp will flash
slowly (approximately one flash per second).

If operation of the top is stopped for more than 4 minutes
before it has fully closed or retracted, the top (depending
on its location) will slowly move toward the closed or
retracted position. During this time, the operation indica-
tor lamp will flash rapidly (approximately two flashes per
second) and the top switch will be inoperable. When the
operation indicator lamp stops flashing (approximately 2
minutes later), the top switch will again become operable.

The operation indicator lamp is illuminated while the top
is moving.

When the OPEN switch is pushed, the door windows and
quarter windows automatically open fully before the top
starts moving.

If the CLOSE switch is pushed when the top is fully
closed, the operation indicator lamp flashes slowly
(approximately one flash per second) and a tone sounds
intermittently and rapidly (approximately three times per
second) to indicate that the top is not going to move.
To close the top
N00505300045
1. When you push the CLOSE switch, a tone will sound and
the top will start to operate. Keep pressing the CLOSE
switch until the top is fully closed. Refer to “Top
switches” on page 3-33.NOTE
When the top reaches the fully closed position, a tone
sounds once and the operation indicator lamp goes off to
show that the operation is complete.
WA R N I N G
!
To avoid injury, keep hands and head away from the
top while it is operating.
To prevent uncontrolled movement of the top,
always keep the vehicle engine running when oper-
ating the top.
BK0132701US.book 36 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-37
3

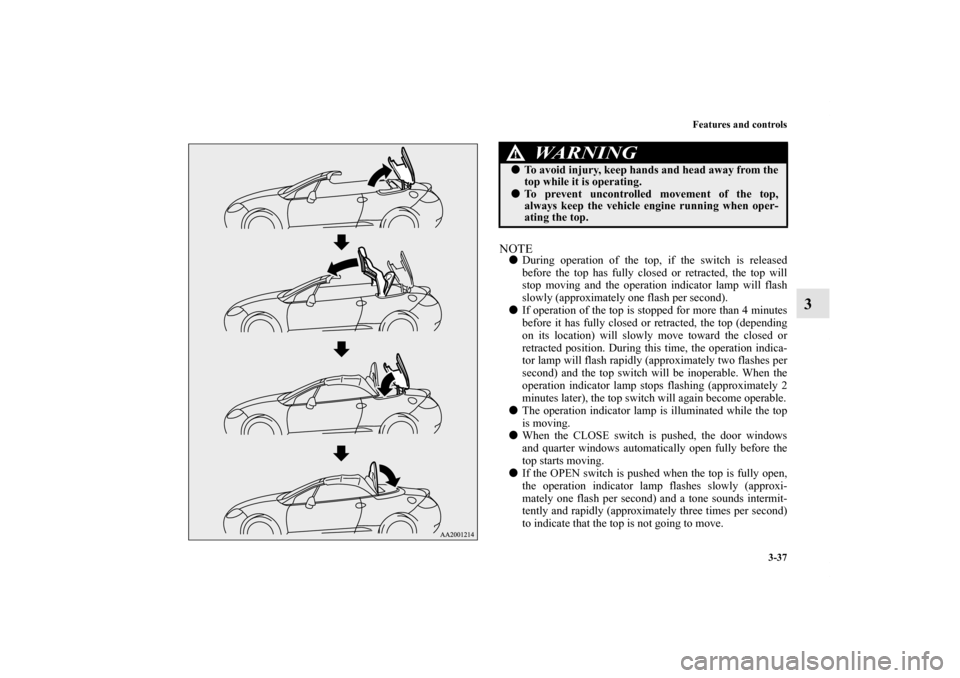

NOTE
During operation of the top, if the switch is released
before the top has fully closed or retracted, the top will
stop moving and the operation indicator lamp will flash
slowly (approximately one flash per second).

If operation of the top is stopped for more than 4 minutes
before it has fully closed or retracted, the top (depending
on its location) will slowly move toward the closed or
retracted position. During this time, the operation indica-
tor lamp will flash rapidly (approximately two flashes per
second) and the top switch will be inoperable. When the
operation indicator lamp stops flashing (approximately 2
minutes later), the top switch will again become operable.

The operation indicator lamp is illuminated while the top
is moving.

When the CLOSE switch is pushed, the door windows
and quarter windows automatically open fully before the
top starts moving.

If the OPEN switch is pushed when the top is fully open,
the operation indicator lamp flashes slowly (approxi-
mately one flash per second) and a tone sounds intermit-
tently and rapidly (approximately three times per second)
to indicate that the top is not going to move.
WA R N I N G
!
To avoid injury, keep hands and head away from the
top while it is operating.
To prevent uncontrolled movement of the top,
always keep the vehicle engine running when oper-
ating the top.
BK0132701US.book 37 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-38 Features and controls
3
2. Pull down both sun visors.
3. Firmly return the latch handles (B) until they click and
lock into position. Return the sun visors to their original
positions.NOTE
If you lock the driver’s-side latch handle (B) while listen-
ing to the audio system, an audible beep will sound and
the audio system’s sound equalization will change to set-
tings that are optimized for operation with the electric
convertible top closed.
Part-open warning buzzer
N00505400033
If you start to drive the vehicle with the top partly open, the
operation indicator lamp will flash rapidly (approximately two
flashes per second) and a tone will sound for approximately 5
seconds to indicate that the top is partly open. Stop the vehicle
in a safe place and completely open or close the top.If the electric convertible top malfunctions
N00505500018
If the electric convertible top malfunctions, the operation indi-
cator lamp will flash rapidly (approximately two flashes per
second) and a tone will sound intermittently and slowly
(approximately once per second) to indicate the system fault
when either top switch is operated. If the operation indicator
lamp does not go off when a period of 10 minutes or longer has
elapsed, have the vehicle inspected by an authorized
Mitsubishi Motors dealer.
WA R N I N G
!
Make sure the latch handles (B) are securely locked
in place. Driving the vehicle without first locking the
latch handles in position could cause the top to open,
resulting in a serious accident.
B
BK0132701US.book 38 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-39
3
Wind deflector
(if so equipped)
N00505800024
The wind deflector reduces turbulent airflow inside the vehicle
for greater comfort when driving with the electric convertible
top open.NOTE
The optional wind deflector is stored in a bag in the trunk.
To prevent damage it should always be kept in this bag
when not installed. Do not place heavy objects (e.g. crates
or heavy shopping bags) on top of the wind deflector.
Installing the wind deflector1. Open half of the bottom frame (A) and half of the top
frame (B) of the wind deflector as shown by the arrows.
WA R N I N G
!
The two rear seats must not be occupied when the
wind deflector is installed.
Never place any object on the wind deflector. An
object on the wind deflector could cause damage to
the deflector and/or the vehicle. It could be blown
off when the vehicle is in motion.
Adjust the front passenger’s seat so that the seat
does not come in contact with the wind deflector to
ensure that the front passenger’s seat weight sensor
can correctly sense the weight being applied to the
seat.
CAUTION
!
When you adjust the front seats when the wind
deflector is installed, be careful not to push the
backrests into the wind deflector when reclining the
seats or when moving them back.
A
B
BK0132701US.book 39 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-40 Features and controls
3
2. While pushing the slide (C) in the direction of the arrow,
install the top and bottom frames, then release the slide
(C). Make sure both of the frames are securely engaged.3. Move the locking pin (D) to the position (2).
C
1- Stowed position
2- Installation position
3- Locked position
1 2 3 D
BK0132701US.book 40 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-41
3
4. From inside the vehicle, insert the two retainer pegs (E)
all the way into mountings provided (F). 5. Align the locking pins (D) with the holes (G) in the vehi-
cle. Slide the locking pins (D) toward the outside and
insert them in the holes to retain the wind deflector. Make
sure that the wind deflector is securely installed in the
vehicle.
EF
D
G
BK0132701US.book 41 ページ ２０１０年１２月６日　月曜日　午後２時３分
