3-26 Features and controls
3Power windows
N00510800338
In an ECLIPSE SPYDER, operating a power window switch
causes the door window and quarter window to move together.
However, within about 4 inches from the fully closed position,
only the door window moves without accompanying the quar-
ter window.
NOTE
Depending on the position of the door window, the door
window may briefly stop then continue moving before
reaching the fully closed position.

Never try to operate the main switch and sub switch in dif-
ferent directions at the same time. This will freeze the
window in position.

Operating the power windows repeatedly with the engine
stopped will run down the battery. Use the window
switches only while the engine is running. NOTE
If a power window stops moving during operation due to a
drop in the battery voltage, it may not automatically return
to normal operability when the battery has been charged.
In this event, take the following corrective action:
With the door closed, pull up the power window switch to
fully close the window. After releasing the switch, pull it
up again for approximately 1 second. Normal opening and
closing of the window will then be possible.
1- Open (down)
2- Close (up)
WA R N I N G
!
Before operating the power windows, make sure
that nothing can be trapped (head, hands, fingers,
etc.) in the window.
Never leave the vehicle without removing the key.
Never leave a child alone in the vehicle.
BK0132701US.book 26 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-27
3

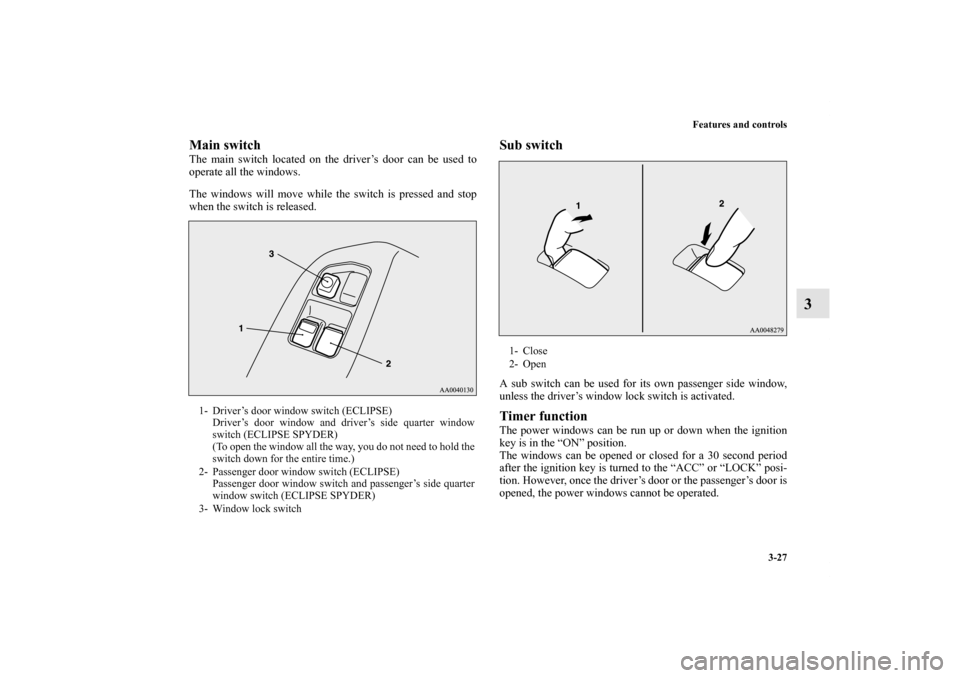

Main switch The main switch located on the driver’s door can be used to
operate all the windows.
The windows will move while the switch is pressed and stop
when the switch is released.
Sub switchA sub switch can be used for its own passenger side window,
unless the driver’s window lock switch is activated. Timer functionThe power windows can be run up or down when the ignition
key is in the “ON” position.
The windows can be opened or closed for a 30 second period
after the ignition key is turned to the “ACC” or “LOCK” posi-
tion. However, once the driver’s door or the passenger’s door is
opened, the power windows cannot be operated.
1- Driver’s door window switch (ECLIPSE)
Driver ’s door window and driver’s side quarter window
switch (ECLIPSE SPYDER)
(To open the window all the way, you do not need to hold the
switch down for the entire time.)
2- Passenger door window switch (ECLIPSE)
Passenger door window switch and passenger’s side quarter
window switch (ECLIPSE SPYDER)
3- Window lock switch
1- Close
2- Open
BK0132701US.book 27 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-28 Features and controls
3
Lock switch
N00549000101
When this switch is in the lock mode, the main switch for pas-
senger’s side window and the sub switch cannot be used to
open or close the window, and the main switch will open or
close only the driver’s side window. To unlock the switch,
press it again.
Sunroof (ECLIPSE only, if so equipped)
N00511000571
The sunroof can be opened and closed with the ignition key in
the “ON” position. To open Press the switch (1), the sunroof automatically opens and the
sunroof will stop several centimeters this side of the full open
position. Press the switch (1) again, and the sunroof will be
fully open.
To stop the moving sunroof, press the switch. NOTE
The sunroof stops just before reaching the fully open posi-
tion. If the vehicle is driven with the sunroof in this posi-
tion, wind buffeting is lower than with the sunroof fully
open.
1- Lock
2- Unlock
WA R N I N G
!
Before driving with a child in the vehicle, be sure to
lock the window switch to make it inoperative. Chil-
dren tampering with the switch could easily trap
their hands or heads in the window.
BK0132701US.book 28 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-29
3
To closeThe sunroof closes while the switch (3) is pressed.To tilt up When the switch (2) is pressed, the rear edge of sunroof raises
for ventilation. To tilt down Press the switch (3). Timer functionThe sunroof can be operated when the ignition key is in the
“ON” position. The sunroof can be opened or closed for a 30
seconds period after the ignition switch is turned off. However,
once the driver’s door or the passenger’s door is opened, the
sunroof cannot be operated until the ignition switch is turned
on again.
SunshadeThe sunshade can be opened or closed manually while the sun-
roof is closed.
When the sunroof is opened, the sunshade will also open auto-
matically.NOTE
Be sure to tilt down the sunroof before closing the sun-
shade.
CAUTION
!
Do not attempt to close the sunshade when the sun-
roof is opened.
Be careful that hands are not trapped when closing
the sunshade.
BK0132701US.book 29 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-30 Features and controls
3
NOTE
When leaving the vehicle unattended, be sure to close the
sunroof and remove the ignition key.

Do not try to operate the sunroof if it is frozen closed
(after snowfall or during extreme cold).

Do not sit on or place heavy luggage on the sunroof or
roof opening edge.

Do not apply any force that may cause damage to the sun-
roof.

Release the switch when the sunroof has reached a com-
pletely open or completely closed position.

If the sunroof does not operate when the sunroof switch is
operated, release the switch and check whether something
is trapped by the sunroof. If nothing is trapped, have the
sunroof checked at an authorized Mitsubishi Motors
dealer.

Be careful when tilting up the sunroof if a ski carrier or a
roof carrier is installed. Depending on the model of ski
carrier or roof carrier, the sunroof may contact the carrier
when the sunroof is tilted up.

Be sure to close the sunroof completely when washing the
vehicle or when leaving the vehicle.
Do not put any wax on the weatherstrip (black rubber)
around the sunroof opening. If it is waxed, the weather-
strip cannot maintain a weatherproof seal with the sun-
roof.

After washing the vehicle or after it has rained, wipe off
any water that is on the sunroof before operating it.

Operating the sunroof repeatedly with the engine turned
off will run down the battery. Operate the sunroof only
while the engine is running.
WA R N I N G
!
Do not stick your head, hands or anything else in the
sunroof opening.
Before operating the sunroof, make sure that noth-
ing can be trapped (head, hands, fingers, etc.).
Never leave a child (or other person who is incapa-
ble of safely operating the sunroof switch) alone in
the vehicle.
BK0132701US.book 30 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-31
3 Electric convertible top (ECLIPSE SPY-
DER)
N00511100048
The electric convertible top can be opened and closed using the
dash mounted control switches.
WA R N I N G
!
While the vehicle is being driven, passengers must
not stand up in the vehicle, sit on the tonneau panel,
or put any part of their bodies out of the vehicle.
Passengers failing to observe this caution may suffer
serious injuries in the event of hard braking or a col-
lision.
Never attempt to operate the electric convertible top
while the vehicle is in motion.
Never leave a child alone in the vehicle.

Before operating the electric convertible top, inform
other vehicle occupants that you are going to cause
the top to move and have them exercise caution.
Otherwise, sudden opening or closing of the win-
dows may cause injuries.
While the top is being opened or closed, vehicle
occupants must keep their heads, necks, and other
body parts away from the power windows and other
moving components and away from the windshield
top edge on which the top is retained.
If child restraint systems are mounted in the rear
seat or children are seated in the rear seat, remove
the child from the vehicle before operating the elec-
tric convertible top.
CAUTION
!
When the top is completely lowered, keep the rear
window defogger turned off to avoid damage to the
top.
Secure all loose objects inside the vehicle when driv-
ing with the top down.
Never drive the vehicle with the top in a partly
open/partly closed state. If the top is neither fully
open nor fully closed when the vehicle is driven,
there is a risk of serious injuries and a risk that the
top will be caught by the wind, resulting in an acci-
dent.
Do not open or close the top in a strong wind. The
top may not work normally in a strong wind.
WA R N I N G
!
BK0132701US.book 31 ページ ２０１０年１２月６日　月曜日　午後２時３分

3-32 Features and controls
3
NOTE
The opening or closing operation of the top cannot be per-
formed when the vehicle is in motion.

For information about the cleaning of the top, refer to the
section “Convertible top” on page 7-77.

When leaving the vehicle unattended, be sure to close the
top and remove the ignition key.

To avoid damage, do not sit or place luggage or any heavy
objects on the top itself, or the area around it.

Make sure nothing is in the top storage area (top and
behind the rear seats) when raising or lowering the top.
Even a small article may interfere with the operation of
the top and may damage the top or cause it to malfunction.

Always be sure the top is completely dry before it is low-
ered. Lowering the top while wet or damp may cause inte-
rior water damage, water stains or mildew of the top. It
can also cause the top to deteriorate and shrink.

Never operate the top when temperatures are 32 °F (0 °C)
or below. The fabric of the top may be damaged. If neces-
sary, allow the vehicle to set for a while in a heated garage
prior to operating the convertible top mechanism.

A roof top or luggage carrier of any type or design MUST
NOT be used on the ECLIPSE SPYDER’s top. This
includes, but is not limited to ski, bicycle or luggage
racks. Damage to the top may result.

Before opening or closing the top, make sure there are no
obstructions above the vehicle. For opening and closing of
the top, there must be upward clearance of approximately
6.6 feet (2 m) as measured from the ground.

The trunk lid cannot be opened until opening or closing of
the electric convertible top is complete.
The power windows cannot be operated until opening or
closing of the electric convertible top is complete.
Normal operation
N00504900015
The top can be opened and closed using the top switches.Requirements for operation
N00505000026
The top can be opened and closed when the following require-
ments are all satisfied.

The ambient temperature is 32 °F (0 °C) or higher.

The vehicle is stationary.

The ignition switch is in the “ON” position.

The trunk lid is closed.

The latch handles are unlocked.NOTE
If either of the top switches is operated when the require-
ments for operation are not all satisfied, the operation
indicator lamp will flash slowly (approximately one flash
per second) and a tone will sound intermittently and rap-
idly (approximately three times per second) to indicate
that opening/closing operation is not possible.
If you are not able to perform opening/closing operation
when the requirements are all satisfied, have the vehicle
inspected by an authorized Mitsubishi Motors dealer.
BK0132701US.book 32 ページ ２０１０年１２月６日　月曜日　午後２時３分

Features and controls
3-33
3
To p s w i t c h e s
N00505100030
The top can be opened and closed using the switches. The top
moves only while a switch is being pushed.NOTE
If the OPEN switch and CLOSE switch are both pushed at
the same time, the operation indicator lamp will flash
slowly (approximately one flashes per second) and a tone
will sound intermittently and rapidly (approximately three
per second) to indicate that the top is not going to work.
To operate the top, release the switches and push the rele-
vant switch again.
If the switches are continuously pushed one after the
other, a protection circuit may operate, making the electric
convertible top temporarily inoperable. In this event, the
operation indicator lamp will flash slowly (approximately
one flash per second) and a tone will sound intermittently
(approximately three times per second). Wait about 7 min-
utes, then try operating the electric convertible top again.
To open the top
N00505200031
1. Without obstructing traffic, stop the vehicle on a level,
firm surface where the top can be safely operated.
2. Securely apply the parking brake. If the vehicle has an
automatic transaxle, place the selector lever in the “P”
(PARK) position. If the vehicle has a manual transaxle,
place the gearshift lever in the “N” (Neutral) position.NOTE
The top can be operated with the selector lever of an auto-
matic transaxle in a position other than “P” (PARK) and
with the gearshift lever of a manual transaxle in a position
other than “N” (Neutral). For safety, however, you should
place the selector lever or gearshift lever (as relevant) in
the indicated position and apply the parking brake.
3. Start the engine.NOTE
Operating the top without the engine running can drain the
battery. To avoid a dead battery, operate the top with the
engine running.
4. Pull down both sun visors.
1- OPEN switch
2- CLOSE switch
3- Operation indicator lamp
12
3
BK0132701US.book 33 ページ ２０１０年１２月６日　月曜日　午後２時３分
