hicle will be driven. When properly
set, the compass will automatically
account for this difference.
NOTE:
 A good calibration requires alevel surface and an environ- ment free from large metallic
objects such as buildings,
bridges, underground cables,
railroad tracks, etc.
 Magnetic and battery powered devices, (such as cell phones, iP-
od's, radar detectors, PDA's and laptops) should be kept away
from the top of the instrument
panel. This is where the com-
pass module is located and such
devices may interfere and cause
false compass readings.
Compass Variance Map
171

To Set The Variance
Start the engine, and leave the trans-
mission gear selector lever in the
PARK position. On the touch screen
go through "More", then compass,
Then select "Compass Variance" and
use the "Plus (+)" button to change
the variance value. Change the vari-
ance one step at a time as necessary
until the desired variance is achieved.
NOTE:
The factory default Zone is 8. Dur-
ing programming, the zone value
will wrap around from Zone 15 to
Zone 1.
Manual Compass Calibration
If the compass appears erratic or in-
accurate, and the variance has been
properly set, you may wish to manu-
ally recalibrate the compass. To
manually calibrate the compass:
1. Start the engine, and leave the
transmission in the PARK position.
2. On the touch screen go through
"More", then compass.
3. Then select "Compass Calibra-
tion" , The Touch screen will startflashing with a text message to start
drive the car in circles
4. To complete the compass calibra-
tion, drive the vehicle in one or more
complete 360 degree circles under
8 km/h in an area free from power
lines, large metallic objects, until the
CAL indicator turns off. The compass
will now function normally.
ELECTRONIC VEHICLE
INFORMATION CENTER
(EVIC) (for versions/
markets, where provided)
The Electronic Vehicle Information
Center (EVIC) features a driver-
interactive display that is located in
the instrument cluster.
This system conveniently allows the
driver to select a variety of useful in-
formation by pressing the switches
mounted on the steering wheel. The
EVIC consists of the following:
 Radio Information
 Fuel Economy
 Vehicle Speed
 Trip Info
 Tire BAR
 Vehicle Info
 Messages
 Units
 System Setup (Personal Settings)
 Turn Menu Off
The system allows the driver to select
information by pressing the following
buttons mounted on the steering
wheel:
Electronic Vehicle Information
Center (EVIC)
172

UP ButtonPress and release the UP
button to scroll upward
through the main menus
(Fuel Economy, Vehicle
Info, Tire BAR, Cruise, Messages,
Units, System Setup) and sub-menus.
DOWN Button Press and release the
DOWN button to scroll
downward through the
main menus and sub-
menus. SELECT Button
The SELECT button allows
access to information in
EVIC submenus, selects
some feature settings, and
resets some EVIC features. The EVIC
prompts the driver when the SELECT
button can be used by displaying the
right arrow graphic.
BACK Button
Press the BACK button to
scroll back to a previous
menu or sub-menu.
ELECTRONIC VEHICLE
INFORMATION CENTER
(EVIC) DISPLAYS
The EVIC display consists of three
sections:
1. The top line where compass direc-
tion, odometer line and outside tem-
perature are displayed.
2. The main display area where the
menus and pop up messages are dis-
played.
3. The reconfigurable telltales sec-
tion below the odometer line. The main display area will normally
display the main menu or the screens
of a selected feature of the main
menu. The main display area also dis-
plays "pop up" messages that consist
of approximately 60 possible warning
or information messages. These pop
up messages fall into several catego-
ries:
 Five Second Stored Messages
When the appropriate conditions oc-
cur, this type of message takes control
of the main display area for five sec-
onds and then returns to the previous
screen. Most of the messages of this
type are then stored (as long as the
condition that activated it remains ac-
tive) and can be reviewed from the
"Messages" main menu item. As long
as there is a stored message, an "i"
will be displayed in the
EVIC's
compass/outside temp line. Examples
of this message type are "Right Front
Turn Signal Lamp Out" and "Low
Tire Pressure".
EVIC Steering Wheel Buttons
173

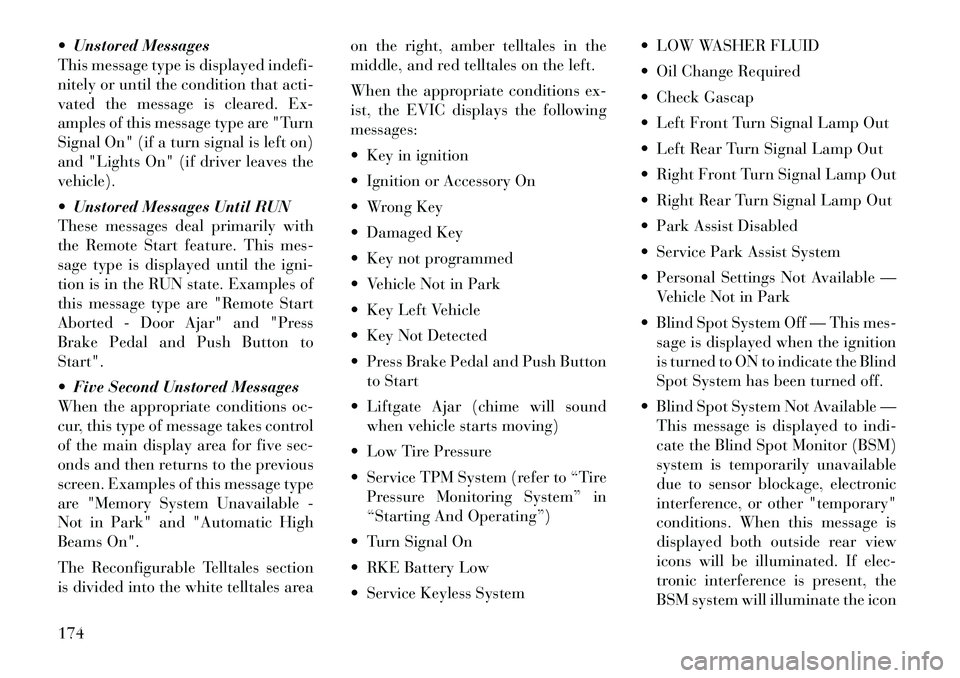

 Unstored Messages
This message type is displayedindefi-
nitely or until the condition that acti-
vated the message is cleared. Ex-
amples of this message type are "Turn
Signal On" (if a turn signal is left on)
and "Lights On" (if driver leaves the
vehicle).
 Unstored Messages Until RUN
These messages deal primarily with
the Remote Start feature. This mes-
sage type is displayed until the igni-
tion is in the RUN state. Examples of
this message type are "Remote Start
Aborted - Door Ajar" and "Press
Brake Pedal and Push Button to
Start".
 Five Second Unstored Messages
When the appropriate conditions oc-
cur, this type of message takes control
of the main display area for five sec-
onds and then returns to the previous
screen. Examples of this message type
are "Memory System Unavailable -
Not in Park" and "Automatic High
Beams On".
The Reconfigurable Telltales section
is divided into the white telltales area on the right, amber telltales in the
middle, and red telltales on the left.
When the appropriate conditions ex-
ist, the EVIC displays the following
messages:
 Key in ignition
 Ignition or Accessory On
 Wrong Key
 Damaged Key
 Key not programmed
 Vehicle Not in Park
 Key Left Vehicle
 Key Not Detected
 Press Brake Pedal and Push Button
to Start
 Liftgate Ajar (chime will sound when vehicle starts moving)
 Low Tire Pressure
 Service TPM System (refer to “Tire Pressure Monitoring System” in
“Starting And Operating”)
 Turn Signal On
 RKE Battery Low
 Service Keyless System  LOW WASHER FLUID
 Oil Change Required
 Check Gascap
 Left Front Turn Signal Lamp Out
 Left Rear Turn Signal Lamp Out
 Right Front Turn Signal Lamp Out
 Right Rear Turn Signal Lamp Out
 Park Assist Disabled
 Service Park Assist System
 Personal Settings Not Available —
Vehicle Not in Park
 Blind Spot System Off — This mes- sage is displayed when the ignition
is turned to ON to indicate the Blind
Spot System has been turned off.
 Blind Spot System Not Available — This message is displayed to indi-
cate the Blind Spot Monitor (BSM)
system is temporarily unavailable
due to sensor blockage, electronic
interference, or other "temporary"
conditions. When this message is
displayed both outside rear view
icons will be illuminated. If elec-
tronic interference is present, the
BSM system will illuminate the icon
174

only on the side of interference as
long as interference is present.
 Service Blind Spot System — This message is displayed to indicate the
Blind Spot Monitor (BSM) system is
permanently unavailable. The
driver will receive an EVIC mes-
sage and the BSM display warning
in both mirrors will be permanently
illuminated. If this message is pres-
ent see an authorized dealer.
 Obstacle Detected
 Driver Seatbelt Unbuckled
 Exhaust System — Regeneration Required Now. Under conditions of
exclusive short duration and low
speed driving and low speed driv-
ing cycles, the engine and exhaust
after-treatment system may never
reach the conditions required to re-
move the trapped PM. If this occurs
the “Exhaust System Regeneration
Required Now” message will be
displayed on the EVIC. By driving
your vehicle at highway speeds for
as little as 30 minutes, you can rem-
edy the condition in the particulate
filter system by allowing the trapped PM to be removed to re-
store the system to normal operat-
ing condition.
 Exhaust Service Require — See Dealer Now. The engine will be de-
rated to prevent permanent dam-
age to the after-treatment system. If
this condition occurs, it is necessary
to have your vehicle serviced by
your local authorized dealer.
 Exhaust System — Regeneration Completed. Indicates that the Die-
sel Particulate Filter (DPF) self-
cleaning is completed. If this mes-
sage is displayed, you will hear one
chime to assist in alerting you of
this condition.
 Exhaust System — Regeneration In Process. Indicates that the Diesel
Particulate Filter (DPF) is self-
cleaning. Maintain your current
driving condition until regenera-
tion is completed.
 Exhaust Filter Full — Power Re- duced See Dealer. The PCM derates
the engine in order to limit the like-
lihood of permanent damage to the
after-treatment system. If this con- dition is not corrected and a dealer
service is not performed, extensive
exhaust after-treatment damage
can occur. In order to correct this
condition it will be necessary to
have your vehicle serviced by your
local authorized dealer. See your
authorized dealer, as damage to the
exhaust system could occur soon
with continued operation.
 Exhaust Filter % Full
EVIC WHITE TELLTALE
LIGHTS
This area will show reconfigurable
white caution telltales. These telltales
include:
 Electronic Range Select (ERS) Status
The shift lever status “5,4,3,2,1” are
displayed indicating the shift lever
position. Telltales “5,4,3,2,1” indi-
cate the Electronic Range Select
(ERS) feature has been engaged and
the gear selected is displayed. For fur-
ther information on ERS, refer to
“Starting And Operating”
175

 Electronic Speed Control ReadyThis light will turn on when
the electronic speed control
is ready. For further infor-
mation, refer to “Electronic
Speed Control” in “Understanding
The Features Of Your Vehicle.”
 Electronic Speed Control SET This light will turn on when
the electronic speed control
is SET. For further infor-
mation, refer to “Electronic
Speed Control” in “Understanding
The Features Of Your Vehicle.”
EVIC AMBER TELLTALE
LIGHTS
This area will show reconfigurable
amber caution telltales. These tell-
tales include:
 Low Fuel Light
When the fuel level reaches ap-
proximately 11.0 L this light
will turn on, and remain on until
fuel is added.  Loose Gascap Indicator
If the vehicle diagnostic sys-
tem determines that the fuel
filler cap is loose, improp-
erly installed, or damaged,
a loose gascap indicator will display in
the telltale display area. Tighten the
fuel filler cap properly and press the
SELECT button to turn off the mes-
sage. If the problem continues, the
message will appear the next time the
vehicle is started.
A loose, improperly installed, or dam-
aged fuel filler cap may also turn on
the Malfunction Indicator Light
(MIL).
 Windshield Washer Fluid Low Indicator This light will turn on to
indicate the windshield
washer fluid is low.  Wait To Start Light — Diesel
Engines Only The Wait To Start Light will
turn on when the ignition key is
first turned to the ON/RUN position.
Wait until the Wait To Start Light
turns OFF to start the engine. (Refer
to “Starting Procedures” in “Starting
And Operating” for further informa-
tion).
 Water In Fuel Indicator Light — Diesel Engines Only Indicates there is water de-
tected in the fuel filter. If
this light remains on, DO
NOT start the vehicle be-
fore you drain the water from the fuel
filter to prevent engine damage. Refer
to “Maintenance Procedures/ Drain-
ing Fuel/Water Separator Filter” in
“Maintaining Your Vehicle” for water
drain procedure.
EVIC RED TELLTALE
LIGHTS
This area will show reconfigurable red
telltales. These telltales include:176

 Door AjarThis light will turn on to
indicate that one or more
doors may be ajar.
 Oil Pressure Warning Light This light indicates low engine
oil pressure. The light should
turn on momentarily when the engine
is started. If the light turns on while
driving, stop the vehicle and shut off
the engine as soon as possible. A
chime will sound when this light turns
on.
Do not operate the vehicle until the
cause is corrected. This light does not
show how much oil is in the engine.
The engine oil level must be checked
under the hood.
 Charging System Light This light shows the status of
the electrical charging system.
The light should come on when the
ignition switch is first turned ON and
remain on briefly as a bulb check. If
the light stays on or comes on while
driving, turn off some of the vehicle's
non-essential electrical devices or in-
crease engine speed (if at idle). If the charging system light remains on, it
means that the vehicle is experiencing
a problem with the charging system.
Obtain SERVICE IMMEDIATELY.
See an authorized dealer.
If jump starting is required, refer to
“Jump Starting Procedures” in “What
To Do In Emergencies”.
 Electronic Throttle Control
(ETC) Light This light informs you of a
problem with the Electronic
Throttle Control (ETC)
system. The light will come
on when the ignition is first turned ON
and remain on briefly as a bulb check.
If the light does not come on during
starting, have the system checked by
an authorized dealer.
If a problem is detected, the light will
come on while the engine is running.
Cycle the ignition key when the ve-
hicle has completely stopped and the
shift lever is placed in the PARK posi-
tion. The light should turn off.
If the light remains lit with the engine
running, your vehicle will usually be
drivable. However, see an authorized dealer for service as soon as possible.
If the light is flashing when the engine
is running, immediate service is re-
quired. You may experience reduced
performance, an elevated/rough idle
or engine stall and your vehicle may
require towing.
 Engine Temperature Warning
Light This light warns of an over-
heated engine condition. As
temperatures rise and the
gauge approaches H,this indicator
will illuminate and a single chime will
sound after reaching a set threshold.
Further overheating will cause the
temperature gauge to pass H,a con-
tinuous chime will occur until the en-
gine is allowed to cool.
If the light turns on while driving,
safely pull over and stop the vehicle. If
the A/C system is on, turn it off. Also,
shift the transmission into NEUTRAL
and idle the vehicle. If the tempera-
ture reading does not return to nor-
mal, turn the engine off immediately
and call for service. Refer to “If Your
Engine Overheats” in “What To Do In
Emergencies” for more information.
177

 Transmission TemperatureWarning Light This light indicates that the
transmission fluid tempera-
ture is running hot. This
may occur with severe us-
age, such as trailer towing. If this light
turns on, safely pull over and stop the
vehicle. Then, shift the transmission
into NEUTRAL and run the engine at
idle or faster until the light turns off.CAUTION!
Continuous driving with the Trans-
mission Temperature Warning Light
illuminated will eventually cause se-
vere transmission damage or trans-
mission failure.WARNING!
If the Transmission Temperature
Warning Light is illuminated and
you continue operating the vehicle,
in some circumstances you could
cause the fluid to boil over, come in
contact with hot engine or exhaust
components and cause a fire. OIL CHANGE DUE
Your vehicle is equipped with an en-
gine oil change indicator system. The
“Oil Change Due” message will flash
in the EVIC display for approxi-
mately 10 seconds after a single chime
has sounded to indicate the next
scheduled oil change interval. The en-
gine oil change indicator system is
duty cycle based, which means the
engine oil change interval may fluctu-
ate dependent upon your personal
driving style.
Unless reset, this message will con-
tinue to display each time you cycle
the ignition to the ON/RUN position.
To turn off the message temporarily,
press and release the BACK button.
To reset the oil change indicator sys-
tem please refer to a Lancia Dealer-
ship.
FUEL ECONOMY
Press and release the UP or DOWN
button until “Fuel Economy” displays
highlighted in the EVIC and press the
SELECT button. The following Fuel
Economy functions display in the
EVIC:  Average Fuel Economy (AVG)
 Distance To Empty (DTE)
 Liters Per 100km (L/100km)
Average Fuel Economy
Shows the average fuel economy since
the last reset. The Average Fuel
Economy can be reset by following
the prompt in the EVIC to use the
SELECT button. When the fuel
economy is reset, the display will read
“zero” for two seconds. Then, the his-
tory information will be erased, and
the averaging will continue from the
last fuel average reading before the
reset.
Average Fuel Economy Display
178
