prevent them from providing any
protection.
- An improperly insta lled child restraint
can interfere with the airbag as it de­
ploys and seriously injure or even kill the
child -even with an Advanced Airbag
System .
- Always carefully follow the manufactur­
er's instructions provided with the child
safety seat or carrier.
- Never place additional items on the seat
that can increase the total weight regis­
tered by the weight-sensing mat and can
cause i njury in a c rash .

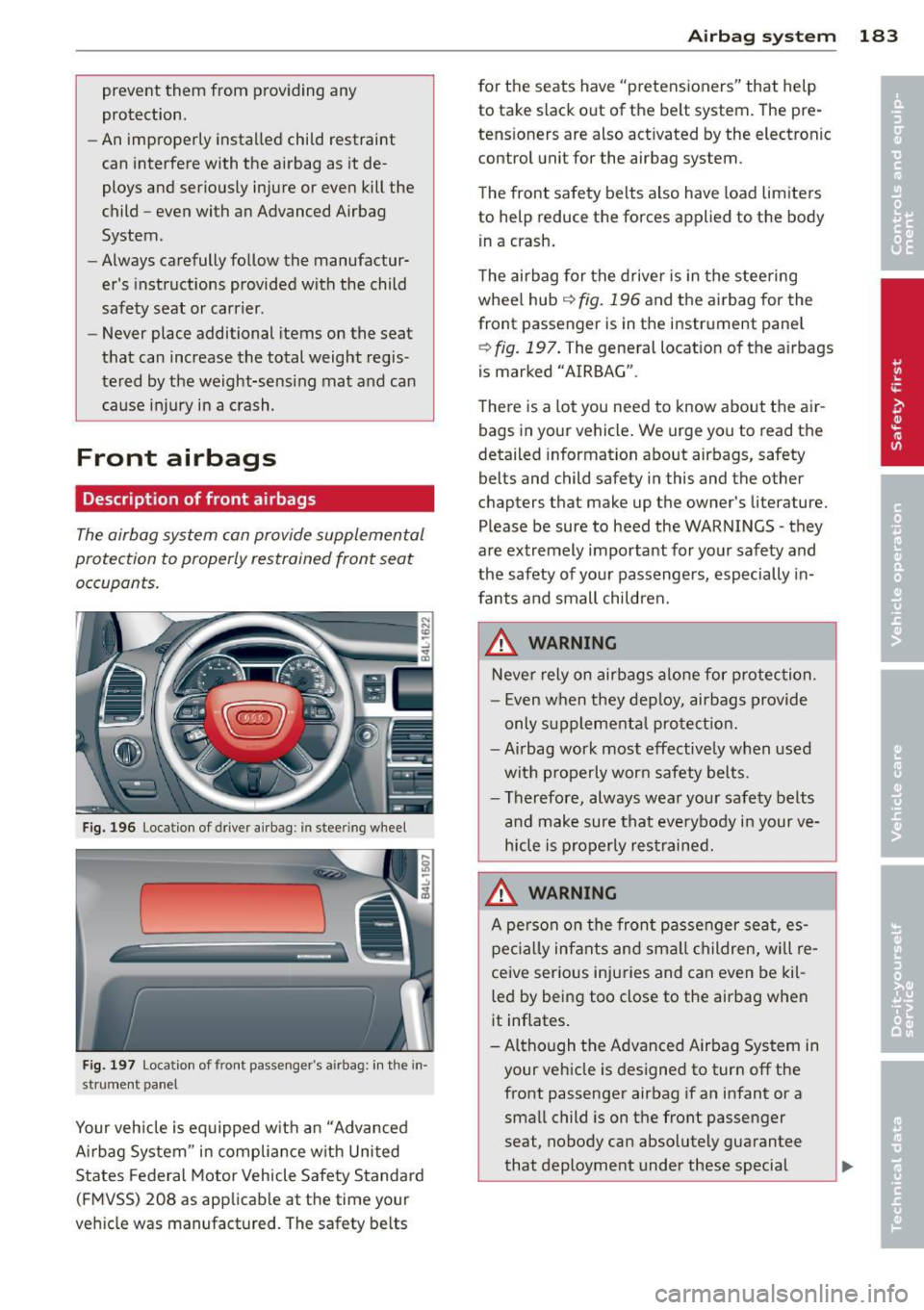

Front airbags
Description of front airbags
The airbag sys tem can provide supplemental
protection to properly restrained front seat
occupants.
Fig. 196 Loca tion of driver ai rbag : in stee rin g whee l
Fig. 197 Locat io n of front passenger 's a irbag : in t he in ­
s trume nt panel
Your veh icle is eq uipped w it h an "Advanced
Ai rbag System " in compli ance w it h United
S tates Federal Motor Vehicle Safety Standard
(F MVSS) 208 as app licab le at the t ime your
ve hicle was manufactured. The safety be lts
A irba g sy stem 183
for the seats have "p retens ioners" that help
to take slack o ut of the be lt system. The pre­
tens ioners are also act ivated by the electronic
control unit for the airbag system.
T he front sa fety belts also have load limite rs
to help reduce the forces applied to the body
in a crash .
T he airbag for the drive r is in the stee ring
whee l hub
q fig. 196 and the airbag for the
front passenger is in the instrument panel
~ fig. 197 . The general locat ion of the a irbags
is marked "AIRBAG" .
There is a lot you need to know about the ai r­
bags in your vehicle . We urge you to read t he
detailed information about airbags, safety
belts and child safety i n this and the other
chapters that make up the owner's literature. Please be sure to heed the WARNINGS -they
a re extremely important for your safety and
the safety of yo ur passengers, especially in­
fants and small children.
_&. WARNING
N eve r rely on airbags alone for protec tion.
- Even w hen they deploy, airbags provide
only s uppleme ntal pro tect ion .
- Airbag work most effective ly when used
wit h prope rly wor n safety belts .
- Therefore , always wea r you r safety belts
and make sure that eve rybody i n your ve­
hicle is p rope rly res trained.
_&. WARNING
A pe rs o n on the fron t passe nger seat, es­
pe cial ly inf ants and sm all children, will re­
ceive serio us injuries and can even be kil­
l e d by being too close to the airbag when
it inflates .
- Altho ugh the Advanced Airbag System in
your veh icle is designed to tur n off the
front passenge r airbag if an infant or a
small child is on the front passenger
seat, nobody can absolutely guarantee
that deployment under these specia l
11>-

184 Airbag system
conditions is impossible in all conceiva­
ble situations that may happen during
the useful life of your vehicle.
- The Advanced Airbag System can deploy
in accordance with the "low risk" option
under the U.S. Federal Standard if a child
that is heavier than the typical one-year
old child is on the front passenger seat
and the other conditions for airbag de­
ployment are met.
-Accident statistics have shown that chil­
dren are generally safer in the rear seat
area than in the front seating position.
- For their own safety, all children, espe­
cially 12 years and younger, should al­
ways ride in the back properly restrained
for their age and size.
Advanced front airbag system
Your vehicle is equipped with a front Advanced
Airbag System in compliance with United
States Federal Motor Vehicle Safety Standard
208 as applicable at the time your vehicle was
manufactured.
The front Advanced Airbag System supple­ ments the safety belts to provide additional
protection for the driver's and front passeng­
er's heads and upper bodies in frontal crashes .
The airbags inflate only in frontal impacts
when the vehicle deceleration is high enough.
The front Advanced Airbag System for the
front seat occupants is not a substitute for
your safety belts. Rather, it is part of the over­
all occupant restraint system in your vehicle.
Always remember that the airbag system can
only help to protect you, if you are sitting up­
right , wearing your safety belt and wearing it
properly. This is why you and your passengers
must always be properly restrained, not just
because the law requires you to be.
The Advanced Airbag System in your vehicle has been certified to meet the "low risk" re­
quirements for 3 and 6 year-old children on
the passenger side and very small adults on
the driver side. The low risk deployment crite­
ria are intended to help reduce the risk of in- jury through interaction with the front airbag
that can occur, for example, by being too close to the steering wheel and instrument
panel when the airbag inflates.
In addition, the system has been certified to
comply with the "suppression" requirements
of the Safety Standard, to turn off the front
airbag for infants 12 months old and younger
who are restrained on the front passenger
seat in child restraints that are listed in the Standard
~ page 202, Child restraints and
Advanced Airbags .
"Suppression" requires the front airbag on the
passenger side to be turned off if:
- a child up to about one year of age is re­
strained on the front passenger seat in one
of the rear-facing or forward-facing infant
restraints listed in Federal Motor Vehicle
Safety Standard 208 with which the Ad­
vanced Airbag System in your vehicle was
certified. For a listing of the child restraints
that were used to certify your vehicle's com­
pliance with the US Safety Standard
~page 202,
-weight less than a threshold level stored in
the control unit is detected on the front pas­
senger seat.
When a person is detected on the front pas­ senger seat, weighing more than the total
weight of a child that is about 1 year old re­
strained in one of the rear-facing or forward­
facing infant restraints (listed in Federal Mo­
tor Vehicle Safety Standard 208 with which
the Advanced Airbag System in your vehicle
was certified), the front airbag on the passen­ ger side may or may not deploy.
The
PASSENGER AIR BAG OFF light comes on
when the electronic control unit detects a to­
tal weight on the front passenger seat that re­ quires the front airbag to be turned off. If the
PASSENGER AIR BAG OFF light does not
come on, the front airbag on the passenger
side has not been turned off by the control
unit and can deploy if the control unit senses
an impact that meets the conditions stored in
its memory.
ll-

If the total weight on the front passenger
seat is more than that of a typical 1 year -old,
but less than the weight of a small adult, the
front airbag on the passenger side may deploy (the
P ASS ENGER AIR B AG OFF light does not
come on).
For example, th e airbag may depl oy if:
-a small child that is heavier than a typical 1
year-o ld child is on the front passenger seat
(regardless of whether the child is in one of
the chi ld safety seats listed
<=) page 202),
-a chi ld who has outgrown child restraints is
on the front passenger seat.
I f the front passenger airbag is turned
off, the
PA SSENGER AIR B AG OFF light in the center
of the instrument panel wi ll come on and stay
on.
The front a irbag on the passenger side may
not deploy (the PA SSENG ER AIR BAG O FF
light does not ill uminate and stay lit) if:
- a small adu lt or teenager is on the front pas­
senger seat
- a passenger who is not sitt ing upright w ith
their back against a non-reclined backrest
with their feet on the vehicle floo r in front
of the seat is on the front passenge r seat .
If the front passenger airbag deploys, the
Federal Standard requires the a irbag to meet
the " low risk" deployment cr iteria to help re ­
duce the risk of inju ry through interaction
with the airbag. "Low risk" deployment occurs in those crashes that take place at lower de­
celerations as defined in the electronic control
un it.
<=) page 190
Al ways rememb er: Even tho ugh your vehicle
is equipped with Advanced Airbags, the safest
p lace for children is properly restrained on the
back seat. Please be sure to read the impor­
tant information in the sect ions that follow
and be sure to heed all of the WARNINGS.
A WARNING
To reduce the risk of injury when an airbag inflates, a lways wear safety belts prope rly.
A irbag system 185
-If you are unrestrained, leaning forward,
sitt ing s ideways or out of pos ition in any
way, your risk of injury is much higher.
- You will a lso receive serious injuries and
could even be killed if you are up aga inst
the airbag or too close to it when it in­
flates -even w ith an Advanced A irbag
<=)page 179.
A WARNING
-
A child in a rearward-fac ing ch ild safety
seat installed on the front passenger seat
will be ser ious ly injured and can be killed if
the front airbag inflates -even with an Ad­
vanced A irbag System.
- Al tho ugh the Advanced Airbag System in
your veh icle is designed to turn
off the
front airbag when a rearward -facing
child restraint has been insta lled on the
front passenger seat, nobody can abso­
lutely guarantee that dep loyment is im­
possible in all conceivable s ituations that
may happen dur ing the usefu l life of your
veh icle.
- The inflating airbag will h it the ch ild
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the bac krest, center
armrest, doo r, or roof.
- Always install rearward-facing chi ld re­
straints on the rear seat.
- If you must install a rearwa rd fac ing
child safety seat on the fro nt passenger
seat because of exceptiona l circumstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and s tay on, im ­
mediately insta ll the rear-facing ch ild
safety seat in a rear seating position and
have the airbag system inspected by your
author ized Audi dealer.
A WARNING
If, in except iona l circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
~
•
•

186 Airbag sys tem
-Always make sure the forward-facing
seat has been des igned and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag .
- Never put the forward-facing child re­
straint up aga inst or very near the instru­
ment panel.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the a irbag as poss ible, before insta lli ng
the fo rward-facing chi ld restraint. The
b ackres t must be adjus ted to an upr igh t
posit io n.
- Make su re that the
PASSENGER AIR BAG
OFF
light co m es on and s tays on all the
t ime whenever the ignition is switched
on.
Advanced Airbag System components
The front passenger seat in your vehicle has a lot of very important parts of the Advanced
Airbag System in it. These parts include the
weight-sens ing mat, sensors, wiring, brack­
ets, and more . The fu nction of the system in
the front passenger seat is checked by the
e lectronic control u nit when the ignit ion is on.
The control unit mo nitors the Advanced Air­
bag Sys tem and turns the airbag indicator
light on when a ma lfunction in the system
components is detected . The function of the
ai rbag ind icator light is described in greater
detai l below. Because the front passenger
seat contains important parts of the Ad­
vanced A irbag System, you must take care to
prevent it from be ing damaged . Damage to
the seat may prevent the Advanced A irbag for
the front passenger seat from doing its job in
a cra sh .
The front Advanced Airbag System
consists of the following:
- Crash senso rs in the front of the veh icle that
measu re ve hicle ac celera tion/de ce le ra ti on
to provide info rm ation to the Advanced Air­
bag System abo ut the severity of the crash . -
An elect ronic contro l unit, with integrated
crash sensors for front and side impacts .
The control un it "decides" whether to fi re
the front a irbags based on the informat ion
received from the crash sensors. The contro l
un it also "decides" whether the safety belt
prete nsioners shou ld be act ivated .
- An Advanced A irbag w ith gas generator for
the dr iver inside the stee ring wheel hub .
- An Advanced A irbag w ith gas generator in­
side the instrument panel for the front pas­
senge r.
- A we ight-sensing mat under the up ho lstery
padding of the front passenger seat cushion
that measures the total weight on the seat .
The informat io n registe red is sent continu­
ou sly to the elec troni c con tro l unit to regu ­
la te deployment of the front Advanced Air­
bag on the passenger side .
- An airbag monitoring sys tem and in dicator
light in t he instr ument cluster
~ page 190.
-The PASSENGER AIR BAG OFF ligh t comes
on and sta ys on in the cen ter o f th e instr u­
ment panel
~ page 190, fig . 199 and tells
you whe n the front Advanced Airbag on the
passenger side has been tu rned off .
- A sensor below the safety be lt latch for the
front seat passenger to meas ure the tension
on the safety be lt . The tension on the safety
be lt and the weight registered by the
weight-sensing mat he lp the control unit
"decide" whether the front airbag for the
front passenger seat should be turned off or
not
~ pag e 181, Child restraints on th e
front seat -some important things to
know.
- A senso r in the safety belt latch fo r th e d riv­
er a nd fo r the front sea t passenger tha t
senses w het he r th at safety bel t is latched or
no t and transmi ts this information to the
electronic control unit.
A WARNING
Damage to the fr ont passenger seat can
p revent the front airbag from work ing
properly.
-

-Improper repair or disassembly of the
front passenger and driver seat will pre­
vent the Advanced Airbag System from
functioning properly .
- Repairs to the front passenger seat must
be performed by qualified and properly
trained workshop personnel.
- Never remove the front passenger or
dr iver seat from the veh icle .
- Never remove the upholstery from the
front passenger seat .
- Never disassemble or remove parts from
the seat or disconnect wires from it.
- Never carry sharp objects in your pockets
or place them on the seat. If the weight­
sensing mat in the passenger seat is
punctured it cannot work properly.
- Never carry things on your lap or carry
objects on the passenger seat . Such
items can increase the weight registered
by the weight-sens ing mat and send the
wrong info rmation to the airbag control
unit.
- Never store items under the front pas­
senger seat. Parts of the Advanced Ai r­
bag System under the passenger seat
cou ld be damaged, preventing them and
the airbag system from working proper ­
ly .
- Never place seat covers or replacement
upholstery that have not been specifical­
ly approved by A udi on the front seats.
- Seat covers can prevent the Advanced
Airbag System from recognizing child re­
straints or occupants on the front pas­
senger seat and prevent the side airbag in the seat backrest from deploy ing prop­
erly.
- Never use cush ions, pillows, blankets or
similar items on the front passenger
seat . The add itional padd ing will prevent
the weight-sens ing mat in the seat from
accu rately reg iste ring the ch ild restra int
or person on the seat and prevent the
Advanced Airbag System from function­ ing properly .
-If you must use a child restra int on the
front passenger seat and the chi ld re-
A irbag system 187
straint manufacturer's instructions re­
quire the use of a towel, foam cushion or
something e lse to properly position the
child restraint, make certain that the
PASSENGER AIR BAG OF F light comes
on and stays on whenever the ch ild re­
straint is installed on the front passen­
ger seat.
- If the
PASSENGER AIR BAG OFF light
does not come on and stay on, immed i­
ately insta ll child rest raint in a rear seat­
ing position and have the airbag system
inspected by your authorized Audi dealer .
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the
s ide airbags supp lement the protection of­
fered by the front three-point safety belts
with pretensioners and load limiters and the
adjustable head rest raints to help reduce the
risk of inj ury in a wide range of accident and
c rash situations. Be s ure to read the impor­
tant information about safety and heed the
WARNINGS in this chapter.
Deployment of the Adv a need A irbag System
and the activation of the safety belt preten­
sioners depend on the deceleration measured
by the crash sensors and registered by the
electronic control unit. Crash severity depends
on speed and deceleration as we ll as the mass
and stiffness of the veh icle or object involved
in the crash .
When the e lectronic control unit registers a
low severity crash and the safety belt is being
used, the airbag will not deploy. If the safety
belt is not being used, the first stage deploys,
followed by the second stage after a much lat­ er t ime in the crash sequence.
If the electron ic control unit registers a crash
of medium severity , the first stage of the air ­
bag deploys followed by the second stage at a
much later time in the crash sequence -re­
gardless of whether the safety belt is be ing
u sed or not . In higher sever ity crashes as reg­
iste red by the electronic control unit, both the
II>
•
•

188 Airbag system
firs t a nd second stages deploy a lmost at the
same time.
O n the passenger side, regard less of safety
be lt use, the airbag will be turned off if the
weight on the passenger seat is less than the
amount prog rammed in the electronic control
un it. The front a irbag on the passenger side
will also be turned off if one of the child safe­
ty seats that has been certified under Federal
Motor Vehicle Safety Standard 208 has been
recogn ized on the seat. The
PAS SENGER AIR
BAG OFF
light comes on and stays on to te ll
you when the front Advanced Airbag on the passenger side has been t urned off
c::> page 181, Child restraints on the front seat
- some important things to know .
~ WARNING
To reduce the risk of injury when an airbag
inf lates, a lways wear safety belts properly.
- If you are unrestrained, lean ing forward,
sitting sideways or out of position in any
way, your risk of inj ury is much higher.
- You wi ll also receive serio us inju ries and
cou ld even be killed if you are up against
the a irbag or too close to it when it in­
flates - even with an Advanced Airbag
o page 179.
More important things to know about
front airbags
F ig. 198 Inflated front a irbags
Safety belts are important to help keep front
seat occupants in the proper seated pos ition
so that airbags can u nfo ld properly and pro­
vide supplemental protection in a frontal col­ lision. T
he front airbags are designed to provide ad ­
ditional protection for the chest and face of
the driver and the front seat passenger when:
- safety belts are worn properly
- t he seats have bee n positioned so that the
occ upan t is prope rly seated as far as poss i­
b le from the airbag
- and the head restraints have been properly
ad justed
Because airbags inflate in the bli nk of an eye
with great force, th ings you have on your lap
o r have p laced on the seat co uld become dan ­
gerous p ro jecti les, and be p ushed in to you if
the a irbag inflates.
When an airbag deploys, fine dust is re leased.
T h is is no rma l and is not caused by a fire i n
the ve hicle. This dust is made up mos tly of a
powde r used to lubricate the ai rbags as they
deploy.
It could irr itate skin.
It i s impo rtant to remember that wh ile the
s u pplementa l airbag system is designed to re­
duce the like lihood o f se rious injur ies, other
injuries , for examp le swelling, bruising and
minor ab rasions, can also happen when air ­
bags inflate . A irbags do not protect the arms
or the lower parts of the body. Front a irbags
supplement the three-point safety belts only i n some fronta l col lisions in wh ich the vehicle
deceleration is h igh eno ugh to deploy the air­
bags.
Front airbags will not deploy:
- if the ignition is sw itched off when a crash
occurs
- in side co llisions
- in rear-end co llisions
- in rollove rs
- when the crash dece lerat ion meas ured by
the air bag system is less than the min imum
threshold needed for airbag deployment as
reg istered by the elect ronic contro l unit
The front pass enger airbag also w ill not
deploy:
- when the front passenger seat is not occu-
pied .,.

-when the weight on the front passenger
seat as sensed by the Advanced Airbag Sys­
tem indicates that the front airbag on the
passenger side has to be turned off by the
electronic control unit (the
PASSENGER AIR
BAG OFF
light comes on and stays on)
A WARNING
Sitting in the wrong position can increase
the risk of serious injury in crashes.
- To reduce the risk of injury when the air­
bags inflate, the driver and passengers
must always sit in an upright position,
must not lean against or place any part
of their body too close to the area where
the airbags are located.
- Occupants who are unbelted, out of posi­
tion or too close to the airbag can be se­
riously injured by an airbag as it unfolds
with great force in the blink of an eye
c> page 181.
A WARNING -
A child in a rearward-facing child safety
seat installed on the front passenger seat
will be seriously injured and can be killed if
the front airbag inflates -even with an Ad­
vanced Airbag System.
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, door or roof.
- Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward-facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
mediately install the rear-facing child
safety seat in a rear seating position and
have the airbag system inspected by your
authorized Audi dealer .
Airbag system 189
A WARNING
Objects between you and the airbag will
increase the risk of injury in a crash by in­
terfering with the way the airbag unfolds
or by being pushed into you as the airbag inflates .
- Never hold things in your hands or on
your lap when the vehicle is in use.
- Never transport items on or in the area
of the front passenger seat . Objects
could move into the area of the front air­
bags during braking or other sudden ma­
neuvers and become dangerous projec­
tiles that can cause serious personal in­
jury if the airbags inflate.
- Never place or attach accessories or oth­
er objects (such as cupholders, tele­
phone brackets, large, heavy or bulky ob­
jects) on the doors, over or near the area marked "AIRBAG" on the steering wheel,
instrument panel, seat backrests or be­
tween those areas and yourself . These
objects could cause injury in a crash, es­
pecially when the airbags inflate.
- Never recline the front passenger's seat
to transport objects. Items can also
move into the area of the side airbag or
the front airbag during braking or in a sudden maneuver. Objects near the air­
bags can become projectiles and cause
injury, particularly when the seat is re­
clined.
- Never tilt the front passenger seat back­
rest forward when the vehicle is moving.
An inflating airbag will force the back­
rest backward and can injure rear seat oc­
cupants.
A WARNING
The fine dust created when airbags deploy
can cause breathing problems for people
with a history of asthma or other breath­ ing conditions.
-
- To reduce the risk of breathing problems,
those with asthma or other respiratory
.___ c_ o_ n_ d_ it_ i_o _ ns_ sh_o_ u_ l_ d _:g:_ e_ t _f_re _s_ h_ a_ i_r _ri ..:::g :....h _t __
_J ~
•
•

190 Airbag sys tem
aw ay by getting out of the vehicle or
opening windows or doors.
- If you are in a collision in which airbags
dep loy, wash your hands and face w ith
mild soap and water before eating.
- Be careful not to get the dust into yo ur
eyes, or into any cuts or scratches.
- If the residue should get into your eyes,
flush them with water.
Monitoring the
Advanced Airbag
System
Airbag monitoring indicator light
Two separate indicators monitor the function
of the Advanced Airbag System: the airbag
monitoring indicator Light and the
PASSEN ­
GER AIR BAG OFF
light.
The Advanced Airbag System (includ ing the
e lectronic control un it, sensor circuits and sys­
tem wiring) is monitored cont inuo usly to
make sure that it is functioning properly
wheneve r the ignit io n is on . Each t ime you
turn on the ignition, the airbag monitoring in­
d icator light
I will come on for a few seconds
(self diagno stics) .
The system must be inspected when the
indicator light
I :
- does not come on when t he ignit io n is
swi tched on
- does not go out a few seconds afte r you
have swi tched on the ign ition, o r
- comes on w hile d riving
If an airbag system malfunct ion is detected,
the ind icator light will fi rst start flash ing to
catch the driver's attention and then stay on
continuously to se rve as a constant reminder
to have the system inspected immediately .
If a malfunction occurs that turns the front
a ir bag on the passenger side off, the
PASSEN­
GER AIR BAG OFF
li ght w ill come on and stay
on whenever the ign ition is on.
A WARNING
An a irbag system that is not functioning
p roperly cannot provide supplemental pro­
tection in a frontal c rash.
- If the airbag ind icator light comes on, it
means that there may be something
w rong with t he Advanced Airbag Sys tem.
It is poss ible that t he a irbag w ill inflate
when it is not supposed to, o r will not in­
fla te w hen it sho uld.
- H ave the airbag system inspected imme­
d iate ly by yo ur a uthorize d Aud i dea le r.
PASSENGER AIR BAG OFF light
Fi g. 199 Sec tion fro m the instr um ent pa nel: PASSEN­
G ER AIR BAG O FF ligh t
-
The PASSENGER AIR BAG OFF light is loca ted
in the center of the inst rument pane l
~fig. 199.
The PASSENGER AIR BAG OFF light wi ll come
o n a nd stay on to tell you w hen the front Ad­
vanced Airbag on the passenge r side has been
turned off by the electronic contro l unit. Each
t ime yo u turn on t he ignition, the
PASSEN­
GER AIR BAG OFF
light will flash for a few
seconds and:
- wi ll stay on if the front passenge r seat is not
occ upied
- wi ll stay on if t here is a small chi ld or child
restraint on the front passenger seat
- will go out i f the front passenger seat is oc­
cupie d by an adult as registered by the
weight-sensing mat
T he
PASSENGER AIR BAG OFF light mu st
come on and stay on
if the igni tion is on and ..,.
