2011 Peugeot 508 Owner's Manual

4
95
i
Driving











Anti-theft protection


Electronic engine immobiliser

The keys contain an electronic chip which has
a secret code. When the ignition is switched
on, this code must be recognised in order for
star ting to be possible.
This electronic engine immobiliser locks the
engine management system a few minutes
after the ignition is switched off and prevents
star ting of the engine by anyone who does not
have the key.
In the event of a malfunction, you are informed
by a message in the instrument panel screen.
In this case, your vehicle does not start; contact
a PEUGEOT dealer or a qualified workshop as
soon as possible.




Emergency starting with the
electronic key
When the electronic key is in the defined zone
and your vehicle does not start after pressing
the "START/STOP" button:


)
Open the housing below the "START/
STOP" button.

)
Inser t the electronic key in the location A
.

)
Press the "START/STOP" button.
Once the engine has started, you can
remove the electronic key and close the
housing.


Emergency switch-off using the
electronic key
In the event of an emergency only, the engine
can be switched of without conditions. To do
this, press and hold the "START/STOP" button
for about 3 seconds.
In this case the steering column locks as soon
as the vehicle stops.
if the electronic key is no longer in the defined
zone when you request switching off the
engine, a message appears in the instrument
panel.


)
Press and hold the "START/STOP" button
for about 3 seconds if you want to force
switching off the engine (note that restar ting
will not be possible without the key).

96
!
!
Driving

It is recommended that you do not
apply the parking brake in very cold
conditions (ice) and during towing
(breakdown, caravan...). Deactivate the
automatic functions and release the
parking brake manually.

Before leaving the vehicle, check that
parking brake warning lamps in the
instrument panel and the control lever A

are on, not flashing.

The electric parking brake combines
2 operating modes:


- Automatic Application/Release


Application is automatic when the engine
stops, release is automatic on use of the
accelerator (this mode is activated by
default),

- Manual Application/Release


Manual application of the parking brake is
done by pulling control lever A.

manual release is done by pushing and
releasing the control lever, while pressing
the brake pedal.
When the driver's door is opened, there is an
audible signal and a message is displayed if the
brake is not applied.



Programming the mode

Depending on the country of sale of the vehicle,
the automatic application when the engine is
switched off and the automatic release when
you press the accelerator can be deactivated. With the vehicle stationary, to apply the parking
brake whether the engine is running or off, pull

control lever A
.


Manual application

Activation/deactivation is done via
the menu in the instrument panel
screen.
The parking brake is then applied and released
manually. The application of the parking brake is
confirmed by:


- lighting of the braking warning
lamp and of the P
warning lamp
in the control lever A
,

- display of the message
"Handbrake on".
When the driver’s door is opened with the
engine running, there is an audible signal and a
message is displayed if the parking brake has
not been applied, unless the selector lever is
in position P
(Park) in the case of an automatic
gearbox.








Electric parking brake

If this warning lamp comes on in the
instrument panel, the automatic mode
is deactivated.

4
97
!
i
Driving
With the ignition on or the engine running, to
release the parking brake, press
the brake

pedal
, pull
then release control lever A
.
The full release of the parking brake is
confirmed by:

Manual release



- extinction of the braking warning
lamp and of the P
warning lamp
in the control lever A
,

- display of the message
"Handbrake off ".
If you pull the control lever A
without pressing
the brake pedal, the parking brake will not
be released and a message appears in the
instrument panel.
If necessary, you can utilise maximum
application
of the parking brake. It is obtained
by means of a long pull
on control lever A
,
until you see the message “Parking brake
applied fully” and an audible signal is heard.

Maximum application is essential:



- in the case of a vehicle towing a caravan
or a trailer, if the automatic functions are
activated but you are applying the parking
brake manually,

- when the slope you are parked on may
vary (e.g. on a ferry, on a lorry, during
towing).



Maximum application


Before leaving the vehicle, check that
parking brake warning lamps in the
instrument panel and in the control
lever A
are on fixed (not flashing).
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.



Automatic application,
engine off


- illumination of the braking warning
lamp and of the P
warning lamp in
the control lever A
,

- display of the message
"Handbrake on". With the vehicle stationary, the parking brake
is automatically applied when the engine is
switched off.
The application of the parking brake is
confirmed by:

In the case of towing, a loaded vehicle
or parking on a gradient, make a
maximum application of the parking
brake then turn the front wheels towards
the pavement and engage a gear when
you park.
After a maximum application, the
release time will be longer.

98
!!
Driving

Automatic release

The electric parking brake releases
automatically and progressively
when you
press the accelerator:


)
Manual gearbox:
press down fully on the
clutch pedal, engage first gear or reverse,
press on the accelerator pedal and move
off.

)
Electronic gear control gearbox
: select
position A
, M
or R
then press on the
accelerator pedal.

)
Automatic gearbox:
select position D
, M

or R
then press on the accelerator pedal.
Full release of the parking brake is confirmed by:


- the braking warning lamp and of
the P
warning lamp in the control
lever A
going off,

- display of the message
"Handbrake off ".


When stationary, with the engine running, do
not press the accelerator pedal unnecessarily,
as you may release the parking brake.



Before leaving the vehicle, check that
parking brake warning lamps in the
instrument panel and the control lever A

are on fixed, not flashing.




Immobilising the vehicle,
engine running
With the engine running and the vehicle
stationary, in order to immobilise the vehicle
it is essential to manually
apply the parking
brake by pulling
control lever A
.
The application of the parking brake is
confirmed by:


- illumination of the braking warning
lamp and of the P
warning lamp in
the control lever A
,

- display of the message
"Handbrake on".
When the driver’s door is opened, a loud beep
is heard and a message is displayed if the
parking brake has not been applied, unless the
selector lever is in position P
(Park) in the case
of an automatic gearbox.


Par ticular situations

In cer tain situations (e.g. star ting the engine),
the parking brake can automatically alter its
force. This is normal operation.
To advance your vehicle a few centimetres
without star ting the engine, but with the ignition
on, press on the brake pedal and release the
parking brake by pushing
then releasing

control lever A
. The full release of the parking
brake is confirmed by the warning lamps
in the control lever A
and in the instrument
panel going off and display of the message
"Handbrake off ".
If a parking brake fault occurs while applied
or
if the battery runs flat, an emergency release is
always possible.
In order to ensure correct operation and
so your safety, the number of successive
application/release operations of the parking
brake is limited to eight.
In the event of abuse, you are aler ted by a
message "Parking brake faulty" and a warning
lamp flashes.

4
99
!
Driving

Emergency braking

In the event of a failure of the main ser vice
brake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc) a continuous
pull on the control lever A
will stop the vehicle.
The electronic stability programme (ESP)
provides stability during emergency braking.
If the emergency braking malfunctions, the
message "Parking brake control faulty" will be
displayed.

If a failure of the ESP system is
signalled by the lighting of this
warning lamp, then braking stability is
not guaranteed.
In this event, stability must be assured by the
driver by repeating alternate "pull-release"
actions on the control lever A
.








Emergency parking brake release


)
if your vehicle has one, take out the vehicle
chock B
, located under the boot floor.

)
On a slope, immobilise the vehicle by
placing a chock in front or behind one of
the front wheels, opposing the slope.
On level ground, immobilise the vehicle by
placing a chock in front or behind one of
the front wheels. In the event of fault with the electric parking
brake or a battery failure, an emergency
mechanical control can be used to manually
release
the parking brake.


)
Immobilise the vehicle (or chock it if the
brake pedal has not been released), with
the engine running, by engaging first gear
(manual gearbox, position P
(automatic
gearbox) or M
or R
(electronic gear control
gearbox).

)
Switch of the engine, but leave the ignition
on. If you are unable to immobilise the
vehicle, do not operate this control and
contact a PEUGEOT dealer or a qualified
workshop as soon as possible.

The emergency braking must only be
used in exceptional circumstances.

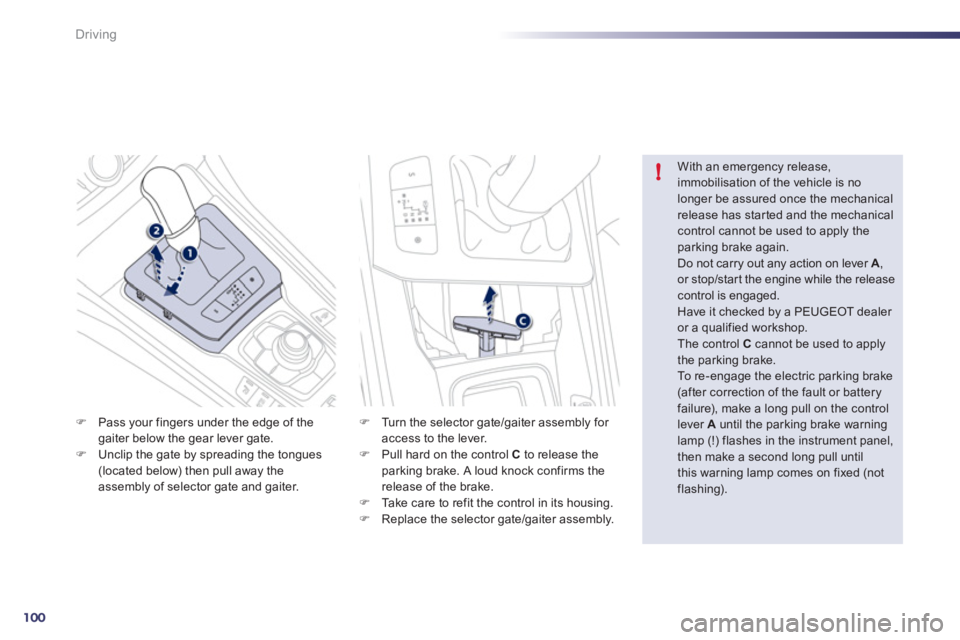

100
!
Driving

)
Pass your fingers under the edge of the
gaiter below the gear lever gate.

)
Unclip the gate by spreading the tongues
(located below) then pull away the
assembly of selector gate and gaiter.
With an emergency release,
immobilisation of the vehicle is no
longer be assured once the mechanical
release has star ted and the mechanical
control cannot be used to apply the
parking brake again.
Do not carry out any action on lever A
,
or stop/star t the engine while the release
control is engaged.
Have it checked by a PEUGEOT dealer
or a qualified workshop.
The control C
cannot be used to apply
the parking brake.
To re-engage the electric parking brake
(after correction of the fault or battery
failure), make a long pull on the control
lever A
until the parking brake warning
lamp (!) flashes in the instrument panel,
then make a second long pull until
this warning lamp comes on fixed (not
flashing).

)
Turn the selector gate/gaiter assembly for
access to the lever.

)
Pull hard on the control C
to release the
parking brake. A loud knock confirms the
release of the brake.

)
Take care to refit the control in its housing.

)
Replace the selector gate/gaiter assembly.

4
101
Driving

Operating faults

If the electric parking brake fault warning lamp comes on together with one or more of the warning lamps presented in these tables, place the vehicle in
a safe condition (on level ground, gear engaged) and contact a PEUGEOT dealer or a qualified workshop without delay.


Situations



Consequences


Display of the message " Parking brake fault
" and of the following
warning lamps:

- The automatic functions are deactivated.

- Hill star t assist is not available.

- The electric parking brake can only be used manually.
Display of the message " Parking brake fault
" and of the following
warning lamps:

- Manual release of the electric parking brake is only available by
pressing the accelerator pedal and releasing the control lever.

- Hill star t assist is not available.

- The automatic functions and the manual application are still
available.
Display of the message " Parking brake fault
" and of the following
warning lamps:

- The automatic functions are deactivated.

- Hill star t assist is not available.

102
Driving


Situations



Consequences


To apply the electric parking brake:


)
immobilise the vehicle and switch off the ignition.

)
pull the control for at least 5 seconds or until application is complete.

)
switch on the ignition and check that the electric parking brake
warning lamps come on.
The application is slower than during normal operation.
To release the electric parking brake:


)
switch on the ignition.

)
push the control lever and hold it for approximately 3 seconds then
release it.
If the braking warning lamp is flashing or if the warning lamps do not
come on with the ignition on, these procedures will not work. Place the
vehicle on level ground and have it checked by a PEUGEOT dealer or a
qualified workshop.

and possibly
flashing


Display of the message " Parking brake fault
" and of the following
warning lamps:


- Only the automatic application on switching off the engine and
automatic release on acceleration functions are available.

- The manual application/release of the electric parking brake and the
emergency braking are not available.
and possibly

flashing
Display of the message "Battery charge fault".

- You must stop as soon as it is safe to do so. Switch off and
immobilise your vehicle (if necessary, place the a chock under a
wheel).

- Apply the electric parking brake before switching off the engine.
