2011 Peugeot 508 Owner's Manual

263
1
2
3
1
2
3
4
5
06

Press PHONE
.

Select " List of the paired peripherals
"
and confi rm.

It is possible to:


- " Connect
" or " Disconnect
" the
selected telephone,

- delete the pairing of the selected
telephone.
It is also possible to select all pairings.


USING THE TELEPHONE


MANAGING PAIRED TELEPHONES
CHANGING THE RING TONE


Press PHONE
.

Select " Phone functions
" and confi rm.

Select " Ring options
" and confi rm.

You can adjust the volume and the ring
tone used.
Select " Bluetooth functions
".

Select " OK
" and confi rm to save the
changes.

264
07 DIRECTORY - ADDR BOOK


Access to the "CONTACTS" menu


" Directory of contacts
"

" Display contacts
" (" Open
",
" Import
", " Delete
")
" New contact
"
" Confi guration
" (" Delete all
contacts
", " Import all the
entries
", " Synchronization
options
"
" Contact mem. status
"
(up to 400)
List of contacts.

Destination:


- from the contacts in the mobile telephone and the SIM
card (depending on the synchronization options in the
Bluetooth menu and the compatibility of the telephone),

- saved in the system.


Select a contact and confi rm.
Then select " Guide
" and confi rm.
Telephone contacts:


- from the mobile telephone and the SIM card
(depending on the synchronization options in the
Bluetooth menu and the compatibility of the telephone),

- saved in the system.

Press ADDR BOOK
.

Select a telephone contact and confi rm to start the call.

The sorting of the list of
contacts depends on the
telephone used.

265
1
2
2a
2b
2c
3
07

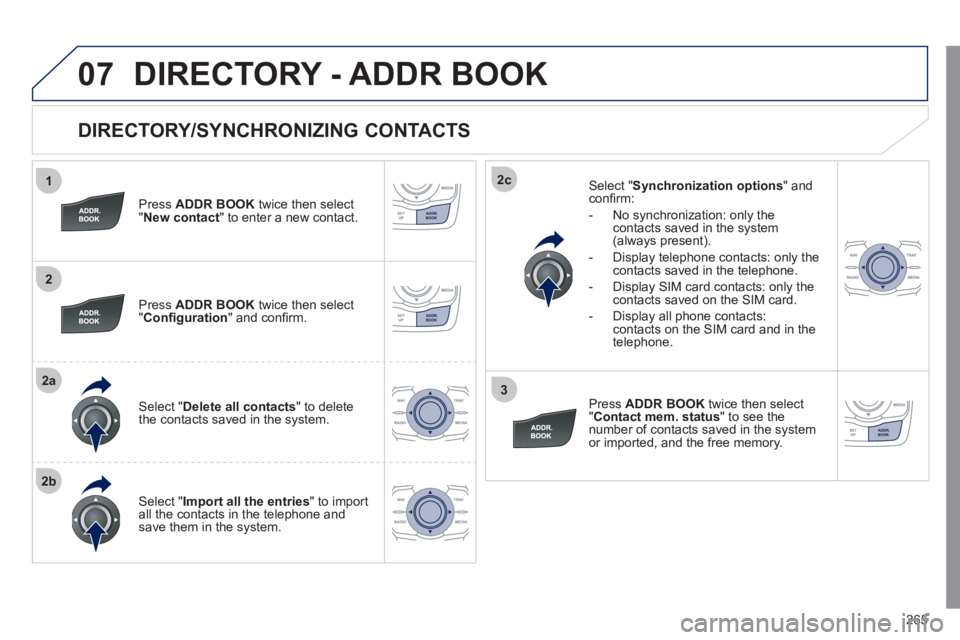

DIRECTORY/SYNCHRONIZING CONTACTS


Press ADDR BOOK
twice then select
" New contact
" to enter a new contact.

Press ADDR BOOK
twice then select
" Confi guration
" and confi rm.
Select " Delete all contacts
" to delete
the contacts saved in the system.

Select " Import all the entries
" to import
all the contacts in the telephone and
save them in the system.
Select " Synchronization options
" and
confi rm:


- No synchronization: only the
contacts saved in the system
(always present).

- Display telephone contacts: only the
contacts saved in the telephone.

- Display SIM card contacts: only the
contacts saved on the SIM card.

- Display all phone contacts:
contacts on the SIM card and in the
telephone.




Press ADDR BOOK
twice then select
" Contact mem. status
" to see the
number of contacts saved in the system
or imported, and the free memory.


DIRECTORY - ADDR BOOK

266
1
2
3
4
5
6
07

MANAGING CONTACTS


Press ADDR BOOK
twice then select
" Display contacts
" and confi rm.

Select the desired contact and confi rm.
Select " Import
" to copy one contact to
the system.

Select " Open
" to view an external contact
or modify a contact saved in the system.

Select OK
or ESC
to exit this menu.

Select " Delete
" to delete a contact saved
in the system.
It is necessary to import an external contact to modify the record.
It will be saved in the system. It is not possible to modify or delete
contacts in the telephone or the SIM card via the Bluetooth
connection.

DIRECTORY - ADDR BOOK

267
08 RADIO







Access to the "RADIO" menu


" FM/AM band
"

" Following waveband
" (" AM/FM
")
" Guidance options
" (" TA, RDS
")
" Audio settings
" (see this
section)
" Update radio list
"
Aphabetical list of stations
received.

Press
or
or use the rotary control to select the
previous or next station in the list.

This list can also be displayed by pressing LIST
on the
steering mounted controls.
Go from the list to the menu (left/right).
or

A long press on LIST
refreshes
the list of stations received.
Press RADIO
.

268
08
1a
1b
1c
1
2

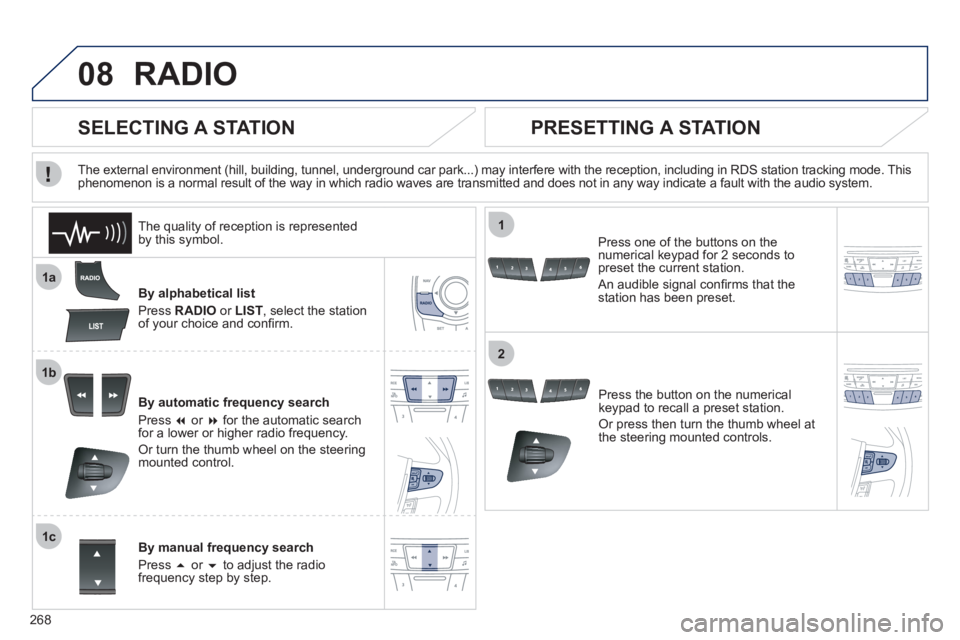

RADIO


By alphabetical list
Press RADIO
or LIST
, select the station
of your choice and confi rm.

By automatic frequency search
Press
or
for the automatic search
for a lower or higher radio frequency.
Or turn the thumb wheel on the steering
mounted control.

By manual frequency search
Press
or
to adjust the radio
frequency step by step.

Press the button on the numerical
keypad to recall a preset station.
Or press then turn the thumb wheel at
the steering mounted controls.








SELECTING A STATION


The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS station tracking mode. This
phenomenon is a normal result of the way in which radio waves are transmitted and does not in any way indicate a fault with the audio system.


PRESETTING A STATION


Press one of the buttons on the
numerical keypad for 2 seconds to
preset the current station.
An audible signal confi rms that the
station has been preset.
The quality of reception is represented
by this symbol.

269
1
2
3
08

Press RADIO
.







ACTIVATE/DEACTIVATE RDS


RDS, if displayed, allows you to continue listening to the same station
by automatic retuning to alternative frequencies. However, in certain
conditions, coverage of an RDS station may not be assured throughout
the entire country as radio stations do not cover 100 % of the territory.
This explains the loss of reception of the station during a journey.

Select " Guidance options
" and confi rm.

Select " Activate/Deactivate RDS
" and
confi rm.

RADIO

Select " Activate/Deactivate RDS
".
Radio displayed, press " OK
" to display the contextual menu.

270
09 MUSIC MEDIA PLAYERS







Access to the "MUSIC MEDIA PLAYER" menu


" MEDIA
"

" Following media source
"
" Eject USB device
" (if USB
connected)
" Play mode
" (" Normal
",
" Random
", " Random on all
media
", " Repetition
")
" Audio settings
" (see this section)
" Activate/Deactivate AUX input
" List of the current media
tracks.

This list can also be displayed by pressing LIST

at the steering mounted controls.
Go from the list to the menu (left/right).
or

Press MEDIA
.
