255Practical information

)

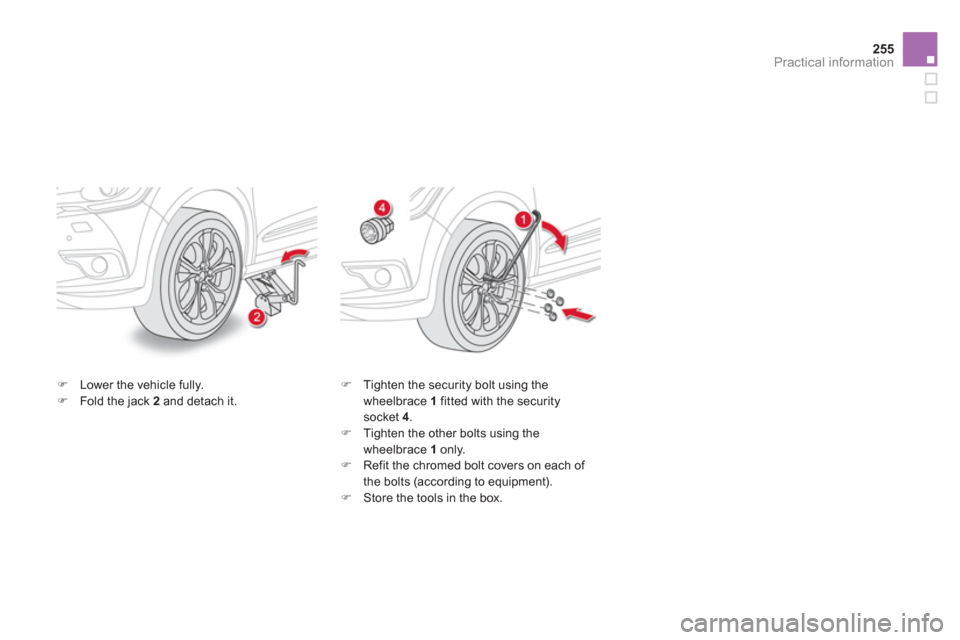

Lower the vehicle fully.

)
Fold the jack 2
and detach it.
)
Tighten the security bolt using the
wheelbrace 1
fitted with the security
socket 4
.

)
Tighten the other bolts using the
wheelbrace 1
only.

)
Refit the chromed bolt covers on each of
the bolts (according to equipment).

)
Store the tools in the box.

Changing a bulb

The headlamps are fitted with
polycarbonate glass with a protective
coating:


)
do not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,


)
use a sponge and soapy water,

)
when using a high pressure
washer on persistent marks, do not
keep the lance directed towards
the lamps or their edges for too
long, so as not to damage their
protective coating and seals.


)
Do not touch the bulb directly with
your fingers, use lint-free cloths.
Changing a bulb should only be done
after the headlamp has been switched
off for a few minutes (risk of serious
burns).
It is imperative to use only
anti-ultraviolet (UV) type bulbs in order
not to damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.

Risk of electrocution

Xenon bulbs (D1S-35W) must be
replaced by a CITROËN dealer or a
qualified workshop.

Bulbs with lugs, type H1, H7... take care
to position them correctly to ensure the
best lighting.

257Practical information




























Model with xenon and directional
headlamps


1.
Directional dipped/main beam
headlamps (D1S-35W).


2.
Direction indicators (PY21W amber).


3.
Daytime running lamps (P21/5W XL).


4.
Sidelamps (LEDs).


5.
Foglamps (H11- 55W).











Model with halogen headlamps



1.
Direction indicators (H21 clear).


2.
Dipped beam headlamps (H7-55W).


3.
Main beam headlamps (H1-55W).


4.
Daytime running lamps (P21/5W XL).


5.
Sidelamps (LEDs).


6.
Foglamps (H11- 55W).





Access to bulbs

Depending on the engine and only on the left
hand side, you must first carry out the following
operations for access to the protective covers
on the bulbs.


)
Remove the air deflector by unclipping
each of its three attachment points.

)
Unclip the bonnet release cable at its two
fixings.

)
Move the cable down.
After changing the failed bulb, remember to
put everything back in place (cable and air
deflector).


Front lamps

Changing dipped beam headlamp
bulbs (only on models with
halogen headlamps)


)
Remove the protective cover by pulling on
the tab.

)
Disconnect the bulb connector.

)
Spread the springs to release the bulb.

)
Extract the bulb and change it.
To reassemble, carry out these operations in
reverse order.














Changing direction indicator
bulbs
When refitting, close the protective
cover carefully to preser ve the sealing
of the headlamp.
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour. Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
Model with Xenon headlamps



)
Remove the protective cover by pulling on
its tongue.

)
Disconnect the electrical connector.

)
Separate the springs to release the bulb.

)
Pull the bulb out and replace it.
To reassemble, carry out these operations in
reverse order.

Model with halogen headlamps



)
Turn the bulb holder a quar ter of a turn and
extract it.

)
Pull out the bulb and change it.
To reassemble, carry out these operations in
reverse order.

259Practical information







Changing daytime running lamp
bulbs


)
Remove the protective cover by pulling on
the tab.

)
Disconnect the bulb connector.

)
Turn the bulb holder a quar ter of a turn and
extract it.

)
Pull the bulb and change it.
To reassemble, carry out these operations in
reverse order.



Changing main beam headlamp
bulbs (only on models with
halogen headlamps)


)
Remove the protective cover by pulling on
the tab.

)
Disconnect the bulb connector.

)
Squeeze the springs to release the bulb.

)
Pull out the bulb and replace it.
To reassemble, carry out these operations in
reverse order.












Changing integrated direction
indicator side repeaters


)
Insert a screwdriver towards the centre of
the repeater between the repeater and the
base of the mirror.

)
Tilt the screwdriver to extract the repeater
and remove it.

)
Disconnect the repeater connector.
To reassemble, carry out these operations in
reverse order.
Contact a CITROËN dealer or a qualified
workshop to obtain replacement repeaters.

Changing the side spotlamps

For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.



Changing the LED lamps/sidelamps

For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.








Changing foglamp bulbs



)
Introduce a flat screwdriver in the hole in
the finisher.

)
Pull and lever to unclip the bumper finisher
(the parking sensor stays with the finisher).

)
Remove the two module fixing screws and
remove it from its housing.

)
Disconnect the bulb holder connector.

)
Turn the bulb holder a quar ter of a turn and
extract it.

)
Pull the bulb and change it.
To refit, carry out these operations in reverse
order.
To replace these bulbs you may also contact a
CITROËN dealer or a qualified workshop.

261Practical information


1.
Brake lamps (P21/5W).


2.
Sidelamps (LEDs).


3.
Direction indicators (PY21W amber)


4.
Reversing lamp (P21W).


5.
Rear foglamps (P21W).






























Rear lamps

Amber bulbs, such as those for the
direction indicators, must be replaced
by bulbs of the same rating and colour.
The lamps on the tailgate, other than
the guide lamps, are dummy units.
They are there for aesthetic
purposes only.

Changing stop lamp, reversing lamp and direction indicator bulbs

These three bulbs are changed from inside the boot:


)
open the boot,

)
remove the access grille from the
corresponding side trim panel,

)
slacken the two nuts using a 10 mm tube
spanner then remove the nuts by hand,

)
unclip the lamp unit connector,

)
extract the lamp unit carefully pulling in its
middle towards the outside,
)
remove the foam seal,

)
unclip the two small secondary connectors,

)
spread the two tabs and remove the bulb
holder,

)
turn the bulb a quar ter of a turn and
change it.
To reassemble, carry out these operations in
reverse order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without damaging the lamp.

Changing the LED lamps/sidelamps







Number plate lamps (W5W)

Third brake lamp (LEDs)

For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop. To facilitate the removal of the lamp, carry out
this operation with the tailgate half open.


)
Inser t a thin screwdriver into the lens
cutout.

)
Push it outwards.

)
Remove the lens.

)
Change the faulty bulb.
To refit, press on the lens to clip it in place.
