2011 Acura TSX Owner's Manual

Fuses
Fuse Locations
296Handling the Unexpected
Passenger Side Fuse Box
Located on the lower side panel. Take off the cover to open.
Circuit Protected Amps
1 Right Headlight High Beam 10 A
2Right Side Small Lights
(Exterior)10 A
3 Right Front Fog Light 10 A
4 Right Headlight Low Beam 15 A
5− −
6 Interior Lights 7.5 A
7− −
8Passenger's Side Power Seat
Recliening20 A
Fuse Locations
Fuse locations are shown on the fuse box cover.
Locate the fuse in question by the fuse number and
box cover number.
Circuit protected and fuse rating
Circuit Protected Amps
9Passenger's Side Power Seat
Sliding20 A
10 Right Side Door Lock 10 A
11Rear Passenger's Side Power
Window20 A
12Console Accessory Power
Socket20 A
13Front Passenger's Power
Window20 A
14 − −
Circuit Protected Amps
15 Premium AMP 20 A
16 − −
17 − −
18 − −
19 Seat Heater 20 A
20 − −
21 − −
22 − −

Fuses
Inspecting and Changing Fuses
297
Handling the Unexpected
Inspecting and Changing Fuses
1. Turn the ignition switch to LOCK 0
. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
Blown Fuse
Fuse
Blown Fuse
Combined Fuse
Inspecting and Changing Fuses NOTICE Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system. If you do not have a replacement
fuse with the proper rating for the circuit, install
one with a lower rating.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 2 9 4 t o P. 2 9 6 .
There is a fuse puller on the back of the engine
compartment fuse box.
4. Inspect the small fuses in the engine
compartment and the vehicle interior.
If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.
Fuse Puller

Emergency Towing
298Handling the Unexpected
Call a professional towing service if you need to tow your vehicle.
Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle. Wheel lift equipment
The tow truck uses two pivoting arms that go under the front tires and lift them
off the ground. The rear tires remain on the ground. This is an acceptable way
to tow your vehicle.
Emergency Towing NOTICE Trying to lift or tow your vehicle by the bumpers
will cause serious damage. The bumpers are not
designed to support the vehicle's weight. NOTICE Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.

299

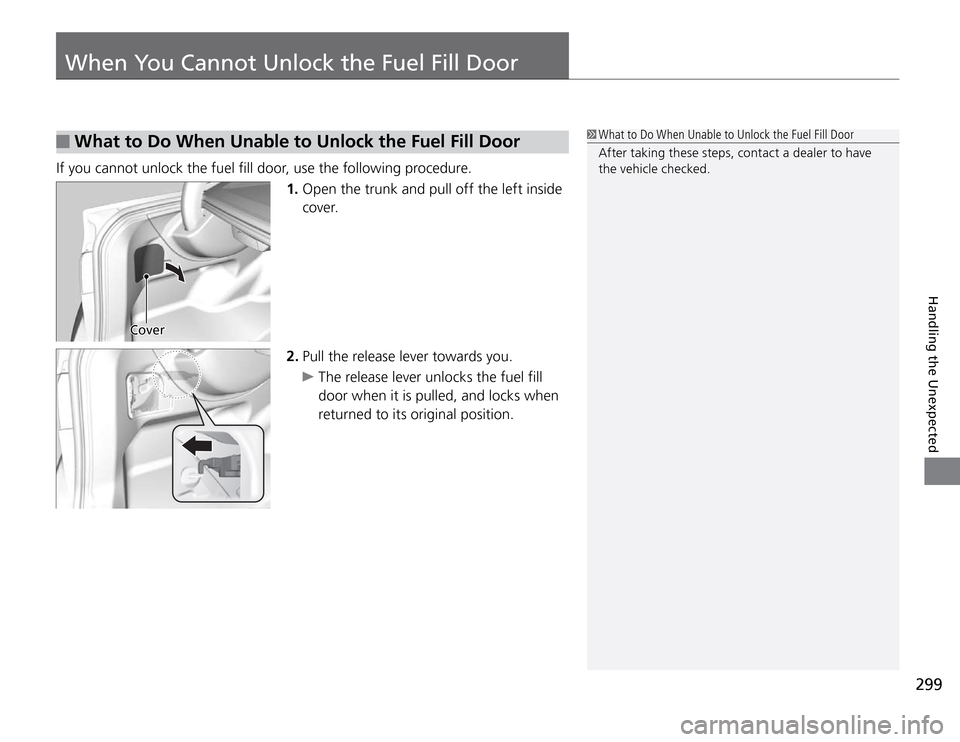

When You Cannot Unlock the Fuel Fill Door
Handling the Unexpected
What to Do When Unable to Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1. Open the trunk and pull off the left inside
cover.
2. Pull the release lever towards you.
The release lever unlocks the fuel fill
door when it is pulled, and locks when
returned to its original position.
What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, contact a dealer to have
the vehicle checked.
Cover

When You Cannot Open the Trunk
300Handling the Unexpected
What to Do When Unable to Open the Trunk
If you cannot open the trunk, use the following procedure.
1. Remove the rear outer head restraint on
the rear left side, and open the tether
anchor point cover.
2. Insert the key into the cylinder and turn
the key to the right.
What to Do When Unable to Open the Trunk
After taking these steps, contact a dealer to have
the vehicle checked.
Tether Anchor Point Cover

Specifications ...................................... 302
Identification Numbers ...................... 306
Vehicle Identification Number (VIN) ... 306
Engine Number and Transmission
Number ............................................ 306
Devices that Emit Radio Waves ......... 307
Reporting Safety Defects .................. 308
Emissions Testing
Testing of Readiness Codes ................ 309
Warranty Coverages ...........................311
Authorized Manuals .......................... 313
Client Service Information ................. 314
301
Information
This chapter includes your vehicle's specifications, locations of identification numbers,
and other information required by regulation.

Specifications
302Information
4-cylinder models O Vehicle SpecificationsModel Acura TSX
No. of Passengers:
Front
Rear
Tot al2
3
5
Weights:
Gross Vehicle Weight
RatingU.S.: 4,475 lbs (2,030 kg)
*1
Canada: 2,030 kg
*1
U.S.: 4,395 lbs (1,995 kg)
*2
Canada: 1,995 kg
*2
Gross Axle Weight
Rating (Front) U.S.: 2,410 lbs (1,095 kg)
*1
Canada: 1,095 kg
*1
U.S.: 2,325 lbs (1,055 kg)
*2
Canada: 1,055 kg
*2
Gross Axle Weight
Rating (Rear) U.S.: 2,090 lbs (950 kg)
Canada: 950 kg
Air Conditioning:
Refrigerant Type
Charge Quantity
Lubricant TypeH F C-13 4 a ( R -13 4 a)
15.8 – 17.6 oz (450 – 500 g)
SP-10*1: Automatic transmission models
*2: Manual transmission models
O Engine SpecificationsDisplacement 144 cu-in (2,354 cm
3)
Spark PlugsNGK ILZKR7B-11S
DENSO SXU22HCR11S
O FuelFuel:
Ty peUnleaded gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)O BatteryCapacity/Type 36AH(5)/45AH(20)/47AH(20)O Washer FluidTank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
O Light BulbsHeadlights (Low Beam)35W (D2S)*
3
55W (H1)*
4
Headlights (High Beam) 60W (HB3)
Fog Lights 55W (H11)
Front Turn Signal/Parking/Side
Marker Lights21/5W
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights 21/5W
Rear Turn Signal Lights 21W
Back-Up Lights 21W
Rear Side Marker Lights 3CP
High-Mount Brake Light 21W
License Plate Lights 5W
Trunk Light 5W
Interior Lights
Spotlight
Ceiling Light 8W
8W
Vanity Mirror Lights 2W
Courtesy Lights 3.8W*3: Vehicle with discharge headlights
*4: Vehicle with halogen bulb low beam headlights

303
Information
Specifications
4-cylinder models
O Brake/Clutch FluidSpecified Honda Heavy Duty Brake Fluid DOT 3O Transmission FluidSpecified
*1
Acura ATF DW-1
(automatic transmission
fluid)2.6 US qt
(2.5 ℓ)
(Change)
Specified
*2
Acura Manual
Transmission Fluid2.0 US qt
(1.9 ℓ)
(Change)
*1: Automatic transmission models
*2: Manual transmission models
O Engine OilRecommendedAcura
Genuine
Motor OilAPI Premium grade
0W-20
CapacityChange 4.0 US qt (3.8 ℓ)
Change
including
filter4.2 US qt (4.0 ℓ)O Engine CoolantSpecifiedHonda Long-Life Antifreeze/Coolant
Ty pe2
Ratio 50/50 with distilled water
Capacity
*1
1.64 US gal (6.2 ℓ)
(change including the remaining
0.196 US gal (0.74 ℓ) in the reserve tank)
Capacity
*2
1.66 US gal (6.3 ℓ)
(change including the remaining
0.196 US gal (0.74 ℓ) in the reserve tank)
*1: Automatic transmission models
*2: Manual transmission models
O TireRegularSize P225/50R17 93V
Pressure
psi (kPa[kgf/cm
2])33 (230 [2.3])
Compact
SpareSize T135/80D16 101M
Pressure
psi (kPa[kgf/cm2])60 (420 [4.2])
Wheel SizeRegular 17 x 7.5J
Compact Spare 16 x 4T
