2011 Acura TSX Owner's Manual

Specifications
304Information
6-cylinder models O Vehicle SpecificationsModel Acura TSX
No. of Passengers:
Front
Rear
Tot al2
3
5
Weights:
Gross Vehicle Weight
RatingU.S.: 4,630 lbs (2,100 kg)
Canada: 2,100 kg
Gross Axle Weight
Rating (Front) U.S.: 2,557 lbs (1,160 kg)
Canada: 1,160 kg
Gross Axle Weight
Rating (Rear) U.S.: 2,083 lbs (945 kg)
Canada: 945 kg
Air Conditioning:
Refrigerant Type
Charge Quantity
Lubricant TypeH F C-13 4 a ( R -13 4 a)
15.8 – 17.6 oz (450 – 500 g)
SP-10
O Engine SpecificationsDisplacement 212 cu-in (3,471 cm
3)
Spark PlugsNGK ILZKR7B11
DENSO SXU22HCR11
O FuelFuel:
Ty peUnleaded gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)O BatteryCapacity/Type 55AH(5)/72AH(20)O Washer FluidTank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)
O Light BulbsHeadlights (Low Beam) 35W (D2S)
Headlights (High Beam) 60W (HB3)
Fog Lights 55W (H11)
Front Turn Signal/Parking/Side
Marker Lights21/5W
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights 21/5W
Rear Turn Signal Lights 21W
Back-Up Lights 21W
Rear Side Marker Lights 3CP
High-Mount Brake Light 21W
License Plate Lights 5W
Trunk Light 5W
Interior Lights
Spotlight
Ceiling Light 8W
8W
Vanity Mirror Lights 2W
Courtesy Lights 3.8W

305
Information
Specifications
6-cylinder models
O Brake/Clutch FluidSpecified Honda Heavy Duty Brake Fluid DOT 3O Transmission FluidSpecifiedAcura ATF DW-1
(automatic transmission
fluid)3.5 US qt
(3.3 ℓ)
(Change)
O Engine OilRecommendedAcura
Genuine
Motor OilAPI Premium grade
0W-20
CapacityChange 4.2 US qt (4.0 ℓ)
Change
including
filter4.5 US qt (4.3 ℓ)O Engine CoolantSpecifiedHonda Long-Life Antifreeze/Coolant
Ty pe2
Ratio 50/50 with distilled water
Capacity1.77 US gal (6.7 ℓ)
(change including the remaining
0.196 US gal (0.74 ℓ) in the reserve tank)
O TireRegularSize P235/45R18 94V
Pressure
psi (kPa[kgf/cm
2])33 (230 [2.3])
Compact
SpareSize T135/80D16 101M
Pressure
psi (kPa[kgf/cm2])60 (420 [4.2])
Wheel SizeRegular 18 x 8J
Compact Spare 16 x 4T

Identification Numbers
306Information
Vehicle Identification Number (VIN)Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. See the
image below for the VIN locations.Engine Number and Transmission NumberSee the image below for the locations of your vehicle's engine number and
transmission number.
Vehicle Identification Number
Certification Label/ Vehicle
Identification Number Automatic Transmission
Number
Automatic Transmission
Number Manual Transmission
Number Engine Number
4-cylinder models 6-cylinder models Engine Number

307
Devices that Emit Radio Waves
Information
The following products and systems on your vehicle emit radio waves when in
operation.
AcuraLink (U.S. models only) Audio System
Bluetooth
® AudioBluetooth
® HandsFreeLink
®
HomeLink
®Universal Transceiver
Immobilizer System
Remote Transmitter
Tire Pressure Monitoring System (TPMS)
Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communication Communision) and Industry Canada
Standard, described below:As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with Industry Canada Standard RSS-210. Operation
is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference that may
cause undesired operation of the device.

Reporting Safety Defects
308Information
In the U.S.
If you believe that your vehicle has a defect which could
cause a crash or could cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying American
Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved in
individual problems between you, your dealer, or American
Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://w w w.safercar.gov; or write to: Administrator, NHTSA,
1200 New Jersey Avenue, SE., Washington, DC 20590.
You can also obtain other information about motor vehicle
safety from http://w w w.safercar.gov.In Canada
If you believe that your vehicle has a defect which could
cause a crash or could cause injury or death, you should
immediately inform Honda Canada Inc. and you may also
inform Transport Canada.
If Transport Canada receives similar complaints, it may open
an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may lead to a recall and remedy
campaign. However, Transport Canada cannot become
involved in individual problems between you, your dealer,
or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and
Recalls Division, you may call 1-800-333-0510. For more
information on reporting safety defects or about motor
vehicle safety, go to http://www.tc.gc.ca/roadsafety.

309
Emissions Testing
Continued
Information
Your vehicle uses "readiness codes," as part of it's onboard self diagnostic system.
Some states refer to these codes during testing to see if your vehicle's emissions
components are working properly.
The codes may not be read if you go through the testing just after the battery has
gone dead or been disconnected.
To check if they are set, turn the ignition switch to ON
II
, without starting the
engine. The malfunction indicator lamp will come on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle tested before the readiness codes are
ready, prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40 °F and 95 °F (4 °C and 35
°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
P
(automatic transmission) or
N
(manual transmission).
Increase the engine speed to 2,000 rpm, and hold it there until the temperature
gauge rises to at least 1/4 of the scale (about 3 minutes).
6. Let the engine idle with your foot off the accelerator for 20 seconds.
Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again only after several days
of driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return
at a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
Testing of Readiness Codes

Emissions Testing
Testing of Readiness Codes

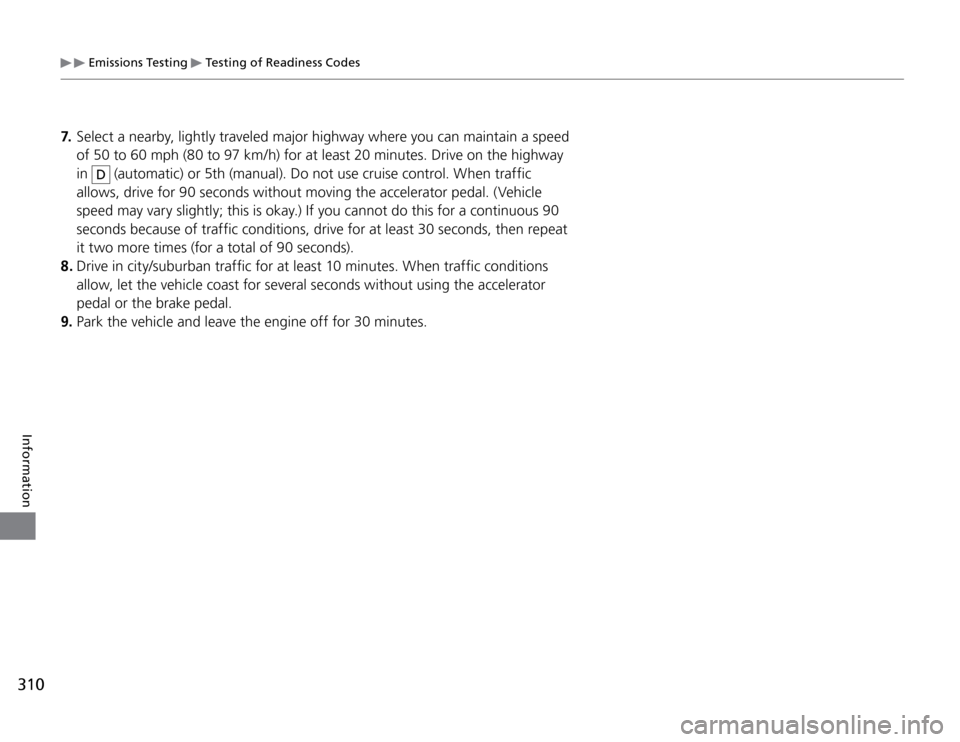

310Information
7. Select a nearby, lightly traveled major highway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway
in
D
(automatic) or 5th (manual). Do not use cruise control. When traffic
allows, drive for 90 seconds without moving the accelerator pedal. (Vehicle
speed may vary slightly; this is okay.) If you cannot do this for a continuous 90
seconds because of traffic conditions, drive for at least 30 seconds, then repeat
it two more times (for a total of 90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator
pedal or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.

311
Warranty Coverages
Continued
Information
O
U.S. Owners
Your new vehicle is covered by these warranties:
New Vehicle Limited Warranty – covers your new vehicle, except for
the emissions control systems, and accessories, against defects in materials
and workmanship.
Emissions Control Systems Defects Warranty and Emissions
Performance Warranty – these two warranties cover your vehicle’s
emissions control systems. Time, mileage, and coverage are conditional.
Please read your warranty booklet for exact information.
Seat Belt Limited Warranty – a seat belt that fails to function properly
is covered by a limited warranty. Please read your warranty booklet for
details.
Rust Perforation Limited Warranty – all exterior body panels are
covered for rust-through from the inside for the specified time period with
no mileage limit.
Accessory Limited Warranty – Acura accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and
other factors. Please read your warranty booklet for details.
Replacement Parts Limited Warranty – covers all Acura replacement
parts against defects in materials and workmanship.
