PERIODIC MAINTENANCE AND ADJUSTMENT
7-39
TIP
●Make sure that the slot in the
brake caliper bracket is fit over the
retainer on the swingarm.
●Make sure that there is enough
space between the brake pads
before installing the wheel.
2. Install the drive chain onto the
rear sprocket.
3. Install the axle nut, and then low-
er the rear wheel so that it is on
the ground.
4. Adjust the drive chain slack. (See
page 7-24.)
5. Apply the rear brake several
times, and then tighten the axle
nut to the specified torque.
Tightening torque:
Axle nut:
105 Nm (10.5 m·kgf, 75 ft·lbf)
EAU25871
Troubleshooting
Although Yamaha motorcycles receive
a thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition systems,
for example, can cause poor starting
and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your motorcycle
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the motorcycle
properly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
EWA15141
WARNING0
When checking the fuel system, do
not smoke, and make sure there
are no open flames or sparks in the
area, including pilot lights from wa-
ter heaters or furnaces. Gasoline or
gasoline vapors can ignite or ex-
plode, causing severe injury or
property damage.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-39

PERIODIC MAINTENANCE AND ADJUSTMENT
7-40
1
2
3
4
5
6
7
8
9
10
EAU42131Troubleshooting charts
Starting problems or poor engine performance
1. Fuel
2. Compression
3. Ignition
4. Battery
Check the fuel level in the
fuel tank.
Operate the electric
starter.
Remove the spark plug
and check the electrodes.
Operate the electric
starter.
There is enough
fuel.
There is
compression.
Wet.
The engine turns
over quickly.
There is no fuel.
There is no
compression.
Dry.
The engine turns
over slowly.
Check the
compression.
Check the ignition.
Wipe off with a dry cloth and correct
the spark plug gap, or replace the
spark plug.
The battery is good.
Have a Yamaha dealer check the
vehicle.
Check the battery lead connections,
and charge the battery if necessary.
Operate the electric starter.
The engine does not start.
Check the battery.
The engine does
not start. Have a
Yamaha dealer
check the vehicle.
Supply fuel.
Have a Yamaha dealer check
the vehicle.
The engine does not start.
Check the compression.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-40

1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND ADJUSTMENT
7-41
Engine overheatingEWA10400
WARNING0
●Do not remove the radiator cap when the engine and radiator are hot. Scalding hot fluid and steam may be
blown out under pressure, which could cause serious injury. Be sure to wait until the engine has cooled.
●After removing the radiator cap retaining bolt, place a thick rag, like a towel, over the radiator cap, and then
slowly rotate the cap counterclockwise to the detent to allow any residual pressure to escape. When the hiss-
ing sound has stopped, press down on the cap while turning it counterclockwise, and then remove the cap.
TIP
If coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended
coolant as soon as possible.
Wait until the
engine has cooled.Check the coolant level
in the reservoir and radiator.
The coolant level is low.
Check the cooling
system for leakage.
The coolant level
is OK.
There is
leakage.
There is no
leakage.
Have a Yamaha dealer check
and repair the cooling system.
Start the engine. If the engine overheats again, have
a Yamaha dealer check and repair the cooling system.
Add coolant. (See TIP.)
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-41

MOTORCYCLE CARE AND STORAGE
8-1
1
2
3
4
5
6
7
8
9
10
EAU26004
Care
While the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a mo-
torcycle. Frequent and proper care
does not only comply with the terms of
the warranty, but it will also keep your
motorcycle looking good, extend its
life and optimize its performance.
Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and cov-
ers as well as all electrical cou-
plers and connectors, including
the spark plug cap, are tightly in-
stalled.3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-
ucts onto seals, gaskets, sprockets,
the drive chain and wheel axles. Al-
ways rinse the dirt and degreaser
off with water.
Cleaning
ECA10772
NOTICE
●Avoid using strong acidic
wheel cleaners, especially on
spoked wheels. If such prod-
ucts are used on hard-to-re-
move dirt, do not leave the
cleaner on the affected area
any longer than instructed. Al-
so, thoroughly rinse the area
off with water, immediately dry
it, and then apply a corrosion
protection spray.
●Improper cleaning can damage
plastic parts (such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc.) and
the mufflers. Use only a soft,
clean cloth or sponge with wa-ter to clean plastic. However, if
the plastic parts cannot be
thoroughly cleaned with water,
diluted mild detergent with wa-
ter may be used. Be sure to
rinse off any detergent residue
using plenty of water, as it is
harmful to plastic parts.
●Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive
cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.
●Do not use high-pressure
washers or steam-jet cleaners
since they cause water seep-
age and deterioration in the fol-
lowing areas: seals (of wheel
and swingarm bearings, fork
and brakes), electric compo-
nents (couplers, connectors,
instruments, switches and
lights), breather hoses and
vents.
XT660Z 08-10 ING-AUS:MY03 07-10 ING 11-05-2009 10:10 Pagina 2

1
2
3
4
5
6
7
8
9
10
MOTORCYCLE CARE AND STORAGE
8-2
●For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning
compounds for plastic may
leave scratches on the wind-
shield. Test the product on a
small hidden part of the wind-
shield to make sure that it does
not leave any marks. If the
windshield is scratched, use a
quality plastic polishing com-
pound after washing.After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea
or on salt-sprayed roads
Since sea salt or salt sprayed on roads
during winter are extremely corrosive
in combination with water, carry out
the following steps after each ride in
the rain, near the sea or on salt-
sprayed roads.
TIP
Salt sprayed on roads in the winter
may remain well into spring.
1. Clean the motorcycle with cold
water and a mild detergent, after
the engine has cooled down.NO-
TICE: Do not use warm water
since it increases the corrosive
action of the salt.2. Apply a corrosion protection
spray on all metal, including
chrome- and nickel-plated, sur-
faces to prevent corrosion.
After cleaning
1. Dry the motorcycle with a
chamois or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal, includ-
ing chrome- and nickel-plated,
surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage
caused by stones, etc.
7. Wax all painted surfaces.
XT660Z 08-10 ING-AUS:MY03 07-10 ING 11-05-2009 10:10 Pagina 3

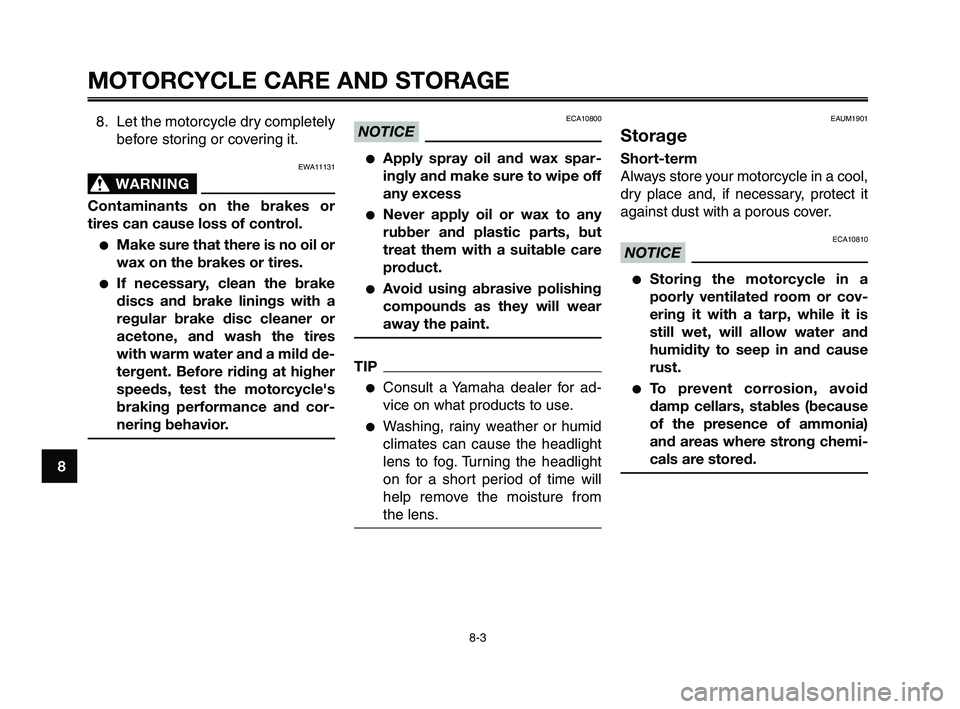

MOTORCYCLE CARE AND STORAGE
8-3
1
2
3
4
5
6
7
8
9
10
8. Let the motorcycle dry completely
before storing or covering it.
EWA11131
WARNING0
Contaminants on the brakes or
tires can cause loss of control.
●Make sure that there is no oil or
wax on the brakes or tires.
●If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or
acetone, and wash the tires
with warm water and a mild de-
tergent. Before riding at higher
speeds, test the motorcycle's
braking performance and cor-
nering behavior.
ECA10800
NOTICE
●Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess
●Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.
●Avoid using abrasive polishing
compounds as they will wear
away the paint.
TIP
●Consult a Yamaha dealer for ad-
vice on what products to use.
●Washing, rainy weather or humid
climates can cause the headlight
lens to fog. Turning the headlight
on for a short period of time will
help remove the moisture from
the lens.
EAUM1901
Storage
Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.
ECA10810
NOTICE
●Storing the motorcycle in a
poorly ventilated room or cov-
ering it with a tarp, while it is
still wet, will allow water and
humidity to seep in and cause
rust.
●To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-
cals are stored.
XT660Z 08-10 ING-AUS:MY03 07-10 ING 11-05-2009 10:10 Pagina 4

1
2
3
4
5
6
7
8
9
10
MOTORCYCLE CARE AND STORAGE
8-4
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
3. Perform the following steps to
protect the cylinder, piston rings,
etc. from corrosion.
a. Remove the spark plug cap
and spark plug.
b. Pour a teaspoonful of engine
oil into the spark plug bore.
c. Install the spark plug cap onto
the spark plug, and then place
the spark plug on the cylinder
head so that the electrodes
are grounded. (This will limit
sparking during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder wall with oil.)
e. Remove the spark plug cap
from the spark plug, and then
install the spark plug and the
spark plug cap. WARNING! Toprevent damage or injury
from sparking, make sure to
ground the spark plug elec-
trodes while turning the en-
gine over.
4. Lubricate all control cables and
the pivoting points of all levers
and pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alter-
natively, turn the wheels a little
every month in order to prevent
the tires from becoming degraded
in one spot.
6. Cover the muffler outlets with
plastic bags to prevent moisture
from entering them.7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see
page 7-31.
TIP
Make any necessary repairs before
storing the motorcycle.
XT660Z 08-10 ING-AUS:MY03 07-10 ING 11-05-2009 10:10 Pagina 5

SPECIFICATIONS
9-1
1
2
3
4
5
6
7
8
9
10
Engine oil:Type:
SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter element replacement:
2.50 L (2.64 US qt) (2.19 Imp.qt)
With oil filter element replacement:
2.60 L (2.73 US qt) (2.26 Imp.qt)
Total amount (dry engine):
2.90 L (3.07 US qt) (2.55 Imp.qt)
Cooling system:Radiator capacity (including all routes):
1.2 L (1.26 US qt) (1.05 Imp.qt) (Radiator) +
0.5 L (0.52 US qt) (0.44 Imp.qt)
(Coolant reservoir)
Coolant reservoir capacity (up to the
maximum level mark):
0.50 L (0.52 US qt) (0.44 Imp.qt)
From low to full level:
0.30 L (0.32 US qt) (0.26 Imp.qt)
Air filter:Air filter element:
Paper
Fuel:Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
23.0 L (6.07 US gal) (5.06 Imp.gal)
Fuel reserve amount:
6.7 L (1.76 US gal) (1.46 Imp.gal)
Fuel injection:Manufacturer:
DENSO
Model:
297500-0390
Spark plug:Manufacturer/model:NGK/CR7EGap:
0.7-0.8 mm (0.028-0.032 in)
Clutch:Clutch type:
Wet, multiple-disc
Transmission:Primary reduction system:
Spur gear
Primary reduction ratio:
75/36 (2.083)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
45/15 (3.00)
Transmission type:
Constant mesh 5-speed
Dimensions:Overall length:
2246 mm (88.42 in)
Overall width:
864 mm (34.01 in)
Overall height:
1477 mm (58.14 in)
Seat height:
896 mm (35.27 in)
Wheelbase:
1500 mm (59.05 in)
Ground clearance:
260 mm (10.23 in)
Minimum turning radius:
1958 mm (77.08 in)
Basic weight:With oil and fuel:
208.5 kg (459 lb)
Engine:Engine type:
Liquid cooled 4-stroke, SOHC
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
660.0 cm
3(40.27 cu.in)
Bore x stroke:
100.0 x 84.0 mm (3.94 x 3.31 in)
Compression ratio:
10.00 : 1
Starting system:
Electric starter
Lubrication system:
Dry sump
-20-10 0 1020304050°C
SAE 10W-30
SAE 10W-40
SAE 20W-40
SAE 20W-50
SAE 15W-40
XT660Z 08-10 ING-AUS:MY03 07-10 ING 11-05-2009 10:10 Pagina 6
