PERIODIC MAINTENANCE AND ADJUSTMENT
7-23
EAU22731
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the TIP after the periodic maintenance
and lubrication chart. In addition, have
the oil seals of the master cylinders
and calipers as well as the brake
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.
●Oil seals: Replace every two
years.
●Brake hoses: Replace every four
years.
EAU22760
Drive chain slack
The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22783
To check the drive chain slack
1. Drive chain slack
1. Place the motorcycle on the side-
stand.
TIP
When checking and adjusting the dri-
ve chain slack, there should be no
weight on the motorcycle.
2. Shift the transmission into the
neutral position.
3. Move the rear wheel by pushing
the motorcycle to locate the tight-
est portion of the drive chain, and
then measure the drive chain
slack as shown.
4. If the drive chain slack is incor-
rect, adjust it as follows.
TIP
When checking the drive chain slack,
the chain tensioner should not be
touching the drive chain.
Drive chain slack:
50.0-60.0 mm (1.96-2.36 in)
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-23
Page 66 of 100
PERIODIC MAINTENANCE AND ADJUSTMENT
7-24
1
2
3
4
5
6
7
8
9
10
1. Wheel axle
2. Drive chain slack adjusting bolt
3. Locknut
4. Alignment marks
TIP
Using the alignment marks on each
side of the swingarm, make sure that
both chain pullers are in the same po-
sition for proper wheel alignment.
3. Tighten the axle nut, then the lock-
nuts to their specified torques.
Tightening torques:
Axle nut:
105 Nm (10.5 m·kgf, 75 ft·lbf)
Locknut:
16 Nm (1.6 m·kgf, 11 ft·lbf)
EAU34314
To adjust the drive chain slack
1. Loosen the axle nut and the lock-
nut on each side of the swingarm.
2. To tighten the drive chain, turn the
drive chain slack adjusting bolt on
each side of the swingarm in di-
rection (a). To loosen the drive
chain, turn the adjusting bolt on
each side of the swingarm in di-
rection (b), and then push the rear
wheel forward. NOTICE: Improp-
er drive chain slack will over-
load the engine as well as other
vital parts of the motorcycle
and can lead to chain slippage
or breakage. To prevent this
from occurring, keep the drive
chain slack within the specified
limits.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-24
Page 67 of 100
1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND ADJUSTMENT
7-25
EAU23023
Cleaning and lubricating
the drive chain
The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly
wear out, especially when riding in
dusty or wet areas. Service the drive
chain as follows.
ECA10581
NOTICE
The drive chain must be lubricated
after washing the motorcycle and
riding in the rain.
1. Clean the drive chain with kerosene
and a small soft brush. NOTICE:
To prevent damaging the O-
rings, do not clean the drive
chain with steam cleaners,
high-pressure washers or inap-
propriate solvents.2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant. NOTICE:Do not use
engine oil or any other lubri-
cants for the drive chain, as
they may contain substances
that could damage the O-rings.
EAU23101
Checking and lubricating
the cables
The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubri-
cated if necessary. If a cable is dam-
aged or does not move smoothly, have
a Yamaha dealer check or replace it.
WARNING! Damage to the outer
sheath may interfere with proper
cable operation and will cause the
inner cable to rust. Replace a dam-
aged cable as soon as possible to
prevent unsafe conditions.
Recommended lubricant:
Engine oil
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-25
Page 68 of 100

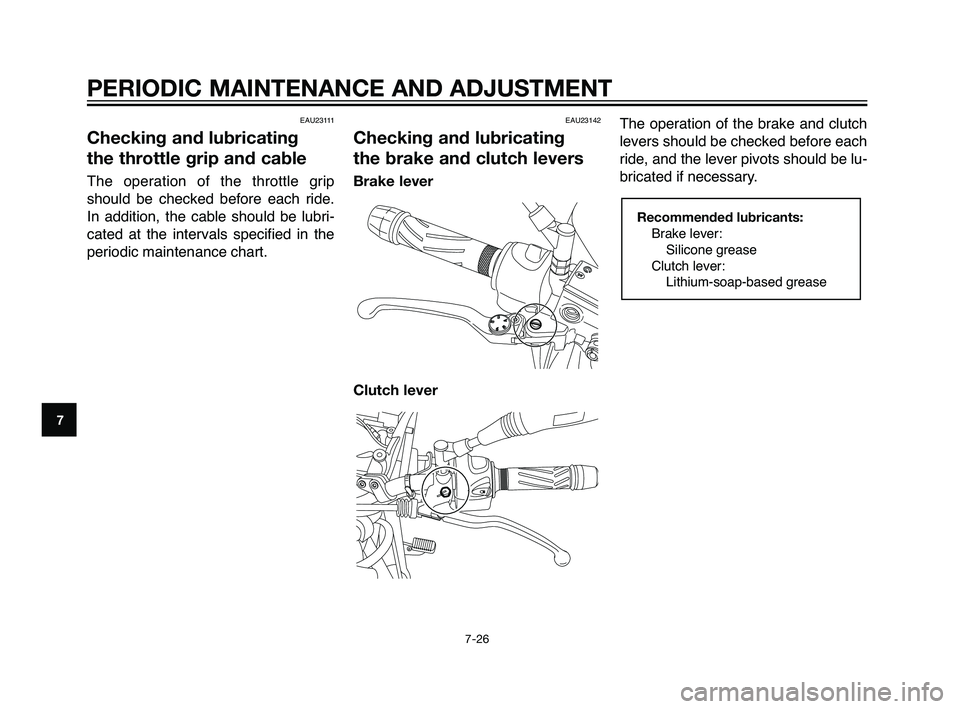

EAU23111
Checking and lubricating
the throttle grip and cable
The operation of the throttle grip
should be checked before each ride.
In addition, the cable should be lubri-
cated at the intervals specified in the
periodic maintenance chart.
EAU23142
Checking and lubricating
the brake and clutch levers
Brake lever
Clutch leverThe operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
Recommended lubricants:
Brake lever:Silicone grease
Clutch lever: Lithium-soap-based grease
PERIODIC MAINTENANCE AND ADJUSTMENT
7-26
7
03 ingles -australia 3/5/10 06:00 Página 68
Page 69 of 100
1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND ADJUSTMENT

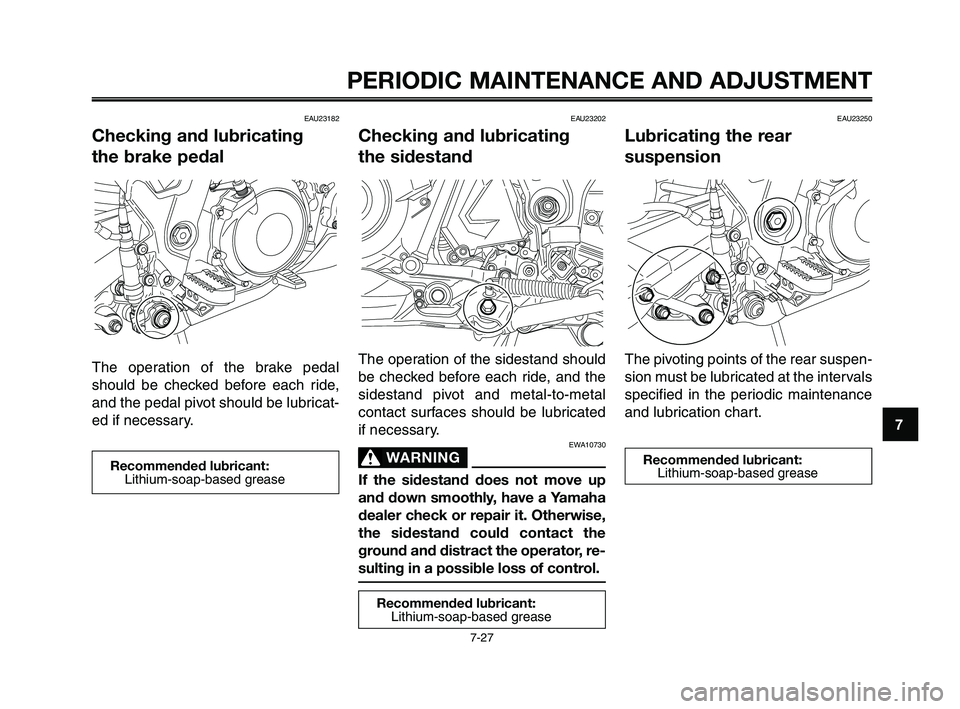

EAU23182
Checking and lubricating
the brake pedal
The operation of the brake pedal
should be checked before each ride,
and the pedal pivot should be lubricat-
ed if necessary.
Recommended lubricant:
Lithium-soap-based grease
EAU23202
Checking and lubricating
the sidestand
The operation of the sidestand should
be checked before each ride, and the
sidestand pivot and metal-to-metal
contact surfaces should be lubricated
if necessary.
EWA10730
WARNING0
If the sidestand does not move up
and down smoothly, have a Yamaha
dealer check or repair it. Otherwise,
the sidestand could contact the
ground and distract the operator, re-
sulting in a possible loss of control.
Recommended lubricant:
Lithium-soap-based grease
EAU23250
Lubricating the rear
suspension
The pivoting points of the rear suspen-
sion must be lubricated at the intervals
specified in the periodic maintenance
and lubrication chart.
Recommended lubricant:
Lithium-soap-based grease
7-27
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-27
Page 70 of 100
PERIODIC MAINTENANCE AND ADJUSTMENT
7-28
1
2
3
4
5
6
7
8
9
10

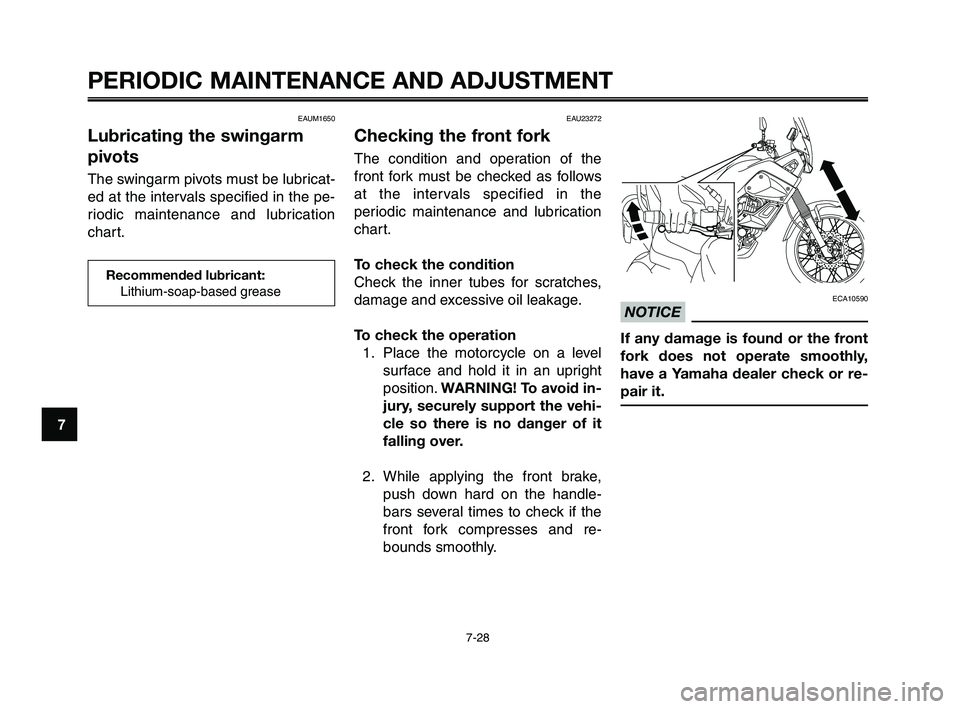

EAU23272
Checking the front fork
The condition and operation of the
front fork must be checked as follows
at the intervals specified in the
periodic maintenance and lubrication
chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the motorcycle on a level
surface and hold it in an upright
position. WARNING! To avoid in-
jury, securely support the vehi-
cle so there is no danger of it
falling over.
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
ECA10590
NOTICE
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.
EAUM1650
Lubricating the swingarm
pivots
The swingarm pivots must be lubricat-
ed at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
Recommended lubricant:
Lithium-soap-based grease
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-28
Page 71 of 100
1
2
3
4
5
6
7
8
9
10
PERIODIC MAINTENANCE AND ADJUSTMENT
7-29
EAU23283
Checking the steering
Worn or loose steering bearings may
cause danger. Therefore, the opera-
tion of the steering must be checked
as follows at the intervals specified in
the periodic maintenance and lubrica-
tion chart.
1. Place a stand under the engine to
raise the front wheel off the
ground. (See page 7-36 for more
information.) WARNING! To avoid
injury, securely support the vehi-
cle so there is no danger of it
falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.EAU23290
Checking the wheel bearings
The front and rear wheel bearings
must be checked at the intervals spec-
ified in the periodic maintenance and
lubrication chart. If there is play in the
wheel hub or if the wheel does not turn
smoothly, have a Yamaha dealer
check the wheel bearings.
XT660Z 05-07 ING-AUS:MY03 04-06 ING 11-05-2009 10:10 Pagina 7-29
Page 72 of 100
PERIODIC MAINTENANCE AND ADJUSTMENT
7-30
1
2
3
4
5
6
7
8
9
10
EWA10760
WARNING0
●Electrolyte is poisonous and
dangerous since it contains
sulfuric acid, which causes se-
vere burns. Avoid any contact
with skin, eyes or clothing and
always shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.
●Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed space.
●KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.

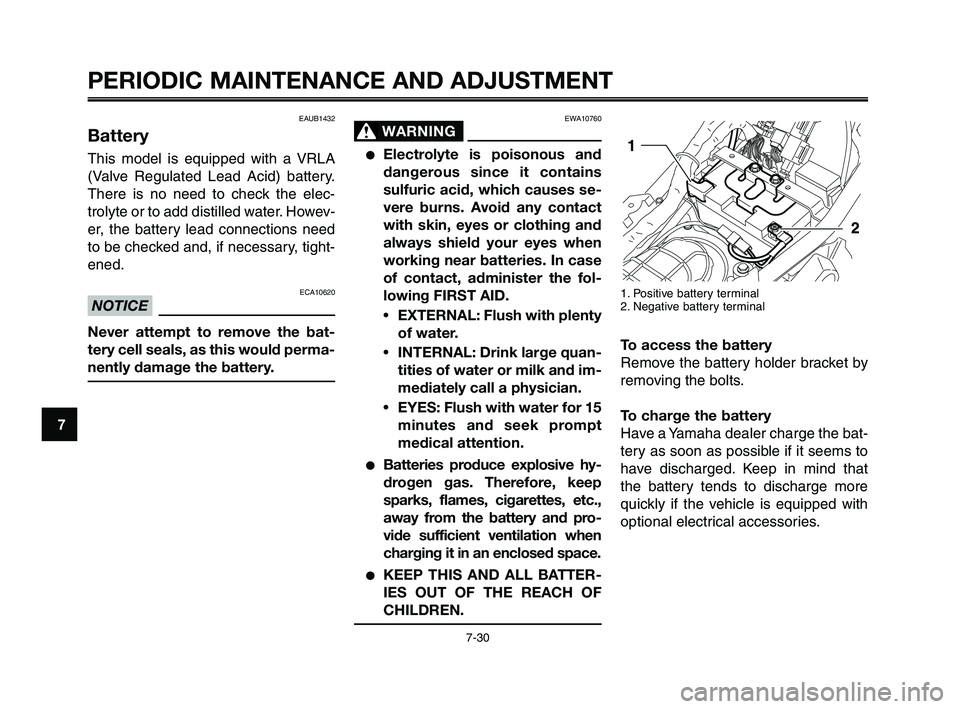

EAUB1432
Battery
This model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the elec-
trolyte or to add distilled water. Howev-
er, the battery lead connections need
to be checked and, if necessary, tight-
ened.
ECA10620
NOTICE
Never attempt to remove the bat-
tery cell seals, as this would perma-
nently damage the battery.
1. Positive battery terminal
2. Negative battery terminal
To access the battery
Remove the battery holder bracket by
removing the bolts.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that
the battery tends to discharge more
quickly if the vehicle is equipped with
optional electrical accessories.
