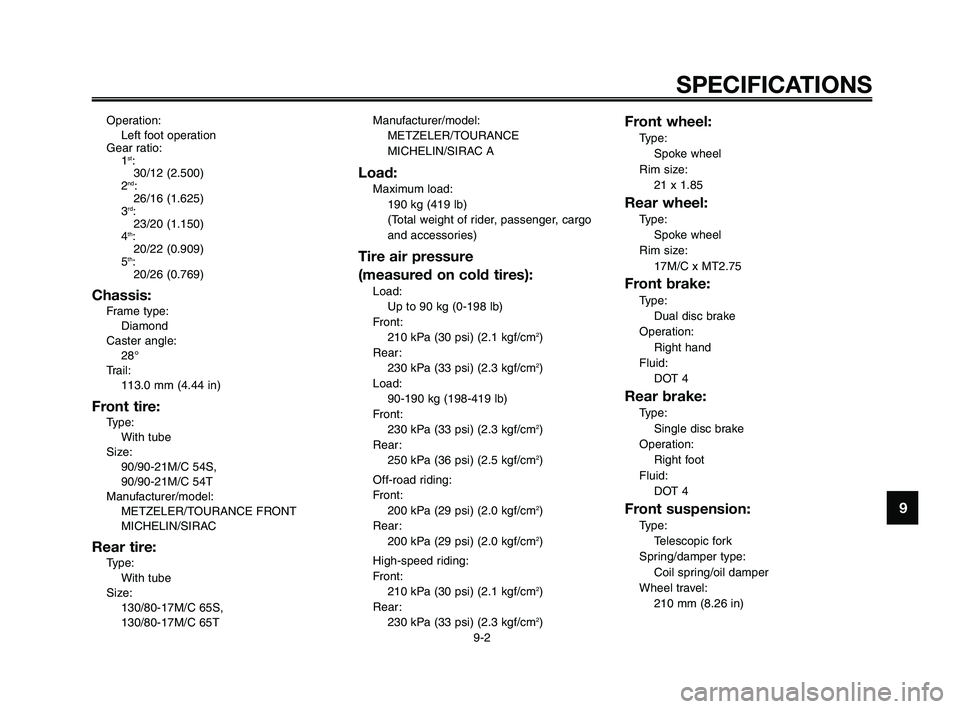

SPECIFICATIONS
9-2
Operation:
Left foot operation
Gear ratio:
1
st:
30/12 (2.500)
2
nd:
26/16 (1.625)
3
rd:
23/20 (1.150)
4
th:
20/22 (0.909)
5
th:
20/26 (0.769)
Chassis:
Frame type:
Diamond
Caster angle:
28°
Trail:
113.0 mm (4.44 in)
Front tire:
Type:
With tube
Size:
90/90-21M/C 54S,
90/90-21M/C 54T
Manufacturer/model:
METZELER/TOURANCE FRONT
MICHELIN/SIRAC
Rear tire:
Type:
With tube
Size:
130/80-17M/C 65S,
130/80-17M/C 65TManufacturer/model:
METZELER/TOURANCE
MICHELIN/SIRAC A
Load:
Maximum load:
190 kg (419 lb)
(Total weight of rider, passenger, cargo
and accessories)
Tire air pressure
(measured on cold tires):
Load:
Up to 90 kg (0-198 lb)
Front:
210 kPa (30 psi) (2.1 kgf/cm
2)
Rear:
230 kPa (33 psi) (2.3 kgf/cm
2)
Load:
90-190 kg (198-419 lb)
Front:
230 kPa (33 psi) (2.3 kgf/cm
2)
Rear:
250 kPa (36 psi) (2.5 kgf/cm
2)
Off-road riding:
Front:
200 kPa (29 psi) (2.0 kgf/cm
2)
Rear:
200 kPa (29 psi) (2.0 kgf/cm
2)
High-speed riding:
Front:
210 kPa (30 psi) (2.1 kgf/cm
2)
Rear:
230 kPa (33 psi) (2.3 kgf/cm
2)
Front wheel:
Type:
Spoke wheel
Rim size:
21 x 1.85
Rear wheel:
Type:
Spoke wheel
Rim size:
17M/C x MT2.75
Front brake:
Type:
Dual disc brake
Operation:
Right hand
Fluid:
DOT 4
Rear brake:
Type:
Single disc brake
Operation:
Right foot
Fluid:
DOT 4
Front suspension:
Type:
Telescopic fork
Spring/damper type:
Coil spring/oil damper
Wheel travel:
210 mm (8.26 in)
XT660Z 08-10 ING-AUS:MY03 07-10 ING 11-05-2009 10:10 Pagina 7

SPECIFICATIONS
9-3
1
2
3
4
5
6
7
8
9
10
Rear suspension:
Type:
Swingarm (link suspension)
Spring/damper type:
Coil spring/gas-oil damper, spring
preload adjustable
Wheel travel:
200 mm (7.87 in)
Electrical system:
Ignition system:
Transistorized coil ignition (digital)
Charging system:
A.C. magneto
Battery:
Model:
GT9B-4
Voltage, capacity:
12 V, 8 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage x quantity:Headlight:
12 V, 55 W x 2
Auxiliary light:
12 V, 5 W x 2
Tail/brake light:
LED
Front turn signal light:
12 V, 10 W x 2
Rear turn signal light:
12 V, 10 W x 2
Meter lighting:
LED (backlight)Neutral indicator light:
LED
Turn signal indicator light:
LED
High beam indicator light:
LED
Coolant temperature warning light:
LED
Engine trouble warning light:
LED
Immobilizer system indicator light:
LED
Fuses:Main fuse:
30 A
Headlight fuse:
20 A
Signaling system fuse:
10 A
Ignition fuse:
10 A
Parking lighting fuse:
10 A
Radiator fan fuse:
7.5 A
Fuel injection system fuse:
10 A
Backup fuse (for odometer, clock and
immobilizer):
10 A
XT660Z 08-10 ING-AUS:MY03 07-10 ING 11-05-2009 10:10 Pagina 8

1
2
3
4
5
6
7
8
9
10
CONSUMER INFORMATION
10-1
EAU26352
Identification numbers
Record the key identification number,
vehicle identification number and
model label information in the spaces
provided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the ve-
hicle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
å
ç
EAU26381
Key identification number
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
The key identification number is
stamped into the key tag.
Record this number in the space pro-
vided and use it for reference when or-
dering a new key.
EAU26400
Vehicle identification number
1. Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
TIP
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area
1
XT660Z 08-10 ING-AUS:MY03 07-10 ING 11-05-2009 10:10 Pagina 1

CONSUMER INFORMATION
10-2
1
2
3
4
5
6
7
8
9
10
EAU26480
Model label
1. Model label
The model label is affixed to the frame
under the seat. (See page 4-14.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
EAU26570
Motorcycle noise regulation
(for Australia)
TAMPERING WITH NOISE CONTROL
SYSTEM PROHIBITED:
Owners are warned that the law may
prohibit:
a. The removal or rendering inoper-
ative by any person other than for
purposes of maintenance, repair
or replacement, of any device or
element of design incorporated
into any new vehicle for the pur-
pose of noise control prior to its
sale or delivery to the ultimate
purchaser or while it is in use; and
b. The use of the vehicle after such
device or element of design has
been removed or rendered inop-
erative by any person.
XT660Z 08-10 ING-AUS:MY03 07-10 ING 11-05-2009 10:10 Pagina 2

1
2
3
4
5
6
7
8
9
10
INDEX
A
Aftermarket Parts, Accessories, and
Modifications ...................................2-4
Aftermarket Tires and Rims ...............2-4
Air filter element, cleaning the check
hose ..............................................7-14
Air filter element, replacing ..............7-14
Auxiliary light bulb, replacing............7-35
Avoid Carbon Monoxide poisoning ....2-2
B
Battery ..............................................7-30
To access the battery ...................7-30
To charge the battery....................7-30
To store the battery.......................7-31
Be a Responsible Owner ...................2-1
Brake and clutch levers, checking
and lubricating ..............................7-26
Brake fluid ........................................7-22
Changing ......................................7-23
Checking fluid level .......................7-22
Brake lever .......................................4-11
Brake pads, checking .......................7-21
Brake pedal ......................................4-11
Checking .......................................7-27
Lubricating ....................................7-27
C
Cables, checking and lubricating .....7-25
Carbon Monoxide (avoid Carbon
Monoxide poisoning).......................2-2
Care and storage ...............................8-1Catalytic converter ...........................4-13
Checking and lubricating the brake
and clutch levers ...........................7-26
Checking and lubricating the brake
pedal .............................................7-27
Checking and lubricating the cables..7-25
Checking and lubricating the
sidestand ......................................7-27
Checking and lubricating the throttle
grip and cable ...............................7-26
Checking the brake pedal ................7-27
Checking the sidestand switch .........4-18
Clock mode ........................................4-7
Clutch lever ......................................4-10
Clutch lever free play, adjusting .......7-20
Consumer information ......................10-1
Controls and instruments ...................3-3
Function ..........................................4-1
Coolant .............................................7-12
Coolant temperature warning light .....4-4
D
Description .........................................3-1
Controls and instrument .................3-3
Left view..........................................3-1
Right view .......................................3-2
Dimmer switch....................................4-9
Drive chain, cleaning
and lubricating ..............................7-25
Drive chain slack ..............................7-23
Adjusting .......................................7-23
Checking .......................................7-23Cleaning and lubricating ...............7-25
E
Emission control system (periodic
maintenance chart) .........................7-2
Engine break-in ..................................6-3
Engine idling speed, adjusting .........7-15
Engine oil and oil filter element ..........7-9
Engine oil filter element....................7-10
Engine stop switch .............................4-9
Engine trouble warning light...............4-4
F
For your safety - Pre-operation
checks .............................................5-1
Front fork ..........................................4-15
Adjusting .......................................4-15
Checking .......................................7-28
Front wheel ......................................7-36
Installing........................................7-37
Removing......................................7-36
Fuel ..................................................4-12
Fuel consumption, tips for reducing ...6-3
Fuel meter ..........................................4-7
Fuel tank breather hose ...................4-13
Fuel tank cap ...................................4-11
Fuses, replacing ...............................7-31
G
Genuine Yamaha Accessories ...........2-3
H
Handlebar switches ............................4-9
XT660Z 08-10 ING-AUS:MY03 07-10 ING 11-05-2009 10:10 Pagina 1

INDEX
1
2
3
4
5
6
7
8
9
10
Dimmer switch ................................4-9
Engine stop switch .........................4-9
Hazard switch ...............................4-10
Horn switch .....................................4-9
Pass switch .....................................4-9
Start switch .....................................4-9
Turn signal switch ...........................4-9
Headlight bulb, replacing..................7-33
High beam indicator light ...................4-4
Horn switch ........................................4-9
I
Identification numbers ......................10-1
Idling speed, checking .....................7-15
Ignition circuit cut-off system............4-17
Checking operation procedure......4-18
Immobilizer system ............................4-1
Immobilizer system indicator light ......4-4
Indicator and warning lights ...............4-3
Coolant temperature warning light..4-4
Engine trouble warning light ...........4-4
High beam indicator light ................4-4
Immobilizer system indicator light...4-4
Neutral indicator light ......................4-4
Turn signal indicator light ................4-3
Instruments ........................................3-3
Instrument and control functions........4-1
K
Key identification number .................10-1
Keys ...................................................4-1L
Labels (location of important labels) ..1-1
License plate light bulb, replacing ....7-35
Location of important labels ...............1-1
Loading ..............................................2-3
Lubricating the brake and clutch
levers ............................................7-26
Lubricating the brake pedal..............7-27
Lubricating the cables ......................7-25
Lubricating the drive chain ...............7-25
Lubricating the sidestand .................7-27
Lubricating the throttle grip
and cable ......................................7-26
Lubricating the swingarm pivots.......7-28
M
Main switch/steering lock ...................4-2
Model label .......................................10-2
Motorcycle noise regulation
(for Australia) ................................10-2
Multi-function display..........................4-5
Clock mode .....................................4-7
Self-diagnosis devices ....................4-7
Tachometer .....................................4-6
Tripmeter and tachometer modes ...4-6
N
Neutral indicator light .........................4-4
O
Oil filter element ..............................7-10
Operation and important riding
points ..............................................6-1Owner’s tool kit...................................7-1
P
Panels, removing and installing .........7-6
Parking ...............................................6-4
Pass switch ........................................4-9
Periodic maintenance
and adjustment ...............................7-1
Periodic maintenance chart for
the emission control system ...........7-2
Pre-operation check list......................5-2
Pre-operation checks .........................5-1
R
Rear suspension, lubricating............7-27
Rear wheel .......................................7-38
Installing........................................7-39
Removing......................................7-38
Record the identification numbers ...10-1
S
Safety information ..............................2-1
Seat ..................................................4-14
Self-diagnosis devices .......................4-7
Shift pedal ........................................4-10
Shifting ...............................................6-2
Shock absorber assembly
(adjusting) .....................................4-16
Sidestand .........................................4-17
Sidestand, checking and lubricating ..7-27
Sidestand switch, checking ..............4-18
Spark plug, checking..........................7-8
XT660Z 08-10 ING-AUS:MY03 07-10 ING 11-05-2009 10:10 Pagina 2

1
2
3
4
5
6
7
8
9
10
INDEX
Specifications .....................................9-1
Spoke wheels ...................................7-19
Start switch ........................................4-9
Starting the engine.............................6-1
Steering, checking............................7-29
Steering lock ......................................4-2
Storage...............................................8-3
Supporting the motorcycle ...............7-36
Swingarm, lubricating the pivots ......7-28
T
Tachometer ........................................4-6
Throttle cable free play, checking.....7-16
Throttle grip and cable, checking
and lubricating ..............................7-26
Tips for reducing fuel consumption ....6-3
Tires .................................................7-16
Air pressure ..................................7-16
Tire information .............................7-18
Tire inspection ..............................7-18
Tool kit ................................................7-1
Tripmeter and tachometer modes ......4-6
Troubleshooting ................................7-39
Troubleshooting charts .................7-40
Engine overheating .......................7-41
Turn signal indicator light ...................4-3
Turn signal light bulb, replacing........7-34
Turn signal switch...............................4-9V
Valve clearance ................................7-16
Vehicle identification number ...........10-1
W
Warning lights ....................................4-3
Wheel bearings, checking ................7-29
Wheels, spoke..................................7-19
XT660Z 08-10 ING-AUS:MY03 07-10 ING 11-05-2009 10:10 Pagina 3

03 ingles -australia 26/2/10 10:49 Página 96
