SPECIFICATIONS
EBU2597F
Dimensions:
Overall length:
1855 mm (73.0 in)
Overall width:
1100 mm (43.3 in)
Overall height:
1080 mm (42.5 in)
Seat height:
800 mm (31.5 in)
Wheelbase:
1280 mm (50.4 in)
Ground clearance:
135 mm (5.3 in)
Minimum turning radius:
3600 mm (142 in)
Weight:
With oil and fuel:
187.0 kg (412 lb)
Noise and vibration level:
Noise level (77/311/EEC):
82.7 dB(A) (EUR)
Vibration on seat (EN1032, ISO5008):
Will not exceed 0.5 m/s
2

(EUR)
Vibration on handlebar (EN1032, ISO5008):
Will not exceed 2.5 m/s
2

(EUR)
Engine:
Engine type:
Liquid cooled 2-stroke
Cylinder arrangement:
Forward-inclined parallel 2-cylinder
Displacement:
347 cm
3

Bore
×
stroke:
64.0
×
54.0 mm (2.52
×
2.13 in)
Compression ratio:
6.50 :1
Starting system:
Kickstarter
Lubrication system:
Premix
Type:
YAMALUBE 2-R, Castrol R30, A545, A747
Engine oil quantity:
Premix ratio (1):
YAMALUBE R 24:1

Transmission oil:
Type:
SAE 10W-30 type SE motor oil (EUR)
YAMALUBE 4 (10W-40) or SAE 10W-40 type SE motor
oil (AUS)(NZL)
Quantity:
1.5 L (1.59 US qt, 1.32 Imp.qt)
✦✯✬✩✧✤✲✣ ✤ 


10-2
1
2
3
4
5
6
7
8
910
11
Cooling system:

Coolant reservoir capacity (up to the maximum level mark):
0.28 L (0.30 US qt, 0.25 Imp.qt)
Radiator capacity (including all routes):
1.50 L (1.59 US qt, 1.32 Imp.qt)
Air filter:
Air filter element:
Wet element
Fuel:
Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
12.0 L (3.17 US gal, 2.64 Imp.gal)
Fuel reserve amount:
2.5 L (0.66 US gal, 0.55 Imp.gal)
Carburetor:
Type
×
quantity:
VM26SS x 2
Spark plug (s):
Manufacturer/model:
NGK/BR8ES
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Clutch:
Clutch type:
Wet, multiple-disc
Transmission:
Primary reduction system:
Helical gear
Primary reduction ratio:
66/23 (2.869)Secondary reduction system:
Chain drive
Secondary reduction ratio:
41/14 (2.929)
Transmission type:
Constant mesh 6-speed
Operation:
Left foot operation
1st:
32/13 (2.461)
2nd:
29/16 (1.812)
3rd:
27/18 (1.500)
4th:
25/20 (1.250)
5th:
23/22 (1.045)
6th:
21/24 (0.875)
Chassis:
Frame type:
Steel tube frame
Caster angle:
9.0 °
Trail:
40.0 mm (1.57 in)
Front tire:
Type:
Tubeless
Size:
AT21 x 7-10
✦✯✬✩✧✤✲✣ ✥ 


10-3
1
2
3
4
5
6
7
8
910
11

Manufacturer/model:
DUNLOP/KT851B
Rear tire:
Type:
Tubeless
Size:
AT20 x 10-9
Manufacturer/model:
DUNLOP/KT877A
Loading:
Maximum loading limit:
100.0 kg (220 lb)
(Total weight of rider, cargo, accessories, and tongue)
Tire air pressure (measured on cold tires):
Recommended:
Front:
30.0 kPa (0.300 kgf/cm
2

, 4.4 psi)
Rear:
30.0 kPa (0.300 kgf/cm
2

, 4.4 psi)
Minimum:
Front:
27.0 kPa (0.270 kgf/cm
2

, 3.9 psi)
Rear:
27.0 kPa (0.270 kgf/cm
2

, 3.9 psi)
Front wheel:
Wheel type:
Panel wheel
Rim size:
10 x 6.0AT
Rear wheel:
Wheel type:
Panel wheel
Rim size:
9 x 8.5AT
Front brake:
Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:
Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4
Front suspension:
Type:
Double wishbone
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
230 mm (9.1 in)
Rear suspension:
Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
✦✯✬✩✧✤✲✣ ✦ 


10-4
1
2
3
4
5
6
7
8
910
11

Wheel travel:
220 mm (8.7 in)

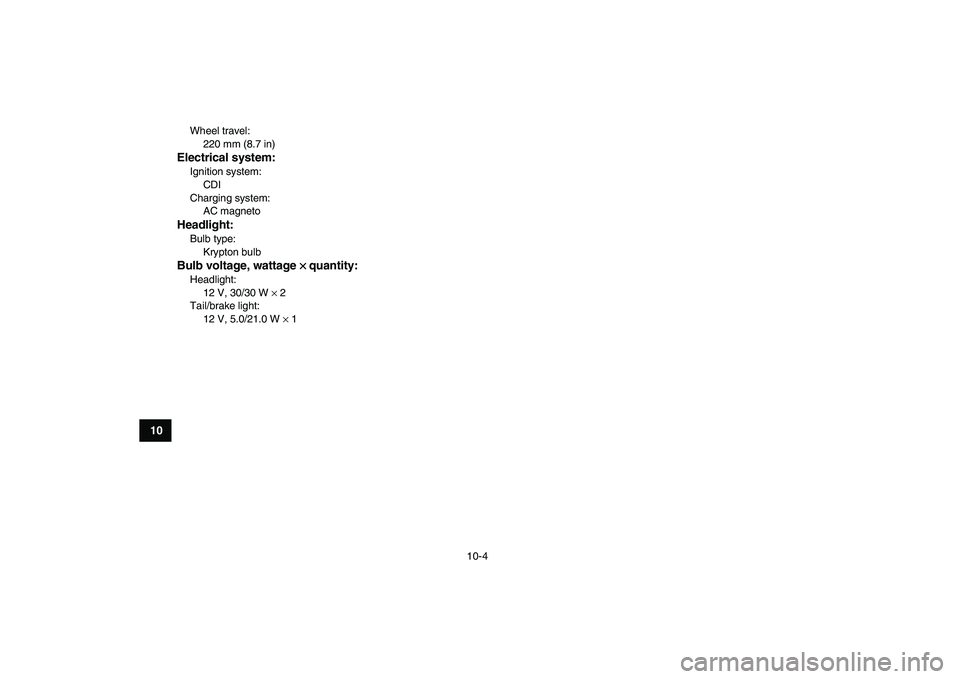

Electrical system:
Ignition system:
CDI
Charging system:
AC magneto
Headlight:
Bulb type:
Krypton bulb
Bulb voltage, wattage
×× × ×
quantity:
Headlight:
12 V, 30/30 W
×
2
Tail/brake light:
12 V, 5.0/21.0 W
×
1
✦✯✬✩✧✤✲✣ ✧ 


11-1
1
2
3
4
5
6
7
8
9
1011

EBU26000
CONSUMER INFORMATION
EBU26012
Identification numbers
Record the key identification number, vehicle iden-
tification number and model label information in
the spaces provided below for assistance when or-
dering spare parts from a Yamaha dealer or for ref-
erence in case the ATV is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EBU26020
Key identification number
The key identification number is stamped into the
key. Record this number in the space provided and
use it for reference when ordering a new key.
EBU26041
Vehicle identification number
The vehicle identification number is stamped into
the frame.
1. Key identification number
1
✦✯✬✩✧✤✲✣ ✤ 


11-2
1
2
3
4
5
6
7
8
9
1011

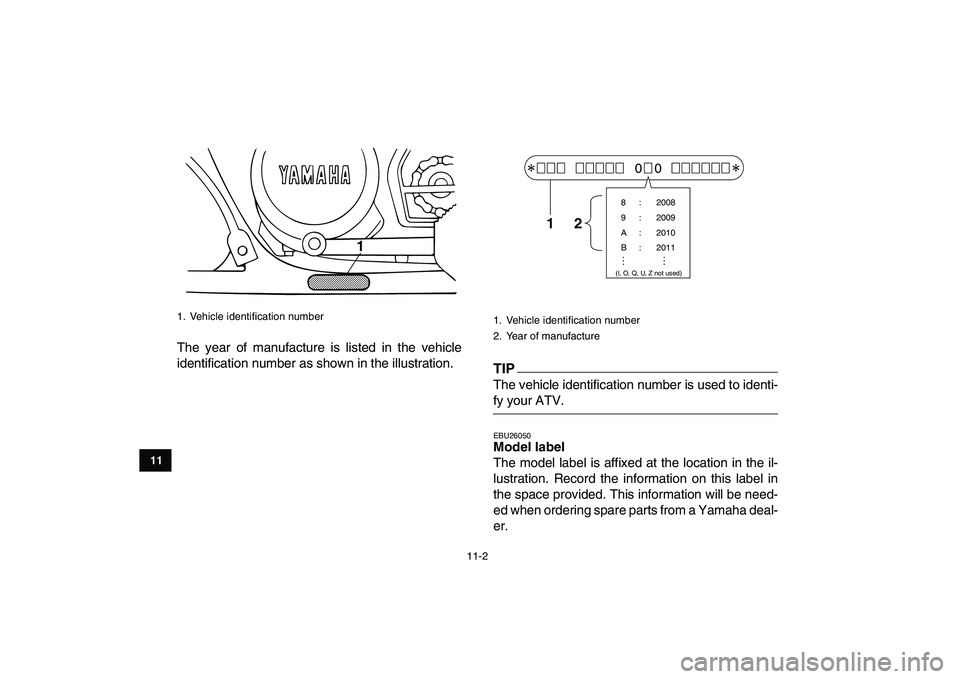

The year of manufacture is listed in the vehicle
identification number as shown in the illustration.TIP
The vehicle identification number is used to identi-
fy your ATV.
EBU26050
Model label
The model label is affixed at the location in the il-
lustration. Record the information on this label in
the space provided. This information will be need-
ed when ordering spare parts from a Yamaha deal-
er.
1. Vehicle identification number
1

1. Vehicle identification number
2. Year of manufacture
00
8 : 2008
9 : 2009
A : 2010
B : 2011(I, O, Q, U, Z not used)
12
✦✯✬✩✧✤✲✣ ✥ 


11-3
1
2
3
4
5
6
7
8
9
1011

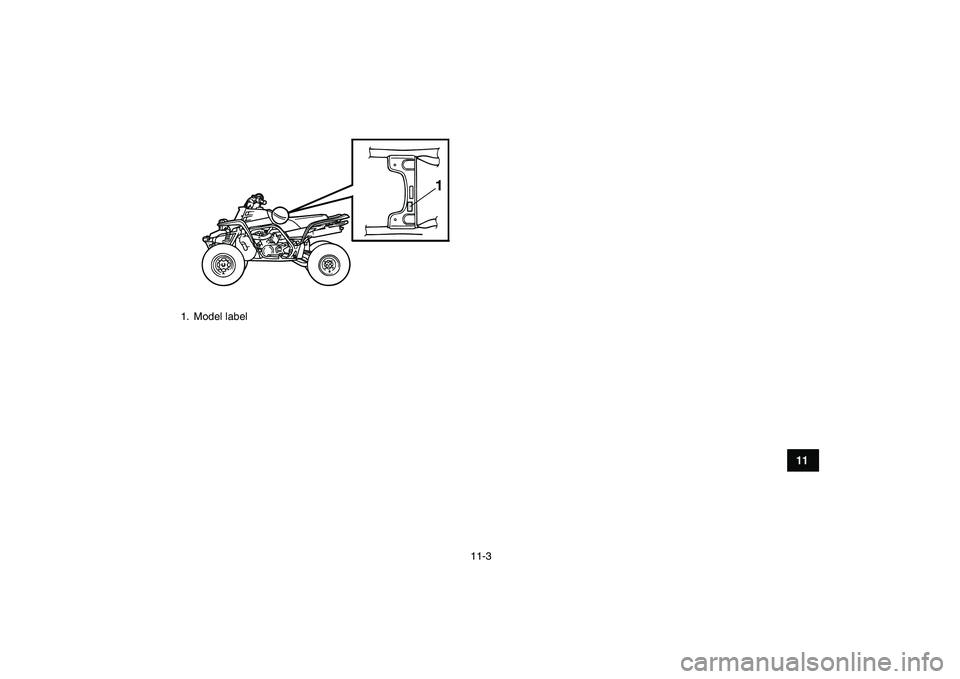

1. Model label
1
✦✯✬✩✧✤✲✣ ✦ 
