Page 85 of 146
8-7
1
2
3
4
5
6
78
9
10
11
15
*
Rear suspension
relay arm and con-
necting arm pivot-
ing points
Check operation and correct if necessary.
Lubricate with lithium-soap-based grease.
√√√√
16
*
Steering system
Check operation and repair or replace if damaged.
Check toe-in and adjust if necessary.
√√√√√
17 Transmission oil
Change.
Check ATV for oil leakage, and correct if neces-
sary.
√ √√√
18 Cooling system
Check coolant level and ATV for coolant leakage,
and correct if necessary.
√√√√√
Replace coolant. Every 2 years
19
*
Moving parts and
cables
Lubricate.
√√√√
20
*
Throttle lever hous-
ing and cable
Check operation and correct if necessary.
Check throttle cable free play and adjust if neces-
sary.
Lubricate throttle lever housing and cable.
√√√√√
21
*
Front and rear brake
switches
Check operation and correct if necessary.
√√√√√
22
*
Lights and switches
Check operation and correct if necessary.
Adjust headlight beams.
√√√√√
NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1300
(800)2500
(1600)2500
(1600)5000
(3200)
hours 20 80 160 160 320
✦✯✬✩✧✤✲✣ ✪

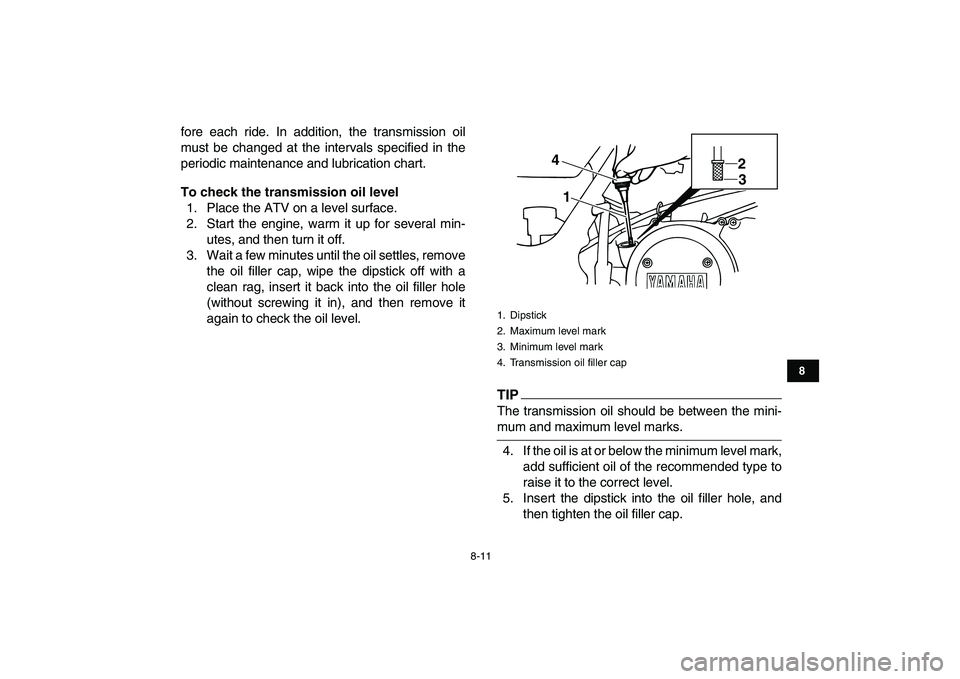

Page 89 of 146
8-11
1
2
3
4
5
6
78
9
10
11
fore each ride. In addition, the transmission oil
must be changed at the intervals specified in the
periodic maintenance and lubrication chart.
To check the transmission oil level
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Wait a few minutes until the oil settles, remove
the oil filler cap, wipe the dipstick off with a
clean rag, insert it back into the oil filler hole
(without screwing it in), and then remove it
again to check the oil level.TIP
The transmission oil should be between the mini-
mum and maximum level marks.
4. If the oil is at or below the minimum level mark,
add sufficient oil of the recommended type to
raise it to the correct level.
5. Insert the dipstick into the oil filler hole, and
then tighten the oil filler cap.
1. Dipstick
2. Maximum level mark
3. Minimum level mark
4. Transmission oil filler cap
12
34
✦✯✬✩✧✤✲✣ ✤✤
Page 90 of 146
8-12
1
2
3
4
5
6
78
9
10
11
To change the transmission oil
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several min-
utes, and then turn it off.
3. Place an oil pan under the transmission case
to collect the used oil.
4. Remove the oil filler cap and the drain bolt to
drain the oil from the transmission case.
5. Install the drain bolt, and then tighten it to the
specified torque.6. Refill with the specified amount of the recom-
mended transmission oil, and then install and
tighten the oil filler cap.TIP
Be sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down.NOTICE
ECB00430
In order to prevent clutch slippage (since the
transmission oil also lubricates the clutch),
do not mix any chemical additives. Do not
use oils with a diesel specification of “CD” or
oils of a higher quality than specified. In ad-
dition, do not use oils labeled “ENERGY
CONSERVING II” or higher.
Make sure that no foreign material enters the
1. Transmission oil drain bolt
1
Tightening torque:
Transmission oil drain bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
Recommended transmission oil:
See page 10-1.
Oil quantity:
1.5 L (1.59 US qt, 1.32 Imp.qt)
✦✯✬✩✧✤✲✣ ✤✥

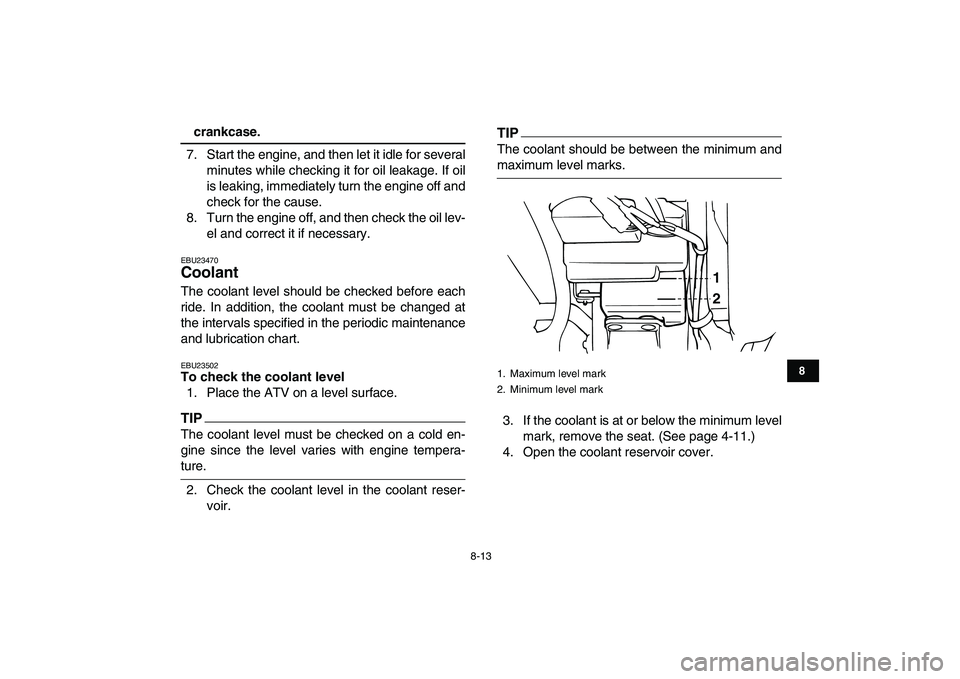

Page 91 of 146
8-13
1
2
3
4
5
6
78
9
10
11
crankcase.
7. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
8. Turn the engine off, and then check the oil lev-
el and correct it if necessary.
EBU23470
Coolant
The coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.
EBU23502
To check the coolant level
1. Place the ATV on a level surface.
TIP
The coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture.
2. Check the coolant level in the coolant reser-
voir.
TIP
The coolant should be between the minimum and
maximum level marks.
3. If the coolant is at or below the minimum level
mark, remove the seat. (See page 4-11.)
4. Open the coolant reservoir cover.
1. Maximum level mark
2. Minimum level mark
1
2
✦✯✬✩✧✤✲✣ ✤✦

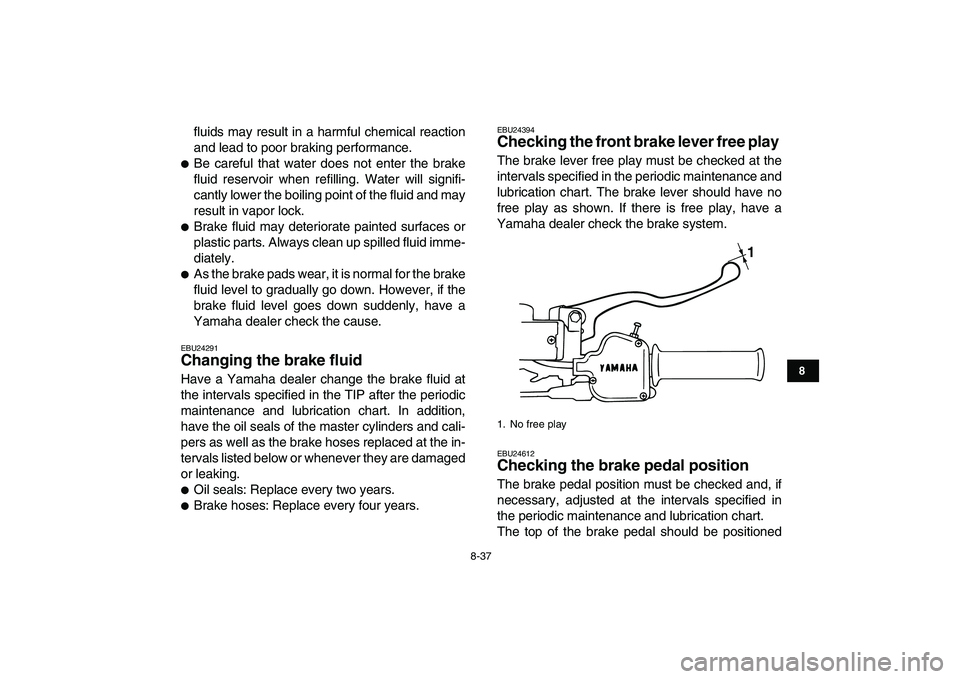

Page 115 of 146
8-37
1
2
3
4
5
6
78
9
10
11
fluids may result in a harmful chemical reaction
and lead to poor braking performance.
Be careful that water does not enter the brake
fluid reservoir when refilling. Water will signifi-
cantly lower the boiling point of the fluid and may
result in vapor lock.
Brake fluid may deteriorate painted surfaces or
plastic parts. Always clean up spilled fluid imme-
diately.
As the brake pads wear, it is normal for the brake
fluid level to gradually go down. However, if the
brake fluid level goes down suddenly, have a
Yamaha dealer check the cause.
EBU24291
Changing the brake fluid
Have a Yamaha dealer change the brake fluid at
the intervals specified in the TIP after the periodic
maintenance and lubrication chart. In addition,
have the oil seals of the master cylinders and cali-
pers as well as the brake hoses replaced at the in-
tervals listed below or whenever they are damaged
or leaking.
Oil seals: Replace every two years.
Brake hoses: Replace every four years.
EBU24394
Checking the front brake lever free play
The brake lever free play must be checked at the
intervals specified in the periodic maintenance and
lubrication chart. The brake lever should have no
free play as shown. If there is free play, have a
Yamaha dealer check the brake system.
EBU24612
Checking the brake pedal position
The brake pedal position must be checked and, if
necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
The top of the brake pedal should be positioned
1. No free play
1
✦✯✬✩✧✤✲✣ ✦✪
