2010 YAMAHA BANSHEE 350 Owners Manual

3-2
1
23
4
5
6
7
8
9
10
11

EBU17712

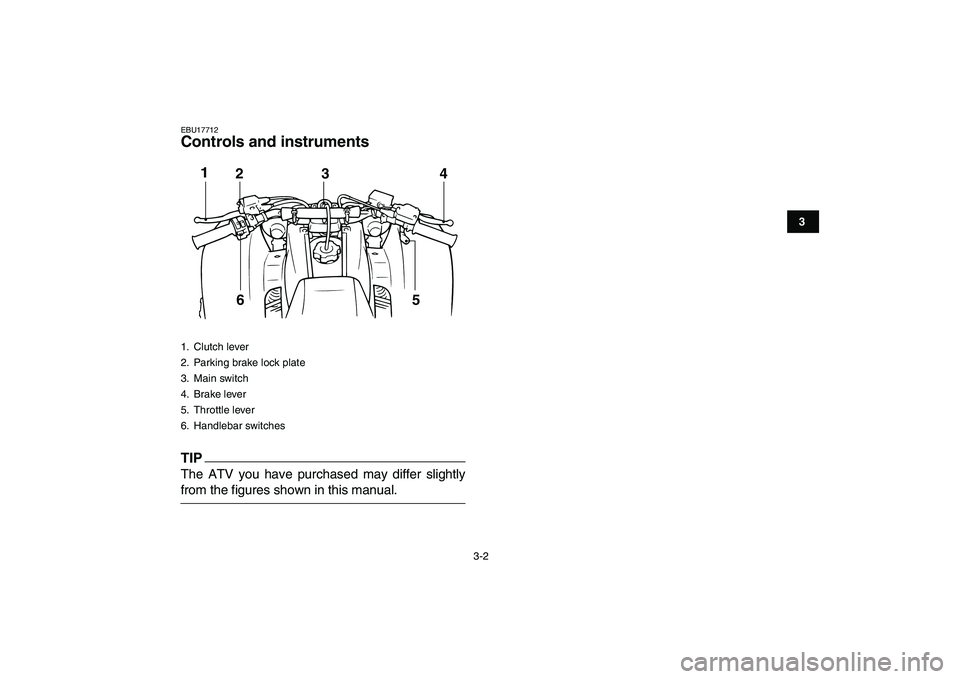

Controls and instruments
TIP

The ATV you have purchased may differ slightly
from the figures shown in this manual.
1. Clutch lever
2. Parking brake lock plate
3. Main switch
4. Brake lever
5. Throttle lever
6. Handlebar switches
1
23 4
65
✦✯✬✩✧✤✲✣ ✥ 


4-1
1
2
34
5
6
7
8
9
10
11

EBU17733
INSTRUMENT AND CONTROL FUNCTIONS
EBU29810
Main switch
The positions of the main switch are as follows:
ON
The engine can be started and the key cannot be
removed.
The headlights and taillight come on when the en-
gine is started.
OFF
All electrical systems are off. The key can be re-
moved.

1. Main switch
OFF ON
1
✦✯✬✩✧✤✲✣ ✤ 


4-2
1
2
34
5
6
7
8
9
10
11

EBU18061
Handlebar switches
EBU18080
Engine stop switch “/”
Set this switch to “ ” before starting the engine.
The engine stop switch controls the ignition and
stops the engine when it is running. Use this switch
to stop the engine in an emergency situation. The
engine will not start or run when this switch is set
to “ ”.
EBU29780
Light switch “/ /OFF”
Set this switch to “ ” to turn on the low beams
and the taillight. Set the switch to “ ” to turn on
the high beams and the taillight. Set the switch to
“OFF” to turn off all the lights.
EBU18282
Throttle lever
Once the engine is running, pushing the throttle le-
ver will increase the engine speed.
Regulate the speed of the ATV by varying the
throttle position. Because the throttle is spring-
loaded, the ATV will decelerate, and the engine will
return to an idle any time the throttle lever is re-
leased.
1. Light switch “OFF/ / ”
2. Engine stop switch “ / ”
1
2
✦✯✬✩✧✤✲✣ ✥ 


4-3
1
2
34
5
6
7
8
9
10
11

Before starting the engine, check the throttle to be
sure it is operating smoothly. Make sure it returns
to the idle position as soon as the lever is released.
EBU18300
Throttle OverRide System
If during operation, the carburetor or the throttle ca-
ble should malfunction and will not close fully, take
your thumb off the throttle lever.
The throttle override system immediately cuts off
the ignition.
WARNING

EWB00260
Riding with a malfunction increases the
chance for an accident and injury. Make sure
that the cause of the malfunction is corrected
before restarting the engine or have the ATV in-
spected by a Yamaha dealer.
EBU18323
Speed limiter
Your ATV is equipped with an adjustable speed
limiter. The speed limiter keeps the throttle from
fully opening, even when the throttle lever is
pushed to the maximum.
1. Loosen the locknut.
2. To increase the maximum engine power avail-
able and the maximum speed of the ATV, turn
the adjusting screw in direction (a). To de-
crease the maximum engine power available
and the maximum speed of the ATV, turn the
adjusting screw in direction (b). Do not turn
the adjusting screw out more than 12 mm
(0.47 in) or the throttle cable could be dam-
aged. Always make sure the throttle lever free
play is adjusted to 4.0–6.0 mm (0.16–0.24 in).
(See page 8-33.)
WARNING! Improper ad-
1. Throttle lever
1
✦✯✬✩✧✤✲✣ ✦ 


4-4
1
2
34
5
6
7
8
9
10
11

justment of the speed limiter and throttle
could cause throttle cable damage or im-
proper throttle operation. You could lose
control, resulting in an accident.
[EWB00241]

3. Tighten the locknut.
EBU18372
Clutch lever
The clutch lever is located on the left handlebar. To
disengage the clutch, pull the clutch lever toward
the handlebar grip. To engage the clutch, releasethe clutch lever. The clutch lever should be pulled
rapidly and released slowly for smooth clutch oper-
ation.
EBU18411
Brake lever
The brake lever is located at the right handlebar
grip. To apply the front brake, pull the brake lever
toward the handlebar grip.

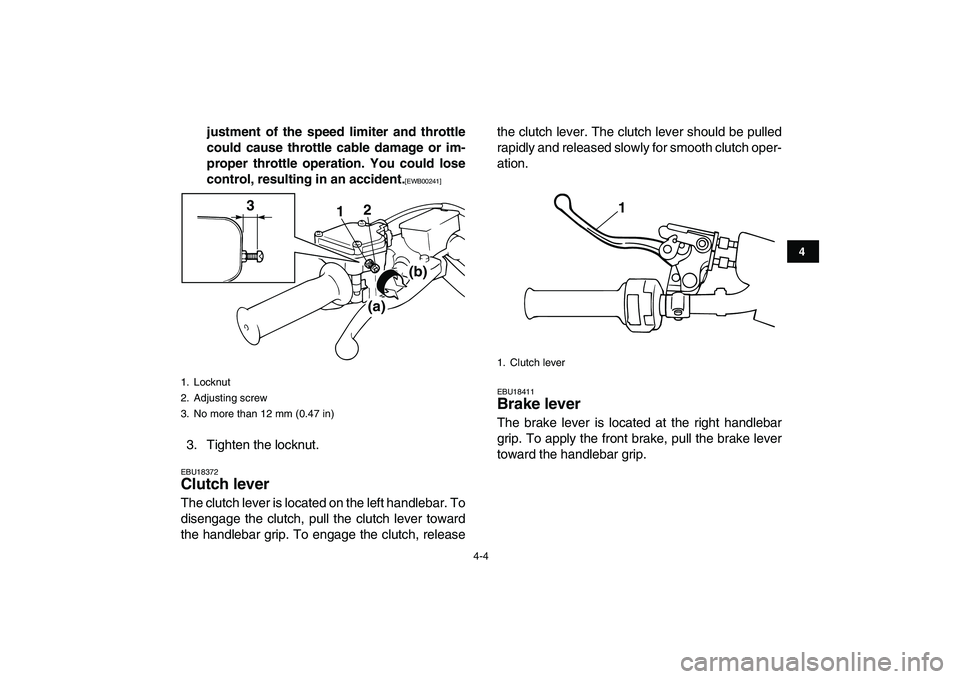

1. Locknut
2. Adjusting screw
3. No more than 12 mm (0.47 in)
(a)
(b)
3
12

1. Clutch lever
1
✦✯✬✩✧✤✲✣ ✧ 


4-5
1
2
34
5
6
7
8
9
10
11

EBU18432
Brake pedal
The brake pedal is located on the right side of the
ATV. To apply the rear brake, push down on the
brake pedal.
EBU18500
Parking brake
Use the parking brake before starting the engine or
parking the ATV, especially on a slope. Squeeze
the clutch lever while pushing the button, then
push in the lock plate to apply the parking brake.
Squeeze the clutch lever to release the parking
brake.
TIP

When the parking brake is used, engine speed is
limited to 2300 r/min. Be sure the parking brake is
released before moving the throttle lever. Other-
1. Brake lever
1

1. Brake pedal
1
✦✯✬✩✧✤✲✣  


4-6
1
2
34
5
6
7
8
9
10
11

wise, the engine will misfire, preventing normal op-
eration.
WARNING

EWB00220

Always set the parking brake before starting
the engine. The ATV could start moving un-
expectedly if the parking brake is not ap-
plied. This could cause loss of control or a
collision.

Always be sure you have released the park-
ing brake before you begin to ride. The brake
could overheat if you ride the ATV without re-
leasing the parking brake. You could lose
braking performance which could cause an
accident. You could also wear out the brakes

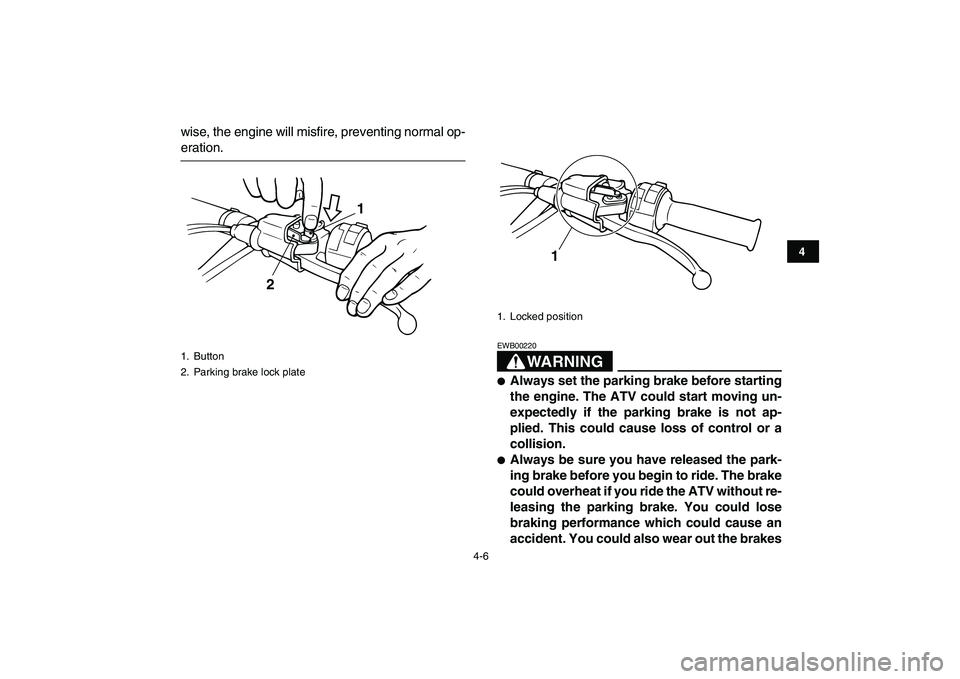

1. Button
2. Parking brake lock plate
1
2

1. Locked position
1
✦✯✬✩✧✤✲✣ ✩ 


4-7
1
2
34
5
6
7
8
9
10
11

prematurely.
EBU18530

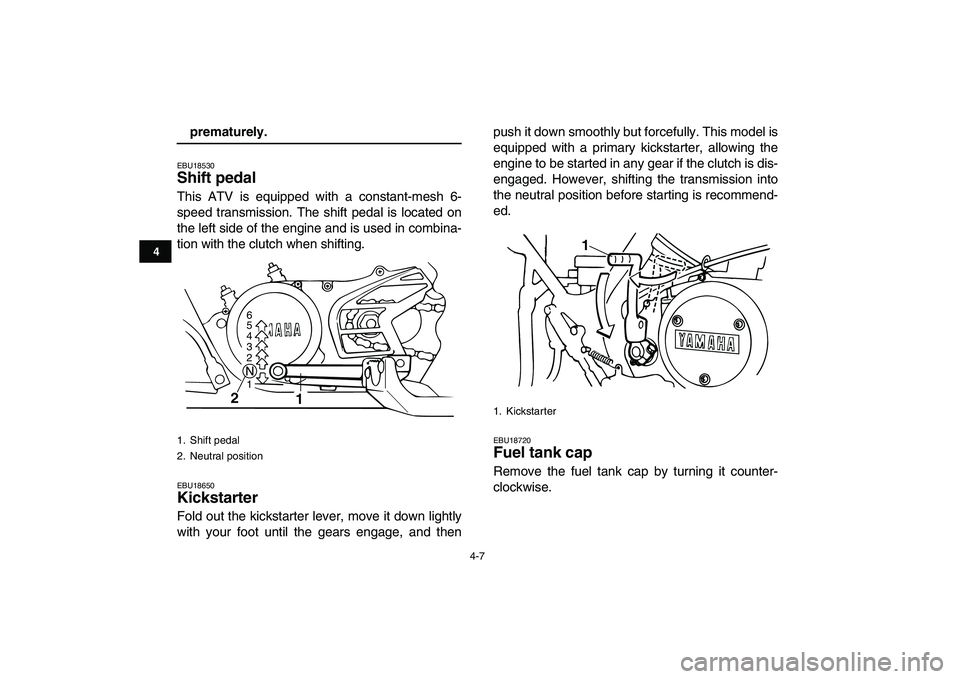

Shift pedal
This ATV is equipped with a constant-mesh 6-
speed transmission. The shift pedal is located on
the left side of the engine and is used in combina-
tion with the clutch when shifting.
EBU18650
Kickstarter
Fold out the kickstarter lever, move it down lightly
with your foot until the gears engage, and thenpush it down smoothly but forcefully. This model is
equipped with a primary kickstarter, allowing the
engine to be started in any gear if the clutch is dis-
engaged. However, shifting the transmission into
the neutral position before starting is recommend-
ed.
EBU18720
Fuel tank cap
Remove the fuel tank cap by turning it counter-
clockwise.
1. Shift pedal
2. Neutral position
6
5
4
1 2 3
1
2

1. Kickstarter
1
✦✯✬✩✧✤✲✣ ✪
