2010 YAMAHA BANSHEE 350 Owners Manual

8-35
1
2
3
4
5
6
78
9
10
11

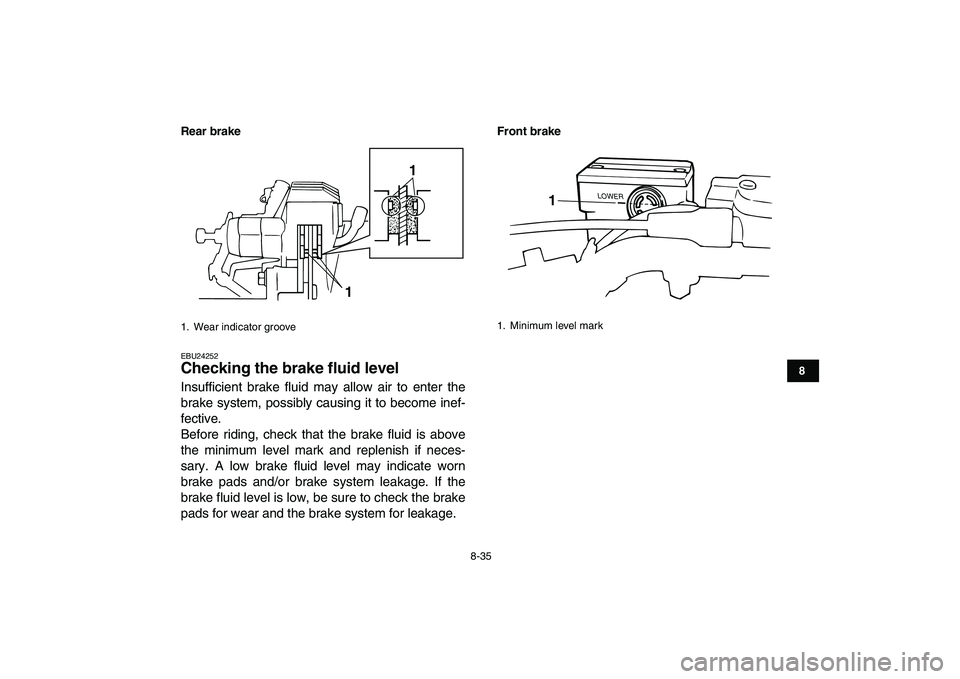

Rear brake

EBU24252
Checking the brake fluid level
Insufficient brake fluid may allow air to enter the
brake system, possibly causing it to become inef-
fective.
Before riding, check that the brake fluid is above
the minimum level mark and replenish if neces-
sary. A low brake fluid level may indicate worn
brake pads and/or brake system leakage. If the
brake fluid level is low, be sure to check the brake
pads for wear and the brake system for leakage.
Front brake
1. Wear indicator groove
11

1. Minimum level mark
LOWER
1
✦✯✬✩✧✤✲✣ ✦ 


8-36
1
2
3
4
5
6
78
9
10
11

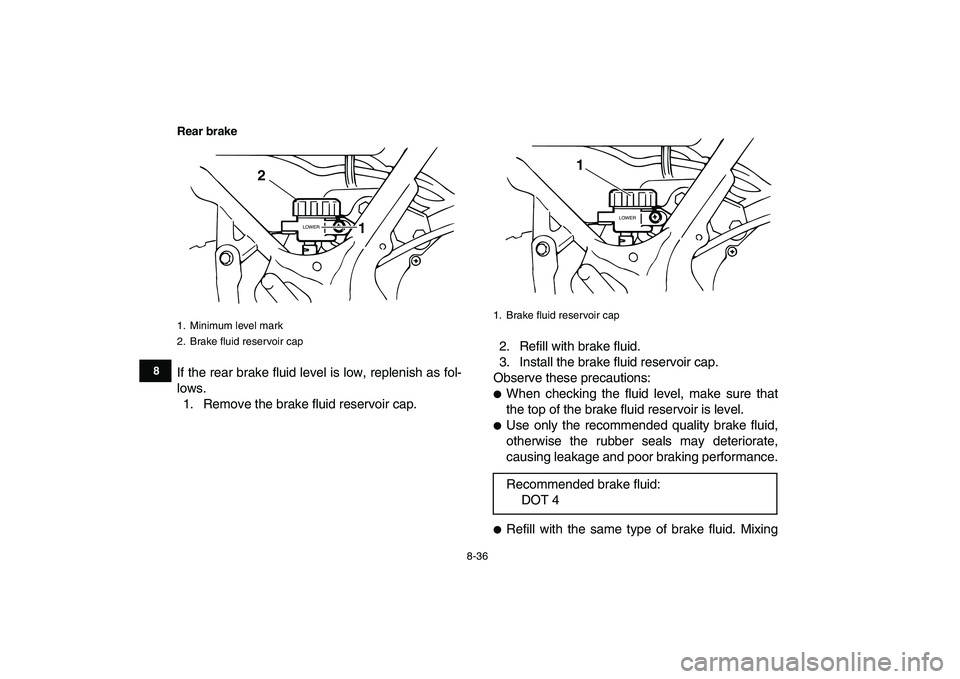

Rear brake

If the rear brake fluid level is low, replenish as fol-
lows.
1. Remove the brake fluid reservoir cap.2. Refill with brake fluid.
3. Install the brake fluid reservoir cap.
Observe these precautions:

When checking the fluid level, make sure that
the top of the brake fluid reservoir is level.

Use only the recommended quality brake fluid,
otherwise the rubber seals may deteriorate,
causing leakage and poor braking performance.

Refill with the same type of brake fluid. Mixing
1. Minimum level mark
2. Brake fluid reservoir cap
LOWER
1 2

1. Brake fluid reservoir cap
Recommended brake fluid:
DOT 4
LOWER
1
✦✯✬✩✧✤✲✣ ✦✩ 


8-37
1
2
3
4
5
6
78
9
10
11

fluids may result in a harmful chemical reaction
and lead to poor braking performance.

Be careful that water does not enter the brake
fluid reservoir when refilling. Water will signifi-
cantly lower the boiling point of the fluid and may
result in vapor lock.

Brake fluid may deteriorate painted surfaces or
plastic parts. Always clean up spilled fluid imme-
diately.

As the brake pads wear, it is normal for the brake
fluid level to gradually go down. However, if the
brake fluid level goes down suddenly, have a
Yamaha dealer check the cause.
EBU24291
Changing the brake fluid
Have a Yamaha dealer change the brake fluid at
the intervals specified in the TIP after the periodic
maintenance and lubrication chart. In addition,
have the oil seals of the master cylinders and cali-
pers as well as the brake hoses replaced at the in-
tervals listed below or whenever they are damaged
or leaking.

Oil seals: Replace every two years.

Brake hoses: Replace every four years.
EBU24394
Checking the front brake lever free play
The brake lever free play must be checked at the
intervals specified in the periodic maintenance and
lubrication chart. The brake lever should have no
free play as shown. If there is free play, have a
Yamaha dealer check the brake system.
EBU24612
Checking the brake pedal position
The brake pedal position must be checked and, if
necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
The top of the brake pedal should be positioned
1. No free play
1
✦✯✬✩✧✤✲✣ ✦✪ 


8-38
1
2
3
4
5
6
78
9
10
11

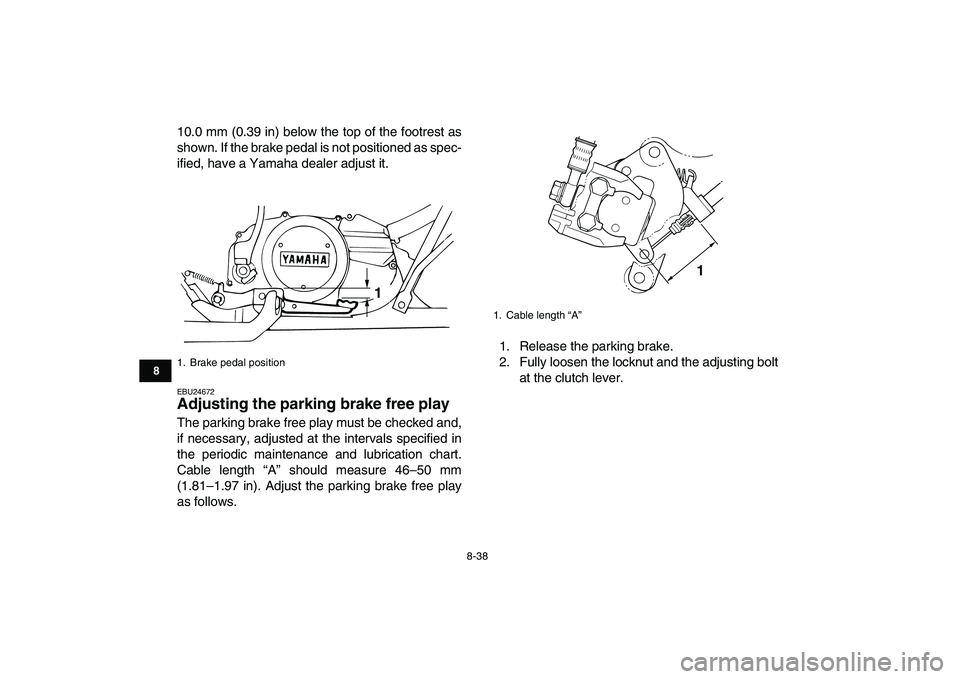

10.0 mm (0.39 in) below the top of the footrest as
shown. If the brake pedal is not positioned as spec-
ified, have a Yamaha dealer adjust it.
EBU24672
Adjusting the parking brake free play
The parking brake free play must be checked and,
if necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
Cable length “A” should measure 46–50 mm
(1.81–1.97 in). Adjust the parking brake free play
as follows.1. Release the parking brake.
2. Fully loosen the locknut and the adjusting bolt
at the clutch lever.
1. Brake pedal position
1

1. Cable length “A”
1
✦✯✬✩✧✤✲✣ ✦✫


8-39
1
2
3
4
5
6
78
9
10
11

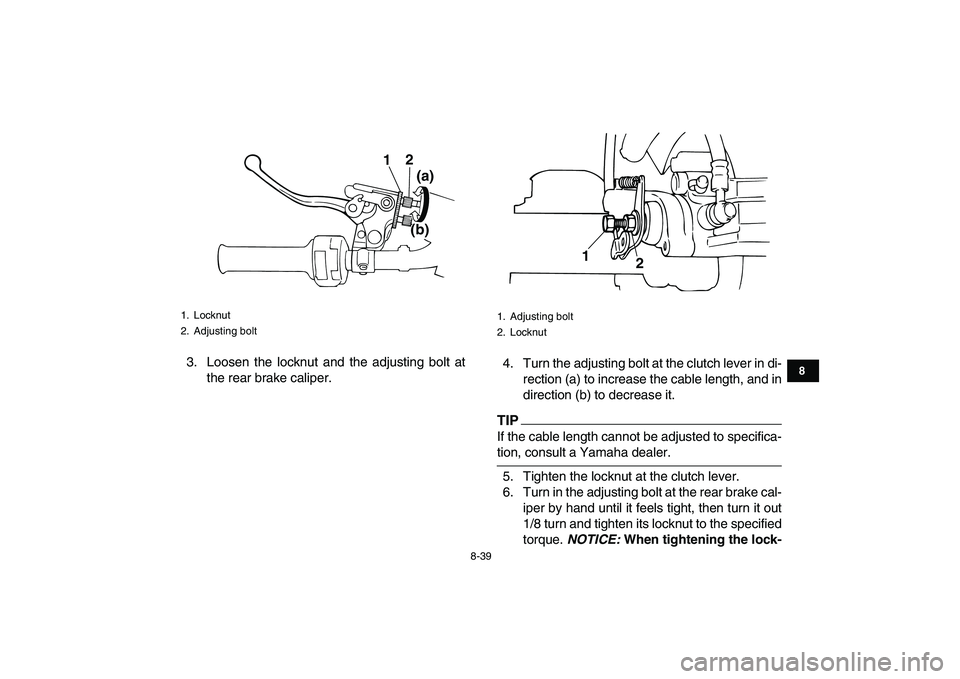

3. Loosen the locknut and the adjusting bolt at
the rear brake caliper.4. Turn the adjusting bolt at the clutch lever in di-
rection (a) to increase the cable length, and in
direction (b) to decrease it.TIP
If the cable length cannot be adjusted to specifica-
tion, consult a Yamaha dealer.
5. Tighten the locknut at the clutch lever.
6. Turn in the adjusting bolt at the rear brake cal-
iper by hand until it feels tight, then turn it out
1/8 turn and tighten its locknut to the specified
torque.
NOTICE:
When tightening the lock-
1. Locknut
2. Adjusting bolt
12
(a)
(b)

1. Adjusting bolt
2. Locknut
1
2
✦✯✬✩✧✤✲✣ ✦✬ 


8-40
1
2
3
4
5
6
78
9
10
11

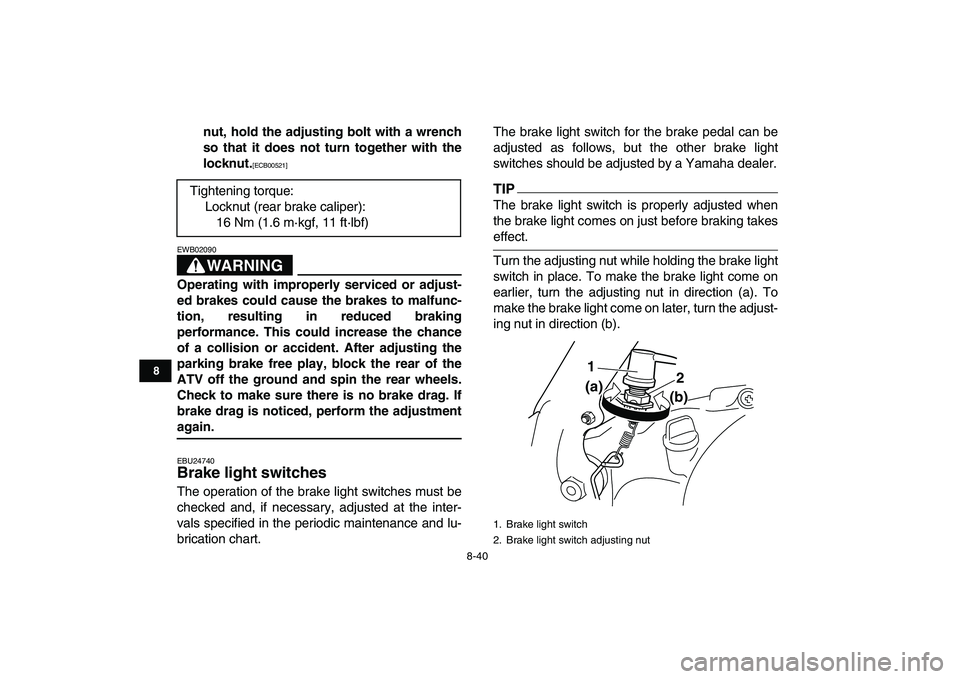

nut, hold the adjusting bolt with a wrench
so that it does not turn together with the
locknut.
[ECB00521]

WARNING

EWB02090
Operating with improperly serviced or adjust-
ed brakes could cause the brakes to malfunc-
tion, resulting in reduced braking
performance. This could increase the chance
of a collision or accident. After adjusting the
parking brake free play, block the rear of the
ATV off the ground and spin the rear wheels.
Check to make sure there is no brake drag. If
brake drag is noticed, perform the adjustment
again.
EBU24740
Brake light switches
The operation of the brake light switches must be
checked and, if necessary, adjusted at the inter-
vals specified in the periodic maintenance and lu-
brication chart.The brake light switch for the brake pedal can be
adjusted as follows, but the other brake light
switches should be adjusted by a Yamaha dealer.
TIP

The brake light switch is properly adjusted when
the brake light comes on just before braking takes
effect.
Turn the adjusting nut while holding the brake light
switch in place. To make the brake light come on
earlier, turn the adjusting nut in direction (a). To
make the brake light come on later, turn the adjust-
ing nut in direction (b). Tightening torque:
Locknut (rear brake caliper):
16 Nm (1.6 m·kgf, 11 ft·lbf)
1. Brake light switch
2. Brake light switch adjusting nut
1
2
(a)
(b)
✦✯✬✩✧✤✲✣ ✧✣ 


8-41
1
2
3
4
5
6
78
9
10
11

EBU24811

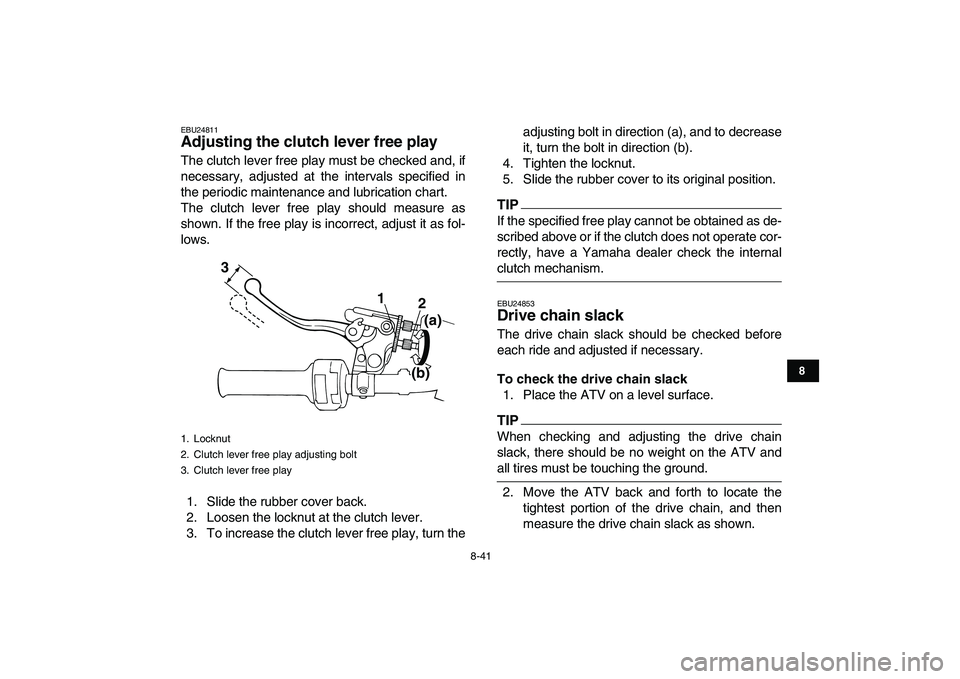

Adjusting the clutch lever free play
The clutch lever free play must be checked and, if
necessary, adjusted at the intervals specified in
the periodic maintenance and lubrication chart.
The clutch lever free play should measure as
shown. If the free play is incorrect, adjust it as fol-
lows.
1. Slide the rubber cover back.
2. Loosen the locknut at the clutch lever.
3. To increase the clutch lever free play, turn theadjusting bolt in direction (a), and to decrease
it, turn the bolt in direction (b).
4. Tighten the locknut.
5. Slide the rubber cover to its original position.TIP

If the specified free play cannot be obtained as de-
scribed above or if the clutch does not operate cor-
rectly, have a Yamaha dealer check the internal
clutch mechanism.
EBU24853
Drive chain slack
The drive chain slack should be checked before
each ride and adjusted if necessary.
To check the drive chain slack
1. Place the ATV on a level surface.
TIP

When checking and adjusting the drive chain
slack, there should be no weight on the ATV and
all tires must be touching the ground.
2. Move the ATV back and forth to locate the
tightest portion of the drive chain, and then
measure the drive chain slack as shown.
1. Locknut
2. Clutch lever free play adjusting bolt
3. Clutch lever free play
1
2 3
(a)
(b)
✦✯✬✩✧✤✲✣ ✧✤ 


8-42
1
2
3
4
5
6
78
9
10
11

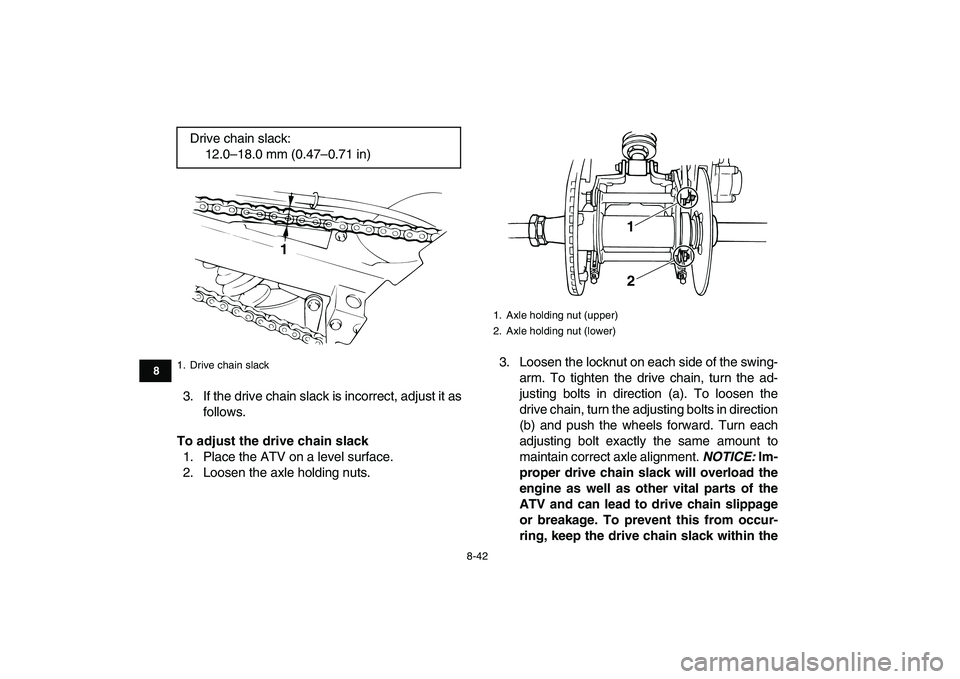

3. If the drive chain slack is incorrect, adjust it as
follows.
To adjust the drive chain slack
1. Place the ATV on a level surface.
2. Loosen the axle holding nuts.3. Loosen the locknut on each side of the swing-
arm. To tighten the drive chain, turn the ad-
justing bolts in direction (a). To loosen the
drive chain, turn the adjusting bolts in direction
(b) and push the wheels forward. Turn each
adjusting bolt exactly the same amount to
maintain correct axle alignment.
NOTICE:
Im-
proper drive chain slack will overload the
engine as well as other vital parts of the
ATV and can lead to drive chain slippage
or breakage. To prevent this from occur-
ring, keep the drive chain slack within the
Drive chain slack:
12.0–18.0 mm (0.47–0.71 in)

1. Drive chain slack
1

1. Axle holding nut (upper)
2. Axle holding nut (lower)
1
2
✦✯✬✩✧✤✲✣ ✧✥
