2010 YAMAHA BANSHEE 350 Owners Manual

8-43
1
2
3
4
5
6
78
9
10
11

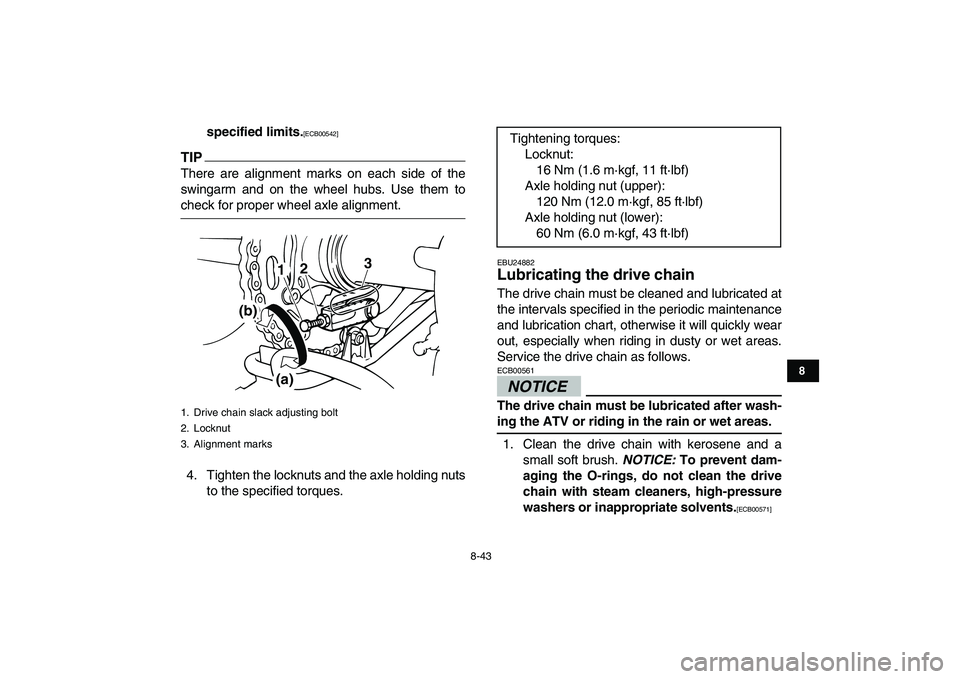

specified limits.
[ECB00542]

TIP

There are alignment marks on each side of the
swingarm and on the wheel hubs. Use them to
check for proper wheel axle alignment.
4. Tighten the locknuts and the axle holding nuts
to the specified torques.
EBU24882
Lubricating the drive chain
The drive chain must be cleaned and lubricated at
the intervals specified in the periodic maintenance
and lubrication chart, otherwise it will quickly wear
out, especially when riding in dusty or wet areas.
Service the drive chain as follows.
NOTICE

ECB00561
The drive chain must be lubricated after wash-
ing the ATV or riding in the rain or wet areas.
1. Clean the drive chain with kerosene and a
small soft brush.
NOTICE:
To prevent dam-
aging the O-rings, do not clean the drive
chain with steam cleaners, high-pressure
washers or inappropriate solvents.

[ECB00571]

1. Drive chain slack adjusting bolt
2. Locknut
3. Alignment marks
3
12(a)
(b)

Tightening torques:
Locknut:
16 Nm (1.6 m·kgf, 11 ft·lbf)
Axle holding nut (upper):
120 Nm (12.0 m·kgf, 85 ft·lbf)
Axle holding nut (lower):
60 Nm (6.0 m·kgf, 43 ft·lbf)
✦✯✬✩✧✤✲✣ ✧✦ 


8-44
1
2
3
4
5
6
78
9
10
11

2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive chain with a
special O-ring chain lubricant.
NOTICE:
Do
not use engine oil or any other lubricants
for the drive chain, as they may contain
substances that could damage the O-
rings.
[ECB00581]

EBU24901
Checking and lubricating the cables
The operation and the condition of all control ca-
bles should be checked before each ride, and the
cables and cable ends should be lubricated if nec-
essary. If a cable is damaged or does not move
smoothly, have a Yamaha dealer check or replace
it.WARNING
EWB02581

Inspect cables frequently and replace if dam-
aged. Corrosion can result when the cable
sheaths become damaged, and cables can
also become frayed or kinked, which could
restrict the operation of controls and lead to
an accident or injury.

Always make sure all control cables work
smoothly before you begin riding in cold
weather. If the control cables are frozen or do
not work smoothly, you could be unable to
control the ATV, which could lead to an acci-
dent or collision.
EBU24922
Checking and lubricating the brake and
clutch levers
The operation of the brake and clutch levers
should be checked before each ride, and the lever
pivots should be lubricated if necessary.
1. O-ring
Recommended lubricant:
Engine oil
✦✯✬✩✧✤✲✣ ✧✧ 


8-45
1
2
3
4
5
6
78
9
10
11

EBUM0170
Checking the shift pedal
The operation of the shift pedal should be checked
before each ride. If operation is not smooth, have
a Yamaha dealer check the vehicle.
EBU28871
Checking and lubricating the brake
pedal
The operation of the brake pedal should be
checked before each ride, and the pedal pivot
should be lubricated if necessary.
EBU24963
Checking the wheel hub bearings
The front and rear wheel hub bearings must be
checked at the intervals specified in the periodic
maintenance and lubrication chart. If there is playin a wheel hub or if a wheel does not turn smoothly,
have a Yamaha dealer check the wheel hub bear-
ings.
EBU25003
Lubricating the rear suspension relay
arm and connecting arm pivoting
points
The rear suspension relay arm and connecting
arm pivoting points must be lubricated at the inter-
vals specified in the periodic maintenance and lu-
brication chart.
Lubricate the pivoting points using a grease gun. Recommended lubricants:
Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
✦✯✬✩✧✤✲✣ ✧ 


8-46
1
2
3
4
5
6
78
9
10
11

EBU25032

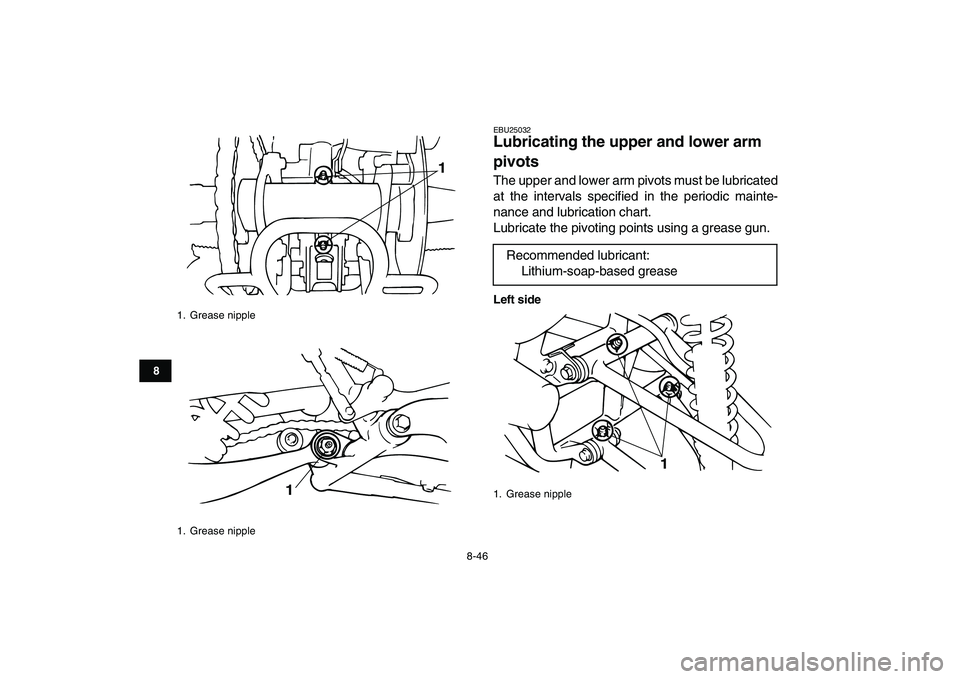

Lubricating the upper and lower arm
pivots
The upper and lower arm pivots must be lubricated
at the intervals specified in the periodic mainte-
nance and lubrication chart.
Lubricate the pivoting points using a grease gun.
Left side
1. Grease nipple
1. Grease nipple
1
1

Recommended lubricant:
Lithium-soap-based grease
1. Grease nipple
1
✦✯✬✩✧✤✲✣ ✧✩ 


8-47
1
2
3
4
5
6
78
9
10
11

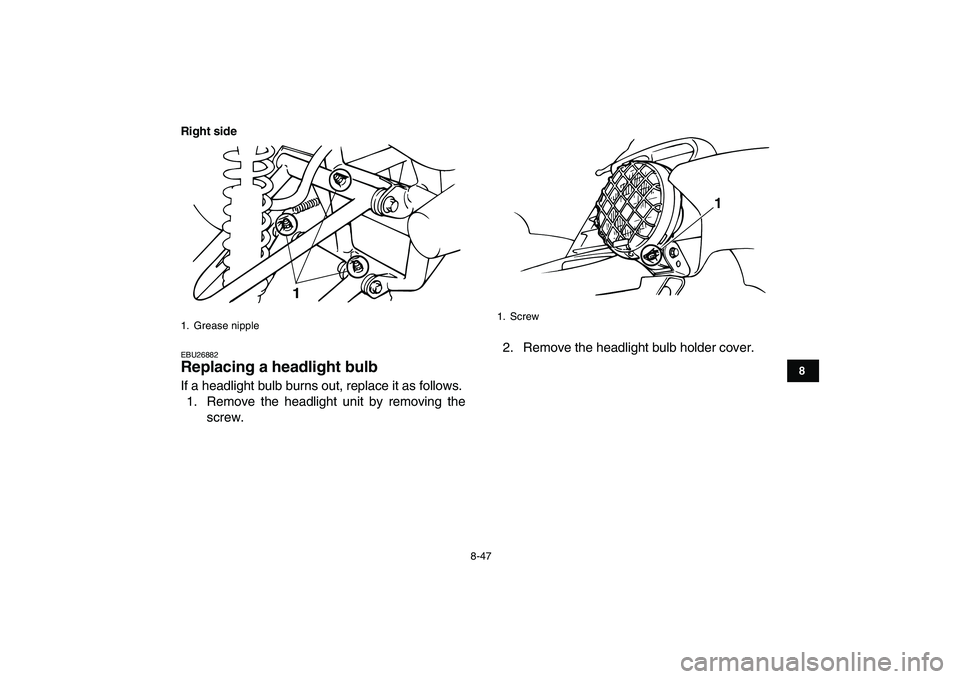

Right side

EBU26882
Replacing a headlight bulb
If a headlight bulb burns out, replace it as follows.
1. Remove the headlight unit by removing the
screw.2. Remove the headlight bulb holder cover.
1. Grease nipple
1

1. Screw
1
✦✯✬✩✧✤✲✣ ✧✪ 


8-48
1
2
3
4
5
6
78
9
10
11

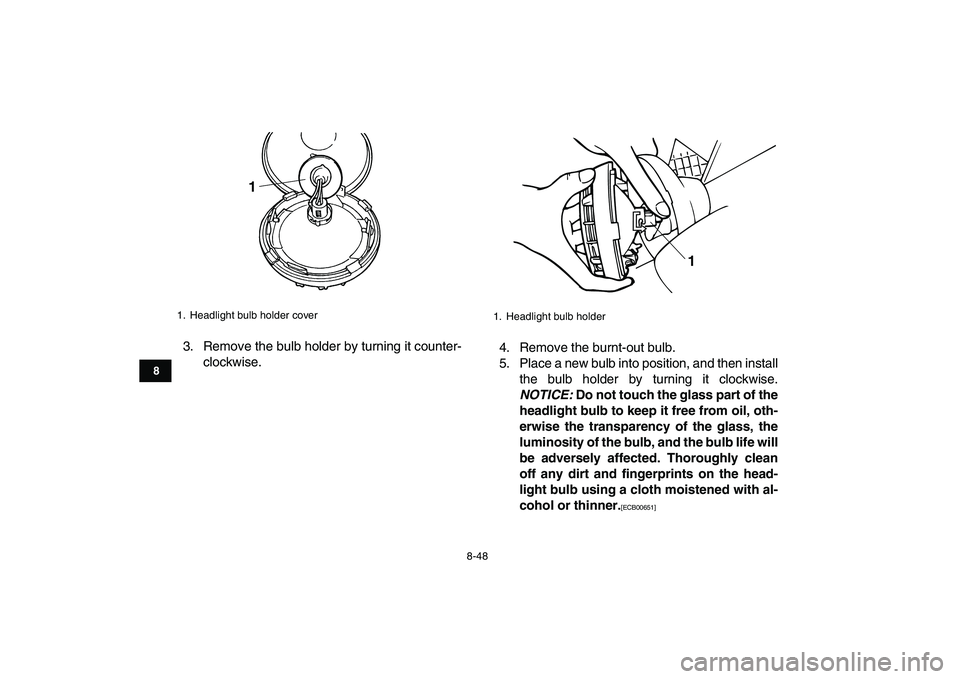

3. Remove the bulb holder by turning it counter-
clockwise.4. Remove the burnt-out bulb.
5. Place a new bulb into position, and then install
the bulb holder by turning it clockwise.
NOTICE:
Do not touch the glass part of the
headlight bulb to keep it free from oil, oth-
erwise the transparency of the glass, the
luminosity of the bulb, and the bulb life will
be adversely affected. Thoroughly clean
off any dirt and fingerprints on the head-
light bulb using a cloth moistened with al-
cohol or thinner.
[ECB00651]

1. Headlight bulb holder cover
1

1. Headlight bulb holder
1
✦✯✬✩✧✤✲✣ ✧✫


8-49
1
2
3
4
5
6
78
9
10
11

6. Install the bulb holder cover.
NOTICE:
Make
sure the bulb holder cover is securely fit-
ted over the bulb holder and seated
against the reflector.
[ECB00681]
7. Place the headlight unit in the original posi-
tion, and then install the screw.
8. Adjust the headlight beam if necessary.
EBU25551
Adjusting a headlight beam NOTICE

ECB00690
It is advisable to have a Yamaha dealer make
this adjustment.
To raise a headlight beam, turn the headlight beam
1. Do not touch the glass part of the bulb.
1

1. Headlight bulb holder cover
2. Headlight bulb holder
3. Headlight unit
1
2
3
✦✯✬✩✧✤✲✣ ✧✬ 


8-50
1
2
3
4
5
6
78
9
10
11

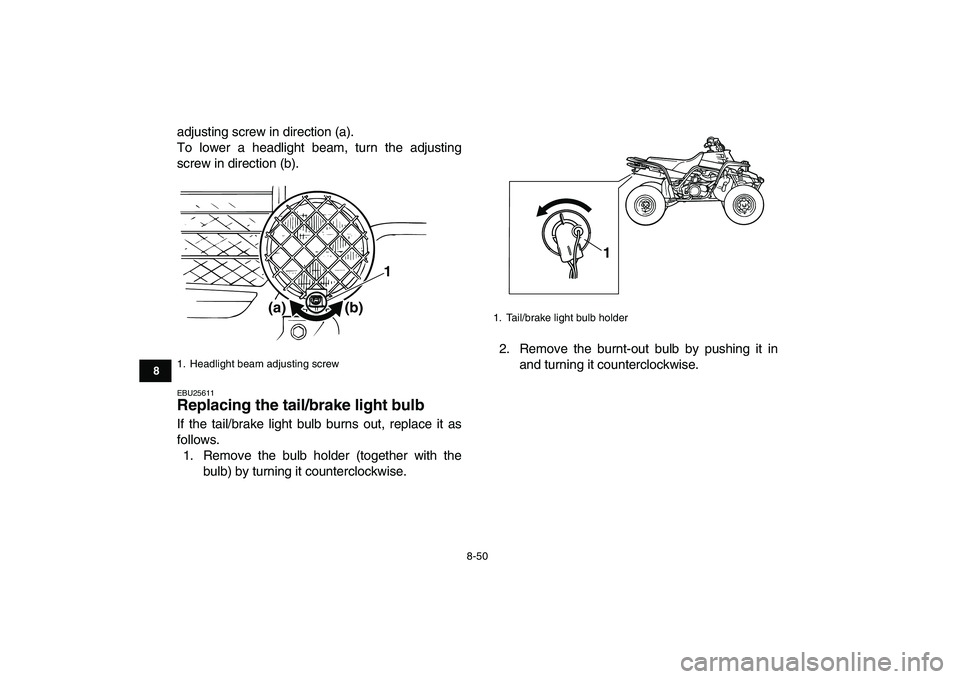

adjusting screw in direction (a).
To lower a headlight beam, turn the adjusting
screw in direction (b).
EBU25611
Replacing the tail/brake light bulb
If the tail/brake light bulb burns out, replace it as
follows.
1. Remove the bulb holder (together with the
bulb) by turning it counterclockwise.2. Remove the burnt-out bulb by pushing it in
and turning it counterclockwise.
1. Headlight beam adjusting screw
1
(a) (b)

1. Tail/brake light bulb holder
1
✦✯✬✩✧✤✲✣ ✣
