2010 SUZUKI KIZASHI Owners Manual

4-6
DRIVING TIPS
57L20-03E
WARNING
In addition to following the driving
tips in this section, it is important to
observe the following precautions.
 Make sure your tires are in good
condition and always maintain the
specified tire pressure. Refer to
“Tires” in the “INSPECTION AND
MAINTENANCE” section for
details.
 Do not use tires other than those
specified by SUZUKI. Never use dif-
ferent sizes or types of tires on the
front and rear wheels. For informa-
tion regarding the specified tires,
refer to the Tire Information Label
located on the driver’s side door
pillar.
 Never use oversized tires or special
shocks and springs to raise (jack
up) your vehicle. This will change
its handling characteristics. Over-
sized tires may also rub against the
fender over bumps, causing vehicle
damage or tire failure.
(Continued)
WARNING
(Continued)
 After driving through water, test the
brakes while driving at a slow
speed to see if they have main-
tained their normal effectiveness. If
the brakes are less effective than
normal, dry them by repeatedly
applying the brakes while driving
slowly until the brakes have
regained their normal effective-
ness.
Warning and Indicator Lights: 8

4-7DRIVING TIPS
57L20-03E
MEMO
Warning and Indicator Lights: 8
A/T Selector Position Indicator: 8
Speedometer/Odometer/Trip meter: 8

OTHER CONTROLS AND EQUIPMENT
5
57L20-03E
60G407
OTHER CONTROLS AND EQUIPMENTAutomatic Heating and Air Conditioning System
(Climate Control) ................................................................. 5-1
Radio Antenna ..................................................................... 5-9
Audio Systems .................................................................... 5-10
Fuel Filler Door .................................................................... 5-73
Fuel Filler Cap ..................................................................... 5-74
Engine Hood ........................................................................ 5-75
Sun Visor ............................................................................. 5-77
Interior Light Switch ........................................................... 5-78
Courtesy Lights ................................................................... 5-79
Footwell Lights .................................................................... 5-79
Trunk Light .......................................................................... 5-79
Spot Light ............................................................................ 5-80
Accessory Socket ............................................................... 5-80
Assist Grips ......................................................................... 5-82
Coat Hooks .......................................................................... 5-83
Sunroof (if equipped) .......................................................... 5-83
Glove Box ............................................................................ 5-85
Overhead Console .............................................................. 5-86
Lidded Instrument Panel Box ............................................ 5-87
Cup Holder and Storage Area (if equipped) ..................... 5-87
Front Seat Back Pocket (if equipped) ............................... 5-89
Footrest ................................................................................ 5-89
Center Console Box ............................................................ 5-89
Armrest ................................................................................ 5-90
Floor Mats (if equipped) ..................................................... 5-91
Luggage Under-box ............................................................ 5-92
Net/Rope Hooks .................................................................. 5-92
Roof Rack Anchors (if equipped) ...................................... 5-92
HomeLink
® (if equipped) .................................................... 5-93
Frame Hooks ....................................................................... 5-96

5-1OTHER CONTROLS AND EQUIPMENT
57L20-03E
Automatic Heating and Air Conditioning System
(Climate Control)Air Outlet
57L51001
(6) (6)(5)
(5)
(7)
(3)
(2) (3)(2)(1)
(4)
EXAMPLE
(1) Windshield defroster outlet
(2) Side defroster outlet
(3) Side outlet
(4) Center outlet
(5) Floor outlet
(6) Rear floor outlet
(7) Rear outlet
Parking Brake Lever: 6
Pedals: 6

5-2
OTHER CONTROLS AND EQUIPMENT
57L20-03E

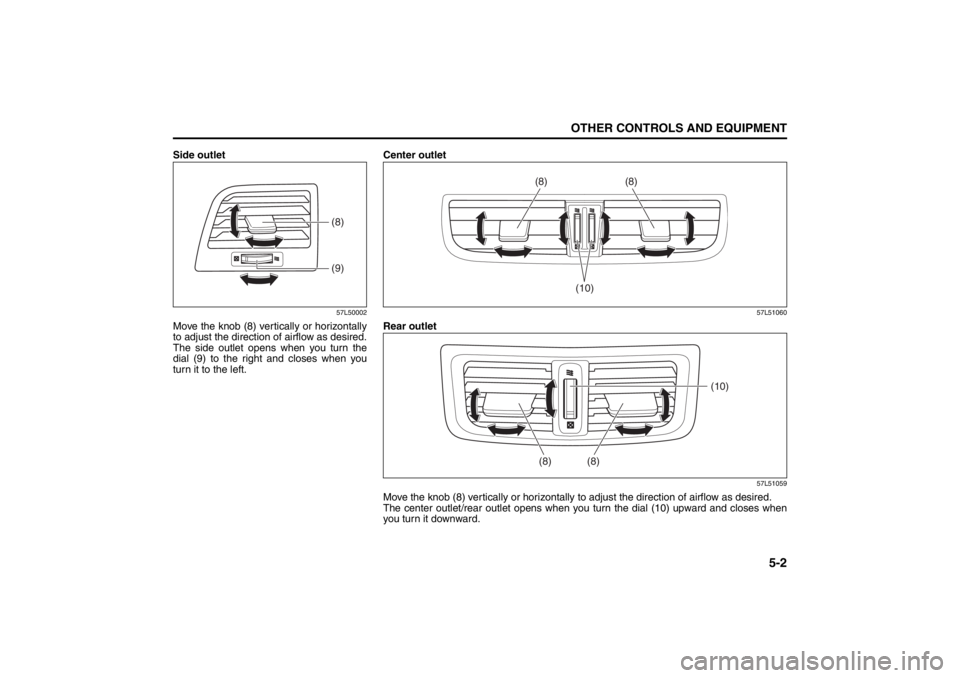

Side outlet
57L50002
Move the knob (8) vertically or horizontally
to adjust the direction of airflow as desired.
The side outlet opens when you turn the
dial (9) to the right and closes when you
turn it to the left.
(9) (8)
Center outlet
57L51060
Rear outlet
57L51059
Move the knob (8) vertically or horizontally to adjust the direction of airflow as desired.
The center outlet/rear outlet opens when you turn the dial (10) upward and closes when
you turn it downward.
(10)
(8)
(8)
(10)
(8)
(8)
Pedals: 6
Gearshift Lever: 10

5-3OTHER CONTROLS AND EQUIPMENT
57L20-03E

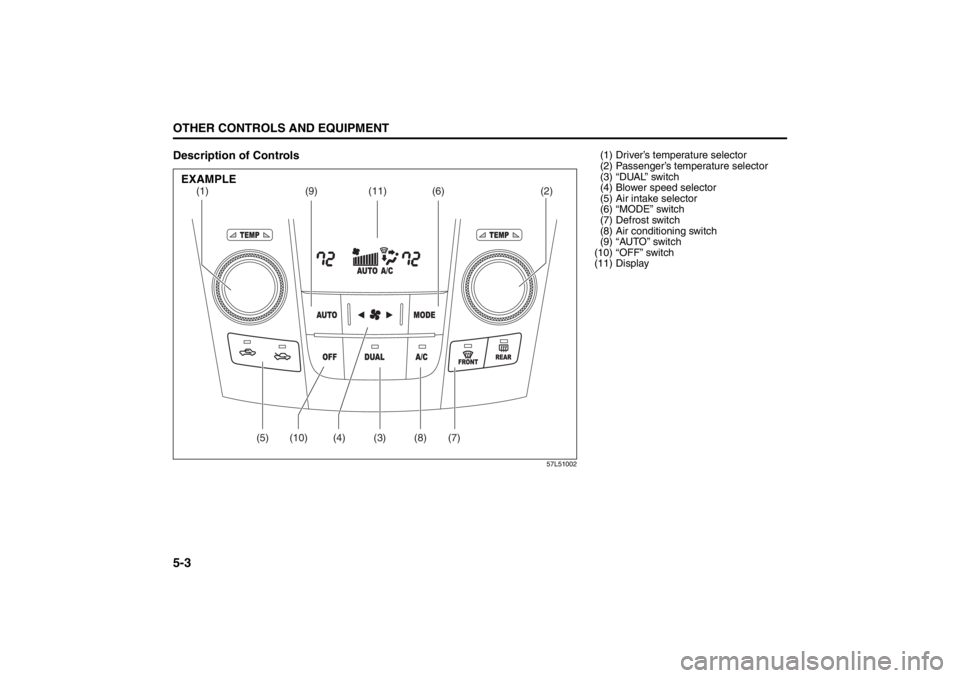

Description of Controls
57L51002
(1) (9)
(6) (11)
(4)(2)
(5) (10) (3) (8) (7)
EXAMPLE
(1) Driver’s temperature selector
(2) Passenger’s temperature selector
(3) “DUAL” switch
(4) Blower speed selector
(5) Air intake selector
(6) “MODE” switch
(7) Defrost switch
(8) Air conditioning switch
(9) “AUTO” switch
(10) “OFF” switch
(11) Display
Gearshift Lever: 10
Fuel Filler Cap: 5

5-4
OTHER CONTROLS AND EQUIPMENT
57L20-03E
Driver’s temperature selector (1)/Pas-
senger’s temperature selector (2)
57L51003
Turn the temperature selector (1)/(2) to
adjust the temperature. The display (11)
shows the selected temperature.
NOTE:
If you turn the temperature selector (1)
until “HI” or “LO” appears on the display,
the climate control system will operate at
the maximum heating or cooling and the
blower will run at full speed. The tempera-
ture of the air from the outlets may change
suddenly while “LO” or “HI” is displayed,
but this is normal.“DUAL” switch (3)
Every time you press the “DUAL” switch
(3), the temperature control mode switches
between the following:
Individual control mode (indicatior ON):
The driver and passenger can make
temperature adjustments indepen-
dently from their own temperature
selectors.
Combined control mode (indicatior OFF):
If a temperature adjustment is made
from the driver’s temperature selector
(1), the same adjustment is made auto-
matically on the passenger side.
NOTE:
If the passenger’s temperature selector (2)
is turned while in the combined control
mode, the individual control mode is auto-
matically set.Blower speed selector (4)
57L51004
Air flows out at a higher rate when you
press the right switch and at a lower rate
when you press the left switch.
If the “AUTO” switch (9) is pushed, the
blower speed will vary automatically as the
climate control system maintains the
selected temperature.
(1)/(2)
(4)
(9)
Fuel Filler Cap: 5
Folding Rear Seats: 3

5-5OTHER CONTROLS AND EQUIPMENT
57L20-03E
Air intake selector (5)
57L51005
Push the air intake selector (5) to change
between the following modes.
If the “AUTO” switch (9) is pushed, the air
intake will vary automatically as the climate
control system maintains the selected tem-
perature.
RECIRCULATED AIR (a)
When this mode is selected, outside air is
shut off and inside air is recirculated. This
mode is suitable when driving through an
area with polluted air such as a tunnel, or
when attempting to quickly cool down the
vehicle.FRESH AIR (b)
When this mode is selected, outside air is
introduced.
“FRESH AIR” and “RECIRCULATED AIR”
are selected alternately each time the air
intake selector is pushed.
NOTE:
If you select “RECIRCULATED AIR” for an
extended period of time, the air in the vehi-
cle can become contaminated. Therefore,
you should occasionally select “FRESH
AIR”.
“MODE” switch (6)
57L51006
Push the “MODE” switch (6) to change
among the following functions. The indica-
tion of the selected mode appears on the
display.If the “AUTO” switch (9) is pushed, the air
flow will vary automatically as the climate
control system maintains the selected tem-
perature.
Ventilation (c)
57L51007
Temperature-controlled air comes out of
the center, side and rear outlets.
(a)
(b)
(5)
(c)
(d)
(e)
(f)
(6)
