Breakdown assistance
168
The vehicle tool kit contains the following parts (depending on equipment fitted):
Wire clamps for removing the full wheel trims,

Screwdriver,

Plastic clip for a wheel bolt cover,

Wheel wrench*,

To w i n g e y e ,

Adapter for the safety wheel bolts*.
Before placing the lifting jack* back in its storage area, screw in the arm of the lifting
jack fully.
WARNING

The factory-supplied lifting jack* is only intended for your model of vehicle.
On no account attempt to lift a heavier vehicle or other loads - risk of injury!

Ensure that the vehicle tool kit is safely attached in the luggage compart-
ment.Note
Ensure that the box is always secured with the strap.Spray for repairing a tyre*
The spray for repairing a tyre is intended for rapid repair of small defects in a tyre
consisting of a damage up to a size of up to 5 mm. The spray is not at all intended to
replace a permanent repair on the tyre ; this repair serves to reach the workshop.
The repair can be undertaken on the vehicl e immediately. Please read the attached
instructions carefully before the repair.
The spray for repairing a tyre is located in th e right front well of the plastic part behind
the spare wheel.Tyre repair kit*The tyre repair kit is intended for the repair of minor tyre defects. The tyre repair kit
contains a compressor, inflation bottle, operating instructions and accessories.
The repair with the tyre repair kit is not at all intended to replace a permanent repair
on the tyre, this repair only serves to reach the next specialist garage. The repair can be
undertaken on the vehicle immediately. Please read the attached instructions care-
fully before the repair.
The spray for repairing a tyre is located in th e right front well of the plastic part behind
the spare wheel.Spare wheel*
Fig. 158 Vehicle tool kit: Spray
for repairing a tyre
Fig. 159 Luggage compartment:
Spare wheel
s2rc.book Page 168 Thursday, April 22, 2010 10:58 AM

Breakdown assistance169
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data

The spare wheel lies in a well under the floor covering of the luggage compartment
and is fixed in place using special screws
page 168, fig. 159 .
Before removing the spare wheel, you must take out the box with the vehicle tool kit
box page 167, fig. 157.
One should check the inflation pressure in the spare wheel (at best when generally
checking the tyre air pressures - see sign on the fuel filler flap page 160) to ensure
that the spare wheel is always ready to use.
Temporary spare wheel
A warning label displayed on the rim of the temporary spare wheel indicates that your
vehicle is equippe d with a temporary spare wheel.
Please observe the following notes when driving with a temporary spare wheel:

The warning label must not be covered after installing the wheel.

Do not drive faster than 80 km/h with this spare wheel and pay particular attention
while driving. Avoid accelerating at full throttle, sharp braking and fast cornering.

The inflation pressure for this spare wheel is identical to the inflation pressure of
the standard tyres.

Use this spare wheel only to reach the nearest specialist garage as it is not intended
for continuous use.
Changing a wheelPreliminary workThe following steps should be carried ou t before actually changing the wheel.
– If it is necessary to change a wheel, park the vehicle as far away as possible from
the traffic flow. The place you choose should be level.
–Have all the occupants get out. While changing a wheel, the occupants of the
vehicle should not stand on the road (e.g. behind a crash barrier).
– Apply the handbrake firmly.
– Shift up into the 1st gear . – If a trailer is coupled, uncouple it.
–Take the
vehicle tool kit  page 167 and the spare wheel*  page 168 out of the
luggage compartment.
WARNING

If you find yourself in flowing traffic switch on the hazard warning lights
system and place the warning triangle on the side of the road at the prescribed
distance from your vehicle while observin g all national legal provisions. In this
way you are protecting not only yourself but also other road users.

Never start the engine with the vehicle si tting on the raised jack - danger of
suffering injury.Caution
If you have to change a wheel on a slope fi rst block the opposite wheel with a stone or
similar object in order to secure the vehicle from unexpectedly rolling away.
Note
Comply with the national legal regulations.Changing a wheelAlways change a wheel on a level surface as far as possible.
– Take off the full wheel trim* page 170 or the caps page 171.
– In the case of light alloy wheels remove the wheel trim cap page 171.
– Slacken the wheel bolts page 171.
– Jack up the vehicle until the wheel to be changed is clear of the ground
 page 172.
– Unscrew the wheel bolts and place them on a clean surface (cloth, paper etc.).
– Take off the wheel.
– Fit on the new spare wheel* and tighten the wheel bolts slightly.
– Lower the car.
s2rc.book Page 169 Thursday, April 22, 2010 10:58 AM

Breakdown assistance
170
– Tighten the wheel bolts firmly, alternately and diagonally using the wrench* (cross-
wise) page 171.
– Mount the full wheel trim/wheel trim cap or the caps.
Note

All bolts must be clean and must turn easily.

You must never grease or oil the wheel bolts!

When fitting on unidirectional tyres, ensu re that the tyres rotate in the correct
direction page 160.
Subsequent stepsAfter changing the wheel, you must perform the following steps.
– Stow and attach the replaced wheel in the spare wheel well.
– Stow the vehicle tool kit in the space provided.
– Check the tyre pressure on the spare wheel* just mounted as soon as possible.
– Have the tightening torque of the wheel bolts checked with a torque wrench as
soon as possible. Steel and light alloy wh eels must be tightened to a tightening
torque of 120 Nm .
– Have the defective tyre repaired as soon as possible.
WARNING
It is necessary to observe the guidelines given on page 162, “New tyres and
wheels” if the vehicle is subsequently fitted with tyres which are different to
those it was fitted with at the works.
Note

If you find, when changing the wheel, that the wheel bolts are corroded and diffi-
cult to turn, the bolts must be replaced before checking the tightening torque.

Drive cautiously and only at a moderate speed to a workshop where the tightening
torque can be checked.
Full wheel trim*Pulling off– Hook the clamp found in the vehicle tool ki t into the reinforced edge of the full
wheel trim.
– Push the wheel wrench* through the clamp, support the wheel wrench at the tyre and pull off the wheel trim fig. 160 .Installing– First press the full wheel trim onto the wheel at the valve opening provided. Then
press the full wheel trim into the wheel in such a way that its entire circumference
locks correctly in place.
Caution

Use the pressure of your hand, do not knock on the full wheel trim! Heavy knocks
mainly on the points where the full wheel trim has not been inserted into the wheel,
can result in damage to the guide and centering elements of the full wheel trim.

Check for yourself that the safety wheel bolt * is located in the hole in the area of
the valve before fitting the full wheel trim onto a steel wheel which is attached with a
safety wheel bolt* page 172, “Securing wheels against being stolen*”.
Fig. 160 Removing the full
wheel trim
s2rc.book Page 170 Thursday, April 22, 2010 10:58 AM

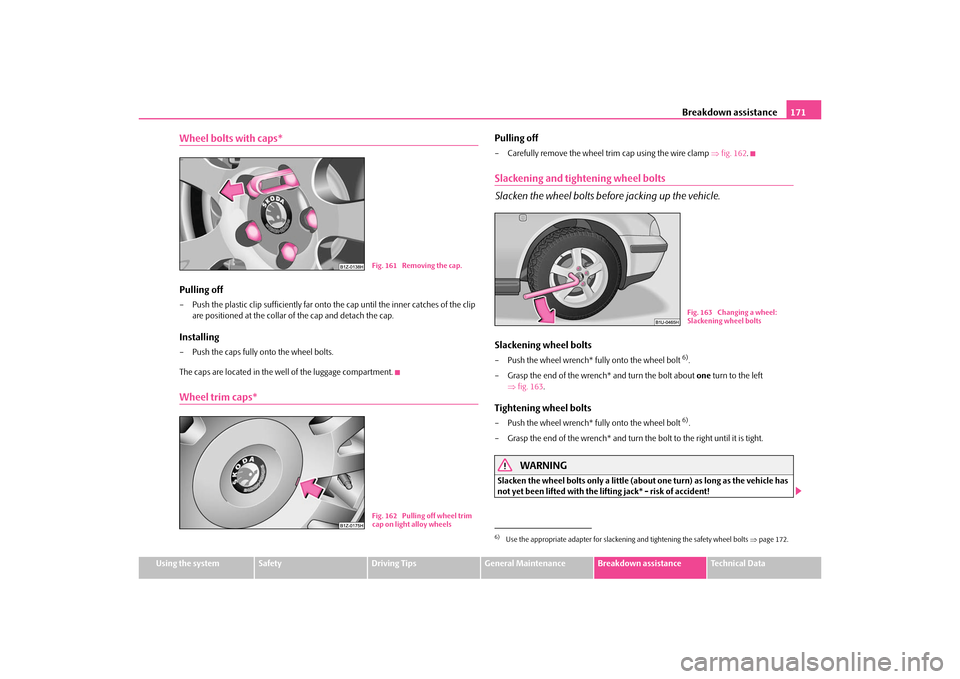

Breakdown assistance171
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Wheel bolts with caps*Pulling off– Push the plastic clip sufficiently far onto the cap until the inner catches of the clip
are positioned at the collar of the cap and detach the cap.Installing– Push the caps fully onto the wheel bolts.
The caps are located in the well of the luggage compartment.Wheel trim caps*
Pulling off– Carefully remove the wheel trim cap using the wire clamp fig. 162 .Slackening and tightening wheel bolts
Slacken the wheel bolts before jacking up the vehicle.Slackening wheel bolts– Push the wheel wrench* fully onto the wheel bolt
6).
– Grasp the end of the wrench* and turn the bolt about one turn to the left
 fig. 163 .
Tightening wheel bolts– Push the wheel wrench* fully onto the wheel bolt
6).
– Grasp the end of the wrench* and turn the bolt to the right until it is tight.
WARNING
Slacken the wheel bolts only a little (about one turn) as long as the vehicle has
not yet been lifted with the li fting jack* - risk of accident!
Fig. 161 Removing the cap.Fig. 162 Pulling off wheel trim
cap on light alloy wheels
6)Use the appropriate adapter for slackening and tightening the safety wheel bolts page 172.
Fig. 163 Changing a wheel:
Slackening wheel bolts
s2rc.book Page 171 Thursday, April 22, 2010 10:58 AM

Breakdown assistance
172Note
Apply pressure carefully with your foot to the end of the wrench* if it proves difficult
to slacken the bolts. Hold tight on the vehicl e when doing this and ensure that you have
a steady position.Raise vehicle
You have to raise the vehicle with the lifting jack* in order to be able to
take off the wheel.Place the jack* under the vehicle. Recesses are located at the lower sill (front and rear)
 fig. 164 . There is a point under the recess wher e the lifting jack* can be positioned,
see arrows fig. 164 .
– Position the lifting jack* below the jacking point and move it up until its claw is positioned directly below the vertical web of the lower sill.
– Position the lifting jack* so that the claw grasps the web of the lower sill and the
moving base plate of the lifting jack is resting flat against the floor.
– Turn the lifting jack* up further until the wheel is just clear of the ground.
Ground below the lifting jack which is soft and slippery can cause the vehicle to slip
off the jack. It is therefore always necessary to place the lifting jack* on a solid surface
or use a wide and stable base. Use a non-sl ip base (e.g. a rubber foot mat) if the
surface is smooth , such as cobbled stones, a tiled floor, etc.
WARNING

Always raise the vehicle with the doors closed - risk of injury!

Take suitable measures to prevent the ba se of the lifting jack from slipping
off - risk of injury!

Not positioning the lifting jack* at the specified points can result in damage
to the vehicle. The jack can al so slip off if it does not have sufficient grip - risk of
injury!

It is important to support the vehicle with suitable supporting blocks if you
wish to work under the lifted vehicle - risk of injury!
Securing wheels against being stolen*
You need a special adapter for sl ackening the safety wheel bolts.– Pull off the full wheel trim/cap from the wheel hub or cap from the safety wheel
bolt.
– Insert the adapter with its toothed side fu lly into the inner toothing of the safety
wheel bolt right down in such a way that only the outer hexagon is jutting out
 fig. 165 .
– Insert the wheel wrench fully onto the adapter .
– Slacken the wheel bolt, or tighten it firmly page 171.
– Reinstall the full wheel trim/wheel cap after removing the adapter or place the cap onto the safety wheel bolt.
Fig. 164 Changing a wheel:
Jacking points for positioning
lifting jack
AA
AB
Fig. 165 Safety wheel bolt with
adapter
AB
AA
AB
s2rc.book Page 172 Thursday, April 22, 2010 10:58 AM

Breakdown assistance173
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
– Have the
tightening torque checked with a torque wrench as soon as possible.
Steel and light alloy wheels must be tightened to a tightening torque of 120 Nm .
The safety wheel bolts on vehicles fitted wi th them (one safety wheel bolt per wheel)
can only be loosened or tighten up by using the adapter provided.
It is meaningful to note the code number hammered into the rear side of the adapter
or the rear side of the safety wheel bolts. You can obtain a replacement adapter from
a specialist garage, if necess ary, by quoting this number.
We recommend that you always carry the adapter for the wheel bolts with you in the
vehicle. It should be stow ed in the vehicle tool kit.
Caution
Damage can occur to the adapter and safety wh eel bolt if the safety wheel bolt is tight-
ened up too much.
Note
The set of safety wheel bolts can be obtained from a specialist garage.Jump-startingInitial stepsYou can use the battery of another vehicle for jump-starting yours if the engine does
not start because the battery on your vehicle is flat. You will require jump-start cables
for this purpose.
Both batteries must have a rated voltage of 12 V. The capacity (Ah) of the battery
supplying the power must not be significantly less than the capacity of the discharged
battery in your vehicle.
Jump-start cables
Only use jump-start cables which have an adequately large cross-section and insu-
lated terminal clamps. Plea se pay attention to the manufacturer's instructions.
Positive cable - colour coding in the majority of cases red. Negative cable -
colour coding in the majority of cases black.
WARNING

A discharged battery may already freeze at temperatures just below 0°C. In
case of frozen battery carry out no jump-starting - risk of explosion!

Please pay attention to the warning instructions relating to working in the
engine compartment page 148.Note

There must not be any contact between the two vehicles otherwise current may
flow as soon as the negati ve terminals are connected.

The discharged battery must be properly connected to the system of the vehicle.

Switch off any mobile phone, pay attention to the instructions for use of the mobile
phone in such a situation.

We recommend purchasing jump-start cabl es from Škoda Service Partners as a
Škoda original accessory or from retailers who sell branded batteries.
Start engineIt is important to connect the jump-start cables in the correct order.
Fig. 166 Jump-starting using
the battery from another vehicle:
A - flat vehicle battery, B -
battery providing current
s2rc.book Page 173 Thursday, April 22, 2010 10:58 AM

Breakdown assistance
174
Connecting positive terminals
– Attach one end to the positive terminal page 173, fig. 166 of the discharged
battery .
– Attach the other end to the positive term inal of the battery supplying the power
.Connecting negative terminal and engine block– Attach one end to the negative termin al of the battery supplying the power .
– Attach the other end to a solid metal part which is connected firmly to the
engine block, or to the engine block itself.Starting the engine– Start the engine of the vehicle providing current and run the engine at idling speed.
– Now start the engine of the vehicle with the discharged battery.
– Interrupt the attempt at starting an engine after 10 seconds if it does not start right
away and wait for about 30 seconds before repeating the attempt.
– Disconnect the cables on the engine in exactly the reverse order they were
connected up.
WARNING

The non-insulated parts of the terminal clamps must never make contact
with each other. Furthermore, the cable connected to the positive terminal of
the battery must not come into contact with electrically conducting parts of the
vehicle - risk of a short circuit!

Do not affix the jump starting cables to the negative terminal of the
discharged battery. There is the risk of detonating gas seeping out the battery
being ignited by the strong spark which results from the engine being started.

Run the jump-start cables so that they cannot be caught by any rotating
parts in the engine compartment.

Do not bend over the batteries - risk of caustic burns!

The vent screws of the battery cells must be tightened firmly.

Keep any sources of ignition (naked flame, smouldering cigarettes etc.)
away from the battery - risk of an explosion!
Tow-starting and towing vehicleGeneralPlease pay attention to the following instru ctions if you are going to use a tow rope:Driver of the towing vehicle– Do not drive off until the tow rope is taught.
– Release the clutch particularly gently when starting off.Driver of the towed vehicle– Switch the ignition on so that the steering wheel is not blocked and you can also
operate the turn signal lights, the headlight flasher, the windscreen wipers and
windscreen washer system.
– Take the vehicle out of gear.
– Note that the brake servo unit and power steering only operate if the engine is running. You will require significantly greater physical force to depress the brake
pedal and to steer the vehicle if the engine is not running.
– Ensure that the tow rope is always kept taught.
Tow rope or tow bar
A tow bar is safest way of towing a vehicle and also minimizes any shocks. You can use
a tow rope only if a suitable tow bar is not available.
The tow rope must be elastic to protect the vehicle. Thus one should only use plastic
fibre rope or a rope made out of a similarly elastic material.
Only attach the tow rope to the towing eyes provided for this purpose page 175,
“Front towing eye”.
A1
AA
A2
AB
A3
AB
A4
WARNING (continued)
s2rc.book Page 174 Thursday, April 22, 2010 10:58 AM

Breakdown assistance175
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Driving style
Towing another vehicle requires a certain am
ount of practice. Both drivers should be
familiar with the particular points about to wing a vehicle. Unskilled drivers should not
attempt to tow in another vehicle or to be towed in.
One should be constantly vigi lant not to allow impermissibly high towing forces or
jerky loadings. There is always a risk of excessive stresses and damage resulting at the
points to which you attach the tow rope or tow bar when you attempt to tow a vehicle
which is not standing on a paved road.
Caution
If the gearbox of your vehicle no longer contains any oil because of a defect, your
vehicle must only be towed in with the driven wheels raised clear of the ground, or on
a special vehicle transporter or trailer.
Note

Please comply with any national legal provisions particularly regarding the
switched on signal systems, when towi ng in or tow-starting another vehicle.

The tow rope must not be twisted as it ma y in certain circumstances result in the
front towing eye being unscrewed out of your vehicle.
Front towing eye
The front towing eye is welded on behind the bumper on the right fig. 167 . The tow
rope or the tow bar must only be attached to this eye. The grille is secured with plastic
lugs at the points of the arrows. Remove the grille as follows:
– Grasp the grille on the ribs in the upper area. Press it in the direction of arrow and take it out in the direction or arrow fig. 167 .
– Install again by positioning first of all the lugs of the grille in the guides on the vehicle and press in the grille. The protective grille must engage firmly.Rear towing eyeThe rear towing eye is located below the rear bumper on the right fig. 168 .Tow-starting a vehicleIf the engine does not start, we generally do not recommend to tow-start your vehicle.
One should attempt to start the engine using jump start cables page 173 or call on
the services of the SERVICE mobile.If your vehicle has to be towed:– Engage 2nd or 3rd gear with the vehicle stationary.
– Depress the clutch pedal fu lly and keep it depressed.
– Switch on the ignition.
– Wait until both vehicles are moving then release the clutch pedal slowly.
Fig. 167 Front bumper: protec-
tive grille of towing eye
A1
A2
Fig. 168 Rear towing eye
s2rc.book Page 175 Thursday, April 22, 2010 10:58 AM
