TECHNICAL DATA
207
IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation and tracking of your vehicle. If the infl ation pressures are
too low, this increases fuel
consumption.
The infl ation pressures must
be checked when the tyres are
cold, at least once a month.

A. Vehicle Identifi cation Number
(VIN) under the bonnet.
This number is engraved on the bodywork near the damper support.
B.
Vehicle identifi cation Number (VIN) on
the windscreen lower crossmember.
This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C. Manufacturer's label.
The VIN is indicated on a self- destroying label affi xed to the door
aperture, on the right-hand side.
D. Tyre/paint label.
This label is affi xed to the door aperture, on the driver's side.
It bears the following information:
- the tyre infl ation pressures with and without load,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- the infl ation pressure of the spare wheel,
- the paint colour code.

209

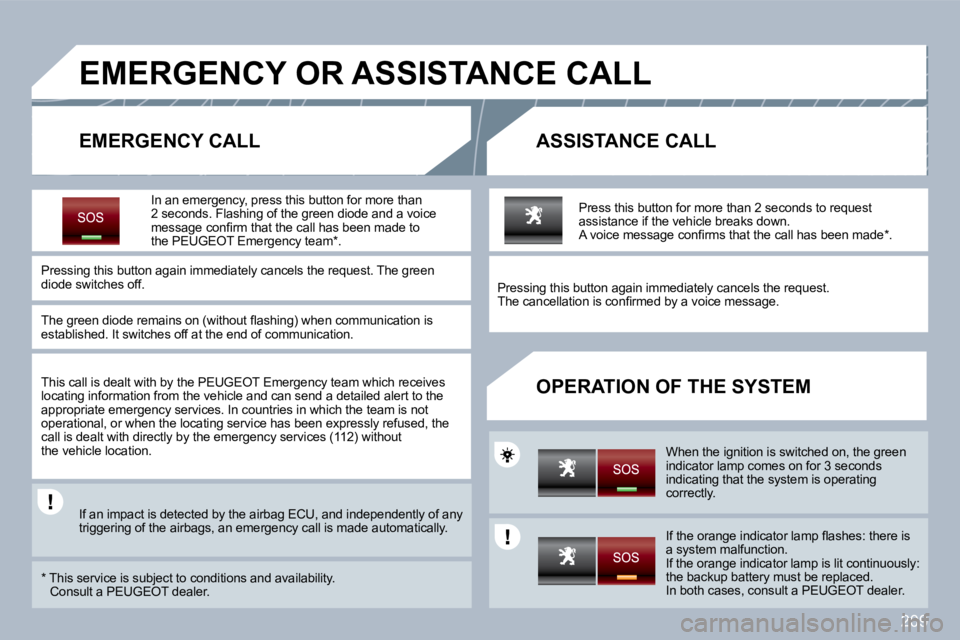

EMERGENCY OR ASSISTANCE CALL
EMERGENCY CALL ASSISTANCE CALL
OPERATION OF THE SYSTEM
In an emergency, press this button for more than 2 seconds. Flashing of the green diode and a voice message confi rm that the call has been made tothe PEUGEOT Emergency team * .
Pressing this button again immediately cancels the request. The green diode switches off.
The green diode remains on (without fl ashing) whe n communication is established. It switches off at the end of communication.
This call is dealt with by the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in whi ch the team is not operational, or when the locating service has been expressly refused, the call is dealt with directly by the emergency services (112) withoutthe vehicle location.
If an impact is detected by the airbag ECU, and independently of any triggering of the airbags, an emergency call is mad e automatically.
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
Press this button for more than 2 seconds to requ est assistance if the vehicle breaks down. A voice message confi rms that the call has been mad e * .
Pressing this button again immediately cancels the request. The cancellation is confi rmed by a voice message.
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
If the orange indicator lamp fl ashes: there is a system malfunction. If the orange indicator lamp is lit continuously: the backup battery must be replaced. In both cases, consult a PEUGEOT dealer.

210
PEUGEOT ASSISTANCE
CUSTOMER CALL
Press this button for access to PEUGEOT services * .
Select "Customer call" to request any information about the PEUGEOT marque.
Select "PEUGEOT Assistance" to make a breakdown assistance call.
* These services and options are subject to conditions and availability.
EMERGENCY CALL
EMERGENCY OR ASSISTANCE CALL using Peugeot Connect Media
ASSISTANCE CALL
In an emergency, press the SOS button until an audible signal is heard and a "Confi rmation/Cancellation" screen is displayed (if valid SIM card inserted). A call is made * to the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the relevant emergency services. In countries in which the team is not operational, or when the locating service has been expressly reject ed, the call is sent to the emergency services (112).
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
If an impact is detected by the airbag control uni t, and inand independently of the triggering of any airbags, an emergency call is mal is made automatically. The message "Deteriorated emergency call" associat ed with fl ashing The message "Deteriorated emergency call" associated with fl ashing of the orange indicator lamp indicates a malfunction. Con. Consult a PEUGEOT dealer.
Warning - the emergency call and the services are only a only active if the internal telephone is used with a valid SIM card. Wrd. With a Bluetooth telephone and without a SIM card, these s ervi services are not operational.

211
The Peugeot Connect Media is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a PEUGEOT dea ler for confi guration of the system.
Certain functions described in this handbook will become available during the course of the year.
Peugeot Connect Media
MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE
GPS EUROPE
CONTENTS

212
01
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
10
2
3
4
612
9
7
8
115
TU
PQRS
0
*
1. CD eject.
2. RADIO: access to the "Radio" Menu. Display the list of stations in alphabetical order (FM waveband) or frequency order (AM waveband).
MEDIA: access to the "Media" Menu (Audio CD, Jukeb ox, External Device). Display the list of tracks. Change of source.
NAV: access to the "Navigation" Menu and display ofthe last destinations.
ESC: abandon the operation in progress. Long press: return to the main display.
TRAFFIC: access to the "Traffi c" Menu (function described in detail in sections 02 and 10).
ADDR BOOK: access to the "Address book" Menu (func tion described in detail in section 10).
SETUP: access to the "SETUP" Menu (confi guration) (function described in detail in sections 02 and 10). Long press: GPS coverage.
3. Audio settings (Balance/Fader, Bass/Treble, Musical Ambience...).
4. Volume adjustment (each source is independent, inc luding message and navigation alert) Long press: reinitialisation of the system. Short press: mute.
5. Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
FIRST STEPS
Peugeot Connect Media CONTROL PANEL
6. Automatic search for a radio station on a higher f requency. Selection of the next CD or MP3 track.
7. Normal display or black screen.
8. Selection of the successive display on the screen of "MAP"/"NAV" (if navigation is in progress)/"TEL" (if a conversation is in progress)/"RADIO" or "MEDIA" currently being played .
9. PICK UP: access to the "Phone" menu. With Bluetooth connection, accept an incoming call .
10. HANG UP: access to the "Phone" menu. Hang up the current call or refuse an incoming call, with Bluetooth connection.
11. Entering of numbers or letters on the alpha-numeric keypad, pre-selection of 10 radio frequencies.
12. SD card reader.
Short press: clears the last character.
Long press: activates voice recognition.

213
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
01
13
14
13. OK: confi rmation of the highlighted item on the sc
reen.
- 4-direction navigator: press to the left/right.
When the "RADIO" screen is displayed: selection of the previous/next frequency.
When "MEDIA" is displayed: selection of the previous/next track.
When "MAP" or "NAV" is displayed: horizontal movem ent of the map.
- 4-direction navigator: press up/down.
When "RADIO" is displayed: selection of the previous/next radio station on the list.
When the "MEDIA" screen is displayed: selection of the MP3 directory.
When "MAP" or "NAV" is displayed: vertical movemen t of the map.
Switch to the next or previous page of a menu. Movement on the virtual keypad displayed.
FIRST STEPS
Peugeot Connect Media NAVIGATOR
14. Rotation of the ring:
When the "RADIO" screen is displayed: selection ofthe previous/next radio station on the list.
When the "MEDIA" screen is displayed: selection ofthe previous/next CD or MP3 track.
When "MAP" or "NAV" is displayed: front/rear map zoom.
Movement of the menu selection curser.

214
02

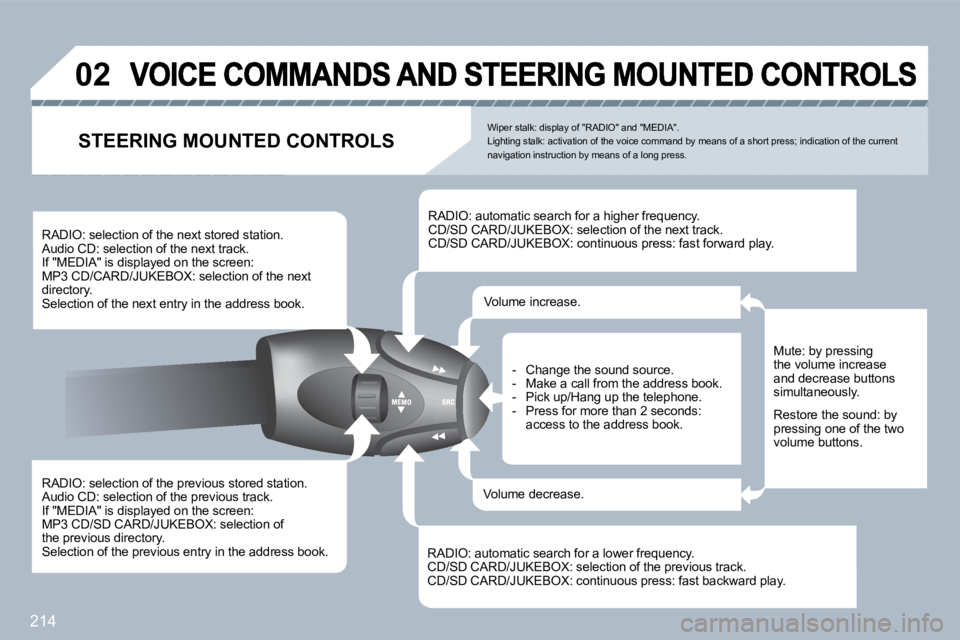

RADIO: selection of the previous stored station. Audio CD: selection of the previous track. If "MEDIA" is displayed on the screen: MP3 CD/SD CARD/JUKEBOX: selection ofthe previous directory. Selection of the previous entry in the address book.
RADIO: selection of the next stored station. Audio CD: selection of the next track. If "MEDIA" is displayed on the screen: MP3 CD/CARD/JUKEBOX: selection of the next directory. Selection of the next entry in the address book.
RADIO: automatic search for a higher frequency. CD/SD CARD/JUKEBOX: selection of the next track. CD/SD CARD/JUKEBOX: continuous press: fast forward play.
RADIO: automatic search for a lower frequency. CD/SD CARD/JUKEBOX: selection of the previous track. CD/SD CARD/JUKEBOX: continuous press: fast backwar d play.
- Change the sound source. - Make a call from the address book. - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the address book.
Volume increase.
Volume decrease.
STEERING MOUNTED CONTROLS
Mute: by pressing the volume increase and decrease buttons simultaneously.
Restore the sound: by pressing one of the two volume buttons.
Wiper stalk: display of "RADIO" and "MEDIA". Lighting stalk: activation of the voice command by means of a short press; indication of the current navigation instruction by means of a long press.

215
TU
PQRS
0
*
11
SETUP
22
02
Before using the system for the fi rst time, you a re advised to listen to, say and repeat the instructions for use.
Press the SETUP button and select the "Language & Speech" function. Turn the ring and select "Voice control". Activate voice recognition. Select "Tutorial".
VOICE COMMANDS -
VOICE RECO. INITIATION
The phrases to be spoken according to the context are indicated in the tables below. Speak and Peugeot Connect Media acts.
A short press activates voice recognition. A long press on this button activates voice recognition.
CONTEXT SAY ACTION
GENERAL Help address book Help voice control Help media Help navigation Help telephone Help radio Cancel
Correction
Access to the address book help Access to the voice reco help Access to the media management help Access to the guidance, navigation help Access to the telephone help Access to the radio help To cancel a voice command which is in progress Request to correct the last voice recognition carried out Clear
RADIO Select station Station <tts:stationName>
Read out station list Enter frequency
Select wave band
AM FM TA on TA off
Select a radio station Select a radio station using its RDS description <tts:station Name> fromthe RADIO list Listen to the list of stations available Listen to the frequency of the current radio station Choose the frequency waveband (AM or FM) Change the frequency waveband to AM Change the frequency waveband to FM Activate the Traffi c Info (TA) Deactivate the Traffi c Info
NAVIGATION Destination input
Voice advice off
Voice advice on Save address Start guidance
Abort guidance Navigate entry
POI Search
Command to enter a new destination address Deactivate the spoken guidance instructions Activate the spoken guidance instructions Save an address in the address book Start guidance (once the address has been entered) Stop the guidance Start guidance to a fi le in the address book Start guidance to a point of interest
VOICE COMMANDS AND STEERING MOUNTED CONTROLS
