PRACTICAL INFORMATION
177

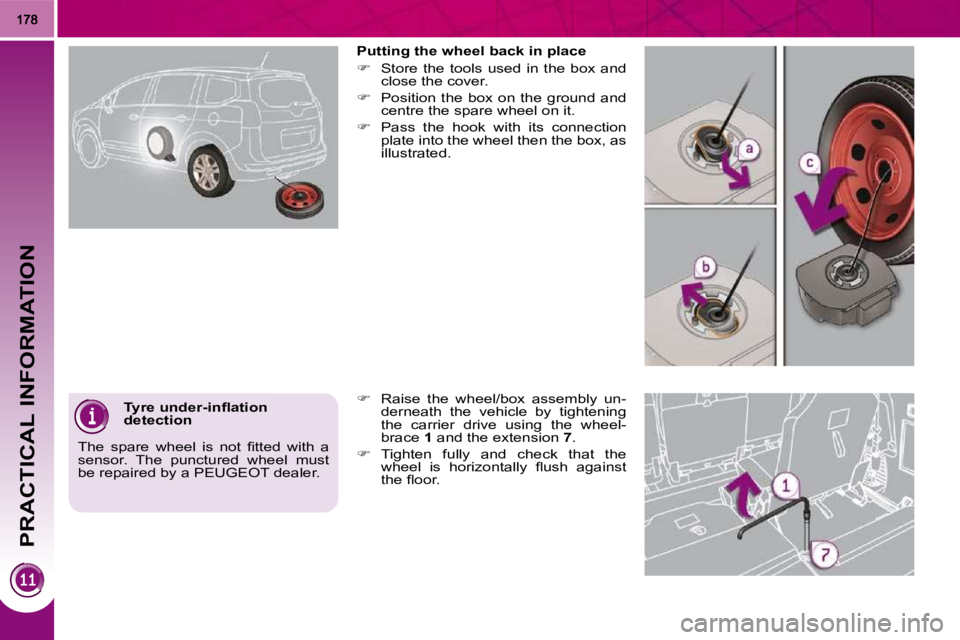

Access to the spare wheel
The spare wheel is supported by a cable-
driven carrier underneath the vehicle. Taking out the wheel

 Raise the concertina board to reveal
the spare wheel carrier drive.

 Unscrew the drive fully, using the
wheelbrace 1 and the extension 7 ,
to unwind the carrier cable.

 Detach the wheel/box assembly
from the rear of the vehicle.

 Remove the hook with its connection
plate to release the wheel/box as-
sembly, as shown in the illustration.

 Pull out the wheel to gain access to
the box.

 Slide the box cover to the centre
and remove it to gain access to the
other tools.

PRACTICAL INFORMATION
Tyre under-infl ation
detection
The spare wheel is not fi tted with a
sensor. The punctured wheel must
be repaired by a PEUGEOT dealer. Putting the wheel back in place

 Store the tools used in the box and
close the cover.

 Position the box on the ground and
centre the spare wheel on it.

 Pass the hook with its connection
plate into the wheel then the box, as
illustrated.

 Raise the wheel/box assembly un-
derneath the vehicle by tightening
the carrier drive using the wheel-
brace 1 and the extension 7 .

 Tighten fully and check that the
wheel is horizontally fl ush against
the fl oor.

PRACTICAL INFORMATION
Parking the vehicle
Immobilise the vehicle where
it does not block traffi c: the
ground must be level, stable and
non-slippery ground.
Apply the parking brake unless it
has been programmed to automatic
mode, switch off the ignition and en-
gage fi rst gear * to lock the wheels.
Check that the braking warning lamp
and the P warning lamp on the parking
brake control come on.
If necessary, place a chock under the
wheel diagonally opposite the wheel
to be changed.
The occupants must get out of the
vehicle and wait where they are
safe.
Never go underneath a vehicle raised
using a jack; use an axle stand.
Removing a wheel
List of operations

 Remove the chromed bolt cover
from each of the bolts using the
tool 3 (according to equipment).

 Fit the security socket 5 on the
wheelbrace 1 to slacken the security
bolt.

 Slacken the other bolts using the
wheelbrace 1 only.

 Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underbody, which-
ever is closest to the wheel to be
changed.

 Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.

 Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.

 Remove the bolts and store them in
a clean place.

 Remove the wheel.
* position R for the electronic gear
control manual gearbox; P for the
automatic gearbox.

PRACTICAL INFORMATION
180

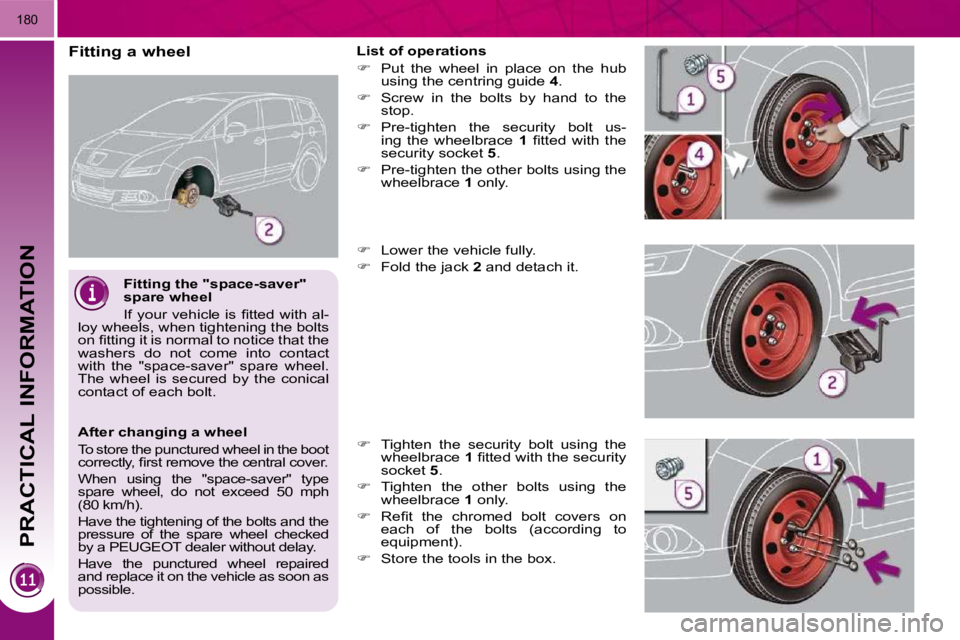

After changing a wheel
To store the punctured wheel in the boot
correctly, fi rst remove the central cover.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a PEUGEOT dealer without delay.
Have the punctured wheel repaired
and replace it on the vehicle as soon as
possible.
Fitting a wheel
List of operations

 Put the wheel in place on the hub
using the centring guide 4 .

 Screw in the bolts by hand to the
stop.

 Pre-tighten the security bolt us-
ing the wheelbrace 1 fi tted with the
security socket 5 .

 Pre-tighten the other bolts using the
wheelbrace 1 only.

 Lower the vehicle fully.

 Fold the jack 2 and detach it.

 Tighten the security bolt using the
wheelbrace 1 fi tted with the security
socket 5 .

 Tighten the other bolts using the
wheelbrace 1 only.

 Refi t the chromed bolt covers on
each of the bolts (according to
equipment).

 Store the tools in the box.
Fitting the "space-saver"
spare wheel
If your vehicle is fi tted with al-
loy wheels, when tightening the bolts
on fi tting it is normal to notice that the
washers do not come into contact
with the "space-saver" spare wheel.
The wheel is secured by the conical
contact of each bolt.

PRACTICAL INFORMATION
181
Risk of electrocution
Xenon bulbs (D1S-35W) must
be replaced by a PEUGEOT
dealer.
CHANGING A BULB
Procedure for replacing a faulty bulb with
a new bulb without the use of tools.
Model with halogen headlamps

1. Direction indicators
(HP24-24W).

2. Dipped
beam
headlamps (H7-55W).

3. Main beam headlamps (H7-55W).

4. Daytime
running lamps
(HP24-24W).

5. Foglamps
(PS24-24W).

6. Sidelamps
(W5-5W).
1. Direction indicators
(HP24-24W).

2. Dipped/main beam headlamps
(D1S-35W).

3. Daytime running lamps/
sidelamps (P21/5W).

4. Foglamps (PS24-24W).
Model with xenon and dir
ectional
headlamps The headlamps are fi tted with
polycarbonate glass with a
protective coating:

 do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,

 use a sponge and soapy water,

 when using a high pressure
washer on persistent marks, do
not direct at the lamps or their
outlines for too long, so as not to
damage their protective coating
and seals.
Front lamps

 Do not touch the bulb directly with
your fi ngers, use lint-free cloths.
Changing a halogen bulb should only
be done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.

PRACTICAL INFORMATION
182
Changing main beam headlamp and
sidelamp bulbs
Changing dipped headlamp bulbs

 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Extract the bulb by pulling and
change it.
To refi t, carry out these operations in
reverse order.
 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Remove the bulb by pulling and
change it
To refi t, carry out these operations in
reverse order.
Changing direction indicator bulbs
Consult a PEUGEOT dealer.

PRACTICAL INFORMATION
183
Changing sidelamp bulbs
(xenon model)

 Remove the protective plastic cover
by pulling on the tab.

 Disconnect the bulb connector.

 Remove the bulb by pulling and
change it.
To refi t, carry out these operations in
reverse order. Changing foglamp bulbs
You can also contact a
PEUGEOT dealer to have
these bulbs changed. Consult a PEUGEOT dealer.

 Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

 Tilt the screwdriver to extract the
repeater and remove it.

 Disconnect the repeater connector.
To refi t, carry out these operations in
reverse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters.
Changing integrated direction
indicator side repeaters
Changing daytime running
lamp bulbs
Consult a PEUGEOT dealer. Changing dipped beam and
main beam headlamp bulbs
(xenon model)
D1S xenon bulbs must be changed
by a PEUGEOT dealer as there is a
risk of electrocution.
It is recommended that the D1S bulbs
are changed at the same time when
one of them fails.

PRACTICAL INFORMATION
184
Rear lamps

1. Direction indicators
(PY21W-21W).

2. Brake lamps

(P21W-21W).

3. Sidelamps
(diodes).

4. Reversing lamp

(P21W).

5. Foglamp

(P21W). Changing brake lamp and direction
indicator bulbs

 Press the four tabs and remove the
bulb holder.

 Remove the two lamp unit fi xing
nuts.

 Pull the lamp rearwards (a positioning
lug retains the lamp).

 Disconnect the lamp connector.

 Turn the bulb a quarter of a turn and
change it.
To refi t, carry out these operations in
reverse order.
