2010 PEUGEOT 5008 Owners Manual

240
3
11
2
3
2
08
Press the end of the steering mounted control to accept the call or end the call in progress.
Select the "Yes" tab to accept or "No" to refuse and confi rm by pressing OK.
RECEIVING A CALL MAKING A CALL
An incoming call is announced by a ring and a superimpperimposed display on the screen.
To hang up, press the HANG UP TEL button or press OK and select "End call" then confi rm by pressing OK.
END CALL
Press the PICK UP TEL button.
Press the end of the steering mounted control for more more thantwo seconds to open the address book.
It is also possible to select a number from the address bress book. You can select "Dial from address book". The Peugeot Connec t Mnect Media can record up to 4 096 entries.
Select "Dial number", then dial the telephone number using the virtual keypad.
Select the "Phone" menu function and press OK to confi rm.
DIAL NUMBER
"PHONE" MENU
The list of the last 20 calls made and received in the vehhe vehicle appears under "Phone" menu. You can select a number and pre sd press OK to make the call. YESNO
The PICK UP TEL button accepts, the HANG UP TEL bu tton refuses the incoming call.
USING THE TELEPHONE

241
5
6
SETUP1
2
3
4
09 CONFIGURATION
SETTING THE DATE AND TIME
Set the parameters using the ring and move on to the next usingthe 4-direction navigator. Press OK to confi rm.
Select the "Date format" function and press OK to confi rm. Select the format required using the ring and press OK to confi rm.
Select the "Set date & time" function and press OK to confi rm.
Pressing the SETUP button for more than 2 seconds peds permits access to:
This setting operation must be carried out if the battery httery has been disconnected.
Press the SETUP button.
Select the "Time format" function and press OK to confi rm. Select the format required usingthe ring and press OK to confi rm.
SET DATE & TIME
Select the "Date & Time" function and press OK to confi rm.
DESCRIPTION OF THE UNIT
GPS COVERAGE
DEMO MODE
DATE & TIME
Principle of the GPS synchro (GMT): 1. Confi rm the "Synchronise with GPS" selection, the time is then set to GMT universal time, the d ate is also updated. 2. Using the 4-direction navigator, move the cursor to the time fi elds and press OK. 3. You can then use the ring to set the time to the time zone of your choice. Take care when changing between summer/winter time, the time zone must be changed again manually.
This function provides access to the options in the SETUP menu.

242
10
MEDIA
1
2
3
1
2
3
3
3
3
4
3
3
3
3
12332
4
4
4
4
4
2
3
3
2
2
4
3
3
3
3
3
2
3
2
3
3
3
4
4
4
3
3
2
3
3
3
TRAFFIC
MAIN FUNCTION CHOICE A choice A1 choice A2 CHOICE B...
SCREEN MENU MAP
"MEDIA" MENU
"TRAFFIC" MENU
SELECT PREFERRED LIST
Messages on route
Only warnings on route
All warning messages
All messages
Geo. Filter
Deactivate PIN
Within 2 miles (3 km)
Within 3 miles (5 km)
Within 6 miles (10 km)
Within 30 miles (50 km)
SELECT MEDIA
Audio CD/MP3-Disc/ DVD-Audio /DVD-Video
Jukebox (Folders & Files)
SD-Card
USB
External device (audio/AV)
VIDEO SETTINGS
Aspect ratio
Menu language
Display
Brightness
Contrast
Colour
AUX standard
Reset video settings
READ OUT SETTINGS
On confi rmation
Incoming messages
TMC STATION INFORMATION
JUKEBOX MANAGEMENT
Add fi les
Create folder
Modify content
Edit playlist
Play options
Folders & Files
Playlists
Memory capacity
SOUND SETTINGS
Refer to the " Sound settings " menu details of which are shown on the next page.
EXT. DEVICE (AUX) MANAGEMENT
Off/Audio/Audio and Video (AV)

243
1
2
3
3
3
2
RADIO
1
2
3
3
2
2
3
NAV
1
2
4
4
4
4
4
4
4
4
4
4
4
3
3
3
3
2
2
3
3
3
2
2
2
2
2
3
4
2
4
4
4
4
3
3
3
3
4
4
4
2
3
3
3
3
3
3
4
ROUTE OPTIONS
Route type
POI near destination
Short route
STOPOVERS
Add stopover
Address input
Navigate HOME
Choose from address book
Choose from last destinations
Rearrange route
Replace stopover
Delete stopover
Recalculate
Fast route
Short route
Optimized route
SOUND SETTINGS
Refer to the " Sound settings " menu below.
BALANCE/FADER
POI SEARCH
POI nearby
POI near destination
POI in city
POI in country
POI near route
"RADIO" MENU
WAVEBAND
FM
AM
MANUAL TUNE
"NAVIGATION" MENU
ABORT GUIDANCE/RESUME GUIDANCE
"SOUND SETTINGS" MENU
BASS/TREBLE
EQUALIZER
Linear
Classic
Jazz
Rock/Pop
Techno
Vocal
MUTE REAR SPEAKERS
LOUDNESS
SPEED DEPENDENT VOLUME
RESET SOUND SETTINGS
DESTINATION INPUT
Address input
Country
City
Street
House number
Start route guidance
Postal code
Save to address book
Intersection
City district
Geo position
MAP
Navigate HOME
Choose from last destinations
Choose from address book

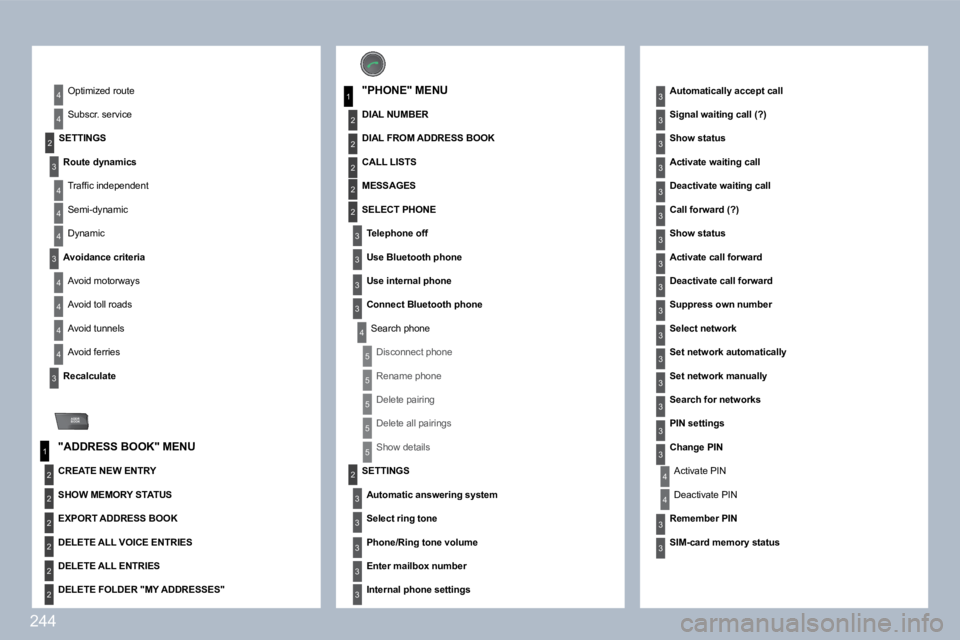

244
3
3
2
4
4
4
4
4
ADDR BOOK
4
3
4
4
4
1
2
2
2
2
2
2
1
2
3
4
2
2
2
3
2
5
3
3
5
5
5
5
3
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
SETTINGS
Route dynamics
Traffi c independent
Semi-dynamic
Dynamic
Avoidance criteria
Avoid motorways
Avoid toll roads
Avoid tunnels
Avoid ferries
Recalculate
"ADDRESS BOOK" MENU
Optimized route
Subscr. service
"PHONE" MENU
DIAL NUMBER
Automatically accept call
Signal waiting call (?)
Show status
Activate waiting call
Deactivate waiting call
Call forward (?)
Show status
Activate call forward
Deactivate call forward
Suppress own number
Select network
Set network automatically
Set network manually
Search for networks
PIN settings
Change PIN
Activate PIN
Deactivate PIN
Remember PIN
SIM-card memory status
CREATE NEW ENTRY
SHOW MEMORY STATUS
EXPORT ADDRESS BOOK
DELETE ALL VOICE ENTRIES
DELETE ALL ENTRIES
DELETE FOLDER "MY ADDRESSES"
DIAL FROM ADDRESS BOOK
CALL LISTS
MESSAGES
SELECT PHONE
Telephone off
Use Bluetooth phone
Use internal phone
Connect Bluetooth phone
Search phone
Disconnect phone
Rename phone
Delete pairing
Delete all pairings
Show details
SETTINGS
Automatic answering system
Select ring tone
Phone/Ring tone volume
Enter mailbox number
Internal phone settings

245
SETUP
1
2
3
4
3
4
2
3
3
3
3
2
3
4
4
4
4
2
4
3
2
4
4
3
4
4
3
3
3
4
4
4
4
4
4
4
4
3
4
4
5
5
5
4
5
5
3
"SETUP" MENU
LANGUAGE & SPEECH
Menu language
Deutsch
English
Español
Français
Italiano
Nederlands
Polski
Portuguese
Voice control
Voice control active
Tutorial
Basics
Examples
Tips
Speaker adaptation
New speaker adaptation
Delete speaker adaptation
Voice output volume
DATE & TIME
Set date & time
Date format
Time format
DISPLAY
Brightness
Colour
Steel
blue light (only in day mode)
Orange Ray
Blue Flame
MAP colour
Day mode for MAP
Night mode for MAP
Auto. Day/Night for MAP
UNITS
Temperature
Celsius
Fahrenheit
Metric/Imperial
km
Miles
SYSTEM
Factory reset
Software version
Automatic scrolling

246
sound quality between the different audio sources (radio, CD...).
Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted to the sources listened to. It is advisable to set the AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "Linear" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources, which may result in audible differences when changing source(radio, CD...).
The CD is ejected automatically or is not played by the player.
- Check that the CD is inserted in the playerthe right way up. - Check the condition of the CD: the CD cannot be played if it is too damaged. - Check the content in the case of a recorded CD: consult the advice in the "Audio" section. - The audio equipment's CD player does not play DVDs. - Due to inadequate quality, certain recorded CDs will not be played by the audio system.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.
The CD player sound is poor. Insert good quality CDs and store them in suitable conditions. The CD used is scratched or of poor quality.
The audio equipment settings (bass, treble, ambien ces) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.
The table below groups together the answers to th e most frequently asked questions concerning the Pe ugeot Connect Media.
QUESTION SOLUTION ANSWER
FREQUENTLY ASKED QUESTIONS

247
SOLUTION ANSWER
The stored stations do not function (no sound, 87.5 Mhz is displayed...)
An incorrect waveband is selected.
The quality of reception of the radio station listened to gradually deteriorates or the stored stations do not function (no sound, 87.5 Mhz is displayed...).
Activate the "RDS" function by means of the short-cut menu to enable the system to check whether there is a more powerful transmitter in the geographical area.
Press RADIO, select Radio Menu then "Waveband" to return to the waveband on which the stations are stored.
The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area th rough which the vehicle is travelling.
The environment (hills, buildings, tunnels, baseme nt car parks...) block reception, including in RDS mode.
Sound cut-outs of 1 to 2 seconds in radio mode.
During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station. Deactivate the "RDS" function by means of the short-cut menu if the phenomenon is too frequent and always on the same route.
With the engine off,the system switches off after a few minutes of use.
When the engine is switched off, the system's oper ating time depends on the battery charge.
The switch-off is normal: the system switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the battery charge.
This phenomenon is normal and does not indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer. The aerial is absent or has been damaged (for exam ple when going through a car wash or into an underground car park).
