2010 PEUGEOT 5008 Owners Manual

PRACTICAL INFORMATION
185
Changing the third brake lamp bulb Changing the number plate lamp
bulbs (W5-5W)

 Insert a thin screwdriver into one of
the outer holes of the lens.

 Push it outwards to unclip.

 Remove the lens.

 Pull the bulb and change it.
Changing foglamp bulbs

 Reach under the bumper.

 Turn the bulb a quarter of a turn and
change it.
 Open the boot and remove the upper
seal.

 Unscrew the two nuts.

 Press the threaded pins while sup-
porting the lamp from the outside.

 Disconnect the connector and remove
the screenwash pipe.

 Press the pairs of clips A then B
then C to detach and gain access to
the bulb holder.
Changing sidelamps (diodes)
For the replacement of this type of diode
lamp, contact a PEUGEOT dealer.

PRACTICAL INFORMATION
186
PEUGEOT will not accept
responsibility for the cost
incurred in repairing your
vehicle or for rectifying malfunc-
tions resulting from the installation
of accessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes. Installing electrical
accessories
Your vehicle's electrical sys-
tem is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer.
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.
Access to the tools
The extraction pliers and the spare
fuses are installed on the back of the
dashboard fusebox cover.
To gain access to them:

 remove the cover completely,

 remove the pliers. Changing a fuse
Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.

 Identify the faulty fuse by checking
the condition of its fi lament.

 Use the special pliers to extract the
fuse from its housing.

 Always replace the faulty fuse with a
fuse of the same rating.

 Check the correspondence between
the number etched on the box, the
rating etched on the fuse and the
tables below.
Correct Incorrect

PRACTICAL INFORMATION
187

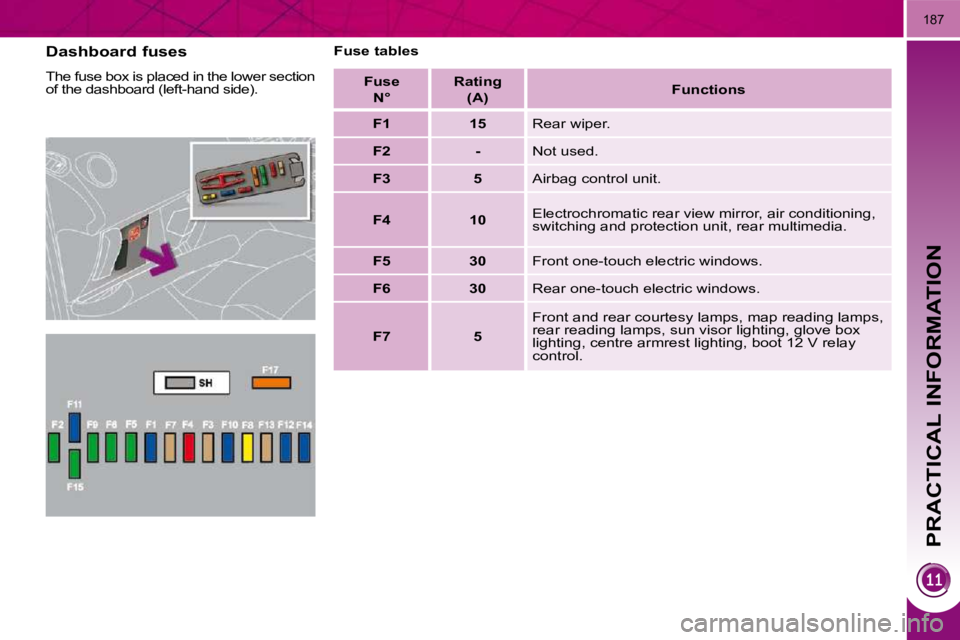

Dashboard fuses
The fuse box is placed in the lower section
of the dashboard (left-hand side). Fuse tables
F us e N° Ratin g
(A) Functions
F1 15 Rear wiper.
F2 - Not used.
F3 5 Airbag control unit.
F4 10 Electrochromatic rear view mirror, air conditioning,
switching and protection unit, rear multimedia.
F5 30 Front one-touch electric windows.
F6 30 Rear one-touch electric windows.
F7 5 Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.

PRACTICAL INFORMATION
188
Access to the fuses

 refer to the paragraph "Access to
the tools". Fuse
N° Rating
(A) Functions
F8 20 Audio equipment, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection,
alarm siren, alarm control unit, telematic unit,
service module (with Peugeot Connect Media).
F9 30 Front 12 V socket, cigar lighter, rear 12 V socket.
F10 15 Steering mounted controls.
F11 15 Low current ignition switch.
F12 15 Trailer presence, rain/brightness sensor, supply for
fuses F32, F34, F35.
F13 5 Engine fusebox, airbag control unit.
F14 15 Instrument panel, instrument panel screen, supply
for fuse F33.
F15 30 Locking and deadlocking.
F17 40 Rear screen demist/defrost, supply for fuse F30.
SH - PARC shunt.

PRACTICAL INFORMATION
189
Fuse N° Rating
(A) Functions
F29 30 Boot 12 V socket.
F30 5 Heated door mirrors.
F31 15 Refrigerator socket.
F32 5 Electronic gear control manual gearbox gear lever.
F33 10 Head-up display, Bluetooth system, air conditioning.
F34 5 Seat belt warning lamps display.
F35 10 Parking sensors, Hi-Fi amplifi er authorisation.
F36 10 Trailer fusebox control unit, driver's door control pad.
F37 20 Hi-Fi amplifi er.
F38 30 Driver's electric seat.
F39 20 Panoramic sunroof blind.
F40 - Not used.

PRACTICAL INFORMATION
190
Engine compartment fuses
The fusebox is placed in the engine
compartment near the battery (left-hand
side).
Access to the fuses

 Unclip the cover.

 Change the fuse (see corresponding
paragraph).

 When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox. Fuse table
Fuse N° Rating
(A) Functions
F1 20 Engine management unit supply, injection pump
and EGR electrovalves (2 litre HDI 16V), injectors
(2 litre HDI 16V).
F2 15 Horn.
F3 10 Front/rear wash-wipe.
F4 10 Daytime running lamps.
F5 15 Canister purge electrovalves, turbine discharge
and Turbo pressure regulation electrovalves
(1.6 l THP 16V), oil vapour heater (1.6 l THP 16V),
diesel heater (1.6 l HDI 16V).
F6 10 Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), Distance alert,
engine coolant level detector, mirror adjustment
control.
F7 10 Power steering control unit, automatic gearbox,
directional headlamps height adjustment motor.
F8 20 Starter motor control.
F9 10 Clutch and brake pedal switches.
F10 30 Engine management unit actuators (petrol: ignition
coils, electrovalves, oxygen sensors, injectors,
heaters, fuel pump, electronic thermostat)
(Diesel: electrovalves, heaters).
F11 40 Air conditioning blower.

PRACTICAL INFORMATION
191
Fuse N° Rating
(A) Functions
F12
30 Windscreen wipers slow/fast speed.
F13
40 Built-in systems interface supply (ignition positive).
F14
30 Air pump.
F15
10 Right-hand main beam headlamp.
F16
10 Left-hand main beam headlamp.
F17
15 Left-hand dipped headlamp.
F18
15 Right-hand dipped headlamp.
F19
15 Oil vapour heater (1.6 l VTi 16V), Turbo pressure
regulation electrovalve (Diesel), engine coolant
level detector (Diesel).
F20
10 Electronic thermostat, variable timing electrovalves,
Turbo pressure regulation electrovalve (Diesel),
engine coolant level detector (Diesel).
F21
5 Fan assembly relay supply, Valvetronic
relay control (1.6 l VTi 16V), Turbo cooling
(1.6 l THP 16V), air fl ow sensor (1.6 l HDI 16V).

PRACTICAL INFORMATION
192
Table of mini and midi-fuses above the battery
Table of maxi-fuses Fuse N° Rating (A) Functions

F1 - Not used.

F2 5 Dual function brake switch.

F3 5 Battery charge unit.

F4 25 ABS/ESP electrovalves.

F5 5 ABS/ESP control unit.

F6 15 Automatic gearbox, electronic gear control
gearbox.

F7 * 80 Power steering electropump assembly.

F8 *
60 Fan assembly.

F9 * 70/30 Pre-heat unit (Diesel), Valvetronic electric motor
(1.6 l THP 16V).

F10 * 40 ABS/ESP electropump assembly.

F11 * 100 Switching and protection unit.

F12 * 30 Electronic gear control gearbox electropump
assembly.
Fuse N° Rating (A) Functions MF1 * - Not used.
MF2 * 30 Trailer fuse box.
MF3 * 50 Passenger compartment fusebox.
MF4 * 80 Built-in systems interface.
MF5 * 80 Built-in systems interface.
MF6 * 30 Electric parking brake.
MF7 * 30 Heated front seats.
MF8 * 20 Headlamp wash.
* The maxi-fuses provide additional pro-
tection for the electrical systems. All
work on the maxi-fuses must be carried
out by a PEUGEOT dealer.
