2010 PEUGEOT 308 CC Owners Manual

1
i
!
28
INSTRUMENTS and CONTROLS
The display of certain warning
lamps may be accompanied by an
audible signal and a message in
the multifunction screen.
Specifi c warning lamps
The other warning lamps appear on the
large screen, located in the centre of
the instrument panel.
Depending on the seriousness of the
fault, they may be displayed in orange
or red. Certain warning lamps may be
linked with those of the instrument
panel.
If they are linked with the
STOP
warning lamp, stop the vehicle as
soon as it is safe to do so.
Directional headlamps.
If this fl ashes, it indicates the
occurrence of a fault in the di-
rectional headlamps system. Engine oil pressure.
If this is displayed, it indicates
the occurrence of a fault in the
engine lubrication system. Stop
the vehicle as soon as it is safe
to do so.
Service.
If this is displayed, it indicates the occur-
rence of a fault in one of the following:
Engine self- diagnostic
system.
If this is displayed, it indicates
the occurrence of a fault in the
engine management system. Engine oil level.
If this is displayed, it indicates
an insuffi cient level of oil in the
engine. Stop the vehicle as
soon as it is safe to do so.
Coolant temperature.
If this is displayed, it indicates
that the temperature in the cool-
ing system is too high. Stop the
vehicle as soon as it is safe to
do so.
Battery charge.
If this is displayed, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt...).
- the engine management system,
- the emission control system.

1
!
29
INSTRUMENTS and CONTROLS

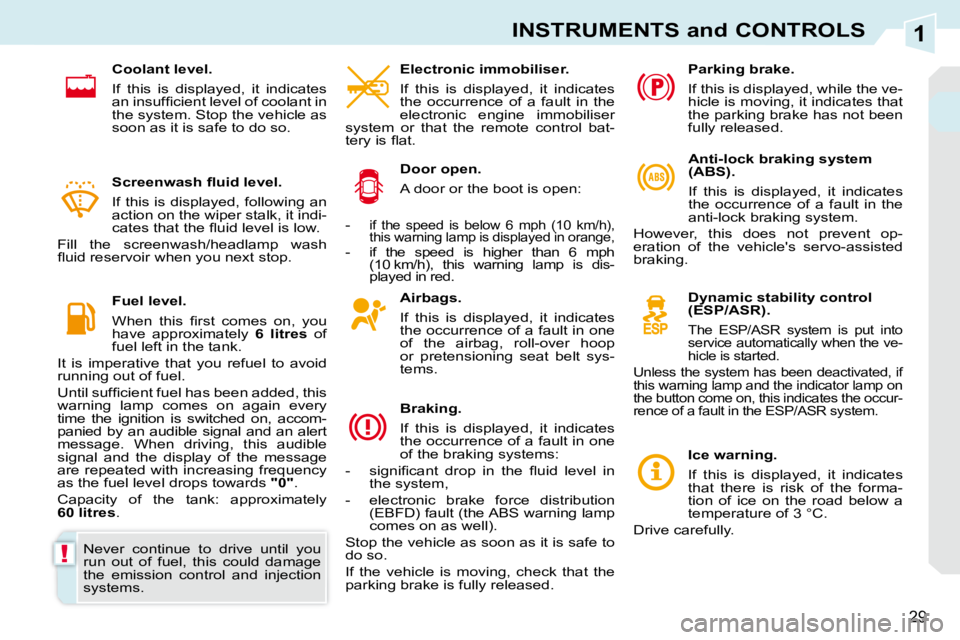

Airbags.
If this is displayed, it indicates
the occurrence of a fault in one
of the airbag, roll-over hoop
or pretensioning seat belt sys-
tems.
Braking.
If this is displayed, it indicates
the occurrence of a fault in one
of the braking systems:
- signifi cant drop in the fl uid level in the system,
- electronic brake force distribution (EBFD) fault (the ABS warning lamp
comes on as well).
Stop the vehicle as soon as it is safe to
do so.
If the vehicle is moving, check that the
parking brake is fully released. Anti-lock braking system
(ABS).
If this is displayed, it indicates
the occurrence of a fault in the
anti-lock braking system.
However, this does not prevent op-
eration of the vehicle's servo-assisted
braking.
Dynamic stability control
(ESP/ASR).

The ESP/ASR system is put into
service automatically when the ve-
hicle is started.
Unless the system has been deactivated, if
this warning lamp and the indicator lamp on
the button come on, this indicates the occur-
rence of a fault in the ESP/ASR system.
Door open.
A door or the boot is open:
Ice warning.
If this is displayed, it indicates
that there is risk of the forma-
tion of ice on the road below a
temperature of 3 °C.
Drive carefully. Parking brake.
If this is displayed, while the ve-
hicle is moving, it indicates that
the parking brake has not been
fully released.
Electronic immobiliser.
If this is displayed, it indicates
the occurrence of a fault in the
electronic engine immobiliser
system or that the remote control bat-
tery is fl at.
Fuel level.
When this fi rst comes on, you
have approximately 6 litres of
fuel left in the tank.
It is imperative that you refuel to avoid
running out of fuel.
Until suffi cient fuel has been added, this
warning lamp comes on again every
time the ignition is switched on, accom-
panied by an audible signal and an alert
message. When driving, this audible
signal and the display of the message
are repeated with increasing frequency
as the fuel level drops towards "0" .
Capacity of the tank: approximately

60 litres .
Screenwash fl uid level.
If this is displayed, following an
action on the wiper stalk, it indi-
cates that the fl uid level is low.
Fill the screenwash/headlamp wash
fl uid reservoir when you next stop. -
if the speed is below 6 mph (10 km/h),
this warning lamp is displayed in orange,
- if the speed is higher than 6 mph
(10 km/h), this warning lamp is dis-
played in red.
Coolant level.
If this is displayed, it indicates
an insuffi cient level of coolant in
the system. Stop the vehicle as
soon as it is safe to do so.
Never continue to drive until you
run out of fuel, this could damage
the emission control and injection
systems.

1
AUTO
PRND
30
INSTRUMENTS and CONTROLS
Water in Diesel * .
If this is displayed, it indicates
the presence of water in the
Diesel fi lter.
There is a risk of damage to the injection
system on Diesel engines. Automatic headlamp
adjustment.
If this is displayed, it indicates the
occurrence of a fault in the auto-
matic headlamp adjustment.
Particle emission fi lter (Diesel).
If this is displayed, linked with
the service warning lamp, it in-
dicates the start of saturation
of the particle emission fi lter or a low
Diesel additive reservoir level.
As soon as traffi c conditions permit, re-
generate the fi lter by driving at a speed
of at least 40 mph (60 km/h) until the
service warning lamp is switched off.
If the service warning lamp is still dis-
played, the additive level is low. Have it
topped up by a PEUGEOT dealer with-
out delay.
Under-infl ated tyre.
If this is displayed, it indicates
low pressure in one or more
wheels.
Check the tyre pressures as soon as
possible.
Punctured tyre.
If this is displayed, it indicates
that one or more wheels are
punctured. Stop the vehicle as
soon as it is safe to do so.
Change the damaged wheel and have it
repaired by a PEUGEOT dealer.
Tyre under-infl ation
detection.
If this is displayed, it indicates
the occurrence of a fault on one
of the sensors or in the tyre under-infl a-
tion detection system.
It may also indicate the absence of a
sensor when the spare wheel, which
does not have a sensor, is fi tted in place
of a punctured wheel.
Automatic lighting.
If this comes on, it indicates the
occurrence of a fault in the au-
tomatic lighting.
Use the other positions of the lighting
stalk to control the lighting manually.
Visual and/or audible
parking sensors.
If this comes on, in forward and/
or reverse gear, it indicates a fault
in the parking sensor system.
Automatic gearbox.
If this is displayed, it indicates
the occurrence of a fault in the
automatic gearbox. The gear-
box will then operate in down-grade
mode, locked on 3rd gear.
It may also be displayed if a door is
opened.
Invalid value.
If this is displayed, it indicates
the occurrence of a fault in the
programme of the automatic
gearbox.
Position P or N.
If this is displayed, it indicates
that the gear lever must be
placed in position
P or N in or-
der to start the engine.
* According to country.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in the
power steering. Stop the vehicle
as soon as it is safe to do so.

1
31
INSTRUMENTS and CONTROLS

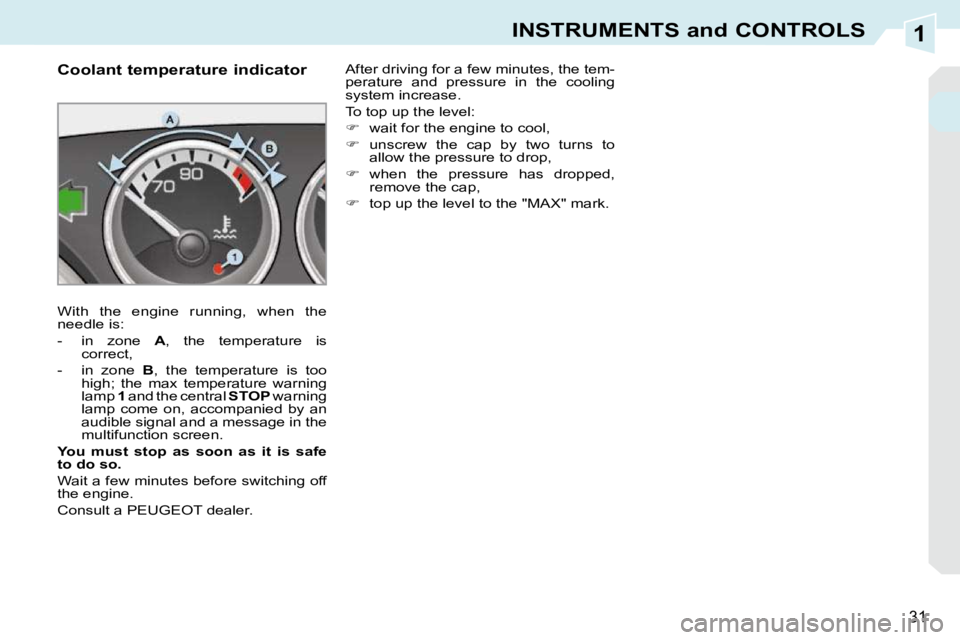

Coolant temperature indicator
With the engine running, when the
needle is:
- in zone A , the temperature is
correct,
- in zone B , the temperature is too
high; the max temperature warning
lamp 1 and the central STOP warning
lamp come on, accompanied by an
audible signal and a message in the
multifunction screen.

You
must
stop as soon as it is safe
to do so.
Wait a few minutes before switching off
the engine.
Consult a PEUGEOT dealer. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:

 wait for the engine to cool,

 unscrew the cap by two turns to
allow the pressure to drop,

 when the pressure has dropped,
remove the cap,

 top up the level to the "MAX" mark.

1
i
32
INSTRUMENTS and CONTROLS
The level read will only be correct if
the vehicle is on level ground and
the engine has been off for more
than 15 minutes.

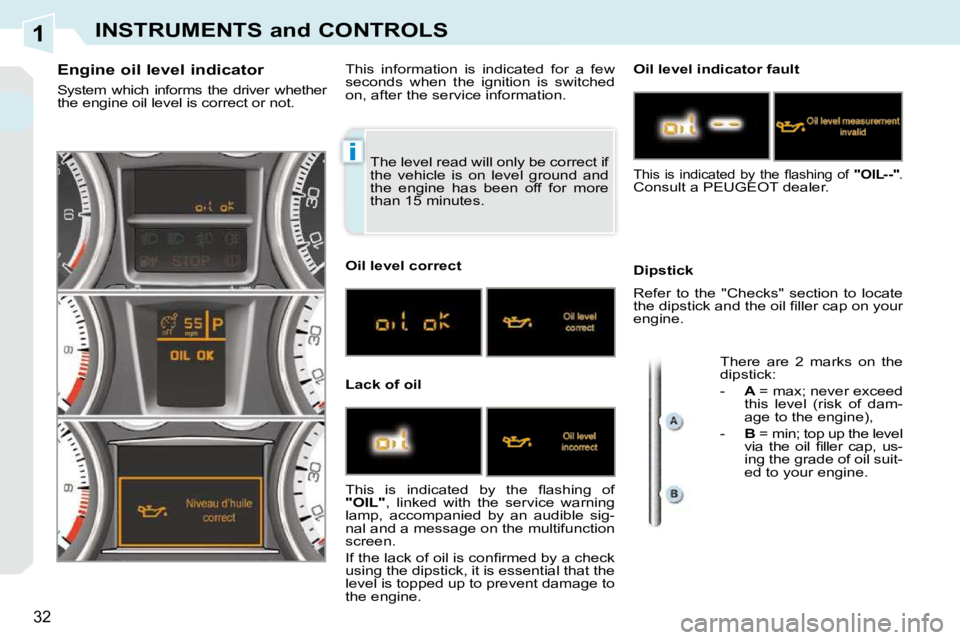

Engine oil level indicator
System which informs the driver whether
the engine oil level is correct or not.
This information is indicated for a few
seconds when the ignition is switched
on, after the service information.
Oil level correct
Lack of oil Oil level indicator fault
Dipstick
This is indicated by the fl ashing of

"OIL" , linked with the service warning
lamp, accompanied by an audible sig-
nal and a message on the multifunction
screen.
If the lack of oil is confi rmed by a check
using the dipstick, it is essential that the
level is topped up to prevent damage to
the engine. This is indicated by the fl ashing of
"OIL
--" .
Consult a PEUGEOT dealer.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
There are 2 marks on the
dipstick:
- A = max; never exceed
this level (risk of dam-
age to the engine),
- B = min; top up the level
via the oil fi ller cap, us-
ing the grade of oil suit-
ed to your engine.

1
33
INSTRUMENTS and CONTROLS

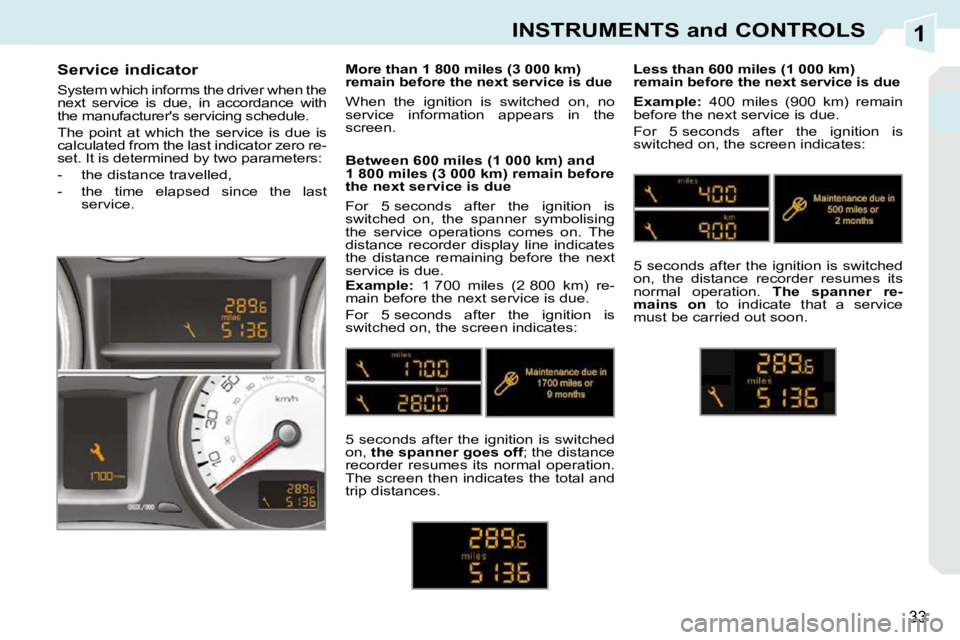

Service indicator
System which informs the driver when the
next service is due, in accordance with
the manufacturer's servicing schedule.
The point at which the service is due is
calculated from the last indicator zero re-
set. It is determined by two parameters:
- the distance travelled,
- the time elapsed since the last service. Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain before
the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.

Example: 1 700 miles (2 800 km) re-
main before the next service is due.
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the spanner
goes
off ; the distance
recorder resumes its normal operation.
The screen then indicates the total and
trip distances. Less than 600 miles (1 000 km)
remain before the next service is due

Example: 400 miles (900 km) remain
before the next service is due.
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on to indicate that a service
must be carried out soon.
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no
service information appears in the
screen.

1
i
i
34
INSTRUMENTS and CONTROLS
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be registered.
Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:

 switch off the ignition,

 press and hold the ".../000" button
on the right of the instrument panel,

 switch on the ignition; the distance
recorder display begins a count-
down,

 when the instrument panel central
screen indicates "=0" , release the
button; the spanner disappears from
the screen.
The distance remaining may be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on,
the spanner fl ashes to
indicate that the service must be carried
out as soon as possible.

Example: the service is overdue by
300 miles (300 km).
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains
on . Retrieving the service information
You can access the service information
at any time.
This information appears, depending
on version, when running through the
manual check procedure.

 Briefl y press the ".../000" button on
the right of the instrument panel.
The service information is displayed for a few seconds on the instrument
panel central screen, then disap-
pears.

1
35
INSTRUMENTS and CONTROLS
Manual Check
This function allows you to check the sta-
tus of the vehicle (reminder of the alert
warnings and of the state of the confi gu-
rable functions - "activated" or "deacti-
vated") and the service information.

 With the engine running, to start
a manual check, briefl y press the

"CHECK/000" button on the instru-
ment panel. If no faults have been detected,

"CHECK OK" appears in the instru-
ment panel central screen.
If a "minor" fault has been detected, the
warning lamp concerned then "CHECK
OK" appear in the instrument panel
central screen. Consult a PEUGEOT
dealer.
If a "major" fault has been detected, only
the warning lamps concerned appear
in the instrument panel central screen.
Have it checked by a PEUGEOT dealer.
Distance recorders
The total and trip distances are displayed
for thirty seconds when the ignition is
switched off, when the driver's door is
opened and when the vehicle is locked
or unlocked. Total distance recorder
Measures the total distance travelled by
the vehicle since its fi rst registration.

 With the ignition on, press and hold
this button until zeros appear.
Trip distance recorder
Measures a distance travelled since it
was reset to zero by the driver.
