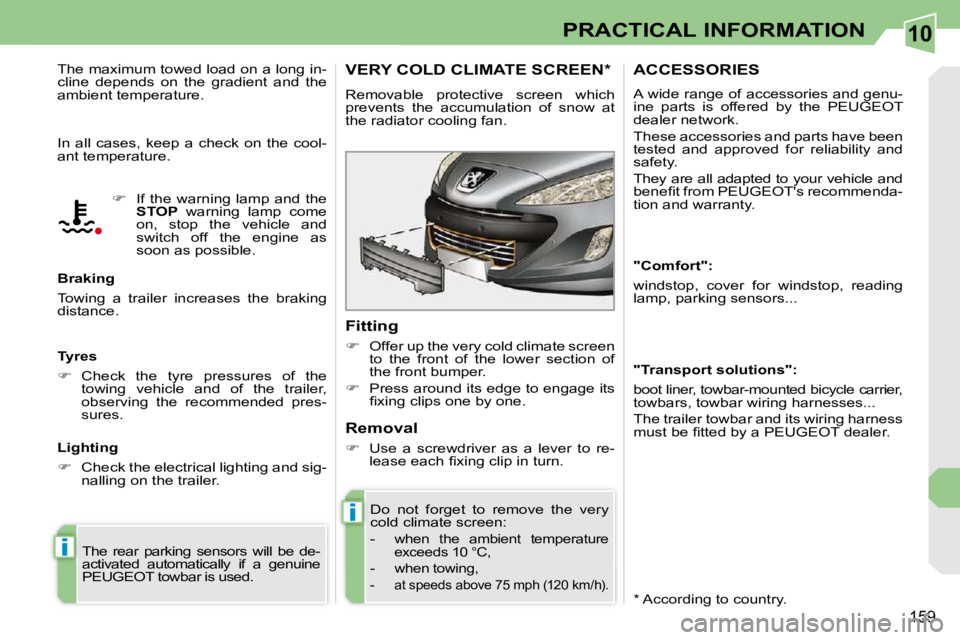

In all cases, keep a check on the cool-
ant temperature.
Braking
Towing a trailer increases the braking
distance.
Tyres

 Check the tyre pressures of the
towing vehicle and of the trailer,
observing the recommended pres-
sures.
Lighting

 Check the electrical lighting and sig-
nalling on the trailer.
The rear parking sensors will be de-
activated automatically if a genuine
PEUGEOT towbar is used.
 If the warning lamp and the

STOP warning lamp come
on, stop the vehicle and
switch off the engine as
soon as possible.
The maximum towed load on a long in-
cline depends on the gradient and the
ambient temperature.
VERY COLD CLIMATE SCREEN *
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
Fitting

 Offer up the very cold climate screen
to the front of the lower section of
the front bumper.

 Press around its edge to engage its
fi xing clips one by one.
Do not forget to remove the very
cold climate screen:
- when the ambient temperature exceeds 10 °C,

- when towing,
- at speeds above 75 mph (120 km/h). * According to country.
Removal

 Use a screwdriver as a lever to re-
lease each fi xing clip in turn. "Comfort":
windstop, cover for windstop, reading
lamp, parking sensors...
"Transport solutions":
boot liner, towbar-mounted bicycle carrier,
towbars, towbar wiring harnesses...
The trailer towbar and its wiring harness
must be fi tted by a PEUGEOT dealer.
ACCESSORIES
A wide range of accessories and genu-
ine parts is offered by the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.

10
!
i
i
160

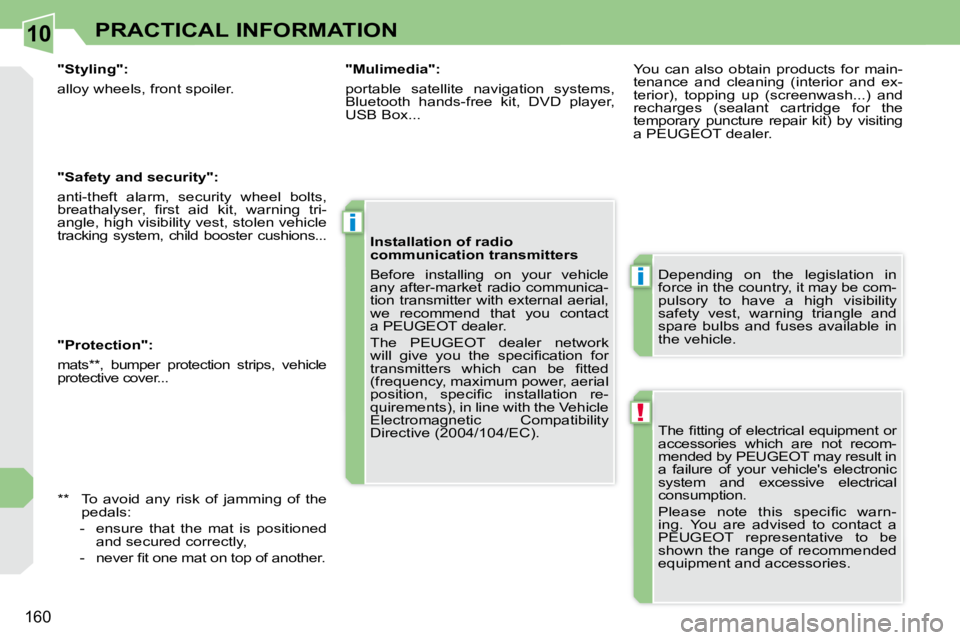

PRACTICAL INFORMATION
The fi tting of electrical equipment or
accessories which are not recom-
mended by PEUGEOT may result in
a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this specifi c warn-
ing. You are advised to contact a
PEUGEOT representative to be
shown the range of recommended
equipment and accessories.
Depending on the legislation in
force in the country, it may be com-
pulsory to have a high visibility
safety vest, warning triangle and
spare bulbs and fuses available in
the vehicle.
You can also obtain products for main-
tenance and cleaning (interior and ex-
terior), topping up (screenwash...) and
recharges (sealant cartridge for the
temporary puncture repair kit) by visiting
a PEUGEOT dealer.
Installation of radio
communication transmitters
Before installing on your vehicle
any after-market radio communica-
tion transmitter with external aerial,
we recommend that you contact
a PEUGEOT dealer.
The PEUGEOT dealer network
will give you the specifi cation for
transmitters which can be fi tted
(frequency, maximum power, aerial
position, specifi c installation re-
quirements), in line with the Vehicle
Electromagnetic Compatibility
Directive (2004/104/EC).
"Mulimedia":
portable satellite navigation systems,
Bluetooth hands-free kit, DVD player,
USB Box...
"Styling":
alloy wheels, front spoiler.
"Safety and security":
anti-theft alarm, security wheel bolts,
breathalyser, fi rst aid kit, warning tri-
angle, high visibility vest, stolen vehicle
tracking system, child booster cushions...
**
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of another.
"Protection":
mats ** , bumper protection strips, vehicle
protective cover...

11
161
TECHNICAL DATA

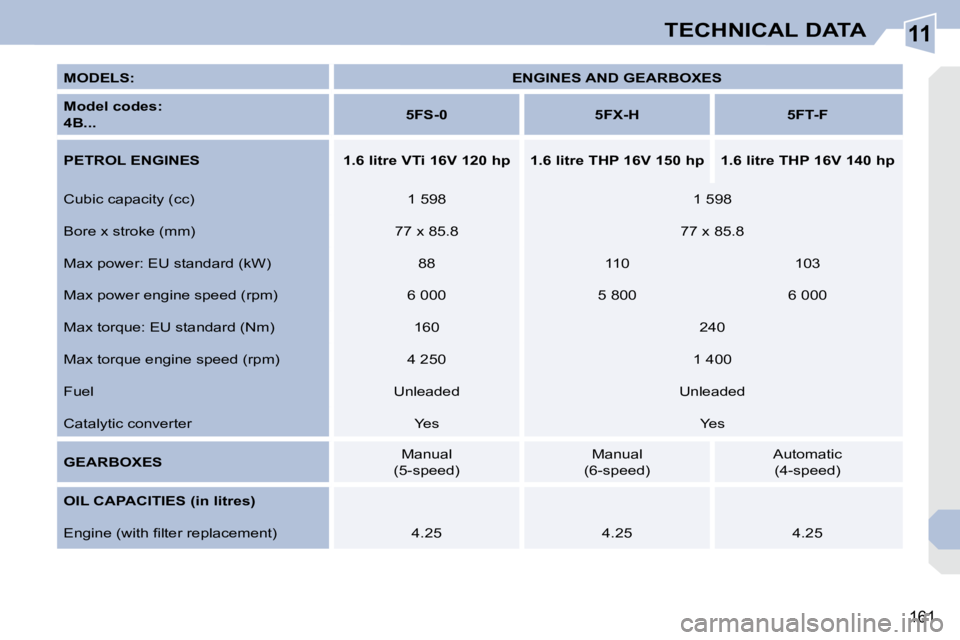

MODELS:
ENGINES AND GEARBOXES

Model codes:

4B...
5FS-0 5FX-H 5FT-F

PETROL ENGINES 1.6 litre VTi 16V 120 hp 1.6 litre THP 16V 150 hp 1.6 litre THP 16V 140 hp
Cubic capacity (cc) 1 598 1 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8
Max power: EU standard (kW) 88 110 103
Max power engine speed (rpm) 6 000 5 800 6 000
Max torque: EU standard (Nm) 160 240
Max torque engine speed (rpm) 4 250 1 400
Fuel Unleaded Unleaded
Catalytic converter Yes Yes

GEARBOXES Manual
(5-speed) Manual
(6-speed) Automatic
(4-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 4.25 4.25 4.25

11
162
TECHNICAL DATA

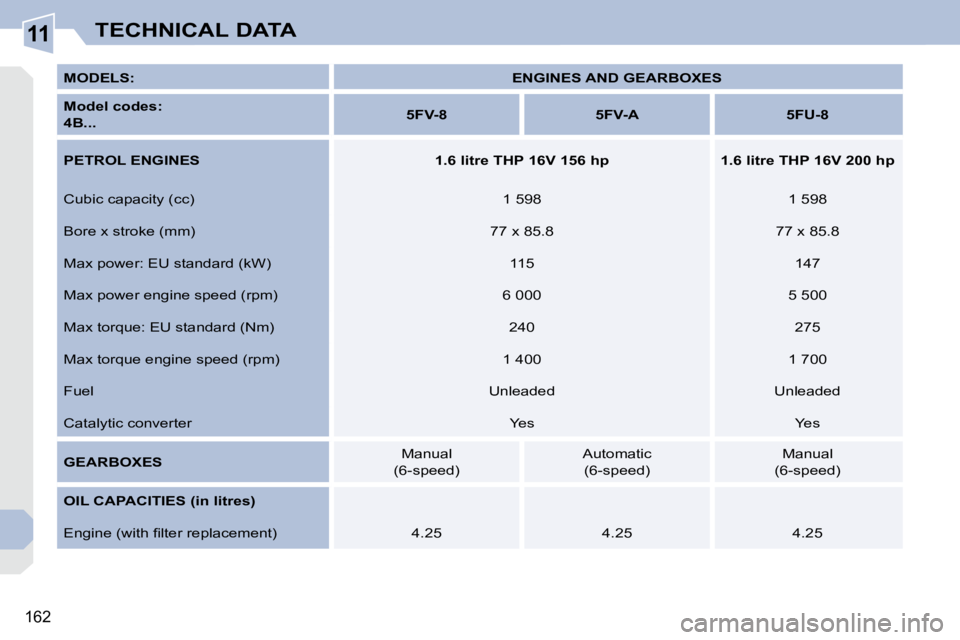

MODELS:
ENGINES AND GEARBOXES

Model codes:
4B...
5FV-8 5FV-A 5FU-8

PETROL ENGINES 1.6 litre THP 16V 156 hp 1.6 litre THP 16V 200 hp
Cubic capacity (cc) 1 598 1 598
Bore x stroke (mm) 77 x 85.8 77 x 85.8
Max power: EU standard (kW) 115 147
Max power engine speed (rpm) 6 000 5 500
Max torque: EU standard (Nm) 240 275
Max torque engine speed (rpm) 1 400 1 700
Fuel Unleaded Unleaded
Catalytic converter Yes Yes

GEARBOXES Manual
(6-speed) Automatic
(6-speed) Manual
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 4.25 4.25 4.25

11
165
TECHNICAL DATA

MODELS:

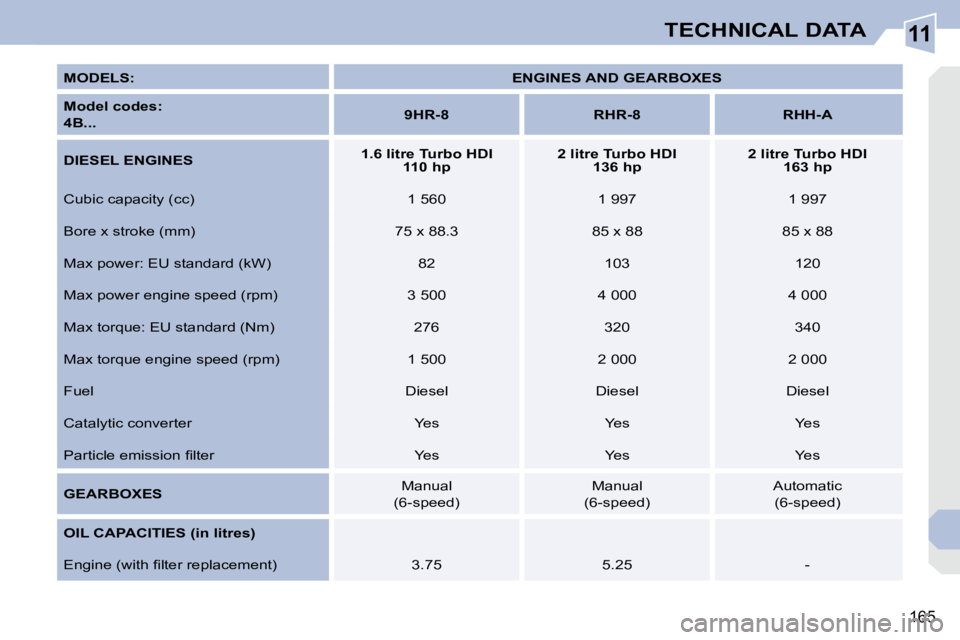

ENGINES AND GEARBOXES

Model codes:

4B...
9HR-8 RHR-8 RHH-A

DIESEL ENGINES
1.6 litre Turbo HDI
110 hp
2 litre Turbo HDI
136 hp
2 litre Turbo HDI
163 hp
Cubic capacity (cc) 1 560 1 997 1 997
Bore x stroke (mm) 75 x 88.3 85 x 88 85 x 88
Max power: EU standard (kW) 82 103 120
Max power engine speed (rpm) 3 500 4 000 4 000
Max torque: EU standard (Nm) 276 320 340
Max torque engine speed (rpm) 1 500 2 000 2 000
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
Particle emission fi lter Yes Yes Yes

GEARBOXES Manual
(6-speed) Manual
(6-speed) Automatic
(6-speed)

OIL CAPACITIES (in litres)

Engine (with fi lter replacement) 3.75 5.25 -

11
163
TECHNICAL DATA

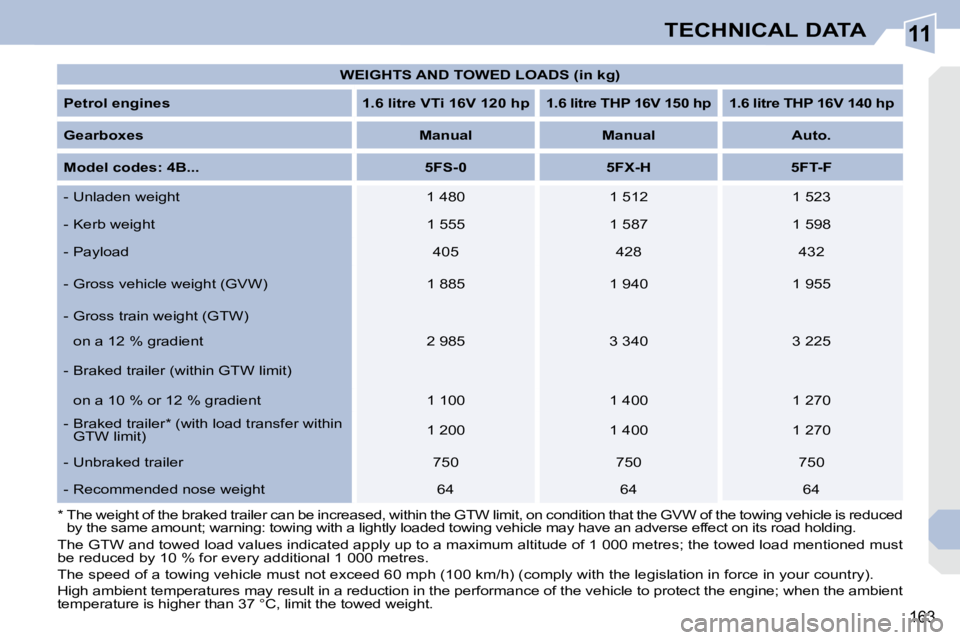

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines 1.6 litre VTi 16V 120 hp 1.6 litre THP 16V 150 hp 1.6 litre THP 16V 140 hp

Gearboxes
Manual Manual Auto.

Model codes: 4B... 5FS-0 5FX-H 5FT-F
- Unladen weight 1 480 1 512 1 523
- Kerb weight 1 555 1 587 1 598
- Payload 405 428 432
- Gross vehicle weight (GVW) 1 885 1 940 1 955
- Gross train weight (GTW)

on a 12 % gradient 2 985 3 340 3 225
- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient 1 100 1 400 1 270
- Braked trailer * (with load transfer within GTW limit) 1 200
1 400 1 270
- Unbraked trailer 750 750 750
- Recommended nose weight 64 64 64
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reductio n in the performance of the vehicle to protect the engine; when the ambient
temperature is higher than 37 °C, limit the towed w eight.
* The weight of the braked trailer can be incr
eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

11
164
TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GV W of the towing vehicle is reduced by
the same amount; warning: towing with a lightly loa ded towing vehicle may have an adverse effect on it s road holding.
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reductio n in the performance of the vehicle to protect the engine; when the ambient
temperature is higher than 37 °C, limit the towed w eight.

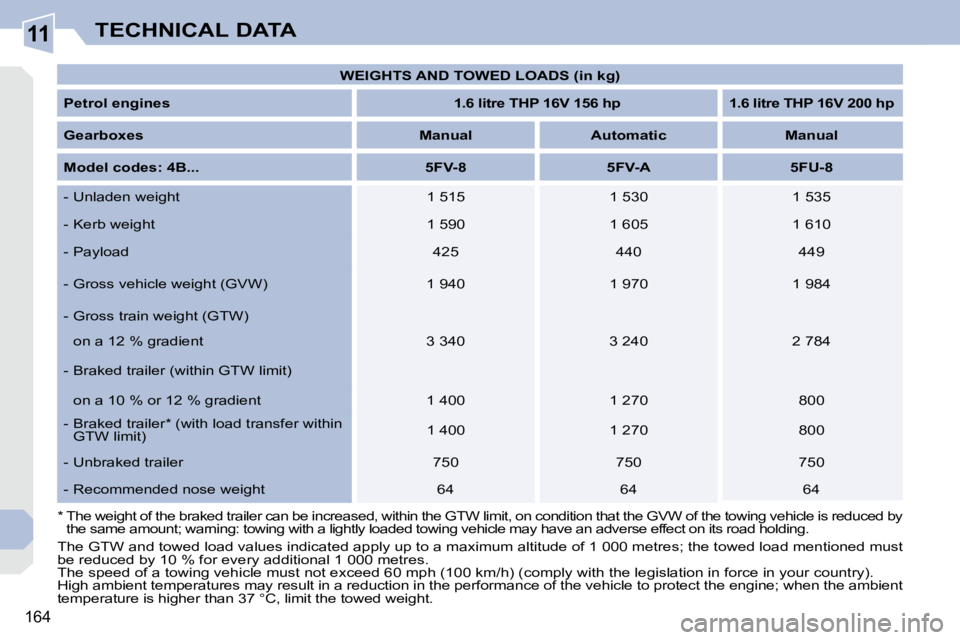

WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.6 litre THP 16V 156 hp 1.6 litre THP 16V 200 hp

Gearboxes
Manual Automatic Manual

Model codes: 4B... 5FV-8 5FV-A 5FU-8
- Unladen weight 1 515 1 530 1 535
- Kerb weight 1 590 1 605 1 610
- Payload 425 440 449
- Gross vehicle weight (GVW) 1 940 1 970 1 984
- Gross train weight (GTW)

on a 12 % gradient 3 340 3 240 2 784
- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient 1 400 1 270 800
- Braked trailer * (with load transfer within GTW limit) 1 400
1 270 800
- Unbraked trailer 750 750 750
- Recommended nose weight 64 64 64

11
166
TECHNICAL DATA
* The weight of the braked trailer can be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning: towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.

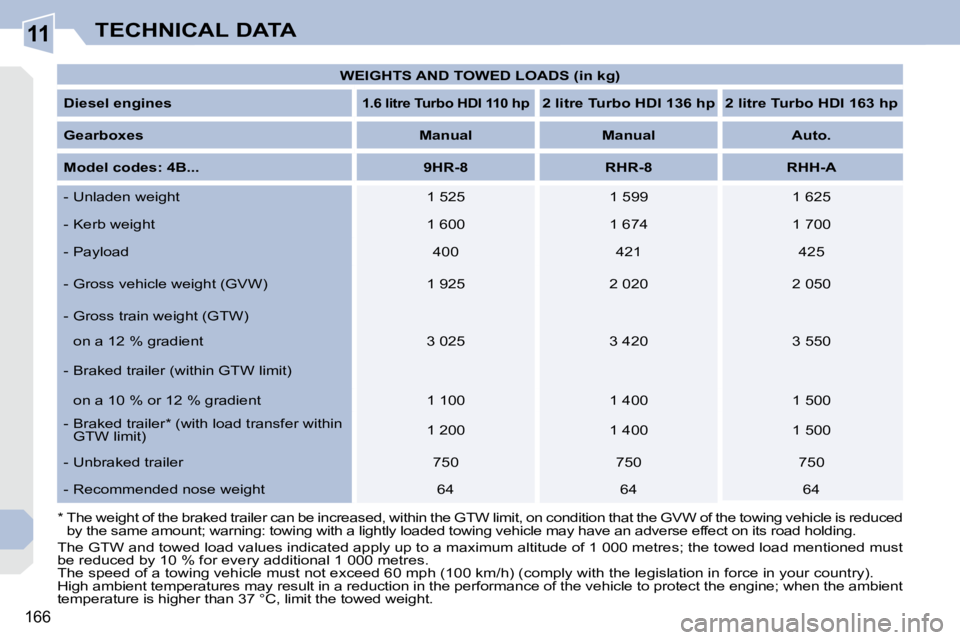

WEIGHTS AND TOWED LOADS (in kg)

Diesel engines

1.6 litre Turbo HDI 110 hp
2 litre Turbo HDI 136 hp 2 litre Turbo HDI 163 hp

Gearboxes
Manual Manual Auto.

Model codes: 4B... 9HR-8 RHR-8 RHH-A
- Unladen weight 1 525 1 599 1 625
- Kerb weight 1 600 1 674 1 700
- Payload 400 421 425
- Gross vehicle weight (GVW) 1 925 2 020 2 050
- Gross train weight (GTW)

on a 12 % gradient 3 025 3 420 3 550
- Braked trailer (within GTW limit)

on a 10 % or 12 % gradient 1 100 1 400 1 500
- Braked trailer * (with load transfer within GTW limit) 1 200
1 400 1 500
- Unbraked trailer 750 750 750
- Recommended nose weight 64 64 64
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reductio n in the performance of the vehicle to protect the engine; when the ambient
temperature is higher than 37 °C, limit the towed w eight.
