2010 PEUGEOT 308 CC Owners Manual

8
i
122
DRIVING

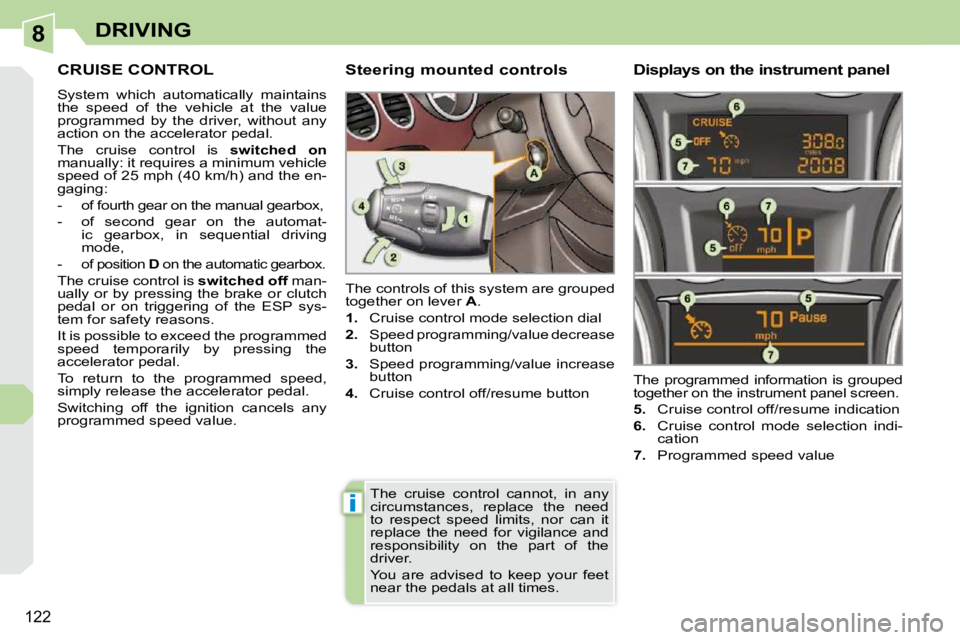

CRUISE CONTROL
System which automatically maintains
the speed of the vehicle at the value
programmed by the driver, without any
action on the accelerator pedal.
The cruise control is switched on
manually: it requires a minimum vehicle
speed of 25 mph (40 km/h) and the en-
gaging:
- of fourth gear on the manual gearbox,
- of second gear on the automat- ic gearbox, in sequential driving
mode,
-
of position D on the automatic gearbox.
The cruise control is switched off man-
ually or by pressing the brake or clutch
pedal or on triggering of the ESP sys-
tem for safety reasons.
It is possible to exceed the programmed
speed temporarily by pressing the
accelerator pedal.
To return to the programmed speed,
simply release the accelerator pedal.
Switching off the ignition cancels any
programmed speed value. The controls of this system are grouped
together on lever
A .

1. Cruise control mode selection dial

2. Speed programming/value decrease
button

3. Speed programming/value increase
button

4. Cruise control off/resume button The programmed information is grouped
together on the instrument panel screen.

5. Cruise control off/resume indication

6. Cruise control mode selection indi-
cation

7. Programmed speed value
Steering mounted controls Displays on the instrumen
t panel
The cruise control cannot, in any
circumstances, replace the need
to respect speed limits, nor can it
replace the need for vigilance and
responsibility on the part of the
driver.
You are advised to keep your feet
near the pedals at all times.

8
!
123
DRIVING
When the cruise control is switched
on, be careful if you maintain the
pressure on one of the programmed
speed changing buttons: this may
result in a very rapid change in the
speed of your vehicle.
Do not use the cruise control on
slippery roads or in heavy traffi c.
On a steep descent, the cruise
control will not be able to prevent
the vehicle from exceeding the pro-
grammed speed.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is posi- tioned correctly,
- never fi t one mat on top of an- other.

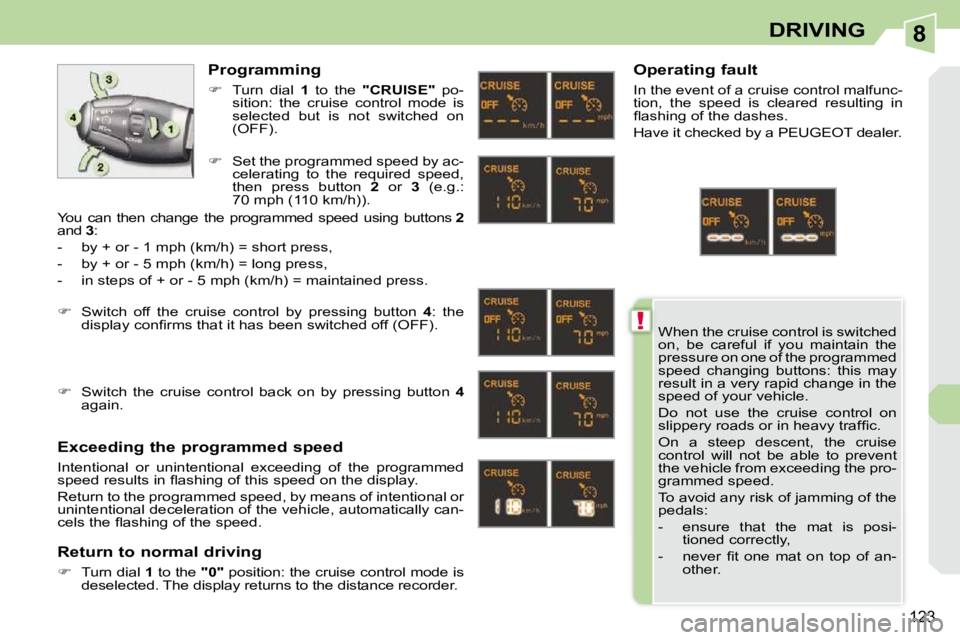

Programming

 Turn dial 1 to the "CRUISE" po-
sition: the cruise control mode is
selected but is not switched on
(OFF).
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed
speed results in fl ashing of this speed on the display.
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically ca n-
cels the fl ashing of the speed.
Return to normal driving

 Turn dial 1 to the "0" position: the cruise control mode is
deselected. The display returns to the distance rec order. Operating fault
In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl ashing of the dashes.
Have it checked by a PEUGEOT dealer.

 Set the programmed speed by ac-
celerating to the required speed,
then press button 2 or 3 (e.g.:
70 mph (110 km/h)).

 Switch off the cruise control by pressing button 4 : the
display confi rms that it has been switched off (OFF).

 Switch the cruise control back on by pressing button 4
again.
You can then change the programmed speed using but
tons 2
and 3 :
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.

8
!
124
DRIVING
PARKING SENSORS
This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.)
which comes within the fi eld of detection
of sensors located in the bumper.
Certain types of obstacle (stake, road-
works cone, etc.) detected initially will
no longer be detected at the end of the
manoeuvre due to the presence of blind
spots. This function cannot, in any cir-
cumstances, take the place of the
vigilance and responsibility of the
driver. Rear parking sensors
Audible assistance
The proximity information is given by
a discontinuous audible signal, the fre-
quency of which increases as the vehicle
approaches the obstacle.
The sound emitted by the speaker (right
or left) indicates the side on which the
obstacle is located.
When the distance between the vehicle
and the obstacle becomes less than ap-
proximately thirty centimetres, the audi-
ble signal becomes continuous.
The system is switched on by engaging
reverse gear. This is accompanied by
an audible signal.
The system is switched off when you
exit reverse gear.
This supplements the audible signal by
displaying segments in the multifunc-
tion screen which move progressively
nearer to the vehicle. When the obsta-
cle is near, the "Danger" symbol is also
displayed in the screen.
Visual assistance

8
ii
125
DRIVING
Front parking sensors
In addition to the rear parking sensors,
the front parking sensors are triggered
when an obstacle is detected in front
and the speed of the vehicle is still below
6 mph (10 km/h).
The sound emitted by the speaker (front
or rear) indicates whether the obstacle is
in front or behind.
The front parking sensors are interrupted
if the vehicle stops for more than three
seconds in forward gear, if no further ob-
stacles are detected or when the speed
of the vehicle exceeds 6 mph (10 km/h).
Deactivation/Activation of the front
and rear parking sensors
The function is deactivated by pressing
this button. The indicator lamp on the
button comes on.
Pressing this button again reactivates
the function. The indicator lamp on the
button switches off. Deactivation/Activation of the rear
parking sensors
The function will be deactivated au-
tomatically if a trailer is being towed
or a bicycle carrier is fi tted (vehicle
fi tted with a towbar or bicycle car-
rier recommended by PEUGEOT). Operating fault
If an operating fault occurs,
when reverse gear is engaged
this warning lamp is displayed
on the instrument panel and/or
a message appears on the screen, ac-
companied by an audible signal (short
bleep).
Consult a PEUGEOT dealer.
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long bleep) indicates that
the sensors may be dirty.
When the vehicle is moving at
a speed below 6 mph (10 km/h),
certain sound sources (motorcy-
cle, lorry, pneumatic drill, etc.) may
trigger the audible signals of the
parking sensor system.
The function is deactivated
or activated via the vehicle
confi guration menu.
The status of the function
is stored when the ignition
is switched off.
For more information on
access to the parking sen-
sors menu, refer to the section covering
the confi guration of vehicle systems.

9
i
!
127
CHECKS

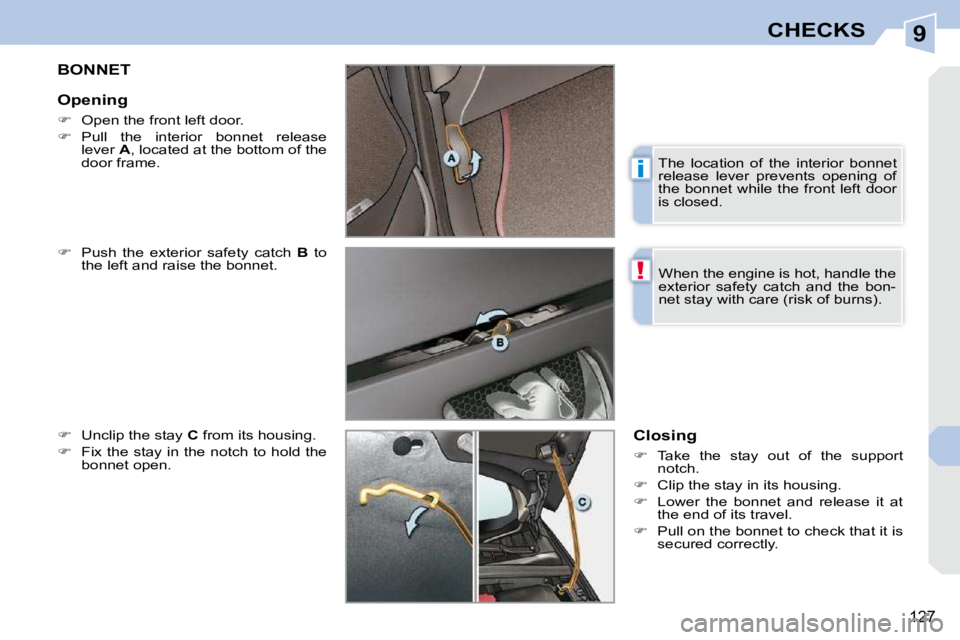

BONNET

 Push the exterior safety catch B to
the left and raise the bonnet.

 Unclip the stay C from its housing.

 Fix the stay in the notch to hold the
bonnet open. Closing

 Take the stay out of the support
notch.

 Clip the stay in its housing.

 Lower the bonnet and release it at
the end of its travel.

 Pull on the bonnet to check that it is
secured correctly.
Opening

 Open the front left door.

 Pull the interior bonnet release
lever A , located at the bottom of the
door frame. The location of the interior bonnet
release lever prevents opening of
the bonnet while the front left door
is closed.
When the engine is hot, handle the
exterior safety catch and the bon-
net stay with care (risk of burns).

9
i
128
CHECKS

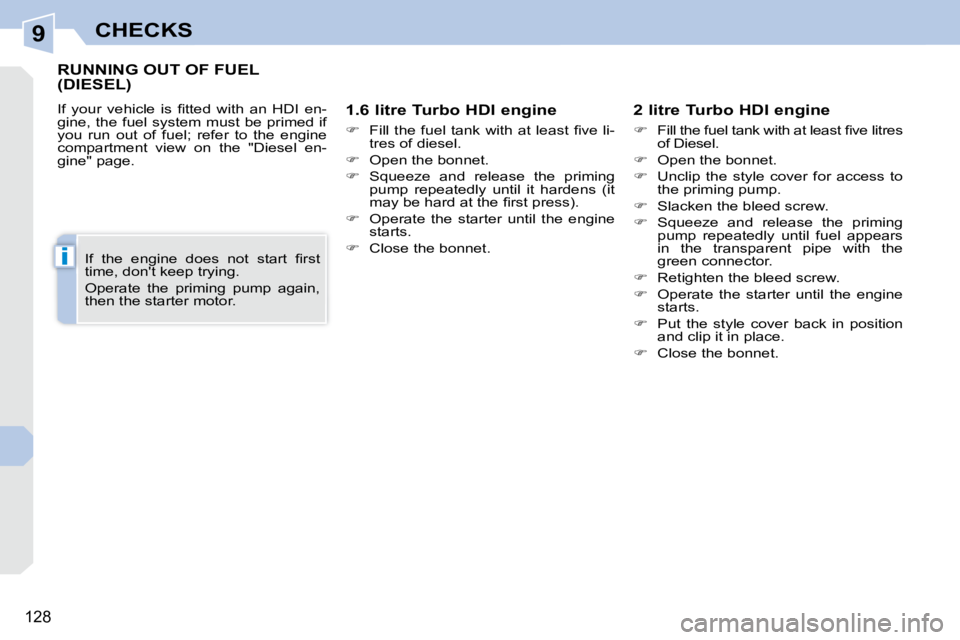

RUNNING OUT OF FUEL (DIESEL)
If your vehicle is fi tted with an HDI en-
gine, the fuel system must be primed if
you run out of fuel; refer to the engine
compartment view on the "Diesel en-
gine" page. 1.6 litre Turbo HDI engine

 Fill the fuel tank with at least fi ve li-
tres of diesel.

 Open the bonnet.

 Squeeze and release the priming
pump repeatedly until it hardens (it
may be hard at the fi rst press).

 Operate the starter until the engine
starts.

 Close the bonnet. 2 litre Turbo HDI engine

 Fill the fuel tank with at least fi ve litres
of Diesel.

 Open the bonnet.

 Unclip the style cover for access to
the priming pump.

 Slacken the bleed screw.

 Squeeze and release the priming
pump repeatedly until fuel appears
in the transparent pipe with the
green connector.

 Retighten the bleed screw.

 Operate the starter until the engine
starts.

 Put the style cover back in position
and clip it in place.

 Close the bonnet.
If the engine does not start fi rst
time, don't keep trying.
Operate the priming pump again,
then the starter motor.

9
129
CHECKS

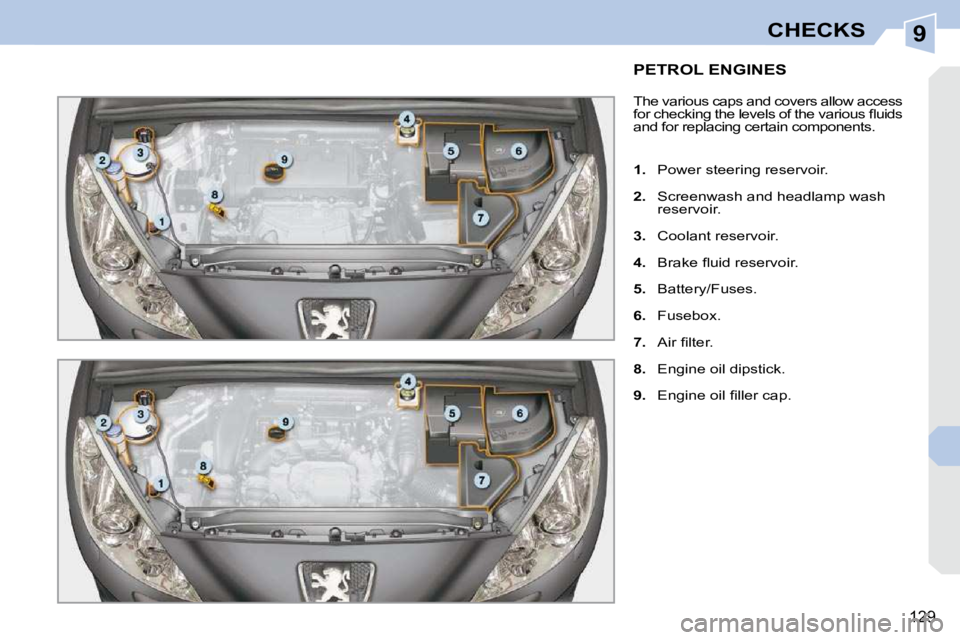

PETROL ENGINES
The various caps and covers allow access
for checking the levels of the various fl uids
and for replacing certain components.

1. Power steering reservoir.

2. Screenwash and headlamp wash
reservoir.

3. Coolant reservoir.

4. Brake fl uid reservoir.

5. Battery/Fuses.

6. Fusebox.

7. Air fi lter.

8. Engine oil dipstick.

9. Engine oil fi ller cap.

9
130
CHECKS

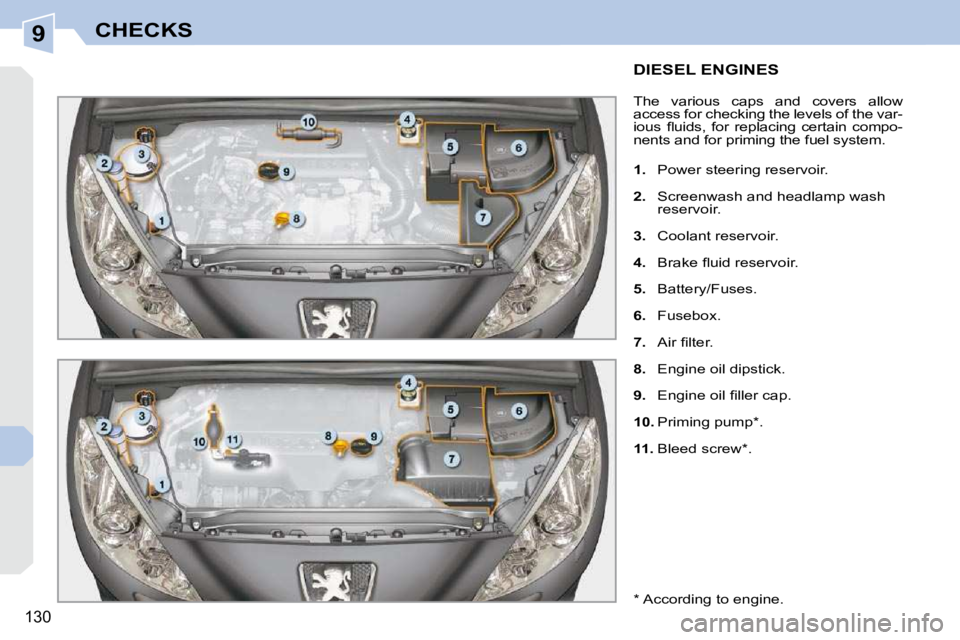

DIESEL ENGINES
The various caps and covers allow
access for checking the levels of the var-
ious fl uids, for replacing certain compo-
nents and for priming the fuel system.

1. Power steering reservoir.

2. Screenwash and headlamp wash
reservoir.

3. Coolant reservoir.

4. Brake fl uid reservoir.

5. Battery/Fuses.

6. Fusebox.

7. Air fi lter.

8. Engine oil dipstick.

9. Engine oil fi ller cap.

10. Priming pump * .

11. Bleed screw * .
* According to engine.
