TECHNICAL DATA

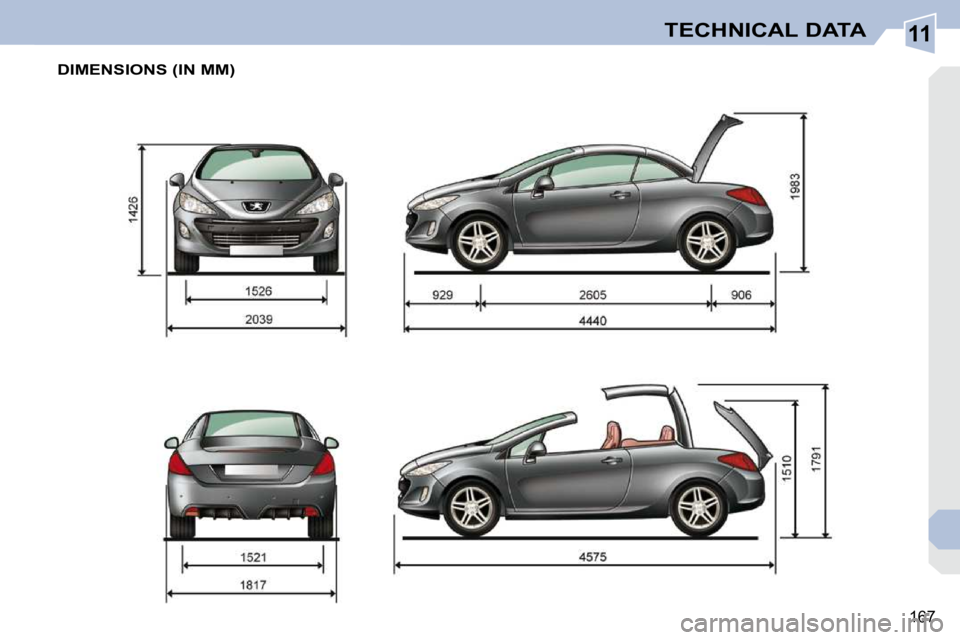

DIMENSIONS (IN MM)

11
!
i
168
TECHNICAL DATA
IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation and tracking of your vehicle. Wheels which are fi tted with
225/40 R18 tyres cannot be fi t-
ted with snow chains. For further
information, contact a PEUGEOT
dealer.
If the infl ation pressures are too low,
this increases fuel consumption.
The infl ation pressures must be
checked when the tyres are cold,
at least once a month.

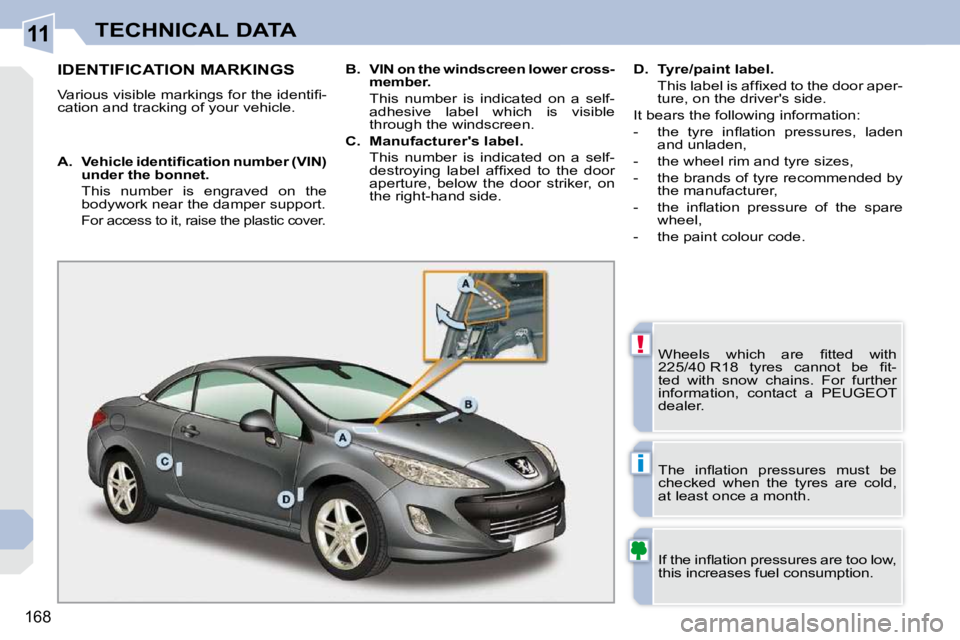

A. Vehicle identifi cation number (VIN)
under the bonnet.
This number is engraved on the bodywork near the damper support.

For access to it, raise the plastic cover.

B. VIN on the windscreen lower cross-
member.
This number is indicated on a self- adhesive label which is visible
through the windscreen.

C. Manufacturer's label.
This number is indicated on a self- destroying label affi xed to the door
aperture, below the door striker, on
the right-hand side.
D. Tyre/paint label.
This label is affi xed to the door aper- ture, on the driver's side.
It bears the following information:
- the tyre infl ation pressures, laden and unladen,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- the infl ation pressure of the spare wheel,
- the paint colour code.

170
EMERGENCY OR ASSISTANCE CALL
EMERGENCY CALL
In an emergency, press this button for more than 2 seconds. Flashing of the green indicator lamp and a voice message confi rm that the call has been made to the PEUGEOT Emergency team * .
Pressing this button again immediately cancels the request. The green indicator lamp goes off.
ASSISTANCE CALL
If you purchased your vehicle outside the PEUGEOT dealer netwo rk, we invite you to have a dealer check the confi guration of these services and, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.
When the ignition is switched on, the green indicator lamp comes on for 3 seconds indicating that the system is operating correctly.
Pressing this button again immediately cancels the request.
The cancellation is confi rmed by a voice message.
Press this button for more than 2 seconds to request assistance if the vehicle breaks down.
A voice message confi rms that the call has been made * .
OPERATION OF THE SYSTEM The green indicator lamp remains on (without fl ashing) when communication is established. It goes off at the end of commun ication.
This call is dealt with by the PEUGEOT Emergency team which recei ves locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in which the team is no t operational, or when the locating service has been expressly declined, the call is dealt with directly by the emergency services (112) without the vehicle location.
If an impact is detected by the airbag ECU, and independently of the deployment of any airbags, an emergency call is made automatically.
* This service is subject to conditions and availability.
Consult a PEUGEOT dealer.
If the orange indicator lamp fl ashes: there is a system malfunction.
If the orange indicator lamp is on continuously: the backup battery must be replaced.
In both cases, consult a PEUGEOT dealer.

171
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO8
TUV
7
PQRS 9
WXYZ0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR
BOOK
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO8
TUV
7
PQRS 9
WXYZ0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR
BOOK
EMERGENCY OR ASSISTANCE CALL USING
PEUGEOT CONNECT MEDIA
EMERGENCY CALL
In an emergency, press the SOS button until an audible signal is heard and a "Confi rmation/Cancellation" screen is displayed (if valid SIM card inserted).
A call is made to the PEUGEOT Emergency team which receives locating information from the vehicle and can send a detailed alert to the relevant emergency services.
In countries in which the team is not operational, or when the locating service has been expressly declined, the call is sent to the emergency services (112).
Warning - the emergency call and the services are only active if the internal telephone is used with a valid SIM card. Wi
th a Bluetooth telephone and without a SIM card, these services are not operational. Press this button for access to PEUGEOT services.
Customer call
If an impact is detected by the airbag control unit, and independently of the deployment of any airbags, an emergency call is made automatically.
The message "Deteriorated emergency call" associated with fl ashing of the orange indicator lamp indicates a malfunctio n. Consult a PEUGEOT dealer.
ASSISTANCE CALL
Select "Customer call" to request any information about the PEUGEOT marque.
Select "PEUGEOT Assistance" to make a breakdown assistance call.
PEUGEOT Assistance
This service is subject to conditions and availability. Consult a PEUGEOT dealer. If you have purchased your vehicle outside the PEUGEOT dealer network, we invite you to have a dealer check the confi guration of these services and, if desired, modifi ed to suit your wishes.

173
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
The Peugeot Connect Media is protected in such a way that it will only operate in your vehicle. If it is to
be installed in another vehicle, contact a PEUGEOT dealer for confi guration of the system.
Certain functions described in this handbook will become available during the course of the year.
PEUGEOT CONNECT MEDIA
For safety reasons, it is imperative that the driver carries out operations which require prolonged attention while the vehicle is stationary.
When the engine is switched off and to prevent discharging of the battery, the Peugeot Connect Media switches off following the activation of the Energy Economy mode.
01 First steps
02 Voice commands and steering
mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Radio
07 Music media players
08 Using the telephone
09 Configuration
10 Screen menu map p.
p.
p.
p.
p.
p.
p.
p.
p.
p. 174
176
179
184
193
195
196
201
205
206
CONTENTS
Frequently asked questions p. 211
MULTIMEDIA AUDIO SYSTEM/BLUETOOTH TELEPHONE
GPS EUROPE

174
01
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
RADIO MEDIA
NAV ESC TRAFFIC
SETUP
ADDR BOOK
1
10
2
3
4
612
9
7
8
115
TU
PQRS
0
*
1. CD eject. 2. RADIO: access to the "Radio" Menu. Display the list of stations in alphabetical order (FM waveband) or frequency order (AM waveband). MEDIA: access to the "Media" Menu (Audio CD, Jukebox, External Device). Display the list of tracks. Change of source. NAV: access to the "Navigation" Menu and display of the last destinations. ESC: abandon the operation in progress. Long press: return to the main display. TRAFFIC: access to the "Traffi c" Menu (function described in detail in sections 02 and 10).
ADDR BOOK: access to the "Address book" Menu (function described in detail in section 10). SETUP: access to the "SETUP" Menu (confi guration) (function described in detail in sections 02 and 10 ). Long press: GPS coverage. 3. Audio settings (Balance/Fader, Bass/Treble, Musical Ambience…). 4. Volume adjustment (each source is independent, including message and navigation alert). Long press: reinitialisation of the system. Short press: mute. 5. Automatic search for a radio station on a lower frequency. Selection of the previous CD or MP3 track.
FIRST STEPS
Peugeot Connect Media CONTROL PANEL
6. Automatic search for a radio station on a higher frequency. Selection of the next CD or MP3 track. 7. Normal display or black screen. 8. Selection of the successive display on the sc reen of "MAP"/"NAV" (if navigation is in progress)/"TEL" (if a conversation is in progress)/"RADIO" or "MEDI A" currently being played. 9. PICK UP: access to the "Phone" menu. With Bluetooth connection, accept an incoming call . 10. HANG UP: access to the "Phone" menu. Hang up the current call or refuse an incoming call, with Bluetooth connection. 11. Entering of numbers or letters on the alpha-numeric keypad, pre-selection of 10 radio frequencies. 12. SD card reader.
Short press: clears the last character.
Long press: activates voice recognition.

175
01
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
13
14
13. OK: confi rmation of the highlighted item on the screen. - 4-direction navigator: press to the left/right. When the "RADIO" screen is displayed: selection of the previous/next frequency. When "MEDIA" is displayed: selection of the previous/next track. When "MAP" or "NAV" is displayed: horizontal movement of the map. - 4-direction navigator: press up/down.
When "RADIO" is displayed: selection of the previous/next radio station on the list. When the "MEDIA" screen is displayed: selection of the MP3 directory. When "MAP" or "NAV" is displayed: vertical movement of the map. Switch to the next or previous page of a menu. Movement on the virtual keypad displayed.
FIRST STEPS
Peugeot Connect Media NAVIGATOR
14. Rotation of the ring: When the "RADIO" screen is displayed: selection of the previous/next radio station on the list. When the "MEDIA" screen is displayed: selection of the previous/next CD or MP3 track. When "MAP" or "NAV" is displayed: front/rear map zoom. Movement of the menu selection curser.

176
2
ABC 3
DEF
5
JKL
4
GHI 6
MNO
8
TUV
7
PQRS 9
WXYZ
0
* #
1
NAV ESC TRAFFIC
ADDR
BOOKSETUP
02
2
1
SETUP
Before using the system for the fi rst time, you are advised to l
isten to, say and practice the tutorial.
Press the SETUP button and select the "Language & Speech" function. Turn the ring and select "Voice control". Activate voice recognition.
Select "Tutorial".
VOICE COMMANDS - VOICE
RECO. INITIATION
The phrases to be spoken according to the context are indicat ed in the tables below.
Speak and Peugeot Connect Media acts.
Pressing the end of the lighting control stalk activates voice recognition.
CONTEXTSAYACTION
GENERAL Help address book Help voice control Help media Help navigation Help telephone Help radio Cancel
Correction
Access to the address book help Access to the voice recognition help Access to the media management help Access to the guidance, navigation help Access to the telephone help Access to the radio help To cancel a voice command which is in progress Request to correct the last voice recognition carried out Clear
RADIO Select station Station <tts:stationName>
Read out station list Enter frequency
Select wave band AM FM TA on TA off
Select a radio station Select a radio station using its RDS description <tts:station Name> from the RADIO list Listen to the list of stations available Listen to the frequency of the current radio station Choose the frequency waveband (AM or FM) Change the frequency waveband to AM Change the frequency waveband to FM Activate Traffi c Info (TA) Deactivate Traffi c Info
NAVIGATION Destination input
Voice advice off Voice advice on Save address Start guidance
Abort guidance Navigate entry POI Search
Command to enter a new destination address Deactivate the spoken guidance instructions Activate the spoken guidance instructions Save an address in the address book Start guidance (once the address has been entered) Stop the guidance Start guidance to an entry in the address book Start guidance to a point of interest
VOICE COMMANDS AND STEERING MOUNTED CONTROLS
