2010 PEUGEOT 308 CC Owners Manual

i!

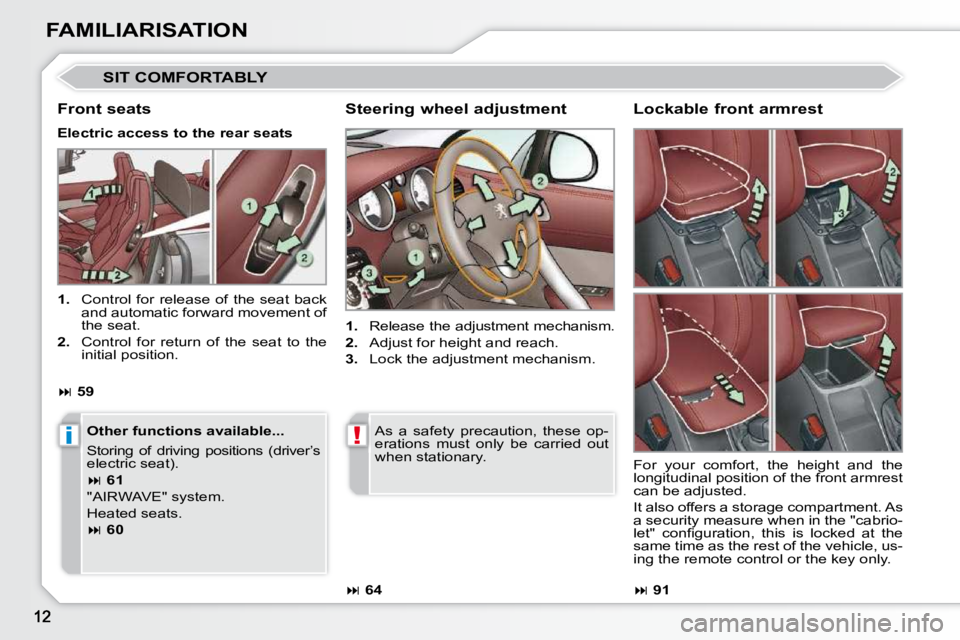

FAMILIARISATION
SIT COMFORTABLY
Steering wheel adjustment

1. Release the adjustment mechanism.

2. Adjust for height and reach.

3. Lock the adjustment mechanism.
Front seats
Other functions available...
Storing of driving positions (driver’s
electric seat).


 61
"AIRWAVE" system.
Heated seats.


 60
Electric access to the rear seats
Lockable front armrest


 91


 64 For your comfort, the height and the
longitudinal position of the front armrest
can be adjusted.
It also offers a storage compartment. As
a security measure when in the "cabrio-
let" confi guration, this is locked at the
same time as the rest of the vehicle, us-
ing the remote control or the key only.
As a safety precaution, these op-
erations must only be carried out
when stationary.

1. Control for release of the seat back
and automatic forward movement of
the seat.

2. Control for return of the seat to the
initial position.


 59

i
FAMILIARISATION
SITTING COMFORTABLY
Door mirrors
Adjustment Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in
reverse gear for parking.


 63 Rear view mirror

1. Selection of the "day" position of the
mirror.

2. Adjustment of the mirror.


 63 Front seat belts

1. Position the strap.

2. Fasten the buckle.

3. Check the fastening by pulling the
strap.

A. Selection of the mirror to be adjusted.

B. Adjustment of the position of the
mirror in all four directions.

C. De-selection of the mirror.


 101
Manual day/night model
Automatic day/night model

A. Detection of light level of the auto-
matic day/night mode.

B. Adjustment of the mirror.


 64


 62

FAMILIARISATION
SEEING CLEARLY
Lighting
Ring A
Ring B Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will fl ash until
the stalk is moved from this position.
Direction indicators
Switching on "AUTO"

 Press the stalk down and release it.


 80 Lighting off.
Automatic illumination of
headlamps.
Sidelamps.
Dipped/main beam headlamps.
Front and rear foglamps.
Stalk A: windscreen wipers


 85
Wipers
Switching off "AUTO"

 Push the stalk up and return it to po-
sition "0" .
"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will fl ash three times.
The use of this function is available
regardless of the speed, but you will
fi nd it particularly useful when changing
lane on fast roads.


 95

 86

FAMILIARISATION
VENTILATION
Recommended interior settings

Digital air conditioning
We recommend use of the fully automatic mode by pressing the "AUTO" button. In the "cabriolet" confi guration, the system
automatically adapts to the exterior climatic conditions.
I require...
Manual Air Conditioning

Air distribution Air fl ow
Air recirculation/

Intake of outside air
Temperature Manual A/C

HOT


COLD

DEMISTING

DEFROSTING

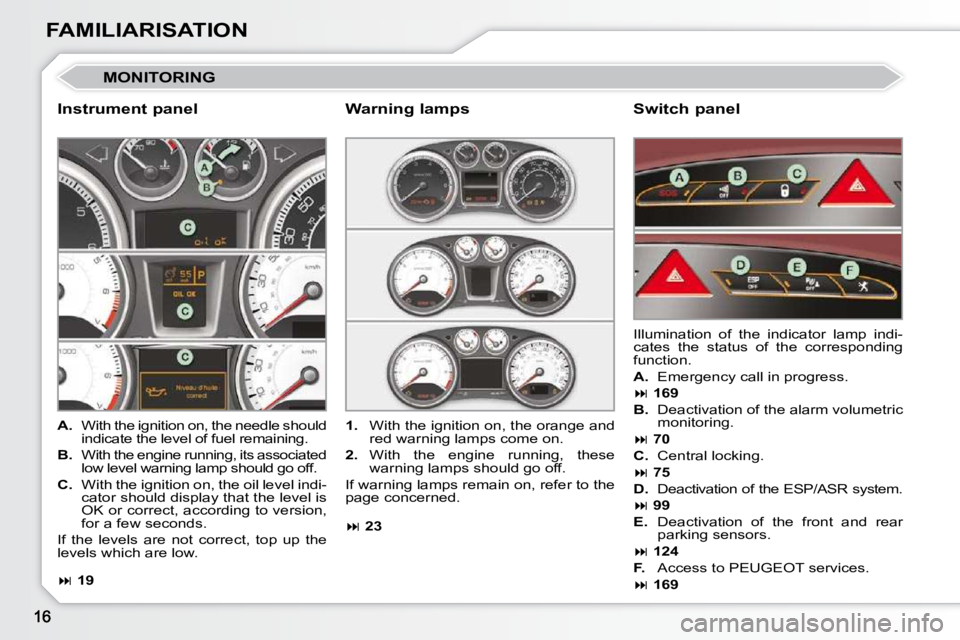

FAMILIARISATION
MONITORING
Instrument panel Switch panel

A. With the ignition on, the needle should
indicate the level of fuel remaining.

B. With the engine running, its associated
low level warning lamp should go off.

C. With the ignition on, the oil level indi-
cator should display that the level is
OK or correct, according to version,
for a few seconds.
If the levels are not correct, top up the
levels which are low. Illumination of the indicator lamp indi-
cates the status of the corresponding
function.

A. Emergency call in progress.


 169

B. Deactivation of the alarm volumetric
monitoring.


 70

C. Central locking.


 75

D. Deactivation of the ESP/ASR system.


 99

E. Deactivation of the front and rear
parking sensors.


 124

F. Access to PEUGEOT services.


 169

1. With the ignition on, the orange and
red warning lamps come on.

2. With the engine running, these
warning lamps should go off.
If warning lamps remain on, refer to the
page concerned.
Warning lamps


 19

 23

i

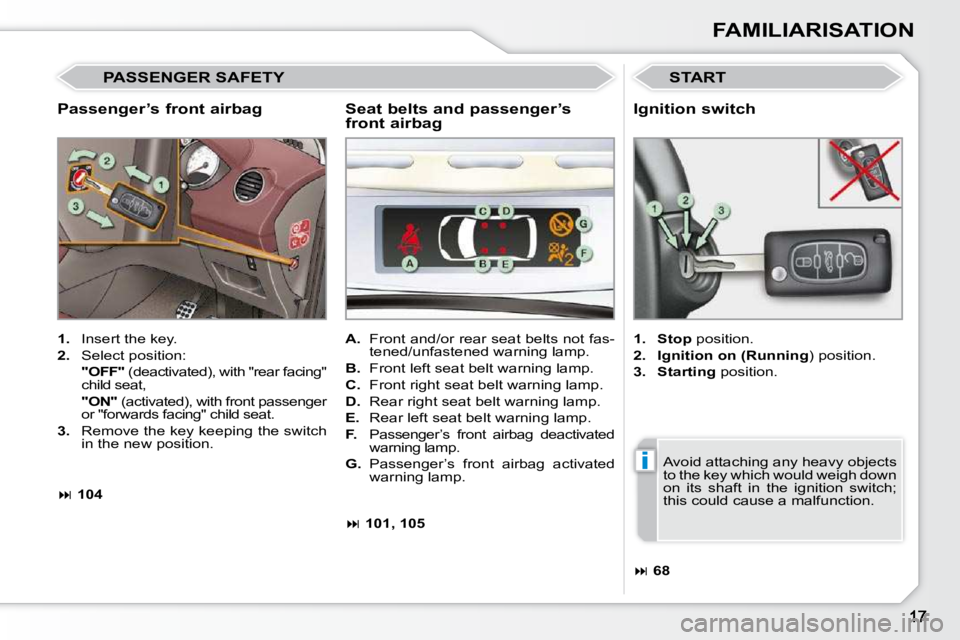

FAMILIARISATION
Passenger’s front airbag
START

1. Insert the key.

2. Select position:
"OFF" (deactivated), with "rear facing"
child seat,
"ON" (activated), with front passenger
or "forwards facing" child seat.

3. Remove the key keeping the switch
in the new position.
1. Stop position.

2. Ignition on (
Running ) position.

3. Starting position.

A. Front and/or rear seat belts not fas-
tened/unfastened warning lamp.

B. Front left seat belt warning lamp.

C. Front right seat belt warning lamp.

D. Rear right seat belt warning lamp.

E. Rear left seat belt warning lamp.

F. Passenger’s front airbag deactivated
warning lamp.

G. Passenger’s front airbag activated
warning lamp.
Seat belts and passenger’s
front airbag
PASSENGER SAFETY


 104


 101, 105 Ignition switch


 68
Avoid attaching any heavy objects
to the key which would weigh down
on its shaft in the ignition switch;
this could cause a malfunction.

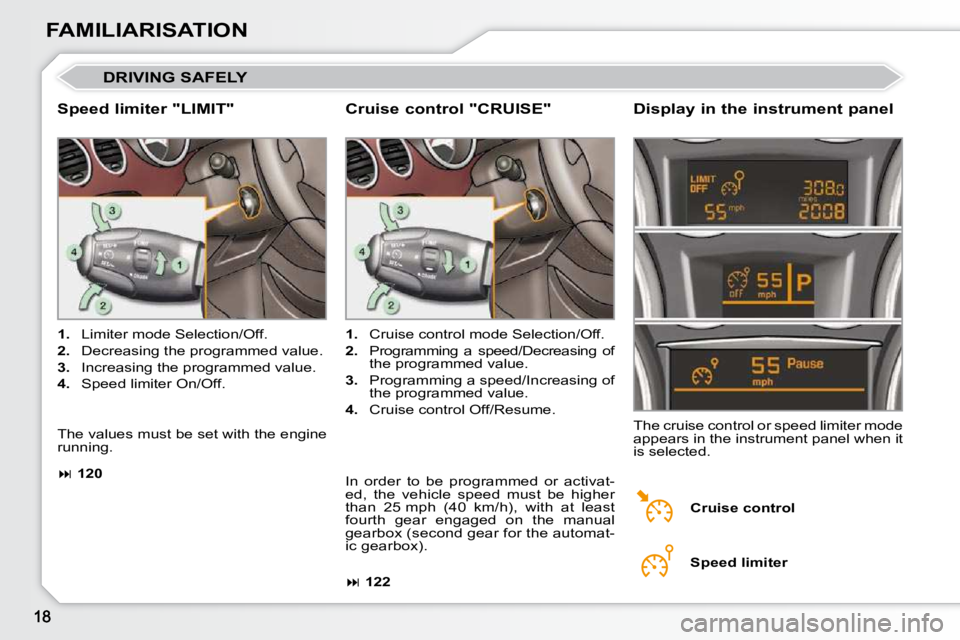

FAMILIARISATION
DRIVING SAFELY
Speed limiter "LIMIT" Display in the instrument panel

1. Limiter mode Selection/Off.

2. Decreasing the programmed value.

3. Increasing the programmed value.

4. Speed limiter On/Off.
The cruise control or speed limiter mode
appears in the instrument panel when it
is selected.

1. Cruise control mode Selection/Off.

2. Programming a speed/Decreasing of
the programmed value.

3. Programming a speed/Increasing of
the programmed value.

4. Cruise control Off/Resume.
Cruise control "CRUISE"
Cruise control
Speed limiter


 122


 120
In order to be programmed or activat-
ed, the vehicle speed must be higher
than 25 mph (40 km/h), with at least
fourth gear engaged on the manual
gearbox (second gear for the automat-
ic gearbox).
The values must be set with the engine
running.

1
i
19
INSTRUMENTS and CONTROLS
PETROL - DIESEL MANUAL OR AUTOMATIC GEARBOX INSTRUMENT PANELS
Panel grouping together the vehicle
operation indication dials and warning
lamps.
5. Screen.

6. Control button.
Recalls the service information.
Resets the function to zero (trip distance recorder or service indicator).

7. Instrument panel lighting

dimmer
.
Adjusts the brightness of the lighting of the instruments and controls.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).

3. Fuel level.
Indicates the quantity of fuel remaining in the tank.

4. Vehicle speed.
Indicates the current speed of the moving vehicle (mph or km/h).
A. Speed limiter
(mph or km/h) or
Cruise control.

B. Gear shift indicator.

C. Automatic gearbox.

D. Trip distance recorder.
(miles or km)

E. Service indicator.
(miles or km) then,
engine oil level indicator
then
distance recorder.
(miles or km)
These three functions are displayed in succession when the ignition is
switched on.
Displays
For more information, refer to the
paragraph relating to the button or
function and its associated display.
