2010 PEUGEOT 308 CC Owners Manual

3
!
i
59
COMFORT
Additional manual
adjustments Additional electric
adjustments

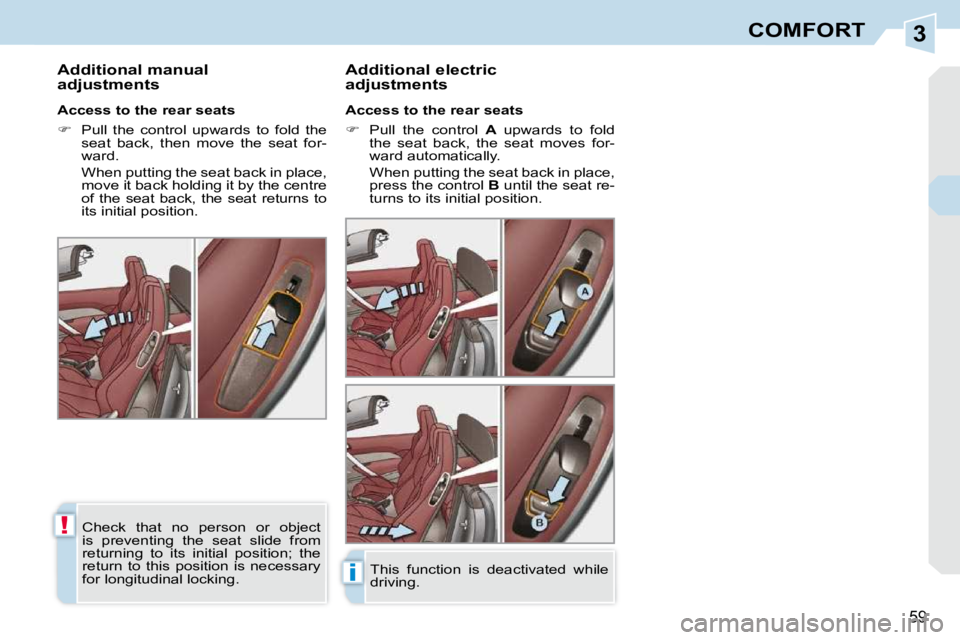

Access to the rear seats

 Pull the control A upwards to fold
the seat back, the seat moves for-
ward automatically.
When putting the seat back in place, press the control B until the seat re-
turns to its initial position.
Access to the rear seats

 Pull the control upwards to fold the
seat back, then move the seat for-
ward.
When putting the seat back in place, move it back holding it by the centre
of the seat back, the seat returns to
its initial position.
Check that no person or object
is preventing the seat slide from
returning to its initial position; the
return to this position is necessary
for longitudinal locking. This function is deactivated while
driving.

3
i!
60
COMFORT
Controlling the "AIRWAVE" system
When the engine is running, the
"AIRWAVE" system, located in the head
restraint of each front seat, can be con-
trolled separately to produce heated
blown air directed towards the neck of
each occupant. Heated seats control
With the engine running, the front seats
can be heated separately.

 Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:
0: Off.
1
: Low.
2
: Medium.
3
: High.

 Use the corresponding adjustment
dial, placed on the centre console,
to set the temperature and fl ow of
blown air required:

0: Off.

1: Low.

2: Medium.
3: High.
 Use the direction dial, placed on
each vent, to direct the output of the
blown air upwards, to the centre or
downwards.
When the control is activated, the
blown air arrives progressively to
reach a comfortable temperature. Do not use the "AIRWAVE" system
if a child seat is installed on the
front passenger seat.

3
!
!
61
COMFORT

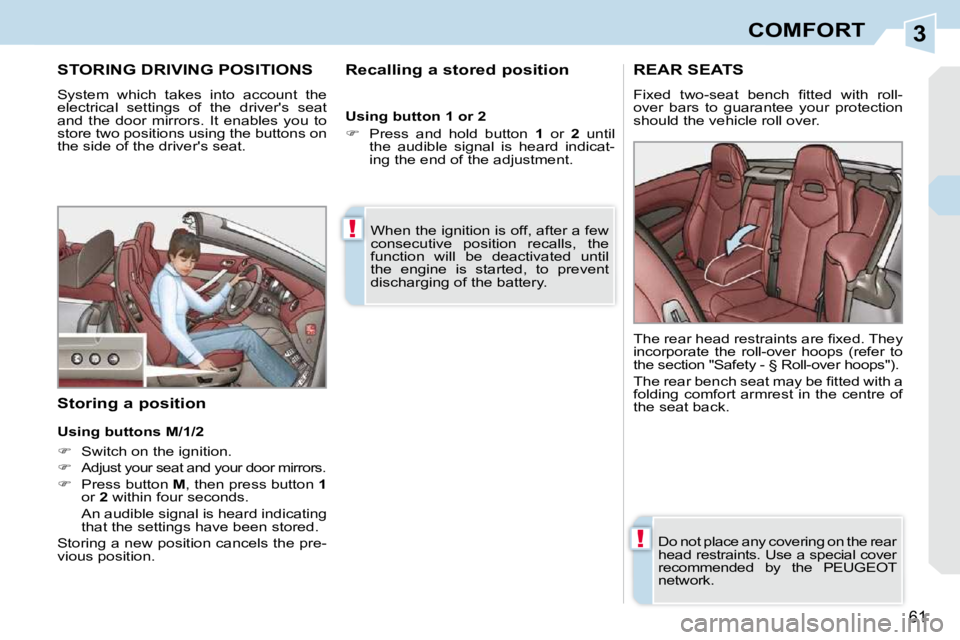

STORING DRIVING POSITIONS
System which takes into account the
electrical settings of the driver's seat
and the door mirrors. It enables you to
store two positions using the buttons on
the side of the driver's seat. Recalling a stored position
Storing a position When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using buttons M/1/2

 Switch on the ignition.


Adjust your seat and your door mirrors.

 Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the settings have been stored.
Storing a new position cancels the pre-
vious position.
REAR SEATS
Fixed two-seat bench fi tted with roll-
over bars to guarantee your protection
should the vehicle roll over.
Do not place any covering on the rear
head restraints. Use a special cover
recommended by the PEUGEOT
network.
The rear head restraints are fi xed. They
incorporate the roll-over hoops (refer to
the section "Safety - § Roll-over hoops").
The rear bench seat may be fi tted with a
folding comfort armrest in the centre of
the seat back.
Using button 1 or 2

 Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.

3
!
!
61
COMFORT
STORING DRIVING POSITIONS
System which takes into account the
electrical settings of the driver's seat
and the door mirrors. It enables you to
store two positions using the buttons on
the side of the driver's seat. Recalling a stored position
Storing a position When the ignition is off, after a few
consecutive position recalls, the
function will be deactivated until
the engine is started, to prevent
discharging of the battery.
Using buttons M/1/2

 Switch on the ignition.


Adjust your seat and your door mirrors.

 Press button M , then press button 1
or 2 within four seconds.
An audible signal is heard indicating that the settings have been stored.
Storing a new position cancels the pre-
vious position.
REAR SEATS
Fixed two-seat bench fi tted with roll-
over bars to guarantee your protection
should the vehicle roll over.
Do not place any covering on the rear
head restraints. Use a special cover
recommended by the PEUGEOT
network.
The rear head restraints are fi xed. They
incorporate the roll-over hoops (refer to
the section "Safety - § Roll-over hoops").
The rear bench seat may be fi tted with a
folding comfort armrest in the centre of
the seat back.
Using button 1 or 2

 Press and hold button 1 or 2 until
the audible signal is heard indicat-
ing the end of the adjustment.

3
!
i
i
!
62
COMFORT
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of ve-
hicles approaching from behind.

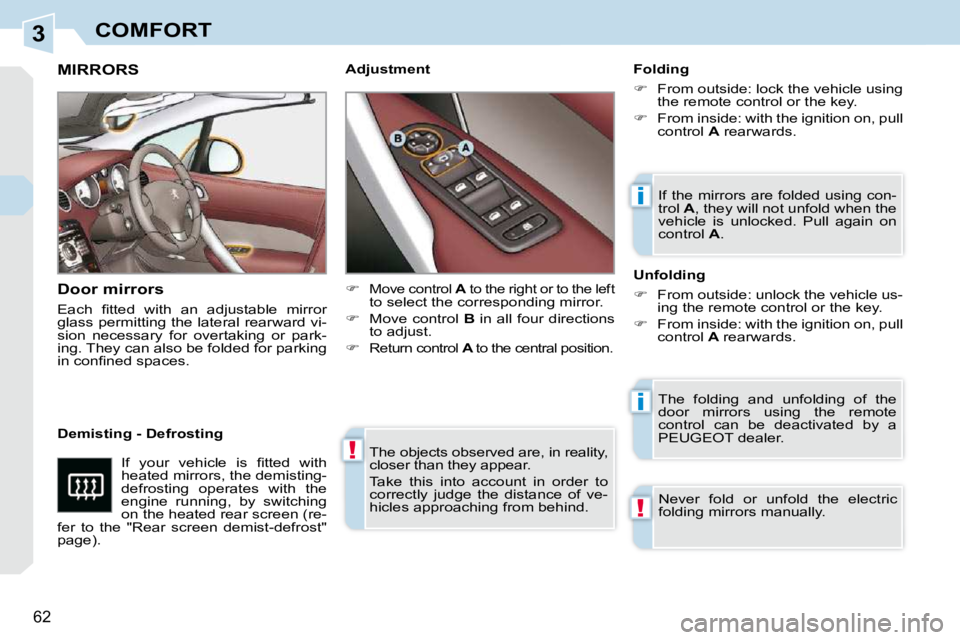

MIRRORS
Door mirrors
Each fi tted with an adjustable mirror
glass permitting the lateral rearward vi-
sion necessary for overtaking or park-
ing. They can also be folded for parking
in confi ned spaces. Folding

 From outside: lock the vehicle using
the remote control or the key.

 From inside: with the ignition on, pull
control A rearwards.
The folding and unfolding of the
door mirrors using the remote
control can be deactivated by a
PEUGEOT dealer.
Demisting - Defrosting Unfolding

 From outside: unlock the vehicle us-
ing the remote control or the key.

 From inside: with the ignition on, pull
control A rearwards.
If the mirrors are folded using con-
trol
A , they will not unfold when the
vehicle is unlocked. Pull again on
control A .
If your vehicle is fi tted with
heated mirrors, the demisting-
defrosting operates with the
engine running, by switching
on the heated rear screen (re-
fer to the "Rear screen demist-defrost"
page).
 Move control A to the right or to the left to select the corresponding mirror.

 Move control B in all four directions
to adjust.


Return control A to the central position.
Never fold or unfold the electric
folding mirrors manually.
Adjustment

3
!
63
COMFORT
Adjustment

 Adjust the mirror so that the glass is
directed correctly in the "day" position.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot".
Manual day/night model
Day/night position

 Pull the lever to change to the "night"
anti-dazzle position.

 Push the lever to change to the normal
"day" position.
Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
Switching on

 With the engine running, engage re-
verse gear.

 Move control A to the right or to the left
to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming

 With the engine running, engage
reverse gear.

 Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. Switching off


Exit reverse gear and wait ten seconds.
or


Return control A to the central position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off. Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.

3
!
63
COMFORT
Adjustment

 Adjust the mirror so that the glass is
directed correctly in the "day" position.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot".
Manual day/night model
Day/night position

 Pull the lever to change to the "night"
anti-dazzle position.

 Push the lever to change to the normal
"day" position.
Automatic tilting in reverse gear
System which provides a view of the
ground during parking manoeuvres in
reverse gear.
Switching on

 With the engine running, engage re-
verse gear.

 Move control A to the right or to the left
to select the corresponding mirror.
The glass of the mirror selected tilts
downwards, in accordance with its pro-
gramming.
Programming

 With the engine running, engage
reverse gear.

 Select and adjust the left-hand and
right-hand mirrors in succession.
The adjustment is stored immediately. Switching off


Exit reverse gear and wait ten seconds.
or


Return control A to the central position.
The mirror glass returns to its initial po-
sition.
The mirror glass also returns to its initial
position:
- if the speed exceeds 6 mph (10 km/h),
- if the engine is switched off. Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.

3
!
i
64
COMFORT

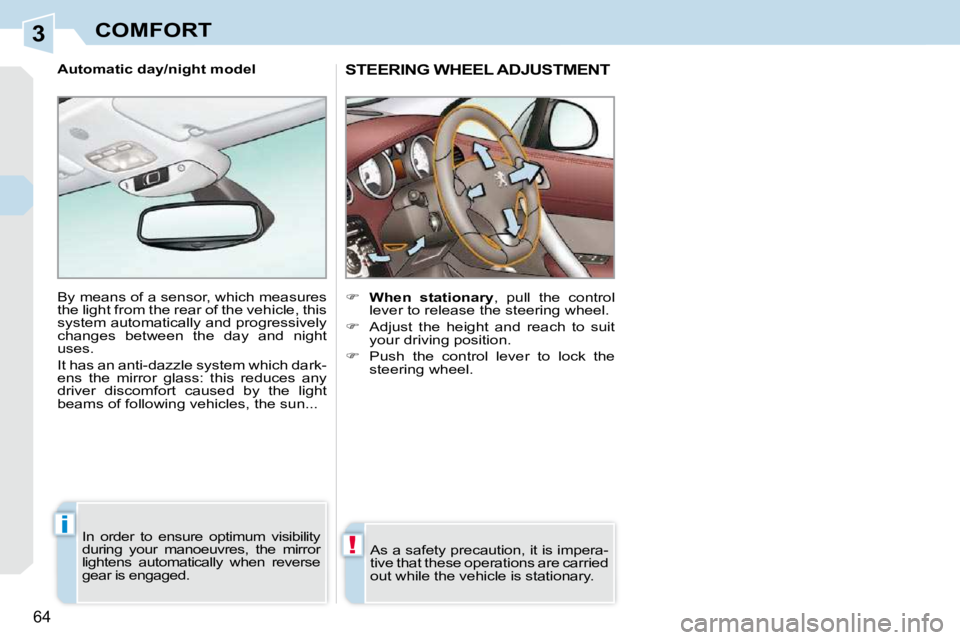

STEERING WHEEL ADJUSTMENT

 When stationary , pull the control
lever to release the steering wheel.

 Adjust the height and reach to suit
your driving position.

 Push the control lever to lock the
steering wheel.
As a safety precaution, it is impera-
tive that these operations are carried
out while the vehicle is stationary.
Automatic day/night model
By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
It has an anti-dazzle system which dark-
ens the mirror glass: this reduces any
driver discomfort caused by the light
beams of following vehicles, the sun...
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
