2010 PEUGEOT 308 CC Owners Manual

6
91
FITTINGS

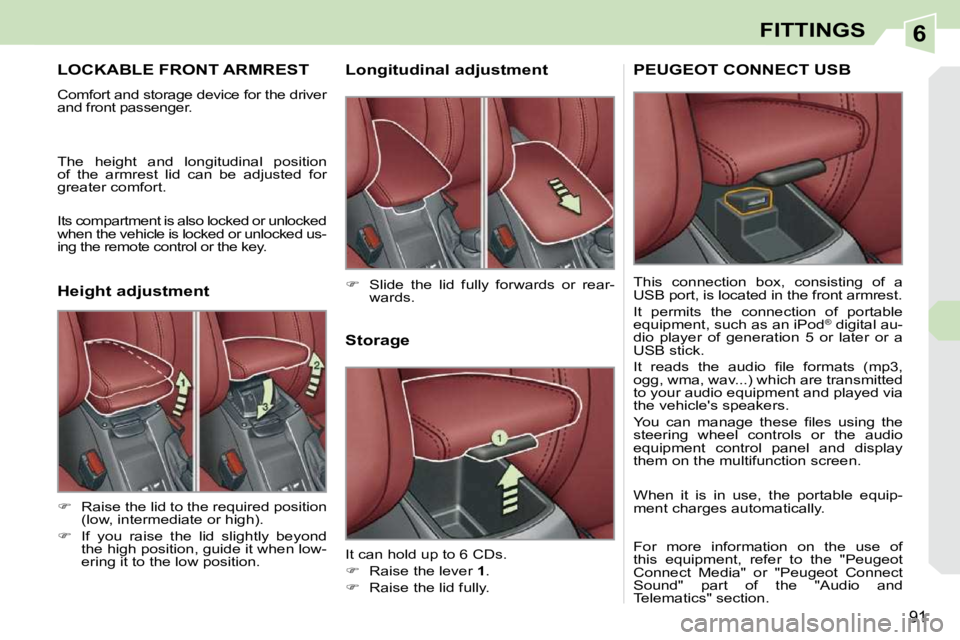

LOCKABLE FRONT ARMREST
Comfort and storage device for the driver
and front passenger.
The height and longitudinal position
of the armrest lid can be adjusted for
greater comfort.
Its compartment is also locked or unlocked
when the vehicle is locked or unlocked us-
ing the remote control or the key. Storage
It can hold up to 6 CDs.

 Raise the lever 1 .

 Raise the lid fully.

 Slide the lid fully forwards or rear-
wards.

 Raise the lid to the required position
(low, intermediate or high).

 If you raise the lid slightly beyond
the high position, guide it when low-
ering it to the low position. Longitudinal adjustment
Height adjustment
PEUGEOT CONNECT USB
This connection box, consisting of a
USB port, is located in the front armrest.
It permits the connection of portable
equipment, such as an iPod ®
digital au-
dio player of generation 5 or later or a
USB stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equip-
ment charges automatically.
For more information on the use of
this equipment, refer to the "Peugeot
Connect Media" or "Peugeot Connect
Sound" part of the "Audio and
Telematics" section.

6
!
92
FITTINGS

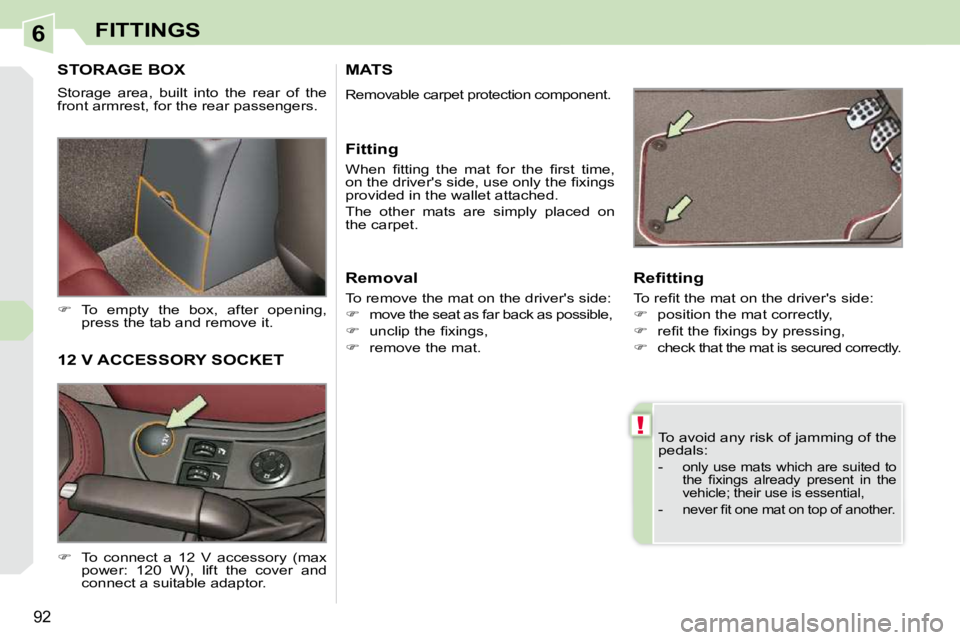

STORAGE BOX
Storage area, built into the rear of the
front armrest, for the rear passengers.

 To empty the box, after opening,
press the tab and remove it.
To avoid any risk of jamming of the
pedals:
-
only use mats which are suited to
the fi xings already present in the
vehicle; their use is essential,
- never fi t one mat on top of another.
MATS
Removable carpet protection component.
Refitting
To refi t the mat on the driver's side:

 position the mat correctly,

 refi t the fi xings by pressing,


check that the mat is secured correctly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side, use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:

 move the seat as far back as possible,

 unclip the fi xings,

 remove the mat.
12 V ACCESSORY SOCKET

 To connect a 12 V accessory (max
power: 120 W), lift the cover and
connect a suitable adaptor.

6
93
FITTINGS

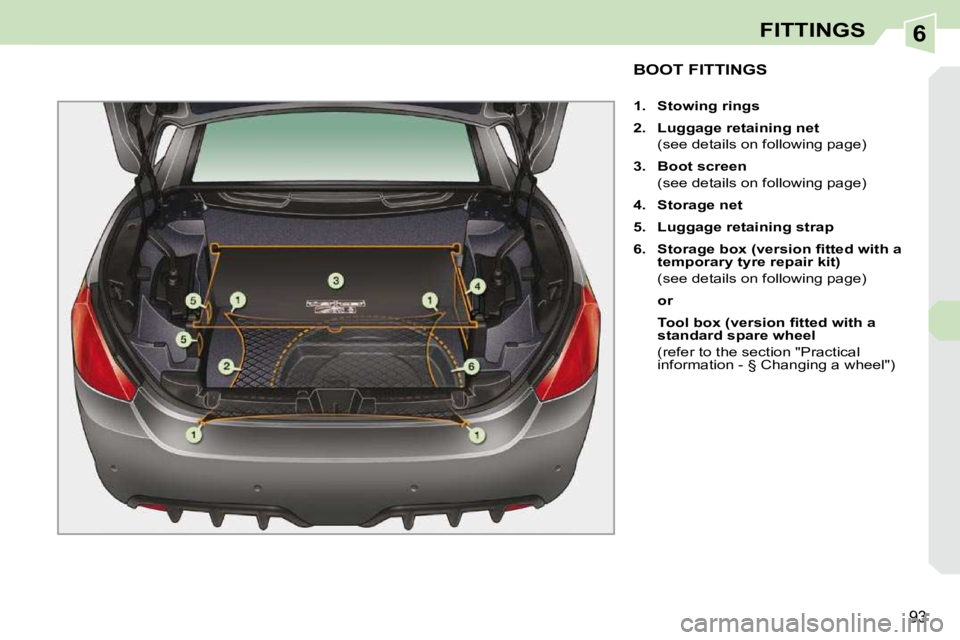

BOOT FITTINGS

1. Stowing rings

2. Luggage retaining net
(see details on following page)

3. Boot screen
(see details on following page)

4. Storage net

5. Luggage retaining strap

6. Storage box (version fi tted with a
temporary tyre repair kit)
(see details on following page)
or
Tool box (version fi tted with a
standard spare wheel
(refer to the section "Practical information - § Changing a wheel")

6
i
94
FITTINGS

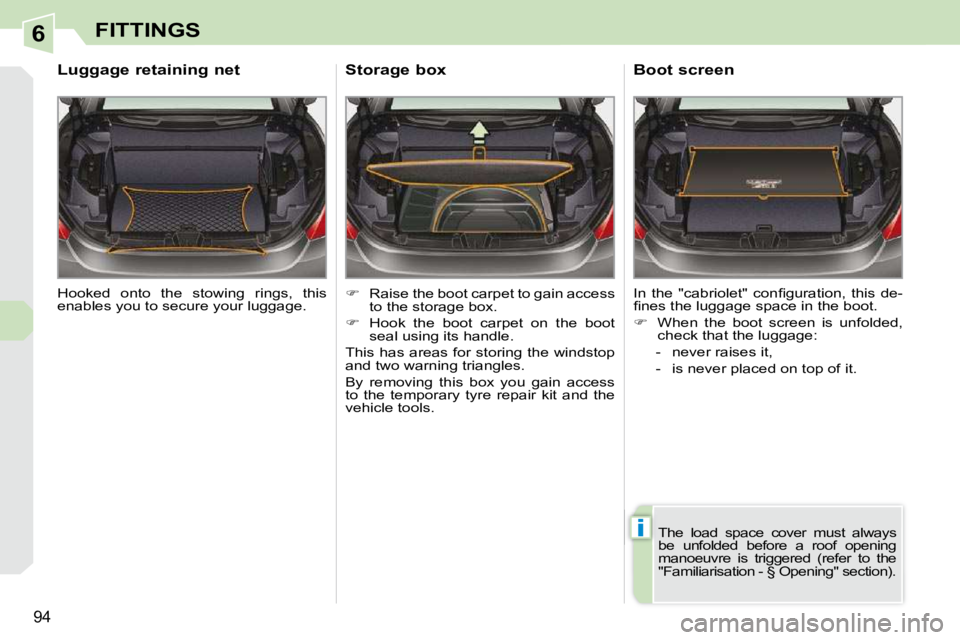

Hooked onto the stowing rings, this
enables you to secure your luggage.
Luggage retaining net

 Raise the boot carpet to gain access
to the storage box.

 Hook the boot carpet on the boot
seal using its handle.
This has areas for storing the windstop
and two warning triangles.
By removing this box you gain access
to the temporary tyre repair kit and the
vehicle tools.
Storage box Boot screen
In the "cabriolet" confi guration, this de-
fi nes the luggage space in the boot.

 When the boot screen is unfolded,
check that the luggage:
- never raises it,
- is never placed on top of it.
The load space cover must always
be unfolded before a roof opening
manoeuvre is triggered (refer to the
"Familiarisation - § Opening" section).

7
i
95
SAFETY

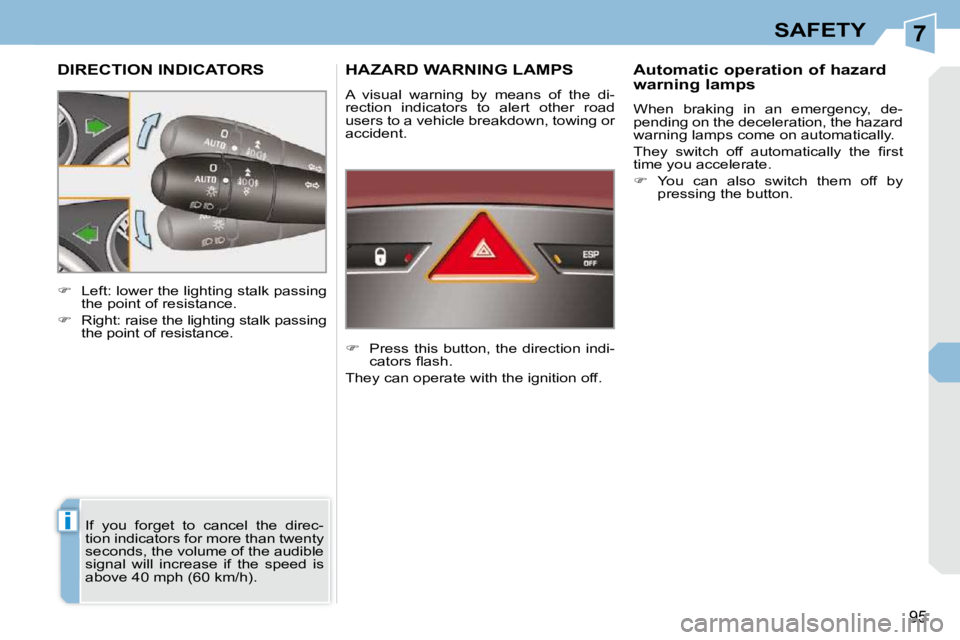

DIRECTION INDICATORS
If you forget to cancel the direc-
tion indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is
above 40 mph (60 km/h).

 Left: lower the lighting stalk passing
the point of resistance.

 Right: raise the lighting stalk passing
the point of resistance.
HAZARD WARNING LAMPS
A visual warning by means of the di-
rection indicators to alert other road
users to a vehicle breakdown, towing or
accident.

 Press this button, the direction indi-
cators fl ash.
They can operate with the ignition off. Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.

 You can also switch them off by
pressing the button.

7
i
96
SAFETY
HORN

 Press one of the spokes of the steer-
ing wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
- overtaking a cyclist or pedestrian
- when approaching an area where there is no visibility.
Audible warning to alert other road users
to an imminent danger.
EMERGENCY OR ASSISTANCE CALL
This system allows you to make an
emergency or assistance call to the
emergency services or to the dedicated
PEUGEOT service.
For more information on the use of this
function, refer to the "Audio and telematics"
section.

7
!
i
i
i
97
SAFETY

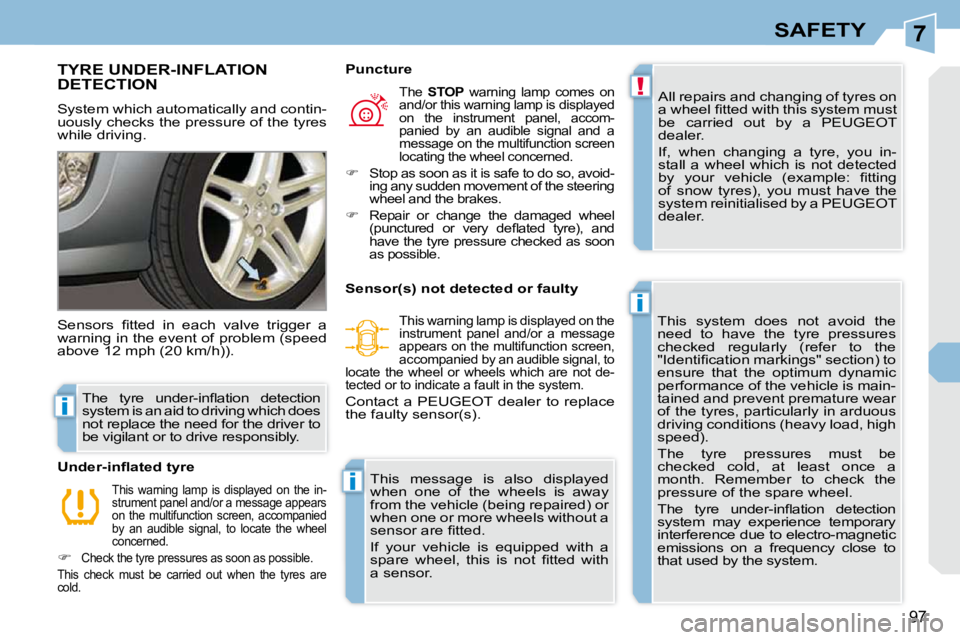

TYRE UNDER-INFLATION DETECTION
System which automatically and contin-
uously checks the pressure of the tyres
while driving. All repairs and changing of tyres on
a wheel fi tted with this system must
be carried out by a PEUGEOT
dealer.
If, when changing a tyre, you in-
stall a wheel which is not detected
by your vehicle (example: fi tting
of snow tyres), you must have the
system reinitialised by a PEUGEOT
dealer.
This system does not avoid the
need to have the tyre pressures
checked regularly (refer to the
"Identifi cation markings" section) to
ensure that the optimum dynamic
performance of the vehicle is main-
tained and prevent premature wear
of the tyres, particularly in arduous
driving conditions (heavy load, high
speed).
The tyre pressures must be
checked cold, at least once a
month. Remember to check the
pressure of the spare wheel.
The tyre under-infl ation detection
system may experience temporary
interference due to electro-magnetic
emissions on a frequency close to
that used by the system.
Sensors fi tted in each valve trigger a
warning in the event of problem (speed
above 12 mph (20 km/h)).
This warning lamp is displayed on the in-
strument panel and/or a message appears
on the multifunction screen, accompanied
by an audible signal, to locate the wheel
concerned.

 Check the tyre pressures as soon as possible.
This check must be carried out when the tyres are
cold.

Under-infl ated tyre
The STOP warning lamp comes on
and/or this warning lamp is displayed
on the instrument panel, accom-
panied by an audible signal and a
message on the multifunction screen
locating the wheel concerned.

 Stop as soon as it is safe to do so, avoid-
ing any sudden movement of the steering
wheel and the brakes.

 Repair or change the damaged wheel
(punctured or very defl ated tyre), and
have the tyre pressure checked as soon
as possible.
Puncture
The tyre under-infl ation detection
system is an aid to driving which does
not replace the need for the driver to
be vigilant or to drive responsibly. Sensor(s) not detected or faulty
This warning lamp is displayed on the
instrument panel and/or a message
appears on the multifunction screen,
accompanied by an audible signal, to
locate the wheel or wheels which are not de-
tected or to indicate a fault in the system.
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
This message is also displayed
when one of the wheels is away
from the vehicle (being repaired) or
when one or more wheels without a
sensor are fi tted.
If your vehicle is equipped with a
spare wheel, this is not fi tted with
a sensor.

7
!
i
!
98
SAFETY
BRAKING ASSISTANCE SYSTEMS
Group of supplementary systems which
help you to obtain optimum braking in
complete safety in emergency situations:
- anti-lock braking system (ABS),
- electronic brake force distribution (EBFD),
- emergency braking assistance (EBA).
Anti-lock braking system
and electronic brake force
distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehicle
when braking, in particular on poor or
slippery surfaces.
When braking in an emergency,
press very fi rmly without releasing
the pressure. When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations.
Operating fault
If this warning lamp comes on,
accompanied by an audible sig-
nal and a message on the mul-
tifunction screen, it indicates a
malfunction of the anti-lock braking sys-
tem which could result in loss of control
of the vehicle when braking.
If this warning lamp comes on,
together with the STOP and ABS
warning lamps, accompanied by
an audible signal and a message
on the multifunction screen, it indicates a
malfunction of the electronic brake force
distribution which could result in loss of
control of the vehicle when braking. Emergency braking assistance
System which, in an emergency, ena-
bles you to obtain the optimum braking
pressure more quickly, thus reducing
the stopping distance.
Activation
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal. Activation
It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase
in braking effi ciency.
When braking in an emergency,
press fi rmly without releasing the
pressure.
Deactivation
If your vehicle is fi tted with the 1.6 litre
THP 200 hp petrol engine, you can deac-
tivate this function; refer to the "Trajectory
control systems - § Deactivation" section.

You must stop as soon as it is safe
to do so.
In either case, contact a PEUGEOT
dealer.
