2010 PEUGEOT 308 CC Owners Manual

5
!
i
86
VISIBILITY

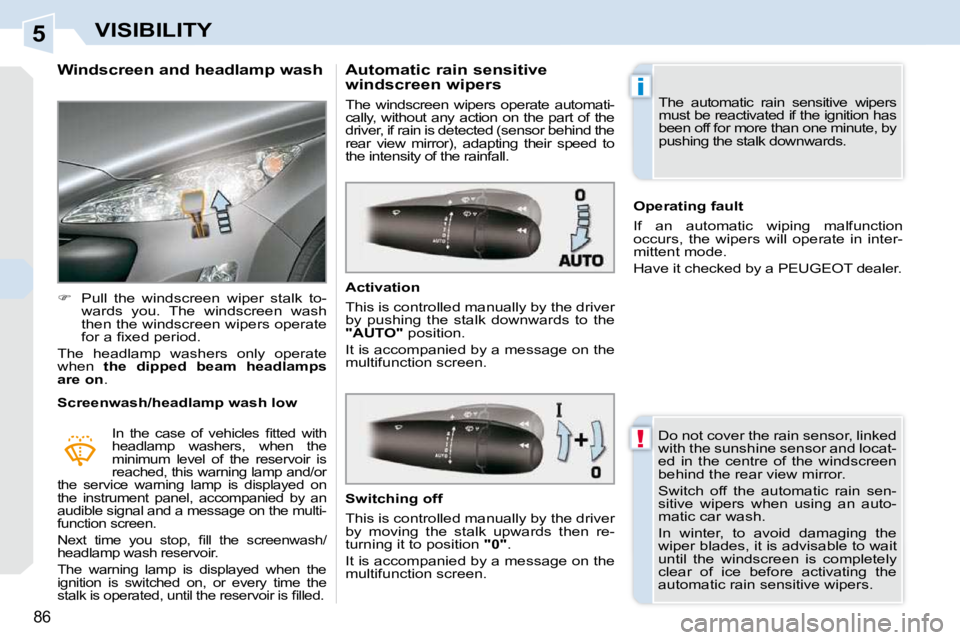

Windscreen and headlamp wash

 Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on .
Screenwash/headlamp wash low
In the case of vehicles fi tted with
headlamp washers, when the
minimum level of the reservoir is
reached, this warning lamp and/or
the service warning lamp is displayed on
the instrument panel, accompanied by an
audible signal and a message on the multi-
function screen.
Next time you stop, fi ll the screenwash/
headlamp wash reservoir.
The warning lamp is displayed when the
ignition is switched on, or every time the
stalk is operated, until the reservoir is fi lled.
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind the
rear view mirror), adapting their speed to
the intensity of the rainfall.
Activation
This is controlled manually by the driver
by pushing the stalk downwards to the

"AUTO" position.
It is accompanied by a message on the
multifunction screen.
Do not cover the rain sensor, linked
with the sunshine sensor and locat-
ed in the centre of the windscreen
behind the rear view mirror.
Switch off the automatic rain sen-
sitive wipers when using an auto-
matic car wash.
In winter, to avoid damaging the
wiper blades, it is advisable to wait
until the windscreen is completely
clear of ice before activating the
automatic rain sensitive wipers. The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute, by
pushing the stalk downwards.
Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0" .
It is accompanied by a message on the
multifunction screen. Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in inter-
mittent mode.
Have it checked by a PEUGEOT dealer.

5
i
i
87
VISIBILITY

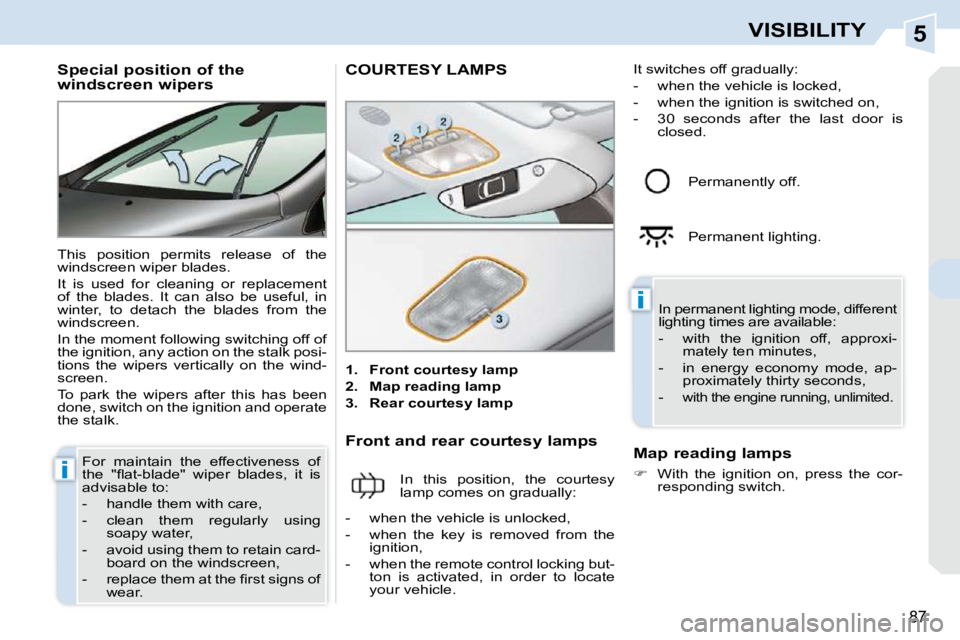

Special position of the
windscreen wipers
This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching off of
the ignition, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. For maintain the effectiveness of
the "fl at-blade" wiper blades, it is
advisable to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen,
- replace them at the fi rst signs of wear. COURTESY LAMPS

1. Front courtesy lamp

2. Map reading lamp

3. Rear courtesy lamp
Front and rear courtesy lamps In this position, the courtesy
lamp comes on gradually: In permanent lighting mode, different
lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when the remote control locking but- ton is activated, in order to locate
your vehicle. Permanently off.
Permanent lighting.
Map reading lamps

 With the ignition on, press the cor-
responding switch.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.

5
i
i
88
VISIBILITY

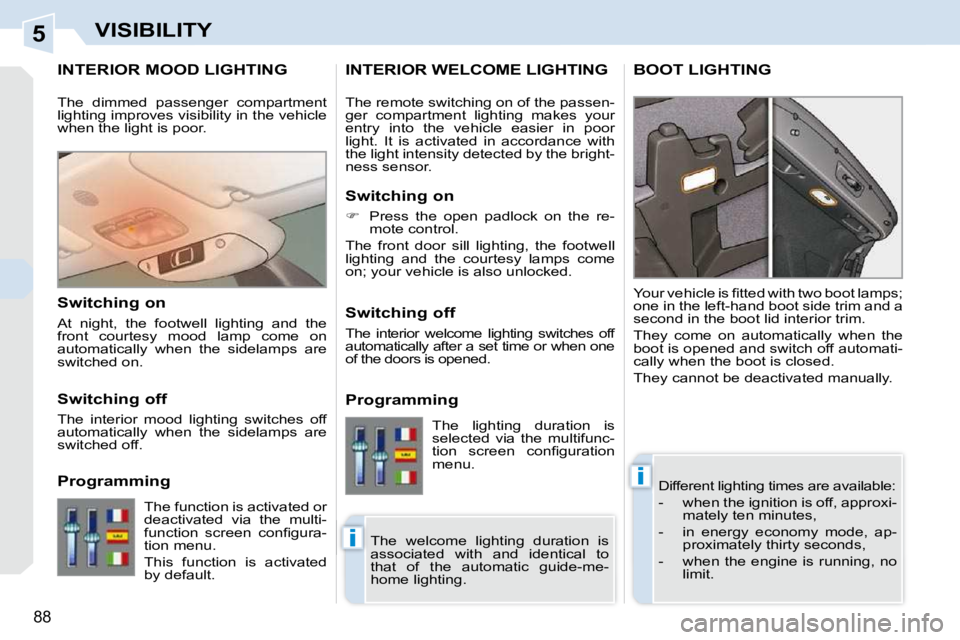

INTERIOR MOOD LIGHTING
Different lighting times are available:
- when the ignition is off, approxi-mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
- when the engine is running, no limit.
Your vehicle is fi tted with two boot lamps;
one in the left-hand boot side trim and a
second in the boot lid interior trim.
They come on automatically when the
boot is opened and switch off automati-
cally when the boot is closed.
They cannot be deactivated manually.
INTERIOR WELCOME LIGHTING BOOT LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
entry into the vehicle easier in poor
light. It is activated in accordance with
the light intensity detected by the bright-
ness sensor.
Switching on

 Press the open padlock on the re-
mote control.
The front door sill lighting, the footwell
lighting and the courtesy lamps come
on; your vehicle is also unlocked.
Switching off
The interior welcome lighting switches off
automatically after a set time or when one
of the doors is opened.
Programming
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
Switching on
At night, the footwell lighting and the
front courtesy mood lamp come on
automatically when the sidelamps are
switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
Programming
The welcome lighting duration is
associated with and identical to
that of the automatic guide-me-
home lighting.
The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
This function is activated
by default. The lighting duration is
selected via the multifunc-
tion screen confi guration
menu.

6
89
FITTINGS

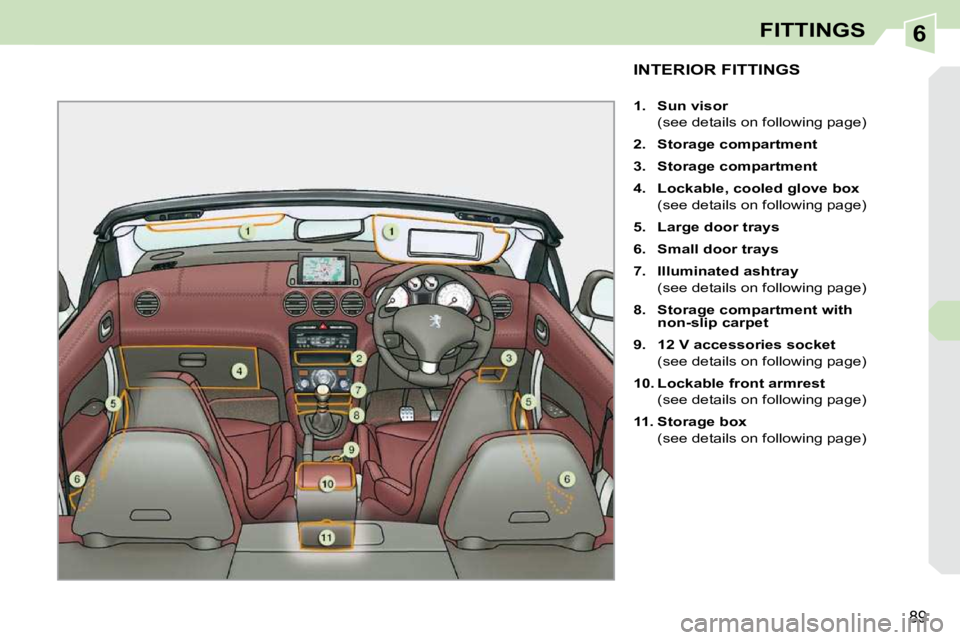

INTERIOR FITTINGS

1. Sun visor
(see details on following page)

2. Storage compartment

3. Storage compartment

4. Lockable, cooled glove box
(see details on following page)

5. Large door trays

6. Small door trays

7. Illuminated ashtray
(see details on following page)

8. Storage compartment with
non-slip carpet

9. 12 V accessories socket
(see details on following page)

10. Lockable front armrest
(see details on following page)

11. Storage box
(see details on following page)

6
90
FITTINGS

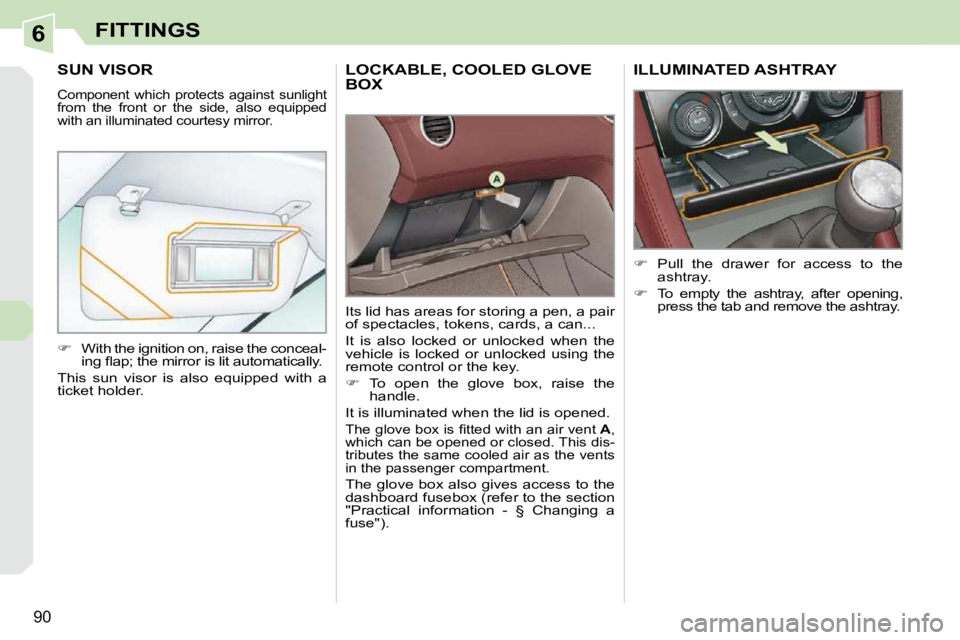

LOCKABLE, COOLED GLOVE BOX
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
It is also locked or unlocked when the
vehicle is locked or unlocked using the
remote control or the key.

 To open the glove box, raise the
handle.
It is illuminated when the lid is opened.
The glove box is fi tted with an air vent A ,
which can be opened or closed. This dis-
tributes the same cooled air as the vents
in the passenger compartment.
The glove box also gives access to the
dashboard fusebox (refer to the section
"Practical information - § Changing a
fuse").
SUN VISOR
Component which protects against sunlight from the front or the side, also equipped
with an illuminated courtesy mirror.

 With the ignition on, raise the conceal-
ing fl ap; the mirror is lit automatically.
This sun visor is also equipped with a
ticket holder.
ILLUMINATED ASHTRAY

 Pull the drawer for access to the
ashtray.

 To empty the ashtray, after opening,
press the tab and remove the ashtray.

6
91
FITTINGS

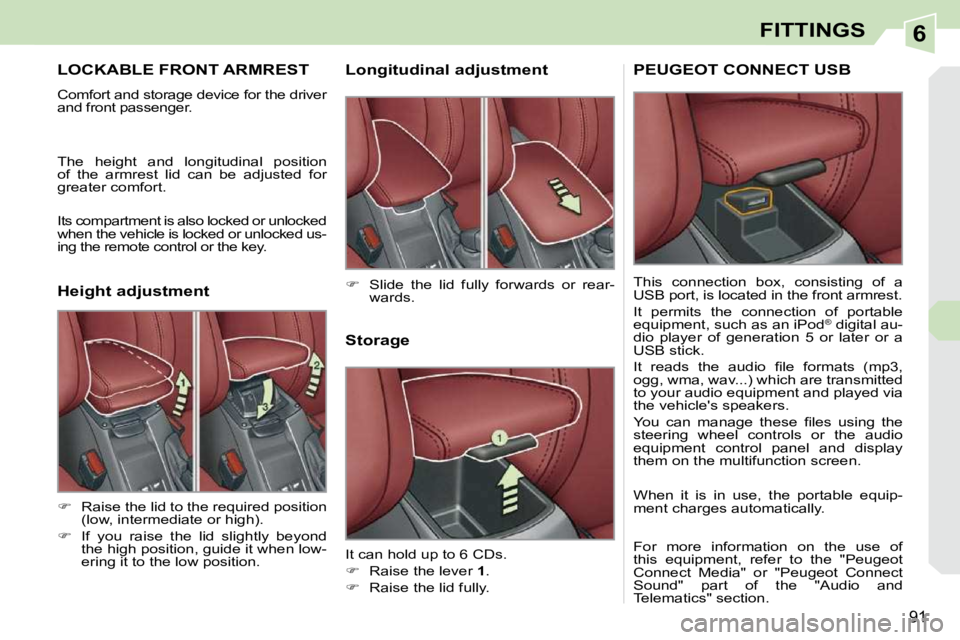

LOCKABLE FRONT ARMREST
Comfort and storage device for the driver
and front passenger.
The height and longitudinal position
of the armrest lid can be adjusted for
greater comfort.
Its compartment is also locked or unlocked
when the vehicle is locked or unlocked us-
ing the remote control or the key. Storage
It can hold up to 6 CDs.

 Raise the lever 1 .

 Raise the lid fully.

 Slide the lid fully forwards or rear-
wards.

 Raise the lid to the required position
(low, intermediate or high).

 If you raise the lid slightly beyond
the high position, guide it when low-
ering it to the low position. Longitudinal adjustment
Height adjustment
PEUGEOT CONNECT USB
This connection box, consisting of a
USB port, is located in the front armrest.
It permits the connection of portable
equipment, such as an iPod ®
digital au-
dio player of generation 5 or later or a
USB stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When it is in use, the portable equip-
ment charges automatically.
For more information on the use of
this equipment, refer to the "Peugeot
Connect Media" or "Peugeot Connect
Sound" part of the "Audio and
Telematics" section.

6
!
92
FITTINGS

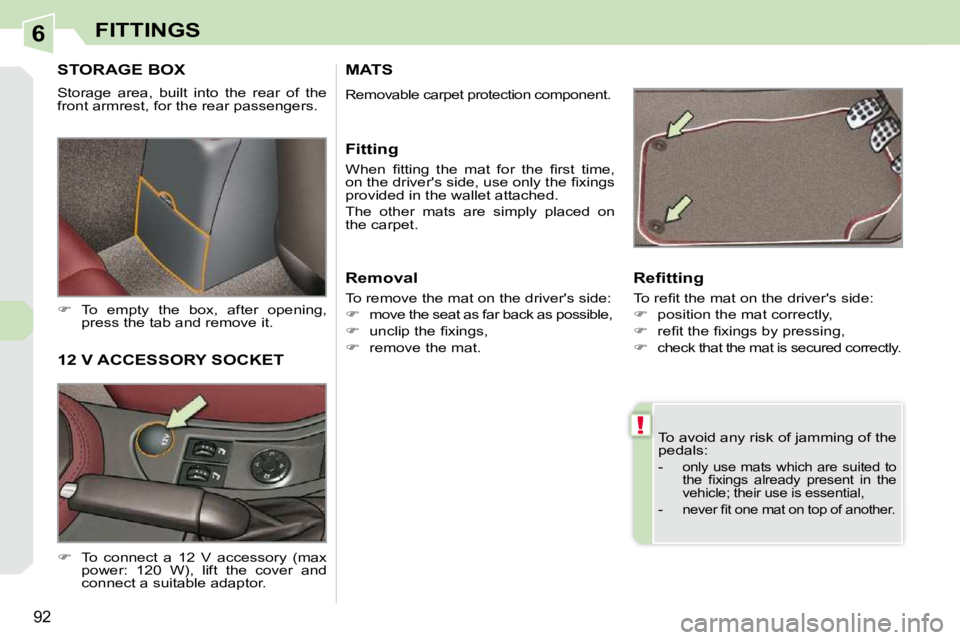

STORAGE BOX
Storage area, built into the rear of the
front armrest, for the rear passengers.

 To empty the box, after opening,
press the tab and remove it.
To avoid any risk of jamming of the
pedals:
-
only use mats which are suited to
the fi xings already present in the
vehicle; their use is essential,
- never fi t one mat on top of another.
MATS
Removable carpet protection component.
Refitting
To refi t the mat on the driver's side:

 position the mat correctly,

 refi t the fi xings by pressing,


check that the mat is secured correctly.
Fitting
When fi tting the mat for the fi rst time,
on the driver's side, use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:

 move the seat as far back as possible,

 unclip the fi xings,

 remove the mat.
12 V ACCESSORY SOCKET

 To connect a 12 V accessory (max
power: 120 W), lift the cover and
connect a suitable adaptor.

6
90
FITTINGS
LOCKABLE, COOLED GLOVE BOX
Its lid has areas for storing a pen, a pair
of spectacles, tokens, cards, a can...
It is also locked or unlocked when the
vehicle is locked or unlocked using the
remote control or the key.

 To open the glove box, raise the
handle.
It is illuminated when the lid is opened.
The glove box is fi tted with an air vent A ,
which can be opened or closed. This dis-
tributes the same cooled air as the vents
in the passenger compartment.
The glove box also gives access to the
dashboard fusebox (refer to the section
"Practical information - § Changing a
fuse").
SUN VISOR
Component which protects against sunlight from the front or the side, also equipped
with an illuminated courtesy mirror.

 With the ignition on, raise the conceal-
ing fl ap; the mirror is lit automatically.
This sun visor is also equipped with a
ticket holder.
ILLUMINATED ASHTRAY

 Pull the drawer for access to the
ashtray.

 To empty the ashtray, after opening,
press the tab and remove the ashtray.
