2010 Lexus ES350 Setup

SECTION 11
SETUP
293
SETUP
Setup

General settings 294
(Used for language selection and the on/off settings of
operation sounds and automatic screen change.)

Clock settings 298
(Used for changing time zones and the on/off settings of
daylight saving time.)

Voice settings 300
(Voice guidance can be set.)

Navigation settings 303
(“Home” and “Preset Destinations” can be set and edited.)

Detailed navigation settings 303
(Average cruising speed, displayed screen contents,
and POI icon categories can be set.)

Telephone settings 312
(Bluetooth phones can be registered.)

Audio settings 351
(Settings are available for portable audio devices and
Bluetooth audio devices players.)

Vehicle settings 358
(Vehicle information can be set.)

Other settings 366
(Used for changing settings for Lexus Insider and
XM Sports and Stocks.)

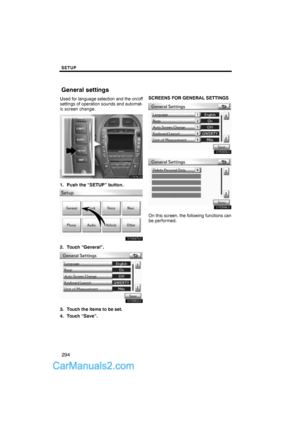

SETUP
294
Used for language selection and the on/off
settings of operation sounds and automat-
ic screen change.
1. Push the “SETUP” button.
2. Touch “General”.
3. Touch the items to be set.
4. Touch “Save”.SCREENS FOR GENERAL SETTINGS
On this screen, the following functions can
be performed.
General settings

SETUP
295
No.Function
1You can change the language.
(See “
Selecting a language” on
page 295.)
2“On” or “Off” can be selected to
sound beeps.
3
“On” or “Off” can be selected for
automatic screen changes from
the audio/air conditioner screen to
the map. When “On” is selected,
the screen will automatically re-
turn to the map from the audio/air
conditioner screen after 20 sec-
onds.
4Keyboard layout can be changed.
(See “
Selecting a keyboard lay-
out” on page 296.)
5Distance unit can be changed.
(See “
Unit of measurement” on
page 297.)
6The personal data can be deleted.
(See “
Delete personal data” on
page 297.)

Selecting a language
You can change the language.
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
3. Touch “Language”.
4. Touch the desired button.
The previous screen will be displayed.
5. Touch “Save”.

SETUP
296

Selecting a keyboard layout
Keyboard layout can be changed.
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
3. Touch “Keyboard Layout”.
4. Touch “ABC” or “QWERTY” of
“Keyboard Layout” to choose the key-
board layout.
5. Touch “Save”.LAYOUT TYPE
“ABC” type
“QWERTY” type

SETUP
297

Unit of measurement
Distance unit can be changed.
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
3. Touch “Unit of Measurement”.
4. Touch “Kilometer” or “Mile”.
5. Touch “Save”.
INFORMATION
This function is available only in En-
glish or Spanish. To switch lan-
guage, see “
Selecting a language”
on page 295.

Delete personal data
The following personal data can be de-
leted or returned to their default settings:
Maintenance conditions
Maintenance information “off” setting
Address book
Areas to avoid
Previous points
Route guidance
Route trace
Phonebook data
Call history data
Speed dial data
Voice tag data
Bluetooth phone data
Volume setting
Details setting
This function is available only when the ve-
hicle is not moving.

SETUP
298
1. Push the “SETUP” button.
2. Touch “General” on the “Setup”
screen.
3. Touch “Delete Personal Data”.
4. Touch “Delete”.
5. Touch “Yes”.Used for changing time zones and the on/
off settings of daylight saving time.
1. Push the “SETUP” button.
2. Touch “Clock”.
3. Touch the items to be set.
4. Touch “Save”.
Clock settings

SETUP
299
SCREEN FOR CLOCK SETTINGS
On this screen, the following functions can
be performed.
No.
Function
1Time zone can be changed. (See
“
Time zone” on page 299.)
2“On” or “Off” can be selected for
daylight savings time.

Time zone
A time zone can be selected and GMT can
be set.
1. Push the “SETUP” button.
2. Touch “Clock” on the “Setup”
screen.
3. Touch “Time Zone”.
4. Touch the desired time zone.
If you touch “Other”, adjust the zone
manually.
5. Touch “OK”.

SETUP
300
Voice guidance can be set.
1. Push the “SETUP” button.
2. Touch “Voice”.
3. Touch the items to be set.
4. Touch “Save”.SCREEN FOR VOICE SETTINGS
U10030LS
On this screen, the following functions can
be performed.
Voice settings
