16GETTING TO KNOW YOUR CAR
Go to a Lancia Dealership as soon as possi-
ble if warning light Ueither does not light
up when the key is turned to MAR or if while
travelling the warning light comes on either steady
or blinking (on some versions along with a message
on the display). The operation of the warning light
Umay be checked by the traffic police using spe-
cific devices. Follow the laws in force in the coun-
try where you are driving.
Advanced ESP system (amber)
This warning light comes on when the ignition
key is turned to MAR, but it should go off after
a few seconds. If the warning light does not go off
or stays on together with the LED on the ASR button when
travelling, contact a Lancia Dealership. On certain versions
a dedicated message is displayed. If the warning light
flashes when driving, this indicates that the Advanced ESP
system has cut in.
á
Hill holder system failure (amber)
Theáwarning light turns on to indicate a Hill
holder system failure. In this case, contact a
Lancia Dealership as soon as possible. Alter-
natively, on some versions the *symbol is
lit up on the display.
The display will show a dedicated message.
á
*
To switch the warning light off, carry out the following
initialization procedure:
❍turn the ignition key to the ON position;
❍turn the steering wheel fully both clockwise and anti-
clockwise (to move from the position with the wheels
straight);
❍turn the ignition key to the OFF position and then turn
it back ON.
If the
áwarning light does not go out after a few
seconds, seek assistance from a Lancia Dealership. this indicates a malfunction in the supply/ignition system that
could cause excessive exhaust emissions, a possible loss of
performance, poor driveability and high fuel consumption.
On certain versions a dedicated message is displayed. Un-
der these conditions, the vehicle can continue travelling at
moderate speed without demanding excessive effort from
the engine. Prolonged use of the car with the warning light
on may cause damage. Go to a Lancia Dealership as soon
as possible.
The warning light goes out after the fault is cleared, and
the indication is stored in the system.
Petrol engines only
If the warning light is flashing, this indicates that the cat-
alytic converter may be damaged.
If the light flashes, release the accelerator pedal to lower
the speed of the engine until the warning light stops flash-
ing; continue the journey at moderate speed, trying to avoid
driving conditions that may cause further flashing and con-
tact a Lancia Dealership as soon as possible.
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 16

GETTING TO KNOW YOUR CAR17
1

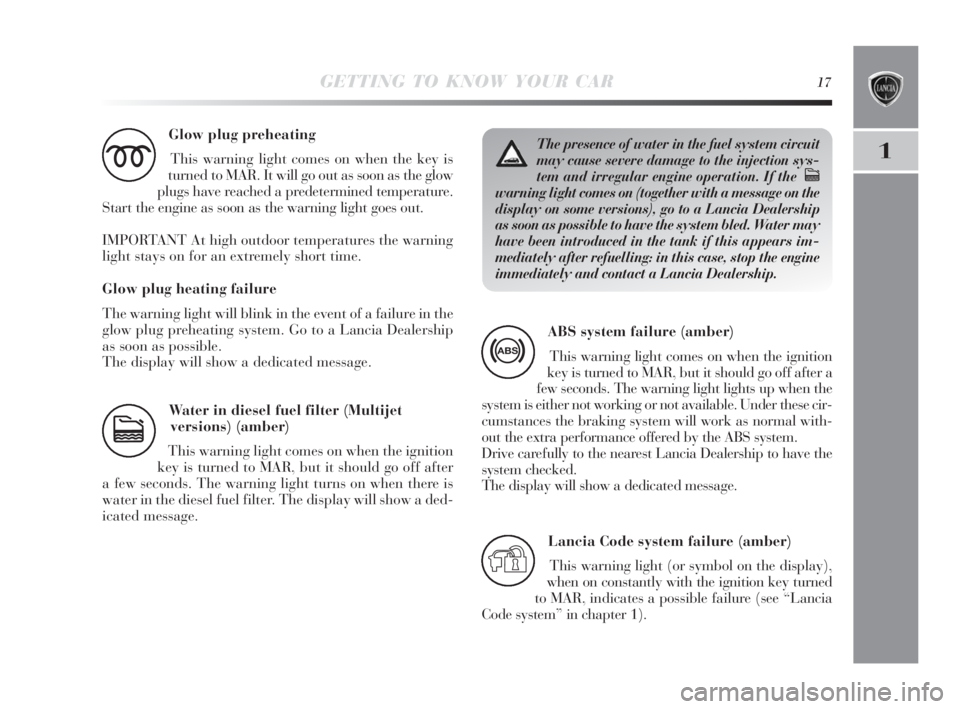

Glow plug preheating
This warning light comes on when the key is
turned to MAR. It will go out as soon as the glow
plugs have reached a predetermined temperature.
Start the engine as soon as the warning light goes out.
IMPORTANT At high outdoor temperatures the warning
light stays on for an extremely short time.
Glow plug heating failure
The warning light will blink in the event of a failure in the
glow plug preheating system. Go to a Lancia Dealership
as soon as possible.
The display will show a dedicated message.
m
Water in diesel fuel filter (Multijet
versions) (amber)
This warning light comes on when the ignition
key is turned to MAR, but it should go off after
a few seconds. The warning light turns on when there is
water in the diesel fuel filter. The display will show a ded-
icated message.
c
The presence of water in the fuel system circuit
may cause severe damage to the injection sys-
tem and irregular engine operation. If the
c
warning light comes on (together with a message on the
display on some versions), go to a Lancia Dealership
as soon as possible to have the system bled. Water may
have been introduced in the tank if this appears im-
mediately after refuelling: in this case, stop the engine
immediately and contact a Lancia Dealership.
ABS system failure (amber)
This warning light comes on when the ignition
key is turned to MAR, but it should go off after a
few seconds. The warning light lights up when the
system is either not working or not available. Under these cir-
cumstances the braking system will work as normal with-
out the extra performance offered by the ABS system.
Drive carefully to the nearest Lancia Dealership to have the
system checked.
The display will show a dedicated message.
>
Lancia Code system failure (amber)
This warning light (or symbol on the display),
when on constantly with the ignition key turned
to MAR, indicates a possible failure (see “Lancia
Code system” in chapter 1).
Y
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 17

18GETTING TO KNOW YOUR CAR
If the Ywarning light (or symbol in the display) is blinking,
this means that the vehicle is not protected by the engine in-
hibitor device (see “Lancia Code system” in chapter 1).
Contact a Lancia Dealership to have all the keys stored.
Alarm failure
(for versions/markets, where provided)
A fault with the alarm system is signalled by this warn-
ing light (or symbol in the display) coming on. Contact a
Lancia Dealership as soon as possible.
The display will show a dedicated message.
Break-in attempt
(for versions/markets, where provided)
This warning light (or symbol on the display) comes on
when a break-in attempt is detected. Contact a Lancia
Dealership as soon as possible.
The display will show a dedicated message.The warning light (amber), or symbol on the display (red),
lights up when the inflation pressure of one or more tyres
falls below a preset level. In this way the T.P.M.S. system warns
the driver that one or more tyres may be dangerously flat and
liable to puncture (see “ T.P.M.S. system” in this chapter).
IMPORTANT Do not continue driving with one or more
tyres flat as vehicle driveability may be compromised. Stop
the car, avoiding harsh braking or steering manoeuvres. Re-
place the wheel immediately with the small spare wheel (for
versions/markets, where provided) or carry out a repair us-
ing the dedicated kit (see the paragraph on “Replacing a
wheel” in chapter 4) and contact a Lancia Dealership as
soon as possible.
Check tyre pressure
This warning light (for versions/markets, where provid-
ed) comes on when the ignition key is turned to MAR, but
it should go off after a few seconds.
The warning light (or symbol in the display) lights up to
indicate that a tyre is flat (see “T.P.M.S. system ” in this
chapter).
Should two or more tyres be flat, the display will show the
indications corresponding to each tyre in sequence. Restore
the correct inflation pressure values as soon as possible (see
paragraph “Cold inflation pressures” in chapter “6”). Insufficient tyre inflation pressure
(for versions/markets, where provided)
This warning light (or symbol on the display)
comes on when the ignition key is turned to MAR,
but it should go off after a few seconds.
n
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 18

GETTING TO KNOW YOUR CAR19
1
Particularly strong radio frequency interfer-
ence may cause the T.P.M.S. system to func-
tion incorrectly. This condition is indicated
to the driver by a message (for versions/markets,
where provided).
The warning message will go off automatically as
soon as the radio-frequency noise ceases to disturb
the system.
External lighting failure (amber)
This warning light (or symbol on the display)
comes on when a failure is detected in any of
the following lights:
❍sidelights;
❍brake lights (for versions/markets, where provided);
❍rear fog lights;
❍direction indicators;
❍number plate lights;
❍daylight lights.
W
Rear fog lights (amber)
The warning light comes on when the rear fog
lights are turned on.
4
Front fog lights (green)
The warning light comes on when the front fog
lights are turned on.
5
Direction indicators
(green - intermittent)
The warning lights turn on when the direction
indicator control lever is moved downwards,
upwards or when the hazard warning light
button is pressed.
F
D
Tyre pressure unsuitable for speed
This warning light (for versions/markets, where provid-
ed) comes on when the ignition key is turned to MAR, but
it should go off after a few seconds.
Should it be necessary to travel at a speed higher than 160
km/h, inflate the tyres to the pressure value specified in
paragraph “Inflation pressures” in chapter “6”.
If the T.P.M.S. system (for versions/markets, where pro-
vided) detects that the inflation pressure of one or more
tyres is unsuitable for the speed being maintained, it lights
up the warning light or symbol (together with a message
shown on the display) (see paragraph “Insufficient tyre
inflation pressure” in this chapter). The warning light
remains on until the vehicle speed is reduced to below a
certain threshold (see paragraph “T.P.M.S. system” in this
chapter).
IMPORTANT reduce speed immediately if this occurs.
Tyre overheating could irreparably compromise tyre per-
formance and life, and in extreme cases may even cause
the tyre to explode.The fault relating to these lights may be caused by: one or
more burnt lamps, a blown protection fuse or interruption
of the electrical connection.
The display will show a dedicated message.
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 19

20GETTING TO KNOW YOUR CAR
Daylight lights/dipped beam headlights
(green)
This warning light comes on when the daytime
lights or dipped beam headlights are turned on.
Follow me home
This warning light comes on when this device is activat-
ed (see “Follow me home” in chapter “1”).
The display will show a dedicated message.
3
Main beam headlights (blue)
This warning light comes on when the main
beam headlights are turned on.
1
Cruise control system
(green)
(for versions/markets, where provided)
This warning light comes on when the ignition
key is turned to MAR, but it should go off after a few sec-
onds. The warning light is lit up on the display by rotat-
ing the Cruise Control selector wheel to ON.
The display will show a dedicated message.
Ü
DISPLAY
The car can be equipped with a multifunctional/ recon-
figurable multifunctional display which, according to the
settings carried out, will show useful information when
driving.
MULTIFUNCTIONAL DISPLAY “STANDARD”
SCREEN fig. 4
The standard screen shows the following information:
A. Date
B. Possible activation of Dualdrive electric power steering
C. Sport driving mode indication (for versions/markets,
where provided)
D. Time
E. Odometer (distance travelled in kilometres/miles)
F. Possible presence of ice on road
G. Outside temperature
H. Scheduled servicing deadline
I. Headlight alignment position (with dipped beam head-
lights on only).
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 20

GETTING TO KNOW YOUR CAR21
1
On some versions the display shows the turbine pressure
fig. 5 when the “engine info ” menu item is selected and
the key is turned to MAR.
fig. 4L0E1000g
fig. 5L0E0004mfig. 6L0E1001g
RECONFIGURABLE MULTIFUNCTIONAL
DISPLAY “STANDARD” SCREEN fig. 6
The standard screen shows the following information:
A. Time
B. Date
C. Sport driving mode indication (for versions/markets,
where provided)
D. Odometer (distance travelled in kilometres/miles)
E. Car status (e.g. doors open, ice on road, etc.)
F. Headlight alignment position (with dipped beam head-
lights on only).
G. Outside temperature
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 21

22GETTING TO KNOW YOUR CAR
fig. 7L0E0005m
CONTROL BUTTONS Fig. 7
Õ: to scroll up through the displayed menu and the re-
lated options or to increase the displayed value.
SET: press briefly to access the menu and/or go to next
screen or confirm the required menu option. Hold down
to go back to the standard screen.
Ô: to scroll down through the displayed menu and the re-
lated options or to decrease the value displayed.IMPORTANT Buttons
ÕandÔactivate different func-
tions according to the following situations:
– within the menu, they allow you to scroll up and down
through the options;
- when carrying out settings they allow you to increase
or decrease values.
IMPORTANT When one of the front doors is opened, the
display will turn on and show the clock and km or mi cov-
ered for a few seconds.
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 22

GETTING TO KNOW YOUR CAR23
1
SETUP MENU
The menu comprises a series of items which can be se-
lected using the
ÕandÔbuttons to access the different
selection and setting operations (set-up) given in the fol-
lowing paragraphs. Some items also have a sub-menu. The
Set-up Menu is activated by briefly pressing the SET but-
ton.
The menu includes the following items:
– MENU
– LIGHTING
– SPEED BEEP
– HEADLIGHT SENSOR (for versions/markets, where
provided)
– CORNERING LIGHTS (for versions/markets, where
provided)
– TRIP B ACTIVATION/INFO
– TIME SETTING
– DATE SETTING– FIRST PAGE (for versions/markets, where provided)
– SEE RADIO
– AUTOCLOSE
– UNITS OF MEASUREMENT
– LANGUAGE
– BUZZER VOLUME
– BUTTON VOLUME
– SEAT BELT BEEP/BUZZ.
– SERVICE
– AIR BAG/PASSENGER BAG
– DAYTIME LIGHTS
– EXIT MENU
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 23
