2010 Lancia Delta Owner handbook (in English)

136GETTING TO KNOW YOUR CAR
If the obstacle is located at the side, it is detected at dis-
tances of less than 0.6 m.
OPERATION WITH TRAILER
The operation of the sensors is automatically deactivated
when the trailer electric plug is inserted in the car tow hook
socket. The sensors are automatically enabled again when
the trailer cable plug is removed.
IMPORTANT If you wish to leave the tow hook fitted when
there is no trailer, it is advisable to go to a Lancia Deal-
ership to have the system updated because the tow hook
could be detected as an obstacle by the centre sensors.
FAILURE INDICATIONS
Either symbol
S(if the Magic Parking system is fitted),
or symbol
t(if the Magic Parking is not fitted) will light
up on the display in combination with a message or with
instrument panel warning light
èif parking sensor faults
are detected.
GENERAL WARNINGS
During parking manoeuvres, pay the utmost attention to
any obstacles that could be located above or below the sen-
sors.
Under certain circumstances objects located in front of
or behind the vehicle may not be detected and could there-
fore cause damage to the vehicle or be damaged them-
selves.The following conditions may influence the performance
of the parking sensor system:
❍Reduced sensor sensitivity and reduced parking aid
system performance could be caused by the presence of
the following on the surface of the sensors: ice, snow, mud,
multiple layers of paint.
❍The sensors detect objects that are not there (“echo dis-
turbance”) caused by mechanical disturbances, for ex-
ample: washing the car, rain (extreme wind conditions),
hail.
❍The signals sent by the sensors can also be altered by
the presence of ultrasound devices (e.g. pneumatic brake
systems or pneumatic drills) near the car.
❍The performance of the parking assistance system may
also be affected by the position of the sensors. For ex-
ample, if the geometry is altered (as a result of wear of the
shock absorbers, suspension) or the tyres are changed, the
vehicle is too heavily laden, specific tuning is carried out
that lowers the vehicle.
❍The detection of obstacles at the top part of the vehi-
cle may not be guaranteed because the system detects ob-
stacles that could cause an impact with the vehicle in the
bottom part.
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 136

GETTING TO KNOW YOUR CAR137
1
ACCESSORIES PURCHASED
BY THE OWNER
If, after buying the car, you decide to install electrical ac-
cessories that require a permanent electrical supply (alarm,
satellite antitheft system, etc.) or accessories that in any
case burden the electric supply, contact a Lancia Dealer-
ship. Their qualified personnel, besides being able to sug-
gest the most suitable devices from the Lineaccessori Lan-
cia, will also evaluate the overall electric uptake, check-
ing whether the car’s electrical system is able to withstand
the required load, or whether a more powerful battery
needs to be installed.
Fiat Auto S.p.A. authorises the installation of transceiv-
ing devices provided that they are installed according to
rules of good engineering practice in accordance with the
manufacturer’s instructions and at a specialised centre.
IMPORTANT Traffic police may not allow the car on the
road if devices have been fitted which modify the features
of the car. This may also invalidate the warranty if faults
occur that are either directly or indirectly related to the
installation of these devices. Fiat Group Automobiles S.p.A.
shall not be liable for damage caused by the installation
of accessories either not supplied or not recommended
by Fiat Group Automobiles S.p.A. and/or not installed in
compliance with the provided instructions. INSTALLING ELECTRICAL/ELECTRONIC
DEVICES
Electrical and electronic devices installed after buying the
car, and also in the event of after-market service, must car-
ry the following label:
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 137

138GETTING TO KNOW YOUR CAR
RADIO TRANSMITTERS AND CELLULAR
PHONES
Radio sets (e.g.: e-tacs mobile phones, HAM radio systems
and the like) should not be used inside the car unless a
separate aerial is mounted on the roof.
IMPORTANT The use of such devices inside the passenger
compartment (without a separate aerial), may cause the
electrical systems serving the car to malfunction. This could
compromise safety in addition to constituting a potential
hazard for passengers.
In addition, the transmission and reception of these de-
vices may be affected by the shielding effect of the car
body.
With regards to the use of EC-approved mobile phones
(GSM, GPRS, UMTS), adhere strictly to the instructions
for use provided by the mobile phone manufacturer.AT THE FILLING STATION
PETROL ENGINES
Use unleaded petrol only, with an octane number (R.O.N.)
no lower than 95.
IMPORTANT An inefficient catalytic converter leads to
harmful exhaust emissions, thus contributing to air pol-
lution.
IMPORTANT Never use leaded petrol, even in small
amounts or in an emergency, as this would damage the
catalytic converter beyond repair.
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 138

GETTING TO KNOW YOUR CAR139
1

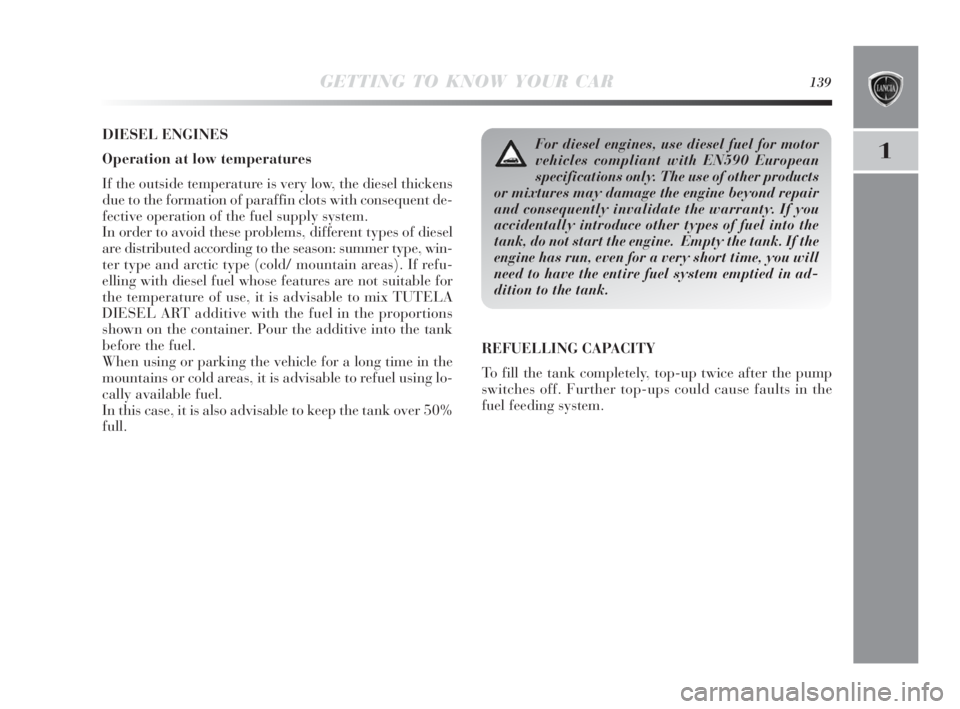

DIESEL ENGINES
Operation at low temperatures
If the outside temperature is very low, the diesel thickens
due to the formation of paraffin clots with consequent de-
fective operation of the fuel supply system.
In order to avoid these problems, different types of diesel
are distributed according to the season: summer type, win-
ter type and arctic type (cold/ mountain areas). If refu-
elling with diesel fuel whose features are not suitable for
the temperature of use, it is advisable to mix TUTELA
DIESEL ART additive with the fuel in the proportions
shown on the container. Pour the additive into the tank
before the fuel.
When using or parking the vehicle for a long time in the
mountains or cold areas, it is advisable to refuel using lo-
cally available fuel.
In this case, it is also advisable to keep the tank over 50%
full.REFUELLING CAPACITY
To fill the tank completely, top-up twice after the pump
switches off. Further top-ups could cause faults in the
fuel feeding system.For diesel engines, use diesel fuel for motor
vehicles compliant with EN590 European
specifications only. The use of other products
or mixtures may damage the engine beyond repair
and consequently invalidate the warranty. If you
accidentally introduce other types of fuel into the
tank, do not start the engine. Empty the tank. If the
engine has run, even for a very short time, you will
need to have the entire fuel system emptied in ad-
dition to the tank.
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 139

140GETTING TO KNOW YOUR CAR
FUEL FILLER CAP fig. 83
To refuel, press flap A to release it and access the fuel tank
cap. The flap is locked with the central locking on.
Undo cap B which has a device C retaining it to the flap so
it cannot be lost. The hermetic seal may cause a slight in-
crease in pressure in the tank. A suction noise when you
release the cap is therefore entirely normal.
When refuelling, fasten the cap to the device inside the flap
as shown in the diagram.
fig. 83L0E0060m
Do not place naked flames or lit cigarettes
near to the fuel filler: fire risk. Keep your face
away from the fuel filler to avoid breathing
in harmful vapours.
EMERGENCY OPENING OF THE FLAP
In an emergency it is possible to open the flap by pulling
the cord A-fig. 84.
To get to the cord, remove the cover.
fig. 84L0E0184m
A
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 140

GETTING TO KNOW YOUR CAR141
1
PROTECTING THE ENVIRONMENT
The devices for reducing petrol engine emissions are the
following:
❍three-way catalytic converter;
❍Lambda sensors;
❍fuel evaporation control system.
In addition, do not let the engine run, even for a test, with
one or more spark plugs disconnected.
The devices for reducing diesel fuel engine emissions are
the following:
❍oxidising catalytic converter;
❍exhaust gas recirculation system (E.G.R.).
❍diesel particulate filter (DPF) (for versions/markets,
where provided).
The catalytic converter reaches high temper-
atures during operation. Do not park on
grass, dry leaves, pine needles or other flam-
mable material: fire risk.
DIESEL PARTICULATE FILTER (DPF)
(for versions/markets, where provided)
The Diesel Particulate Filter is a mechanical filter, inte-
gral with the exhaust system, that physically traps par-
ticulate present in the exhaust gases of Diesel engines. The
diesel particular filter has been adopted to almost totally
eliminate particulate in compliance with current / future
regulations. During normal use of the car, the engine man-
agement control unit records a set of data (e.g.: travel time,
type of route, temperatures reached, etc.) and it will then
calculate the amount of particulate trapped by the filter.
Since this filter physically traps particulate, it should be
regenerated (cleaned) at regular intervals by burning car-
bon particles. The regeneration procedure is controlled au-
tomatically by the engine management control unit ac-
cording to the filter conditions and car use conditions. Dur-
ing the regeneration procedure, the following situations
may occur: limited increase of idle speed, activation of
electric fan, limited increase of smoke, high temperatures
at the exhaust. These are not faults; they do not impair
car performance or damage the environment. If the ded-
icated warning message is displayed, refer to the section
“Instrument panel warning lights” in this chapter.
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 141

142GETTING TO KNOW YOUR CAR
page intentionally left blank
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 142

SAFETY143
2
Seat belts ................................................................. 144
S.B.R. SYSTEM....................................................... 145
Pretensioners .......................................................... 146
Carrying children in safety ...................................... 150
Preparation for Isofix child seat ............................... 155
Front airbags.......................................................... 158
Side Air bags (Side bag - Window bag) ................... 161
143-164 Delta 4ed gb 12-02-2010 10:20 Pagina 143
