2010 Lancia Delta headlights

GETTING TO KNOW YOUR CAR5
1
Instrument panel........................................ 6
Dashboard and on-board instruments.......... 7
Display ....................................................... 20
Menu Items ................................................. 24
Trip computer ............................................ 34
Symbols..................................................... 36
Lancia code system..................................... 37
Keys............................................................ 38
Alarm........................................................ 41
Ignition device............................................ 44
Seats .......................................................... 45
Head restraints ............................................ 48
Steering wheel............................................ 49
Rearview mirrors ........................................ 49
Climatic comfort ......................................... 51
Manual climate control system .................... 52
Two-zone automatic climate control system 54
External lights............................................ 60
Window washing ........................................ 63
Cruise Control ............................................. 66
Courtesy lights............................................ 68
Controls...................................................... 70Fuel cut-off system...................................... 73
Interior fittings........................................... 74
Sunroof....................................................... 79
Doors......................................................... 82
Electric windows........................................ 85
Luggage compartment................................. 89
Engine bonnet ............................................ 97
Roof rack/ski rack...................................... 99
Headlights................................................... 100
DST system ................................................ 102
SPORT function ......................................... 102
Reactive Suspension System ........................ 104
Driving Advisor........................................... 106
Advanced ESP system................................. 110
EOBD system ............................................. 115
“Dualdrive” electric power steering system . 115
T.P.M.S. system........................................... 117
Parking sensors........................................... 120
Magic Parking............................................. 123
Accessories purchased by the owner............. 137
Refuelling.................................................... 138
Protecting the environment ......................... 141
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 5

20GETTING TO KNOW YOUR CAR
Daylight lights/dipped beam headlights
(green)
This warning light comes on when the daytime
lights or dipped beam headlights are turned on.
Follow me home
This warning light comes on when this device is activat-
ed (see “Follow me home” in chapter “1”).
The display will show a dedicated message.
3
Main beam headlights (blue)
This warning light comes on when the main
beam headlights are turned on.
1
Cruise control system
(green)
(for versions/markets, where provided)
This warning light comes on when the ignition
key is turned to MAR, but it should go off after a few sec-
onds. The warning light is lit up on the display by rotat-
ing the Cruise Control selector wheel to ON.
The display will show a dedicated message.
Ü
DISPLAY
The car can be equipped with a multifunctional/ recon-
figurable multifunctional display which, according to the
settings carried out, will show useful information when
driving.
MULTIFUNCTIONAL DISPLAY “STANDARD”
SCREEN fig. 4
The standard screen shows the following information:
A. Date
B. Possible activation of Dualdrive electric power steering
C. Sport driving mode indication (for versions/markets,
where provided)
D. Time
E. Odometer (distance travelled in kilometres/miles)
F. Possible presence of ice on road
G. Outside temperature
H. Scheduled servicing deadline
I. Headlight alignment position (with dipped beam head-
lights on only).
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 20

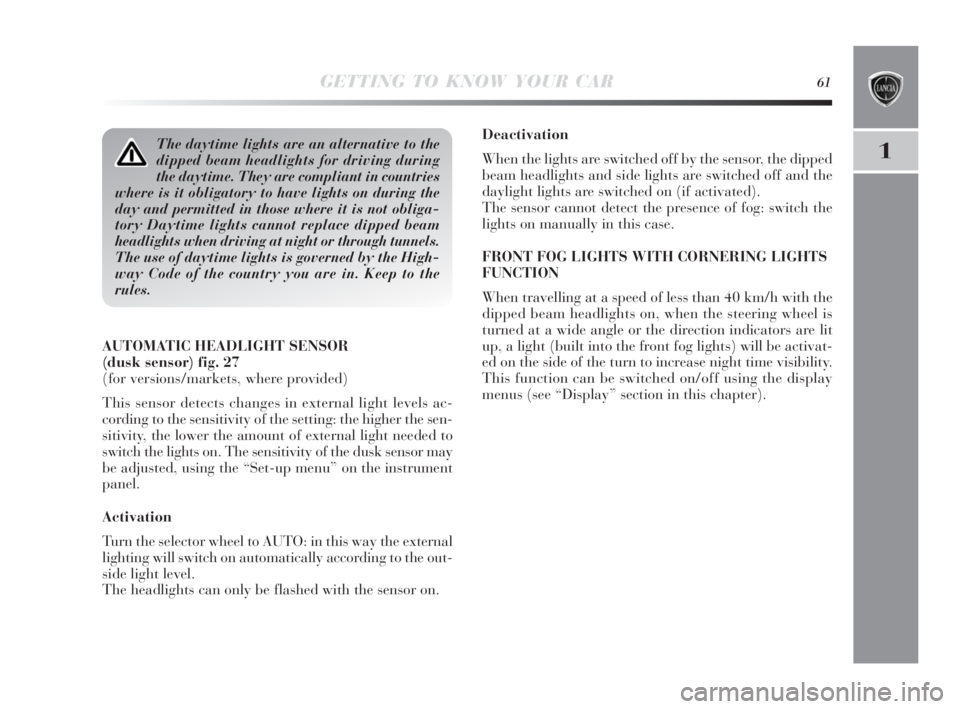

GETTING TO KNOW YOUR CAR61
1
Deactivation
When the lights are switched off by the sensor, the dipped
beam headlights and side lights are switched off and the
daylight lights are switched on (if activated).
The sensor cannot detect the presence of fog: switch the
lights on manually in this case.
FRONT FOG LIGHTS WITH CORNERING LIGHTS
FUNCTION
When travelling at a speed of less than 40 km/h with the
dipped beam headlights on, when the steering wheel is
turned at a wide angle or the direction indicators are lit
up, a light (built into the front fog lights) will be activat-
ed on the side of the turn to increase night time visibility.
This function can be switched on/off using the display
menus (see “Display” section in this chapter). AUTOMATIC HEADLIGHT SENSOR
(dusk sensor) fig. 27
(for versions/markets, where provided)
This sensor detects changes in external light levels ac-
cording to the sensitivity of the setting: the higher the sen-
sitivity, the lower the amount of external light needed to
switch the lights on. The sensitivity of the dusk sensor may
be adjusted, using the “Set-up menu” on the instrument
panel.
Activation
Turn the selector wheel to AUTO: in this way the external
lighting will switch on automatically according to the out-
side light level.
The headlights can only be flashed with the sensor on.The daytime lights are an alternative to the
dipped beam headlights for driving during
the daytime. They are compliant in countries
where is it obligatory to have lights on during the
day and permitted in those where it is not obliga-
tory Daytime lights cannot replace dipped beam
headlights when driving at night or through tunnels.
The use of daytime lights is governed by the High-
way Code of the country you are in. Keep to the
rules.
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 61

62GETTING TO KNOW YOUR CAR
DIPPED BEAM HEADLIGHTS/SIDE LIGHTS
With the ignition key turned to MAR, turn the selector
wheel to 2. If dipped beam headlights are activated, the
daytime lights are switched off and the side lights, num-
ber plate light and dipped beam headlights are lit up. The
3warning light will come on in the instrument panel.
When the ignition key is turned to STOP or removed, and
the selector wheel is turned from
Oto2, the number plate
light and side lights are lit. The 3warning light will
come on in the instrument panel.
Parking function
With the side lights on and the ignition key turned to STOP
or removed, it is possible to light up one side of the vehi-
cle by moving the lighting lever down (left-hand side) or
up (right-hand side). In this case warning light
3on the
instrument panel will go out.
MAIN BEAM HEADLIGHTS
With the selector wheel in position 2, push the lever for-
ward toward the dashboard (stable position). The 1warn-
ing light will come on in the instrument panel. They are
switched off by pulling the lever towards the steering wheel.
Flashing the headlights
You can flash the headlights by pulling the lever towards
the wheel (unstable position). The
1warning light on the
instrument panel will come on.DIRECTION INDICATORS Fig. 28
Push the lever to (stable) position:
– up (position
a): right-hand indicator ON;
– down (position
b): left-hand indicator ON.
Warning light
¥orÎwill blink on the instrument pan-
el.. The direction indicators are switched off automatically
when the steering wheel is straightened.
fig. 28L0E0020m
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 62

GETTING TO KNOW YOUR CAR69
1
Environmental lights are provided as part of the cour-
tesy light; these illuminate the vehicle when the dipped
beam headlights or side lights are switched on.
IMPORTANT The courtesy light in fig. 32, for some ver-
sions, is in central rear position (electric sun roof version).
IMPORTANT Before getting out of the car, make sure that
both switches are in the central position: lights off with
doors closed in order to avoid draining the battery. In any
case, if the switch is left inadvertently in the On position,
the lights will turn off automatically 15 minutes after turn-
ing the engine off.
Courtesy light timing
To facilitate getting in/out of the car at night or with poor
lighting, 2 different timed switching on modes have been
provided.
Light timing when getting into the car
The courtesy lights will turn on as follows:
❍for about 10 seconds when the front doors are un-
locked;
❍for about 3 minutes when one of the side doors is
opened;
❍for about 10 seconds when the doors are closed.
Timing is interrupted when the ignition key is turned to
MAR.Light timing when getting out of the car
After removing the key from the ignition switch, the cour-
tesy lights will turn on as follows:
❍within 2 minutes of turning the engine off, for about
10 seconds;
❍for about 3 minutes when one of the side doors is
opened;
❍for about 10 seconds when one of the doors is closed.
❍in the event of the fuel cut-off system cutting in, the
lights remain on for approximately 15 minutes, after
which they go out automatically.
The lights go out immediately when the doors are locked
(unless the fuel cut-off system has cut in.).
fig. 33L0E0025m
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 69

72GETTING TO KNOW YOUR CAR
FRONT FOG LIGHTS fig. 37
Press button A to activate the front fog lights. When the
front fog lights are activated the
5warning light is lit
up on the instrument panel.
The front fog lights can be activated when the dipped
beam headlights are on.
REAR FOG LIGHTS fig. 37
When the dipped beam headlights are on, these can be ac-
tivated by pressing button D.
With the lights on, the
4warning light in the instrument
panel will come on at the same time. Press the button again
to turn the lights off.
fig. 38L0E0030m
AFS ADAPTIVE LIGHTS
(Adaptive Xenon Lights) fig. 38
The adaptive lights (see “Headlights” in this chapter) are
activated automatically when the vehicle is started. In this
situation the LED (amber) on button A will remain off.
Press button A to deactivate the adaptive lights (if acti-
vated); the LED on button A will light up. To reactivate
the adaptive lights: press button A once again (LED on
button is off).
In the event of a system failure, this is indicated on the in-
strument panel by the flashing of warning light
for the
fsymbol appearing on the display along with a dedicat-
ed message (for versions/markets, where provided).
fig. 37L0E0029m
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 72

100GETTING TO KNOW YOUR CAR
HEADLIGHTS
BEAM DIRECTION
The correct orientation of the headlights is important for
the comfort and safety of not only the driver but all road
users. It is also a specific rule of the highway code.
The headlights must be correctly aligned to ensure the best
visibility conditions for all drivers.
Contact a Lancia Dealership to have the headlights prop-
erly adjusted.
Check beam alignment every time the load or its distrib-
ution changes.
BEAM ADJUSTMENT fig. 67
The car is fitted with an electric headlight alignment sys-
tem. This system is operational with the ignition key to
MAR and the dipped beam headlights on.
The car will tilt backwards when it is loaded, raising the
light beam.
In this case, it is necessary to adjust the beams using but-
tons A and B.
The display provides a visual indication of the position
during adjustment.Correct position depending on load
Position 0 - one or two passengers in the front seats.
Position 1 - five passengers.
Position 2 - five passengers + load in the boot.
Position 3 - driver + maximum permitted load in the lug-
gage compartment.
FRONT FOG LIGHT ALIGNMENT
(for versions/markets, where provided)
Contact a Lancia Dealership to have the front fog lights
checked and properly adjusted.
fig. 67L0E0054m
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 100

GETTING TO KNOW YOUR CAR101
1
HEADLIGHT ALIGNMENT ADJUSTMENT
ABROAD
The factory adjustment of the dipped beam headlights de-
pends on the country where the car is purchased. When
you travel in countries with a different driving direction,
it is necessary to cover certain areas of the headlight ac-
cording to the provisions of the Highway Code of the coun-
try you are travelling in to avoid blinding the drivers trav-
elling in the opposite direction.
ADAPTIVE LIGHTS (AFS - Adaptive Xenon Light)
This is a system linked to the Xenon headlights, which
continuously and automatically adjusts the main light
beam and adapts it to the driving conditions when cor-
nering. The system directs the light beam to improve the
illumination of the road, taking into account the vehicle
speed, the cornering angle and the speed at which the
steering wheel is turned.Activating/deactivating the system fig. 68
The adaptive lights are activated automatically when the
vehicle is started. In this situation the LED (amber) on
button A will remain off.
Press button A to deactivate the adaptive lights (if acti-
vated); the LED on button A will light up. To reactivate
the adaptive lights: press button A once again (LED on
button is off).
In the event of a system failure, an indication is provided
on the instrument panel by the flashing of warning light
for the symbol.
fappearing on the display along with
a dedicated message (for versions/markets, where pro-
vided).
fig. 68L0E0055m
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 101
