8GETTING TO KNOW YOUR CAR

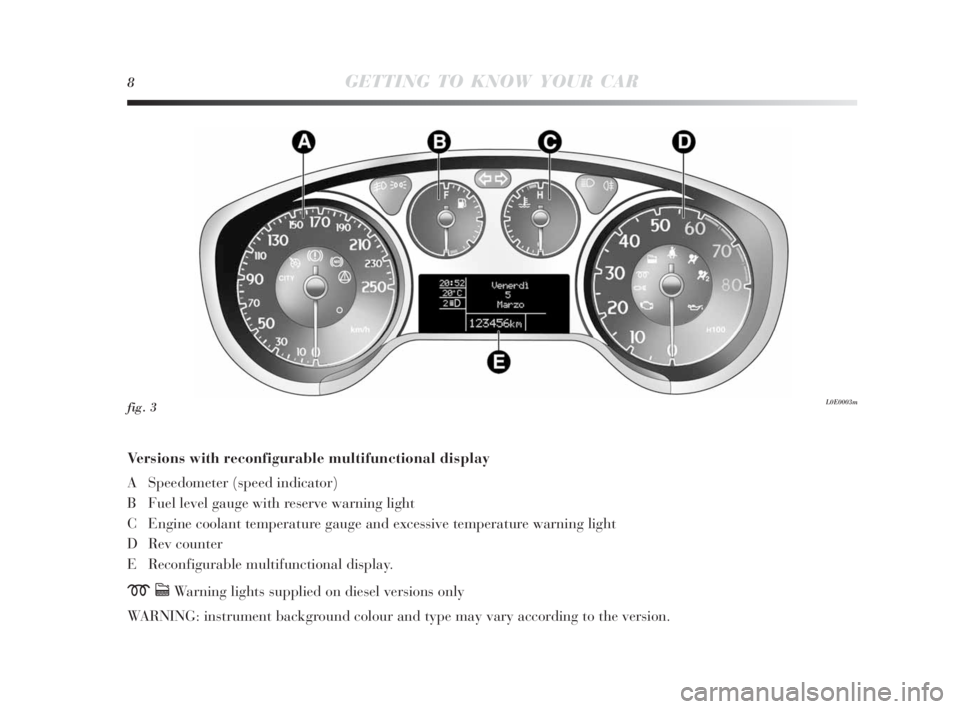

Versions with reconfigurable multifunctional display
A Speedometer (speed indicator)
B Fuel level gauge with reserve warning light
C Engine coolant temperature gauge and excessive temperature warning light
D Rev counter
E Reconfigurable multifunctional display.
mcWarning lights supplied on diesel versions only
WARNING: instrument background colour and type may vary according to the version.
fig. 3L0E0003m
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 8

GETTING TO KNOW YOUR CAR9
1
SPEEDOMETER (SPEED INDICATOR) fig. 2-3
Indicator A shows the speed of the car.
REV. COUNTER fig. 2-3
The indicator D shows the engine revs.
FUEL LEVEL GAUGE fig. 2-3
Indicator B shows the amount of fuel in the tank.
The
Kwarning light will come on (together with a mes-
sage on the display) to indicate there are between 5 and
7 litres of fuel remaining.
Do not travel with the tank nearly empty: lack of fuel sup-
ply could damage the converter.
ENGINE COOLANT TEMPERATURE GAUGE
fig. 2-3
Gauge C shows the temperature of the engine coolant and
indicates when the coolant temperature exceeds 50°C. The
first reference remains on constantly to indicate the sys-
tem is operating correctly. The
uwarning light comes
on (together with a message on the display) to indicate
that the temperature of the engine coolant has increased
significantly. In this event, stop the engine and go to a Lan-
cia Dealership.INSTRUMENT PANEL WARNING LIGHTS
General warnings
The lighting up of a warning light is associated with a spe-
cific message and/or buzzer when applicable. These in-
dications are brief and precautionary and as such must
not be considered as exhaustive and/or alternative to the
information contained in the Owner’s Handbook, which
you are recommended to read carefully in all cases. Al-
ways refer to the information in this chapter in the event
of a failure indication.
Low brake fluid level (red)
This warning light comes on when the ignition
key is turned to MAR, but it should go out af-
ter a few seconds. The warning light comes on
when the level of the brake fluid in the reservoir falls be-
low the minimum level due to possible leaks in the circuit.
The display will show a dedicated message.
Handbrake on (red)
This warning light comes on when the ignition key is
turned to MAR, but it should go off after a few seconds.
The warning light turns on when the handbrake is on. If
the car is moving a buzzer is also triggered.
IMPORTANT If the warning light comes on with the ve-
hicle in motion, check that the handbrake is not engaged.
x
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 9

10GETTING TO KNOW YOUR CAR
If the warning light xturns on when the car
is travelling (together with the message on the
display on certain versions) stop the engine
immediately and contact a Lancia Dealership.
Brake pad wear (amber)
The warning light (or symbol on the display)
lights up when the front brake pads show signs
of wear; under these circumstances have them re-
placed as soon as possible. The display will show the ded-
icated message.
d
Airbag failure (red)
This warning light comes on when the ignition
key is turned to MAR, but it should go off af-
ter a few seconds. The warning light stays on,
glowing steadily, if there is a failure in the air bag sys-
tem. The display will show a dedicated message.
¬
If, when the key is turned to MAR, the ¬
warning light does not come on or if it stays
on with the vehicle in motion (together with
the message on the display) there could be a fail-
ure in the safety systems; under these circumstances
the air bags or pretensioners may not be triggered
in the event of an impact or, more rarely, they could
be triggered accidentally. Contact Lancia Dealer-
ship to have the system checked immediately.
EBD failure (red)
If warning lightsxand are lit up at the same
time with the engine running, this indicates an
EBD system failure or that the system is not
available. Early locking of the rear wheels may
occur in the event of violent braking, causing
the car to swerve.
Drive very carefully to a Lancia Dealership to have
the system inspected. The display will show a dedicated
message.
x
>
WARNING Because the vehicle is equipped with a wear
detection system only for the front brake pads, when these
are replaced the rear brake pads should also be checked
for wear.
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 10

GETTING TO KNOW YOUR CAR11
1The failure of the warning light ¬is indi-
cated by it flashing longer than the expected
4 seconds
“, thus signalling that the front
passenger airbag is deactivated. In addition, the
airbag system automatically disables the airbag on
the passenger’s side (both front and side airbags).
In this case, the warning light
¬may not indicate
a fault in the system. Contact a Lancia Dealership
immediately to have the system checked.
Passenger-side air bag/side bags
deactivated (amber)
The
“warning light comes on when the front
passenger’s airbag and side bag are disabled. With
front passenger’s airbag on, when the ignition key is turned
to MAR the
“warning light comes on steadily for about
4 seconds, flashes for another 4 seconds and then should
go out.
“
The failure of the “warning light is indi-
cated by the
¬it coming on. In addition, the
airbag system automatically disables the
airbag on the passenger’s side (both front and side
airbags, for versions/markets, where provided).
Contact a Lancia Dealership immediately to have
the system checked.
Seat belts unfastened (red)
This warning light lights up when the car is not
moving and the driver’s seat belt is not correctly
fastened. The warning light will flash and a
buzzer will sound if the vehicle is in motion and the front
seat belts are not correctly fastened.
The S.B.R. (Seat Belt Reminder) system buzzer can only
be permanently switched off by a Lancia Dealership.
The system can be reactivated using the Set-up Menu.
<
Low battery charge (red)
The warning light (or symbol in the display)
comes on when the ignition key is turned to
MAR, but it should go out as soon as the engine
has started (with the engine running at idle speed a brief
delay before going out is acceptable).
If the warning light stays on, glowing steadily or flash-
ing: contact a Lancia Dealership immediately.
w
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 11

12GETTING TO KNOW YOUR CAR

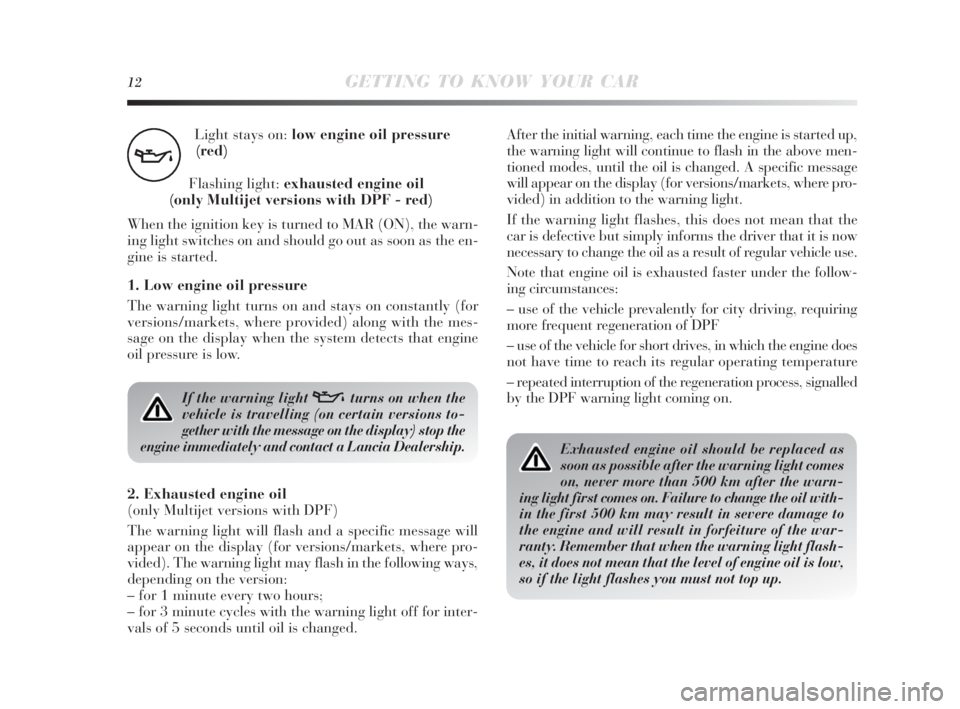

Light stays on: low engine oil pressure
(red)
Flashing light: exhausted engine oil
(only Multijet versions with DPF - red)
When the ignition key is turned to MAR (ON), the warn-
ing light switches on and should go out as soon as the en-
gine is started.
1. Low engine oil pressure
The warning light turns on and stays on constantly (for
versions/markets, where provided) along with the mes-
sage on the display when the system detects that engine
oil pressure is low.
v
Exhausted engine oil should be replaced as
soon as possible after the warning light comes
on, never more than 500 km after the warn-
ing light first comes on. Failure to change the oil with-
in the first 500 km may result in severe damage to
the engine and will result in forfeiture of the war-
ranty. Remember that when the warning light flash-
es, it does not mean that the level of engine oil is low,
so if the light flashes you must not top up.
If the warning light vturns on when the
vehicle is travelling (on certain versions to-
gether with the message on the display) stop the
engine immediately and contact a Lancia Dealership.
2. Exhausted engine oil
(only Multijet versions with DPF)
The warning light will flash and a specific message will
appear on the display (for versions/markets, where pro-
vided). The warning light may flash in the following ways,
depending on the version:
– for 1 minute every two hours;
– for 3 minute cycles with the warning light off for inter-
vals of 5 seconds until oil is changed.After the initial warning, each time the engine is started up,
the warning light will continue to flash in the above men-
tioned modes, until the oil is changed. A specific message
will appear on the display (for versions/markets, where pro-
vided) in addition to the warning light.
If the warning light flashes, this does not mean that the
car is defective but simply informs the driver that it is now
necessary to change the oil as a result of regular vehicle use.
Note that engine oil is exhausted faster under the follow-
ing circumstances:
– use of the vehicle prevalently for city driving, requiring
more frequent regeneration of DPF
– use of the vehicle for short drives, in which the engine does
not have time to reach its regular operating temperature
– repeated interruption of the regeneration process, signalled
by the DPF warning light coming on.
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 12

GETTING TO KNOW YOUR CAR13
1
“Dualdrive” electric power steering
failure (red)
This warning light comes on when the ignition
key is turned to MAR, but it should go off after a
few seconds.
If the warning light (or symbol on the display) remains on,
you will not have steering assistance and the effort required
to operate the steering wheel will be increased; steering is,
however, possible. In this case contact a Lancia Dealership.
The display will show a dedicated message.
g
“Dualdrive” electric steering engagement
The warning light comes on (or the word
“CITY” appears on the display) when the
“Dual drive” electric power steering system is ac-
tivated by pressing the relevant control button. Pressing
the button again causes the “CITY” indication to go off.
CITY
Excessive engine coolant temperature
(red)
This warning light comes on when the ignition
key is turned to MAR, but it should go out after
a few seconds. The warning light turns on when the en-
gine is overheated. If the warning light comes on, pro-
ceed as follows:
❍during normal travel: stop the car, stop the engine and
check that the water level in the reservoir is not un-
der the MIN line.
u
If it is, wait for a few minutes for the engine to cool down,
then slowly and carefully open the cap, top-up with coolant
and check that the level is between the MIN and MAX ref-
erences on the reservoir. Also check for leaks. Should the
warning light turn on again at the next start-up, contact
a Lancia Dealership.
❍If the vehicle is used under harsh conditions (e.g. tow-
ing of trailers uphill or fully loaded vehicle): slow down
and stop the car if the warning light stays on. Stop
for 2 or 3 minutes with the engine running and slight-
ly accelerated to favour better coolant circulation. Then
stop the engine. Check correct liquid level as described
above.
IMPORTANT Over demanding routes, it is advisable to
keep the engine on and slightly accelerated for a few min-
utes before switching it off.
The display will show a dedicated message.
Doors not closed correctly (red)
This warning light (or symbol on the display)
lights up when one or more doors are not closed
correctly. A buzzer will sound when doors are
open and the car is moving. On the multifunctional dis-
play, the warning light also comes on when the bonnet
and/or tailgate are not closed correctly. The display will
show a dedicated message.
´
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 13

14GETTING TO KNOW YOUR CAR
General failure indication (amber)
Fuel cut-off initiated
This warning light (or symbol on the display)
comes on when the fuel cut-off system cuts in.
The display will show a dedicated message.
Engine oil pressure sensor failure
This warning light (or symbol on the display) comes on
when a failure is detected in the engine oil pressure sen-
sor. The display will show a dedicated message.
Dusk sensor failure
This warning light (or symbol on the display) comes on
when a failure is detected in the dusk sensor.
Speed limit exceeded
This warning light (amber), or symbol on the display
(red), comes on when the preset speed limit is exceeded
(for Arabic countries the speed limit is set at 120 km/h).
The display will show a dedicated message.
Rain sensor failure
(for versions/markets, where provided)
This warning light (or symbol on the display) comes on
when a fault is detected in the rain sensor.
The display will show a dedicated message.
è
Parking sensor failure
(for versions/markets, where provided)
This warning light (or symbol on the display) comes on
when a fault is detected in the parking sensors.
The display will show a dedicated message.
Tyre pressure monitoring system failure
(for versions/markets, where provided)
This warning light (or symbol on the display) comes on
when a failure is detected in the T.P.M.S. system (for ver-
sions/markets, where provided).
Should one or more wheels be fitted without sensors, the
instrument panel warning light will come on and stay on
until initial conditions are restored.
The display will show a dedicated message.
NOTE If one of the above-mentioned faults occurs,
contact a Lancia Dealership as soon as possible.
AFS system failure
This warning light (or symbol on the display) comes on
when a failure is detected in the AFS system (see “Head-
lights” paragraph in this chapter). The display will show
a dedicated message.
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 14

GETTING TO KNOW YOUR CAR15
1
Cleaning DPF (particulate filter) in
progress (only Multijet versions with
DPF - amber)
When the ignition key is turned to MAR (ON),
the warning light switches on but it must switch off after
a few seconds. The warning light comes on constantly to
notify the driver that the DPF system needs to eliminate
captured pollutants (particulate) by the regeneration
process. The warning light does not come on during every
DPF regeneration, but only when driving conditions re-
quire notification of the driver. To switch the warning light
off, the car must stay in motion until regeneration has been
completed. The process normally takes about 15 minutes.
The optimum conditions to end the process are achieved
by keeping the car in motion up to 60km/h with an en-
gine speed higher than 2,000 rpm. This light coming on
is not a car defect and therefore the car does not need to
go to the workshop. A specific message will appear on
the display when the warning light comes on (for ver-
sions/markets, where provided).
h
Fuel reserve (amber)
This warning light comes on when the ignition
key is turned to MAR, but it should go off af-
ter a few seconds. The warning light comes on
when about 5 to 7 litres of fuel are left in the tank.
The display will show a dedicated message.
IMPORTANT The warning light will blink to indicate a
system failure. Go to a Lancia Dealership to have the sys-
tem checked.
K
EOBD/injection system failure (amber)
Under normal conditions, the warning light comes
on when the ignition key is turned to MAR, but
should go off as soon as the engine is started.
If the warning light remains on or comes on whilst driving,
this means that the injection system is not working prop-
erly; in particular, if the warning light comes on constantly,
U
Steering corrector not available
This warning light (or symbol on the display) comes on
when the steering corrector is not available. The display
will show a dedicated message.Always drive at a speed appropriate to the traf-
fic conditions, the weather and speed limits. The
engine may be turned off while the DPF light is
on; however, repeated interruption of the regeneration
process may result in premature exhaustion of engine oil.
For this reason it is always advisable to wait for the li-
ght to go off before turning off the engine, following the
instructions appearing above. It is not advisable to com-
plete DPF regeneration with the vehicle stationary.
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 15
