FEATURES OF YOUR HYUNDAI
53
!WARNING:
o Before installing child restraints , always refer to “Child Restraint System” section to ensure correctinstallation and that occupant pro- tection is maximized.
o Make sure that the occupant does not have any body parts (head,arms & legs) protruding outside the restraining system. If an inflat-ing airbag was to strike an infant or child, it may cause serious in- jury.
o Ensure the opening for the Cur- tain Airbag System remains unob-structed at all times, so that theairbags can inflate properly if needed.
o The built in coat hooks should only be used for light weight cloth-ing, ensure that pockets are free of any heavy or sharp objects. Whenusing coat hooks, do not hang clothes on coat hangers.
Important Safety Notes for Cur- tain Airbag Systems Following are a number of safety points concerning this system which shouldalways be observed to ensure risk of injury is reduced in an accident.
B990C01JM-GAT Curtain Airbag (If Installed)
Curtain airbags are located along both sides of the roof rails above the front and rear doors.They are designed to help protect the heads of the front seat occupants and the rear outboard seat occupants incertain side impact collisions. The curtain airbags are designed to deploy only during certain side impact collisions, depending on the crash se- verity, angle, speed and impact. Thecurtain airbags are not designed to deploy in all side impact situations, collisions from the front or rear of thevehicle or in most rollover situations. B990C01MC
Curtain Airbag

1FEATURES OF YOUR HYUNDAI
54
o The space between the occupant
and the curtain airbag must never be occupied by children, passen-gers or pets. Occupants should never lean out or have any parts of their body protruding from thewindow while the engine is run- ning.
o Do not move the sun visor out to cover the side window if there isan item attached to it such as garage door remote control, pens,air fresheners or the like. These objects may cause injury if the Curtain Airbag is deployed.
o Do not install sun blinds to the rear doors, these must not ob-struct or impair the airbag in anyway.
o Do not install any accessories or
children’s toys in the CurtainAirbag deployment zones, as this may impair the operation of the system or throw parts of them intothe vehicle cabin causing injury to occupants if the system is de- ployed. B240C01NF-GAT SRS Care The SRS is virtually maintenance-free and so there are no parts you can safelyservice by yourself. If the SRS SRI (Service Reminder Indicator) does not come on, or continuously remains on,have your vehicle immediately in- spected by your Hyundai dealer. Any work on the SRS system, such as removing, installing, repairing, or any work on the steering wheel must beperformed by a qualified Hyundai tech- nician. Improper handling of the SRS system may result in serious personalinjury.o To maintain the integrity of the
Curtain Airbag system, any work, removal or installation of the airbag and associated compo- nents (such as roof lining and sidetrims) should only be performed by an authorized Hyundai dealer.

1
FEATURES OF YOUR HYUNDAI
55
o Modification to SRS components
or wiring, including the addition of any kind of badges to the pad covers or modifications to the bodystructure, can adversely affect SRS performance and lead to possible injury.
o For cleaning the airbag pad cov- ers, use only a soft, dry cloth orone which has been moistenedwith plain water. Solvents or clean- ers could adversely affect the airbag covers and proper deploy-ment of the system.
o No objects should be placed over
or near the airbag modules on thesteering wheel, instrument panel, and the front passenger's panel above the glove box, because anysuch object could cause harm if the vehicle is in a crash severe enough to cause the airbags toinflate.
o If the airbags inflate, they must be
replaced by an authorized Hyundaidealer.o Do not tamper with or disconnectSRS wiring, or other components of the SRS system. Doing so could result in injury, due to accidental firing of the airbags or by render-ing the SRS inoperative.
o If components of the airbag sys-
tem must be discarded, or if thevehicle must be scrapped, certain safety precautions must be ob- served. Your Hyundai dealerknows these precautions and can give you the necessary informa- tion. Failure to follow these pre-cautions and procedures could increase the risk of personal in- jury.
o If you sell your vehicle, make cer- tain that this manual is transferredto the new owner.
o If your car was flooded and has soaked carpeting or there is wateron the floor, do not start engine;have the car towed to authorized Hyundai dealer.
!WARNING:
o Extreme Hazard! Do not use a rear- ward facing child restraint on a seat protected by an airbag in front of it!
o Do not install a child restraint sys- tem in the front passenger seatposition. A child restraint systemmust never be placed in the front seat. The infant or child could be severely injured by an airbag de-ployment in case of an accident. B240C01HP

1FEATURES OF YOUR HYUNDAI
56

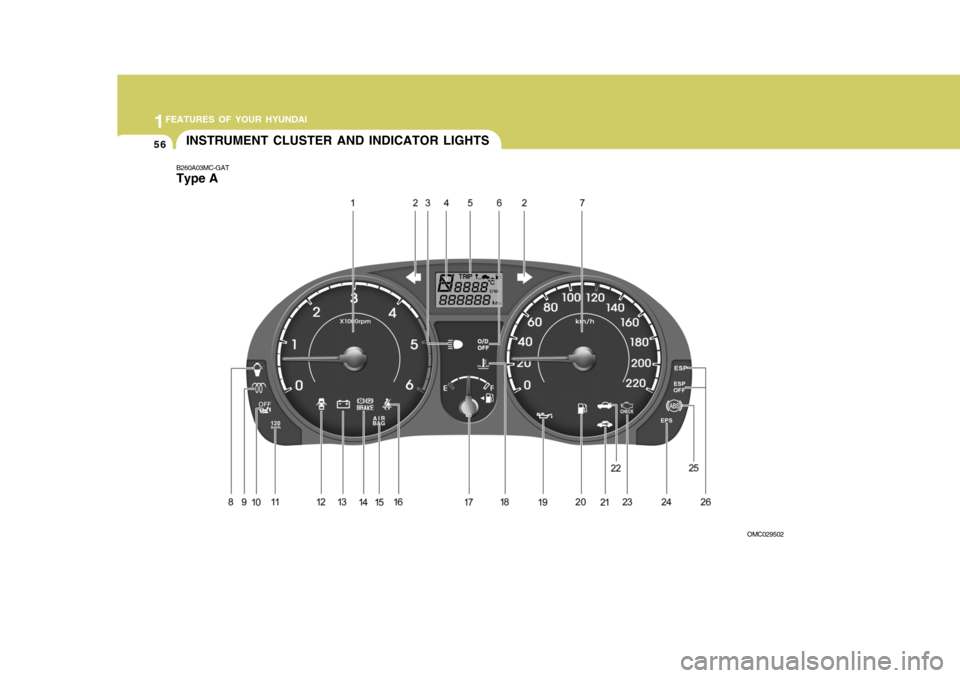

B260A03MC-GAT Type AINSTRUMENT CLUSTER AND INDICATOR LIGHTS
OMC029502

1
FEATURES OF YOUR HYUNDAI
57
1. Tachometer
2. Turn Signal Indicator Lights
3. High Beam Indicator Light
4. Automatic Transaxle Position Indicator Light (If Installed)
5. Odometer/Trip Odometer/Trip Computer (If Installed)
6. Overdrive Off Indicator Light (Automatic Transaxle only)
7. Speedometer
8. Fuel Filter Warning Light (Diesel only)
9. Diesel Pre-heat Indicator Light (Diesel only)
10. Passenger's Front Airbag OFF Indicator Light (If Installed)
11. Over Speed Warning Light (If Installed)
12. Door Ajar Warning Light
13. Charging System Warning Light 14. Parking Brake/Low Brake Fluid Level Warning Light
15. SRS (Airbag) Warning Light (If Installed)
16. Seat Belt Warning Light
17. Fuel Gauge
18. Engine Coolant Temperature Warning Light
19. Low Oil Pressure Warning Light
20. Low Fuel Warning Light
21. Immobilizer Warning Light (If Installed)
22. Trunk Lid/Tail Gate Open Warning Light
23. Malfunction Indicator Light (MIL) (If Installed)
24. Electronic Power Steering Warning Light (If Installed)
25. ABS Service Reminder Indicator Light (If Installed)
26. Electronic Stability Program (ESP) Indicator Lights
(If Installed)

1FEATURES OF YOUR HYUNDAI
58

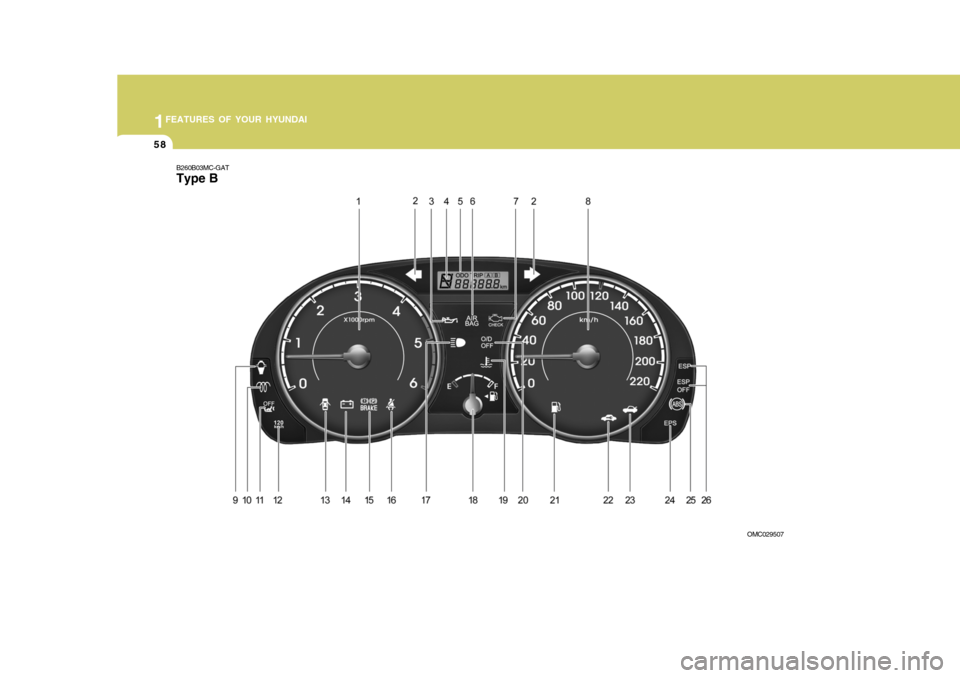

B260B03MC-GAT Type B
OMC029507

1
FEATURES OF YOUR HYUNDAI
59
1. Tachometer
2. Turn Signal Indicator Lights
3. Low Oil Pressure Warning Light
4. Automatic Transaxle Position Indicator Light (If Installed)
5. Odometer/Trip Odometer
6. SRS (Airbag) Warning Light (If Installed)
7. Malfunction Indicator Light (MIL) (If Installed)
8. Speedometer
9. Fuel Filter Warning Light (Diesel only)
10. Diesel Pre-heat Indicator Light (Diesel only)
11. Passenger's Front Airbag OFF Indicator Light (If Installed)
12. Over Speed Warning Light (If Installed)
13. Door Ajar Warning Light 14. Charging System Warning Light
15. Parking Brake/Low Brake Fluid Level Warning Light
16. Seat Belt Warning Light
17. High Beam Indicator Light
18. Fuel Gauge
19. Engine Coolant Temperature Warning Light
20. Overdrive Off Indicator Light (Automatic Transaxle only)
21. Low Fuel Warning Light
22. Immobilizer Warning Light (If Installed)
23. Trunk Lid/Tail Gate Open Warning Light
24. Electronic Power Steering Warning Light (If Installed)
25. ABS Service Reminder Indicator Light (If Installed)
26. Electronic Stability Program (ESP) Indicator Lights
(If Installed)

1FEATURES OF YOUR HYUNDAI
60WARNING AND INDICATOR LIGHTS
B260B01JM-AAT SRS (Airbag) Service Reminder Indicator (SRI)
(If Installed)
The SRS service reminder indicator (SRI) comes on for about 6 seconds after the key is turned to the "ON"position or after the engine is started, after which it will go out. This light also comes on when the SRS is not working properly. If the SRI does not come on, or continuously remainson after operating for about 6 seconds when you turned the ignition key to the "ON" position or started the engine, orif it comes on while driving, have the SRS inspected by an authorized Hyundai dealer.
CAUTION:
If there is a malfunction of the passenger's front airbag ON/OFF switch, the passenger's front airbagOFF indicator will not illuminate and the passenger's front airbag will in- flate in frontal impact crashes even ifthe passenger's front airbag ON/OFF switch is set to the "OFF" position. If the passenger's front airbag OFFindicator will not illuminate when the passenger's front airbag ON/OFF switch is set to the "OFF" position,have an authorized Hyundai dealer inspect the passenger's front airbag ON/OFF switch and the SRS airbagsystem as soon as possible.!
B230T02NF-GAT
Passenger's Front Airbag
OFF Indicator Light
(If Installed)
The passenger's front airbag OFF indi- cator illuminates for about 4 seconds after the ignition key is turned to the"ON" position or after the engine is started, and then it will go off in 3 seconds.The passenger's front airbag OFF indi- cator also comes on when the passenger's front airbag ON/OFF switchis set to "OFF" position and turns off when the passenger's front airbag ON/ OFF switch is set to "ON" position.
